4.
INSTALLING PSD-3000-P PORTABLE
STORAGE DEVICE
4.1. Product Specifications
Product Specifications
Suitable for 2.5"SATA HDD
Support Hot Swap
Dimension: 220(L) X 165.6(W) X 55.2(H) mm
Important note: To connect 1 eSATA cable to PSD-3000-P, the SMS version MUST be on 9.0build107
or higher.
4.2. HDD Lock
Release the triangle lock by using the key (Rotate 90 degrees Clockwise).

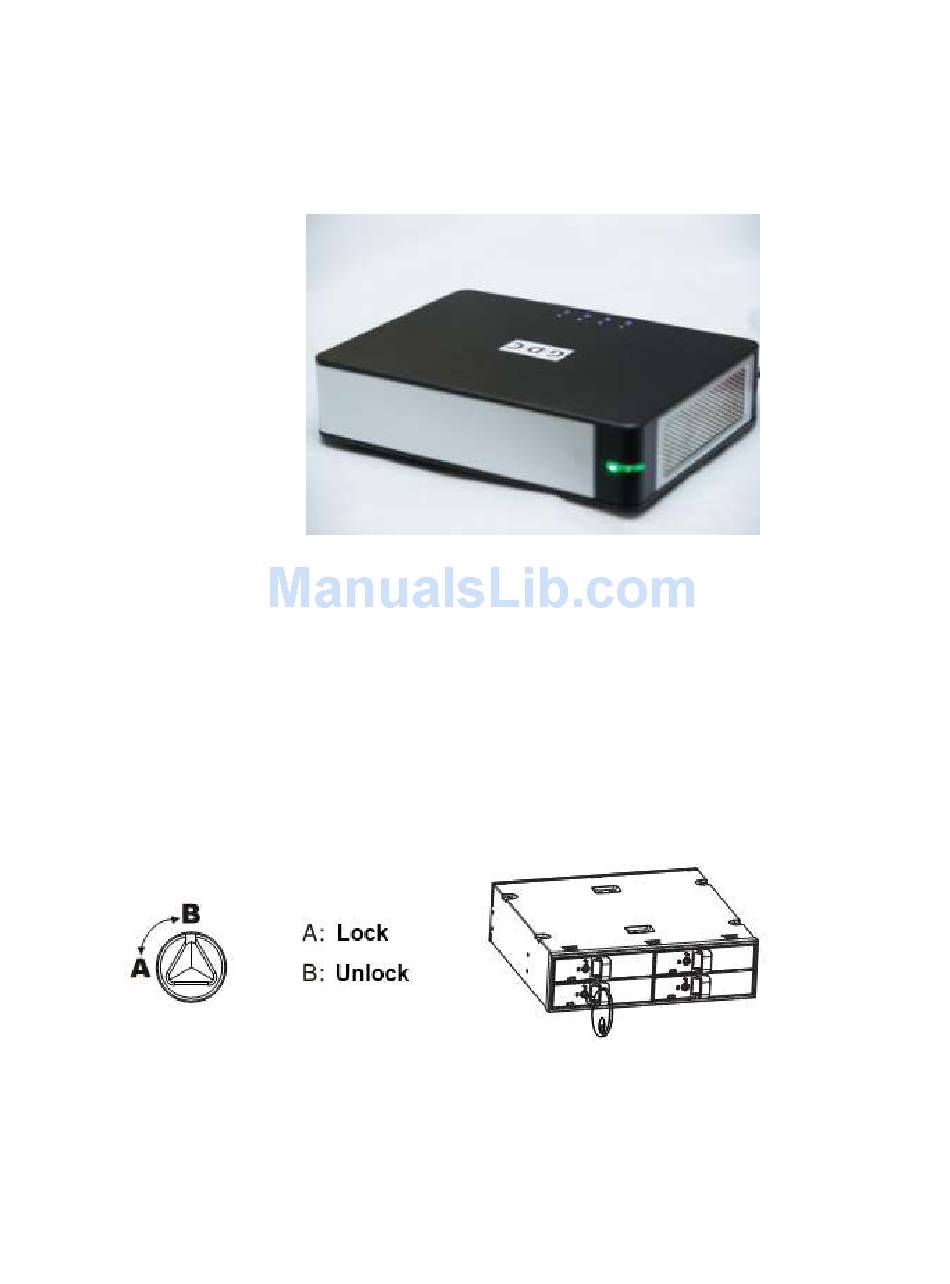

Figure 8 PSD-3000-P Portable Storage Device
13
