Charnwood COUNTRY 4 MKII Operating And Installation Instructions page 12

Issue D
29
25
27 28
22 26 14
Item Part number Description
1* 008/PV21 Door Seal
2* 008/FW29 Seal Adhesive
3* 008/PV23 Glass Seal
4 006/PV19 Glass (Inc Seal)
5 004/BW23 Glass Retainer
6 002/PV07 Log Retainer
7 010/PV31 Throat Plate
8 010/EY15L L.H. Side Fire Plate
9 010/EY15R R.H. Side Fire Plate
10 010/PV16 Back Fire Plate
11 011/PV26 Side Ceramic Gasket
12 011/PV27 Back Ceramic Gasket
13 008/PV29 Set of Fire Plates(3) & Gaskets
14 012/PV11 Serial No. Label
15 008/PV28/S Hinge Pin Set (2 per set)
16 008/FW28 Hinge Post
17 002/PV03 Door Catch Lever
18 008/PV08 Door Handle (Incl. Screw & Washer)
19 002/PV02 Primary Air Control
20 002/TW13 Airwash Control Knob
21 004/EY48 Airwash Slide
22 012/BV20/A Air Control/Ashpan Tool
* these items are not shown on the
drawing.

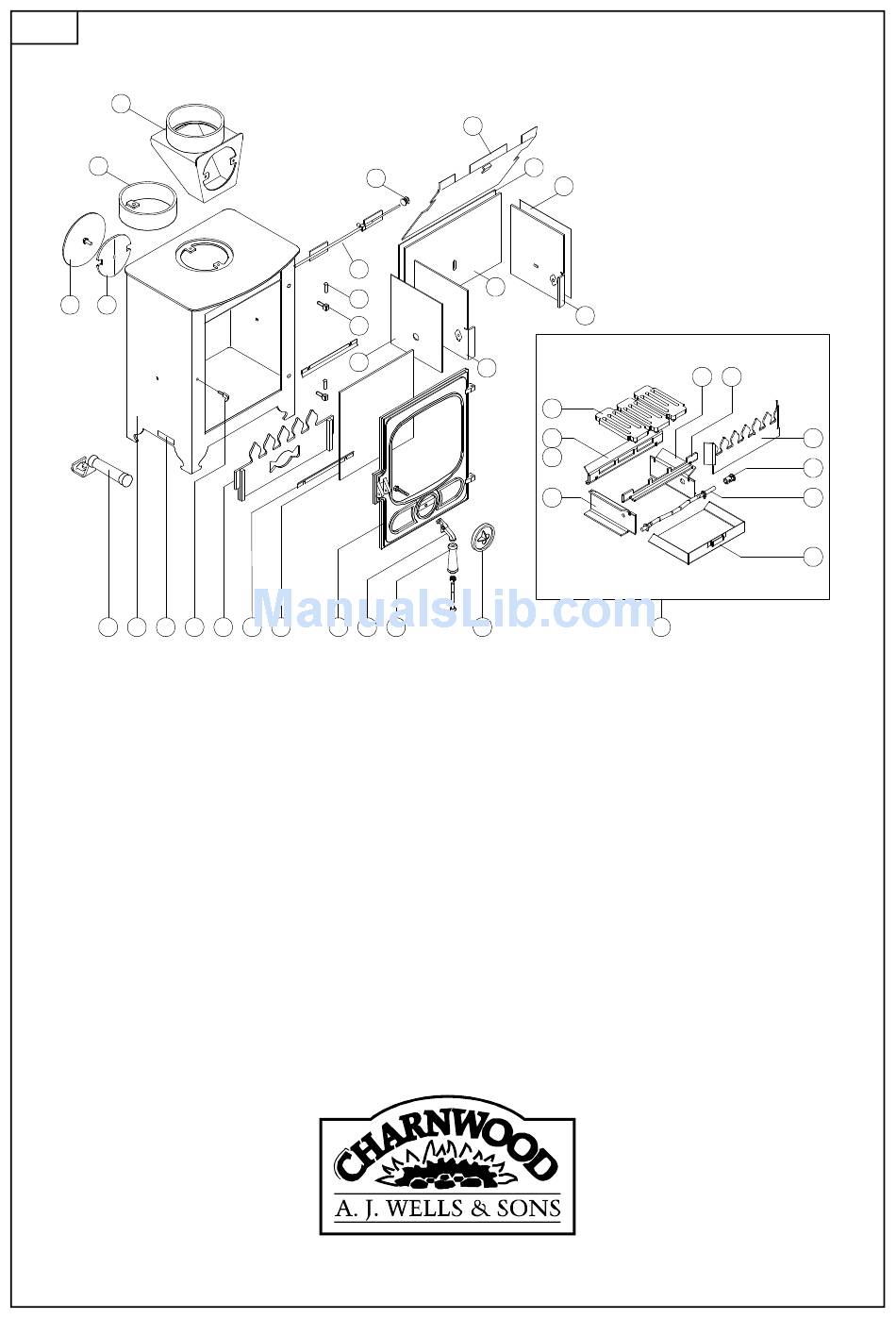

CHARNWOOD COUNTRY 4 MKII PARTS LIST
21
15
16
11
24 6 5 4 23
Bishops Way, Newport, Isle of Wight, PO30 5WS, U.K.
Technical Tel: +44(0)1983 537799 Fax: +44(0)1983 537788
E-Mail: charnwood@ajwells.co.uk Internet: www.charnwood.com
7
12
20
10
8
17 18 19
Item Part number
23 002/PV01
24 002/PV13
25 002/PV12B
26 001/EY10
27 012/PV09
28 012/PV14
29 010/PV33
30 010/EY04
31 010/EY05
32 010/EY09
32a 010/EY06B
33 010/EY06
34 010/EY03
35 010/EY13
36* 008/DY
37 002/DY21
38 004/PV17
39 010/EY08
40 010/EY20
41* 010/EW51
42* 010/PV35
43* 010/PV35/SS
Nuts, bolts, screws and clips are not
shown for clarity.
To obtain spare parts contact your
local stockist giving model, part
number and description.
In case of difficulty contact the
11
manufacturer at the address shown
below.
This drawing is for identification
purposes only.
9
Optional Coal Kit
31
34
32
32a
30
40
Description
Door
Door Latch Hook
Flue Collar
Firebox
Blanking Plate
Clamping Plate
Vert. Rear Flue Adapter (Optional Extra)
Left hand Side Grate Support
Right hand Side Grate Support
Rear Grate Support
Rear Grate Support (Use with boiler)
Front Grate Support
Grate Plate
Riddler Rod
Riddler Rod Securing Clip
Riddler Knob
Ashpan
Coal Retainer
Multifuel Conversion Kit(Optional Extra)
Ash Carrier (Optional Extra)
Boiler, Steel (Optional Extra)
Boiler, Stainless Steel (Optional Extra)
33
39
37
35
38
