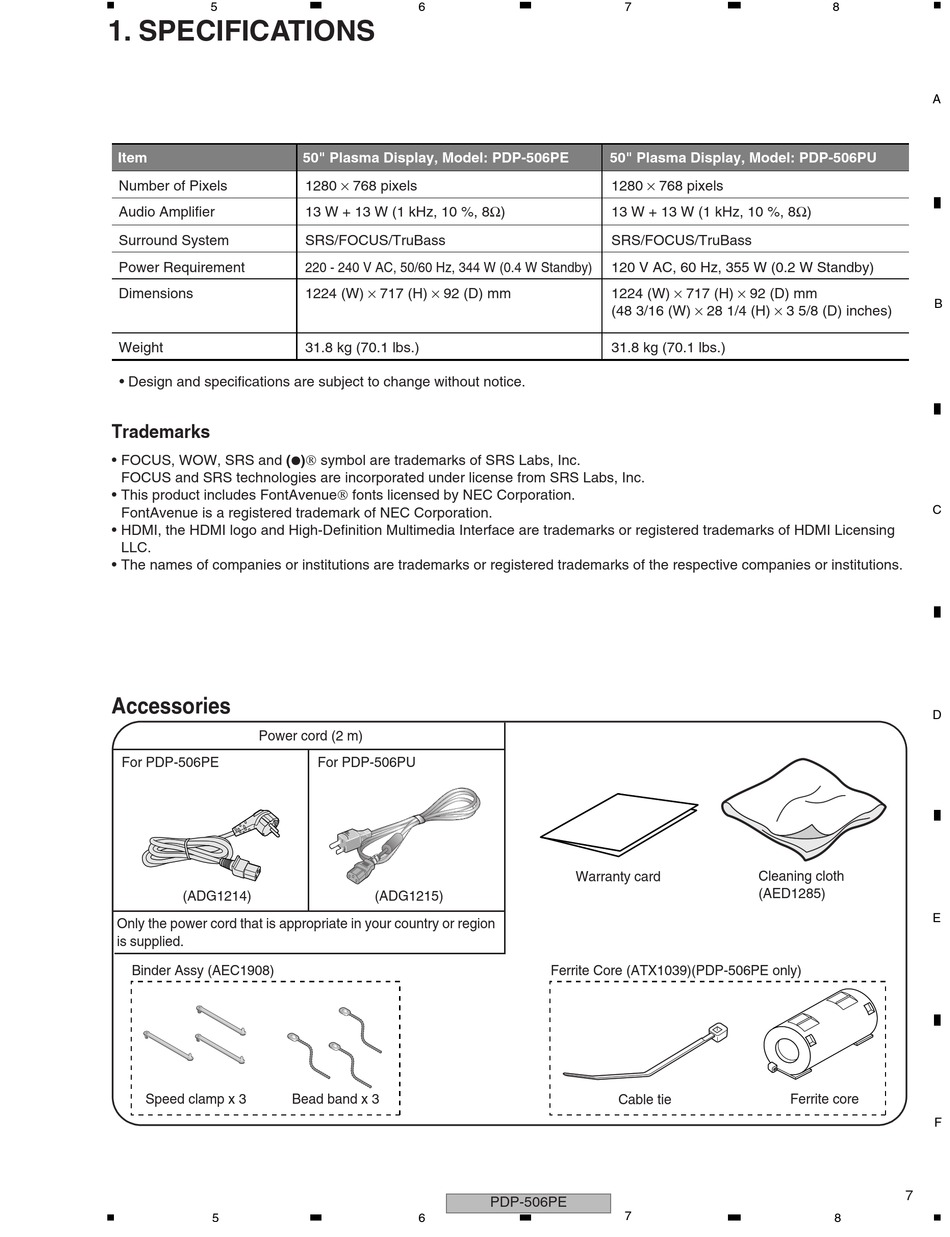

1. SPECIFICATIONS

Item
Number of Pixels
Audio Amplifier
Surround System
Power Requirement
Dimensions
Weight
• Design and specifications are subject to change without notice.
Trademarks
• FOCUS, WOW, SRS and (¶) symbol are trademarks of SRS Labs, Inc.
FOCUS and SRS technologies are incorporated under license from SRS Labs, Inc.
• This product includes FontAvenue fonts licensed by NEC Corporation.
FontAvenue is a registered trademark of NEC Corporation.
• HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing
LLC.
• The names of companies or institutions are trademarks or registered trademarks of the respective companies or institutions.
Accessories
Power cord (2 m)
For PDP-506PE
(ADG1214)
Only the power cord that is appropriate in your country or region
is supplied.
Binder Assy (AEC1908)
Speed clamp x 3
5
6
50" Plasma Display, Model: PDP-506PE
1280 × 768 pixels
13 W + 13 W (1 kHz, 10 %, 8Ω)
SRS/FOCUS/TruBass
220 - 240 V AC, 50/60 Hz, 344 W (0.4 W Standby)
1224 (W) × 717 (H) × 92 (D) mm
31.8 kg (70.1 lbs.)
For PDP-506PU
(ADG1215)
Bead band x 3
6
7
50" Plasma Display, Model: PDP-506PU
1280 × 768 pixels
13 W + 13 W (1 kHz, 10 %, 8Ω)
SRS/FOCUS/TruBass
120 V AC, 60 Hz, 355 W (0.2 W Standby)
1224 (W) × 717 (H) × 92 (D) mm
(48 3/16 (W) × 28 1/4 (H) × 3 5/8 (D) inches)
31.8 kg (70.1 lbs.)
Warranty card
Ferrite Core (ATX1039)(PDP-506PE only)
Cable tie
PDP-506PE
