- Page 1 Manuale d’Uso e Manutenzione Operating and Maintenance manual Betriebs- und Wartungsanleitung Manuel d’Utilisation et d’Entretien Manual de Uso y Mantenimiento AS650 mod. NORM - CARB - EPA ® S.p.A.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Page Page ..- Warnings 10 ..6 - USE IN SAFE ..1 - Warranty terms CONDITIONS 11 ..6.1 - use, techniques and ..2 - TECHNICAL DATA precautions ..2.1 - components 12 ..6.2 - principal safety regulations .. - Page 3 Do not keep the engine running out of the water for more than 10 seconds. Do not allow water to enter through the snorkel or in the fuel tank. Take care when refuelling. Water may be present.
-
Page 4: Warnings 10
- When the engine has blocked owing to the entrance of water. - Failure to comply with the general and basic rules of caution and prudence. - COMER S.p.A. declines all liability for damage to persons, things or the machine itself caused by incorrect or improper use of the same. -
Page 5: Technical Data

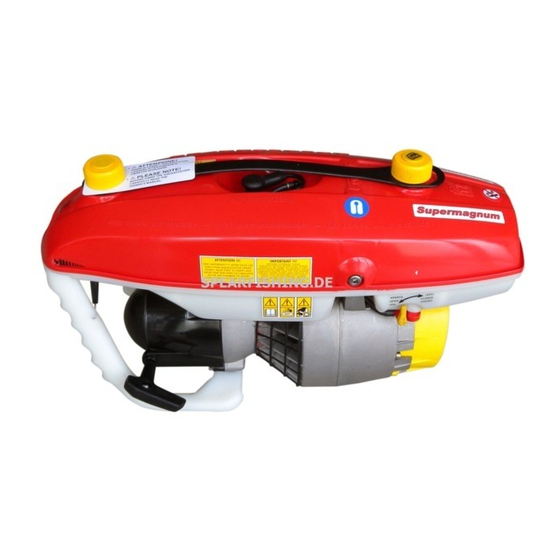

2 - TECHNICAL DATA 2.1 - COMPONENTS 1 - AIR TANK 2 - AIR TANK PLUG FOR SNORKEL CONNECTION 3 - FUEL TANK PLUG 4 - FUEL TANK 5 - FUEL VALVE 6 - EXHAUST GAS OUTLET 7 - FUEL PIPE 8 - STARTER HANDLE 9 - STEERING HANDLE 10 - THROTTLE LEVER... - Page 6 11 - “AVVIAMENTO - START - STOP” POSITIONS 12 - CARBURETTOR TO CARB - EPA STANDARDS 13 - “START AND RUN” LEVER 14 - “RUN/MARCIA” POSITIONS 15 - PROTECTIVE GRILLE 16 - FUEL TANK BREATHER PIPE 17 - PROPELLER GUARD AND WATER DEFLECTOR 18 - CARRY HANDLE 19 - SPARK PLUG 20 - AIR INTAKE TUBE (SNORKEL)
-
Page 7: Technical Specifications
2.2 - TECHNICAL SPECIFICATIONS 650 2-stroke, direct drive engine Power output at 5000 rpm 2 HP - 1.47 KW Swept volume 49 c.c. Thrust 22 kg Ignition Electronic C.D.I. Spark plug Bosch WR 10 BC Fuel tank capacity 2 l. (no reserve) Fuel mixture with synthetic oil (biodegradable) 1,5%(100:1,5) first 5 hours Autonomy of operation (approx.) -
Page 8: Symbols And Pictograms
4 - SYMBOLS AND PICTOGRAMS - The following pictograms are affixed to the tank (see page 4 - 5). Always pay particular attention to them and bear in mind what they mean: DANGER of elec- It is obligatory to read tric shock;... -
Page 9: Preparing The Machine 14
5 - PREPARING THE MACHINE - The machines are equipped with handy carrying points. - They are shipped from the factory in specific packaging. - The machines are tested before delivery. Prior to using the machine and with the engine off, always make sure the protective covers have not been tampered with and that there is no evident damage. -
Page 10: Starting
5.2. STARTING 1 - Open the fuel valve by moving the yellow lever to the horizontal “APERTO-OPEN” position. 2 - Turn the red lever of the carburettor anticlockwise to the “AVVIAMENTO-START-STOP” position for a cold start and after a LONG IDLE PERIOD only. 3 - Grip the steering handle with one hand, while moving the throttle lever to full throttle position. -
Page 11: Use In Safe Conditions
6 - USE IN SAFE CONDITIONS - Only carry the Aquascooter by its handle. Do not let it fall sideways into the water because water will enter the snorkel and block the engine. - Hold the steering handle and hold down the throttle with your thumbs. - Do not use the engine at top rate for the first 10 hours. -
Page 12: Use, Techniques And
6.1 - USE, TECHNIQUES AND PRECAUTIONS - If just a few splashes of water get in, this water will remain in the bottom hollows inside the air tank without causing damage. However, it is advisable to empty out any water as soon as you get back to the beach. - It’s an entirely different matter if a large amount of water flows quickly into the snorkel. -
Page 13: Principal Safety Regulations
6.2 - PRINCIPAL SAFETY REGULATIONS. - Aquascooter is designed for use by good swimmers. A lifejacket must be worn at all times. - Keep at a safe distance from the beach (do not go out farther than you can swim back). - The Aquascooter is not a buoyancy aid and is not designed to support the weight of a person in the water. -
Page 14: Carburettor
7 - CARBURETTOR - The Aquascooter has a carburettor with two membranes. The first membrane acts as a pump, drawing the fuel from the tank and into the engine as required. Faults involving this pump-membrane are extremely rare. - The second membrane, located in the bottom part, regulates the flow of fuel and needs to be connected to the external atmospheric pressure so as to regulate the fuel to suit the engine’s needs. - Page 15 8 - MAINTENANCE Before servicing the Aquascooter in any way, turn the off the engine and take care of any hot parts that could scorch the skin. After use, even when stopping for only a few hours, comply with the ”Short stops”...
-
Page 16: Troubleshooting
LONG STOPS (e.g.: at the end of the season) 1 - If it has been used in salt water, wash the outside of the Aquascooter with fresh water. 2 - Unscrew the SNORKEL and turn the Aquascooter upside down to eliminate any water from the tank. - Page 17 - Water in the fuel tank: empty the entire contents of the tank, and replace with new fuel. Check the carburettor: may contain drops of water. - Check the plug: it may not have been closed properly, or the plug seal may be damaged and water may have entered the carburettor (which must be replaced).
- Page 18 POS DESCRIZIONE DESCRIPTION N. CODICE-PART N. QT PREZZO UNITARIO Fig.1 SERBATOIO / TANK UNIT PRICE € Rubinetto completo Fuel shut-off cock, compI. 7000 2033 12,00 Vite rubinetto Shut-off cock screw 70001066 4,00 Set adesivi Decal set 7000 1013 8,00 Pesca carburante Fuel pick-up 7000 1061 6,00...
- Page 19 Fig.4 MARMITTA / MUFFLER N. CODICE-PART N. QT PREZZO UNITARIO POS DESCRIZIONE DESCRIPTION UNIT PRICE € Convogliatore acqua Propeller guard 7000 1014 10,00 Vite marmitta 5x90 Screw, muffler 5x90 7000 1023 3,50 Rondella in rame Copper washer 7000 1080 0,70 Marmitta Muffler 7000 2026...
- Page 20 489 c.p. (uso di atto falso). Comer S.p.A. – Loc. S. Tomaso – 42011 BAGNOLO IN PIANO (RE) – Uffici: Via Storchi, 8 – Magazzino: Via Rabitti, 9 Tel. +39 (0) 522 – 955045 / FAX +39 (0) 522 – 955040 Cap Soc.
- Page 21 DICHIARAZIONE “CE” di CONFORMITA’ - “CE” DECLARATION OF CONFORMITY “CE” KONFORMITATSERKLARUNG - DECLARATION DE CONFORMITÉ “CE”. DECLARACIÓN DE CONFORMIDAD “CE” La ditta: COMER S.p.A. Messrs. Via Storchi, 8 Die Firma 42011 - S.Tomaso - Bagnolo in Piano - RE - ITALY...
- Page 22 www.aquascooter.it ® S.p.A. Via Storchi, 8 - località S. Tomaso 42011 BAGNOLO IN PIANO - RE - Italy Tel. +39 (0)522.955045 Fax +39 (0)522.955040 E-mail: info@aquascooter.it Cap. Soc. int. vers.€ 817.438,96 - REA di RE 108113 n.Mecc RE005160 - Reg Imprese di RE - C.F./P .IVA 00130020357...
