Nut
Foot
Holder
Leg Adjust
Shaft Assembly

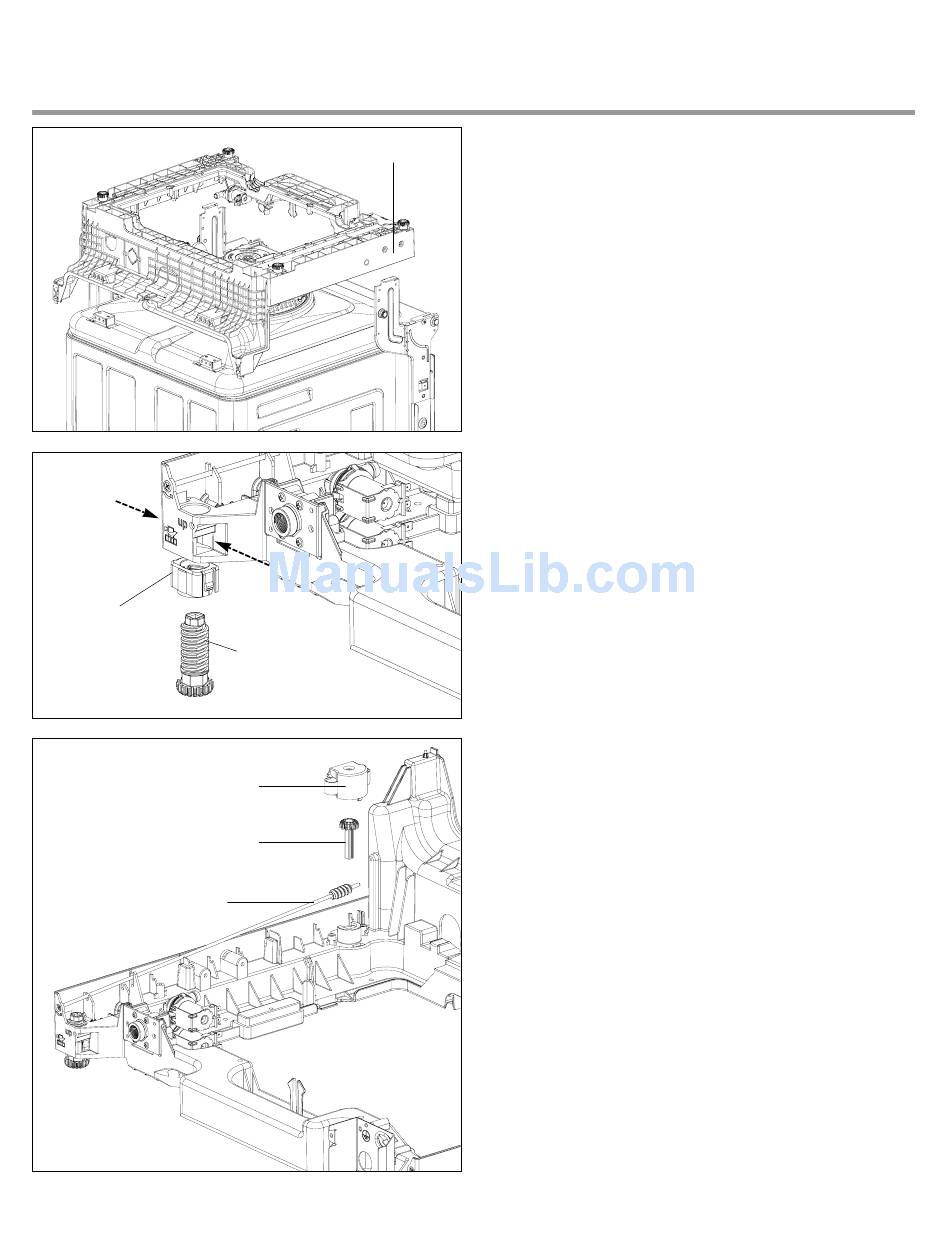

9. Cabinet Base
Cabinet Base
1) Remove 8 screws.
2) Lift it upward.
10. Foot & Nut
1) Pull the Foot twisting
2) Pull the Nut pushing the hook.
11. Rear Leg Adjustment System
1) Remove 2 screws.
2) Pull the Holder.
3) Pull the Leg Adjust.
4) Pull the Shaft Assembly.
