Summary of Contents for Klippan KISS 2

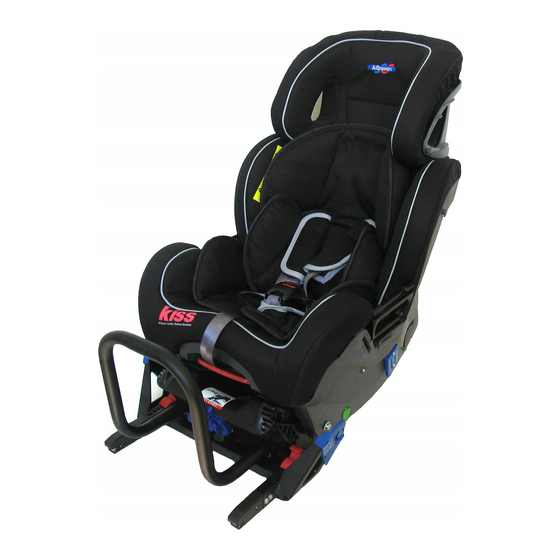

- Page 1 KISS 2 User Instruction...
- Page 2 Head Support Push-handle Seat Integrated handles Inserts Support-leg 3 Positions Frame Rocking Stop Belt Guides Wheels Safety Indicator ISOFIX...
- Page 3 CERTIFICATE 1. This KISS child seat has ISOFIX. It has been approved in accordance with ECE R44.03, annex 5 to series 03, for general use in cars fitted with ISOFIX. KISS is approved to the new R44.04 standard 2. The child seat fits cars with space approved for ISOFIX in accordance with detailed instruction in the car’s manual), depending on the category of child seat and fixture.
- Page 4 AIRBAG WARNING! The following pages show a number of safe ways to fit the KISS seat in your car. Rear-facing in the front seat or rear seat. Using ISOFIX or adult two or three-point belts. NB!! If the seat is placed in the front seat, the airbag must be physically deactivated, either by removing the airbag or by shutting off with a key.
- Page 5 Rear-facing is safest! The Nordic countries are the best countries in Europe when it comes to seeing children travelling in rear-facing seats. This is why fewer children are injured or killed in traffic. Unfortunately, they are changing what they do. More young children are now travelling in forward- facing seats.
- Page 6 THE RIGHT ANGLE 0 – 3 YEARS І (0 – 1 years) ІІ (1 – 2 years) ІІІ (2 – 3 years) Maximum comfort and safety for three years. Clear markings make it easy to set your child seat at the right angle as your child grows.
- Page 7 FITTINGINSTRUCTIONS – Preparations for fitting Adjustment of internal belt height. Pull out the Remove the seat itself from the base by internal belt to their fullest extent. Release the pulling the handle (by the arrow) outwards. shoulder belt tension from the back of the seat. Pull them out first , then move them to their new height.
- Page 8 FITTINGINSTRUCTIONS – Headrest for child over 9kg Headrest, for child over 9kg. is fitted Child under 9kg shall travel with on the base so that the left heel is first the seat in angle position 1 pushed down (A)… ... Push out the right side (B) and ...
- Page 9 FITTINGINSTRUCTIONS – Use of KISS 2 Position of the child into the seat. Push the button (A) to pull out the child seat´s own belts. Pull the shoulder belts as far as possible (B). Push the red button (C) on the buckle to open the belt, then put them to either side (D) Fold the crotch strap forwards (E) with the buckle and its safety sleeve.
- Page 10 FITTINGINSTRUCTIONS – Fitting using ISOFIX mounts Fold down the supporting leg before placing the Place the base in the required location in the base in the car. If you fit the Kiss on the front car. When fitting the seat in the rear, the seat in seat in your car.
- Page 11 FITTINGINSTRUCTIONS – Fitting using ISOFIX mounts Push the base onto the car seats backrest Make sure that the indicator is green on so that the base locks (click) properly. both sides. This ensures that the base is The black frame must be tight to the locked properly.
- Page 12 FITTINGINSTRUCTIONS – Removal from ISOFIX mounts NB: Removal Lift the ISOFIX button NB: Removal Remove the supporting on both sides and pull in the direction of leg from the floor in order to facilitate the arrow so that the indicator is red removal of the base.
- Page 13 FITTINGINSTRUCTIONS – Fitting using a three-point belt Fold down the supporting leg before Place the base in the required location in placing the base in the car. If you fit the the car. When fitting the seat in the rear. KISS seat on the front seat of the car, the the seat in front of it may need to be backrest of the car seat must be in upright...
- Page 14 FITTINGINSTRUCTIONS – Fitting using a three-point belt Thread the lap belt through the blue Open the blue belt clip (A) and thread mounts on both sides. the car seatbelt diagonal part through the blue mount (B) and through the clip (A) and through the mount (C) Push down the base and tighten the seat belt Adjust the height of the supporting leg by properly.
- Page 15 FITTINGINSTRUCTIONS – Fitting using a two-point belt (centralposition) Prepare the base as shown in illustration Thread the belt through the blue 19 and 20. Extend the belt to its full mounts on both sides. length, then click it into its usual lock. Pull the belt under the frame.
- Page 16 FITTINGINSTRUCTIONS – Fitting the seat Raise the head protector to its upper Pull up the handles on both sides. position Put the handles together by bending them Position the seat as shown in the illustration. Then turn back 90˚ down towards the centre and clicking them into one another...
- Page 17 FITTINGINSTRUCTIONS – Fitting the seat Please note indicator (A) is currently red. Put seat on top of the base. Thread red Now, push down seat into base… triangle marked “G” towards track of base. … Put seat in position ”1”. Listen NOTE!!! CHECK for an audible ”click”.
- Page 18 FITTINGINSTRUCTIONS – Use of the KISS 2 seat Push the head protector down against the The tilt position is adjusted easilly using the seat. Adjust the seat angle using the handle of the front of the seat, see illustration handle on the front of the seat (see 1.
- Page 19 COMFORT When the baby protector is lifted out of Push-handle and wheels are standard. These its base and placed on the ground, it can equipments will allow you to transport your be used as a soothing rocker. The rocking child for short distances in the seat. Good for function can be prevented as shown in mothers who have had Caesarean sections! the illustration.
- Page 20 IMPORTANT FOR SAFETY KISS is approved for children in the weight range 0-18kg When fitting using ISOFIX, check in the car manual where the ISOFIX mounts are located and what kinds of ISOFIX child seats will fit. The list of cars covers all vehicles in which the Kiss seat will fit.
- Page 21 KISS – Car List = Yes = No = Only in seats with no airbag or with physically deactivated airbag. Rear Rear Modell Front Outer Centre Alfa Romeo 147, 156, 166 Audi A2, A3, A4, A6, A8, TT Coupe 300, 500, 700 sarja, 120, X3, X5, Cadillac SRX, CTZ, STS Chevrolet...
- Page 22 Rear Rear Modell Front Outer Centre Opel Corsa, Vectra, Omega, Astra, Meriva Astra Coupe, Astra Cabriolet, Signum, Agila Peugeot 106, 107, 206, 306, 307, 407, 607, 806, 807, Partner 206 CC Porsche Cayenne Boxter Renault Modus, Megane, Espace, Laguna, Kangoo, Clio, Megane, Scenic Megane Cabriolet, Twingo Rover...
- Page 23 Consumer contact in Great Britain: In-Car Safety Tel: 01908220909 Unit 5, 37 Erica Road Fax: 01908317536 Stacey Bushes Trading Centre e-mail:info@incarsafetycentre.co.uk Stacey Bushes www.incarsafetycentre.co.uk Milton Keynes MK12 6HS This seat is made in Finland by Oy Klippan Ab/ www.klippan.fi...
