HV-32P37SJE
HV-28P37SJE

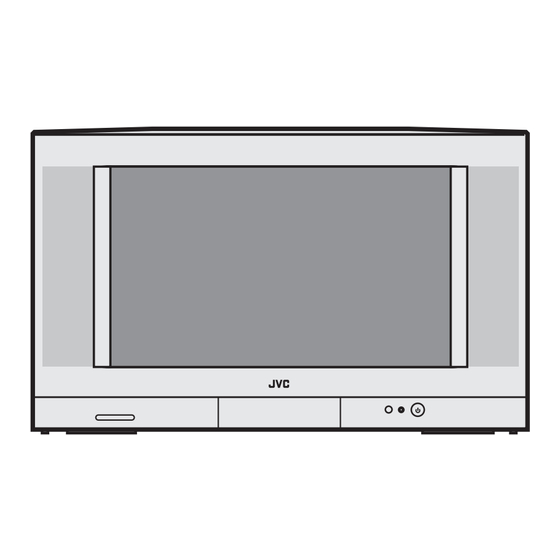

COLOUR TELEVISION
INSTRUCTIONS

Advertisement

Table of Contents
loading

Related Manuals for JVC InteriArt HV-28P37SJE

Summary of Contents for JVC InteriArt HV-28P37SJE

  • Page 1 HV-32P37SJE HV-28P37SJE COLOUR TELEVISION INSTRUCTIONS...
  • Page 2 Warning DO NOT cut off the mains plug from this equipment. If the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or adaptor or consult your dealer.
  • Page 3 Thank you for buying this JVC colour television. To make sure you understand how to use your new TV, please read this manual thoroughly before you begin. WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

  • Page 4: Table Of Contents

    3D CINEMA SOUND function... 16 Return to TV channel instantly... 16 Using the FREEZE function ... 16 Using the MULTI-PICTURE function ... 17 Operating a JVC brand VCR or DVD player... 18 Teletext function ...19 Basic operation ... 19 Using the List Mode ... 19 Hold...

  • Page 5: Setting Up Your Tv

    Setting up your TV Caution • Turn off all the equipment including the TV before connecting anything. Connecting the aerial and video cassette recorder (VCR) • The connecting cables are not provided. • For further details, refer to the manuals provided with the devices to be connected. If you are connecting a VCR, follow A A A A →...

  • Page 6: Connecting The Power Cord To The Ac Outlet

    1 Press the Main power button on the The Power lamp lights red (for power on), then green (for TV on) and the JVC logo appears. • If the power lamp stays red and does...
  • Page 7 • If the JVC logo does not appear this is because your TV has already been turned on for the first time: use the “LANGUAGE” and “AUTO PROGRAM” functions to make the initial settings. For details, see “SET UP menu” on page 30.
  • Page 8 Setting up your TV 6 Press the a a button to display the T-V LINK menu T-V LINK DOWNLOAD TV EXIT D0005-EN If you do not have a T-V LINK compatible VCR connected: Press the b button to exit the T-V LINK menu.

  • Page 9: Downloading The Data To Vcr

    • If you have any questions about the items in the Broadcast Selection menu or how to operate the menu, please contact your cable TV station. • If you don’t want to use the ACI function, press the 6 buttons to choose ACI SKIP and then press a.

  • Page 10: T-V Link Functions

    To use T-V LINK functions: A “T-V LINK compatible VCR” means a JVC video cassette recorder with the T-V LINK logo, or with one of the following logos. However, these VCRs may support some or all of the features described earlier.

  • Page 11: Tv Buttons And Functions

    TV buttons and functions EXT- EXT- EXT- EXT- AUDIO OUT Refer to the pages in brackets for details. 1 Remote control sensor 2 Power lamp (pages 6, 11) 3 Main power button (pages 6, 11) 4 Headphone jack (mini jack) (page 39) 5 P p buttons/ q buttons (page 11) 6 r (Volume) button (page 11) 7 EXT-5 terminal (pages 36, 39)

  • Page 12: Remote Control Buttons And Functions

    Remote control buttons and functions 1 Muting button 2 Number buttons 3 Information button 4 c button 5 3 sound button 6 b button 7 7 buttons 8 g (Text) button 9 p p buttons 0 VCR/DVD/Teletext control buttons - p buttons = # (Standby) button ~ VCR/TV/DVD switch ! G button...

  • Page 13: Choose A Tv Channel And Watch Images From External Devices

    Choose a TV channel and watch images from external devices • If the picture is tilted, correct it. See “PICTURE TILT” on page 35. Use the number buttons: Enter the programme number (PR) of the channel using the number buttons. Example: •...

  • Page 14: Adjust The Volume

    Remote control buttons and functions Adjust the volume Press the r q buttons to adjust the volume. The Volume indicator appears and the volume changes as you press the r q buttons. Muting the sound Press the l l l l (muting) button to turn off the sound.

  • Page 15: Zoom Function

    ZOOM function You can change the screen size according to the picture aspect ratio. Choose the optimum one from the following ZOOM modes. AUTO: When a WSS (Wide Screen Signalling) signal, which shows the aspect ratio of the picture, is included in the broadcast signal or the signal from an external device, the TV automatically changes the ZOOM mode to 16:9 ZOOM mode or FULL mode according...

  • Page 16: 3D Cinema Sound Function

    Remote control buttons and functions Adjusting the visible area of the picture If subtitles or the top (or bottom) of the picture are cut off, you can adjust the visible area of the picture manually. 1 Press the c button The ZOOM menu appears.

  • Page 17: Using The Multi-Picture Function

    To cancel the FREEZE function: Press the f button, the p p buttons or the number buttons. • The FREEZE function does not work while a sub-picture is displayed. • The still picture cannot be output from the TV. • The FREEZE function does not work for pictures of 625p, 525p and 1125i signals.

  • Page 18: Operating A Jvc Brand Vcr Or Dvd Player

    # (standby) button. 2 Press the VCR/DVD Control Button to control your VCR or DVD player • If your device is not made by JVC, these buttons will not work. • Even if your device is made by JVC, some of these buttons may not work, depending on the device you are using.

  • Page 19: Teletext Function

    Teletext function Basic operation You can view three types of teletext broadcasts on the TV: FLOF (Fastext), TOP and WST. • TOP is not available when the COUNTRY setting is UNITED KINGDOM. 1 Choose a TV channel with a teletext broadcast 2 Set the VCR/TV/DVD switch to the TV position...

  • Page 20: Hold

    Teletext function 3 Press and hold down the A A A A (Store) button The four page numbers blink white to show that they are stored in memory. To call up a stored page: 1 Press the B B button to enter the List mode 2 Press a colour button having a stored page...

  • Page 21: Cancel

    Cancel You can search for a teletext page while watching TV. 1 Press the number button to enter a page number, or press a colour button The TV searches for a teletext page. 2 Press H H (Cancel) button The TV programme appears. When the TV finds the teletext page, its page number appears in the upper left of the screen.

  • Page 22: Using The Tv's Menu

    Using the TV’s menu This TV has a number of functions you can operate using menus. To use all your TV’s functions, you need to understand the basic menu operating techniques fully. Buttons used to operate the menus Basic operation 1 Press the H H button to display the menu bar...

  • Page 23: Picture Menu

    PICTURE menu PICTURE PICTURE MODE CONTRAST BRIGHT SHARP COLOUR COLOUR TEMP. FEATURES D0014-EN • While the PICTURE menu is displayed, pressing the blue button will set the CONTRAST, BRIGHT, SHARP, COLOUR, HUE settings to their default settings. PICTURE MODE You can choose one of three PICTURE MODEs to adjust the picture settings automatically.

  • Page 24: Features

    PICTURE menu FEATURES Choose FEATURES and press the a or 3 button to display the sub-menu. > FEATURES DIGITAL VNR Super DigiPure MOVIE THEATRE Colour DigiPure COLOUR SYSTEM 4:3 AUTO ASPECT D1015-EN DIGITAL VNR The DIGITAL VNR function cuts down the amount of ‘noise’...

  • Page 25: Colour System

    MIN: The level of DigiPure effect is set to the minimum. When you set the Super DigiPure function to AUTO and notice some noise, change the setting from AUTO to MIN. • The MIN setting is not suitable for high- quality pictures which contain very little noise.
  • Page 26 PICTURE menu AUTO: This function detects a colour system from the input signal. You can only use this when you are viewing a picture from programme number PR 0 (AV), or an EXT terminal. • The AUTO function may not function properly if you have poor signal quality.

  • Page 27: Sound Menu

    SOUND menu SOUND STEREO/ BASS TREBLE BALANCE HEADPHONE VOLUME 3D CINEMA SOUND D0019-EN • Functions in the “SOUND” menu other than “HEADPHONE VOLUME” work for the TV speakers. They do not work for the sound from the headphones. • When the headphones are connected and only one screen is displayed, only “HEADPHONE VOLUME”...

  • Page 28: Features Menu

    FEATURES menu FEATURES SLEEP TIMER CHILD LOCK APPEARANCE BLUE BACK D0023-EN SLEEP TIMER You can set the TV to automatically turn off after a specified period of time. 1 Choose SLEEP TIMER. Then press the a a or 3 3 3 3 button A Sub-menu of the SLEEP TIMER function appears.

  • Page 29: Appearance

    4 Press the 6 6 buttons to choose a TV channel Every time you press the 6 buttons, the Programme number (PR) changes, and the picture of the TV channel registered in the Programme number (PR) is displayed on the screen. 5 Press the blue button and set the CHILD LOCK function.

  • Page 30: Set Up Menu

    SET UP menu SET UP AUTO PROGRAM EDIT/MANUAL LANGUAGE PICTURE TILT DECODER(EXT-2) EXT SETTING D0029-EN AUTO PROGRAM The AUTO PROGRAM function TV channel automatic registration which was performed in the “Initial settings” (page 6) can be preformed again. To receive SKY 1 you need a satellite tuner. You must have the satellite tuner set to SKY 1 before starting the AUTO PROGRAM function.
  • Page 31 Basic operation 1 Choose EDIT/MANUAL, then press the a a or 3 3 3 3 button The EDIT menu appears. > EDIT BBC1 CH 21 BBC2 CH 22 CH 23 CH 24 CH 25 CH 26 CH 27 CH 28 CH 29 MOVE INSERT...
  • Page 32 SET UP menu DELETE 1 Press the 6 6 buttons to choose a TV channel Every time you press the 6 buttons, the programme number (PR) changes and the picture of the TV channel stored in the programme number (PR) appears on the screen.
  • Page 33 • When the COUNTRY setting is not FRANCE, use a two-digit CH/CC number. When the COUNTRY setting is FRANCE, use a three-digit CH/CC number. INSERT 1 Press the 6 6 buttons to choose a programme number (PR) for which you will register a new TV channel 2 Press the green button and start the INSERT function >...
  • Page 34 SET UP menu 5 Press the green or red button repeatedly until the TV channel you want appears If the TV channel reception is poor: Press the blue or yellow button to fine- tune the TV channel. 6 Press the a a button and register the TV channel to a Programme number (PR)

  • Page 35: Language

    LANGUAGE The LANGUAGE setting which was performed in the “Initial settings” (page 6) can be changed. 1 Choose LANGUAGE, then press the a a or 3 3 3 3 button A sub-menu of the LANGUAGE function appears. > LANGUAGE D0002(E)-EN 2 Press the 5 5 and 6 choose a language.

  • Page 36: Ext Setting

    SET UP menu 6 Turn on the VCR, and then press the a a button to transmit the data to VCR The T-V LINKmenu disappears once the data transmission ends. 7 If you have another TV channel capable of being unscrambled with a Decoder, repeat steps 2 through 6 If the DECODER (EXT-2) function has been set to “ON”...
  • Page 37 1 Press the 5 5 or 6 6 buttons to choose an EXT terminal > EXT SETTING EXT-1 DUBBING EXT-2 EXT-3 EXT-5 EXT-4 ID LIST S-IN D0110-EN 2 Press the yellow button and set the S-IN (S-VIDEO input). Then press the a a button An S-IN (S-VIDEO input) mark is displayed.
  • Page 38 SET UP menu DUBBING You can choose a signal source to be output from the EXT-2 terminal. You can do this with the output signals of the devices connected to other EXT terminals, or with the picture and sound from a TV channel you are currently viewing.

  • Page 39: Additional Preparation

    Additional preparation Connecting external equipment Connect the equipment to the TV, making the correct rear panel and front panel connections. Before connecting anything: • Read the manuals that came with the equipment. Depending on the equipment, the connection method may be different from the diagram.

  • Page 40: Connecting Headphones

    Additional preparation Equipment which can output the S-VIDEO signal (Y/C signal) such as an S-VHS VCR Connect the equipment to an EXT terminal (but not the EXT-1 terminal). You can choose between an S-VIDEO signal (Y/C signal) and a regular video signal (composite signal).

  • Page 41: Troubleshooting

    Troubleshooting If a problem arises while you are using the TV, please read this troubleshooting guide carefully before you ask to have the TV repaired. You may be able to fix it easily by yourself. For example, if the mains plug is disconnected from the mains outlet, or the TV aerial has problems, you may think there is a problem with the TV itself.

  • Page 42: Poor Sound

    Troubleshooting • When viewing images from commercially available video software products, or videos from videotapes which have been recorded improperly, the top of the image may be distorted. This is due to the condition of the video signal. There is nothing wrong with the TV.

  • Page 43: Specifications

    Specifications Model COUNTRY setting Broadcasting systems CCIR I Colour systems • The EXT terminals also support the Channels and frequencies E21-E69 Sound-multiplex systems NICAM (I) system Teletext systems FLOF (Fastext), WST (World Standard System) Power requirements 220 - 240 V AC, 50 Hz Power consumption HV-32P37SJE: 137 W (Standby: 2.0 W) HV-28P37SJE: 127 W (Standby: 2.0 W)
  • Page 44 LCT1452-001A-U © 2003 VICTOR COMPANY OF JAPAN, LIMITED 0903-T-CR-JMUK...
