VADDIO PRODUCTIONVIEW HD MV Installation And User Manual

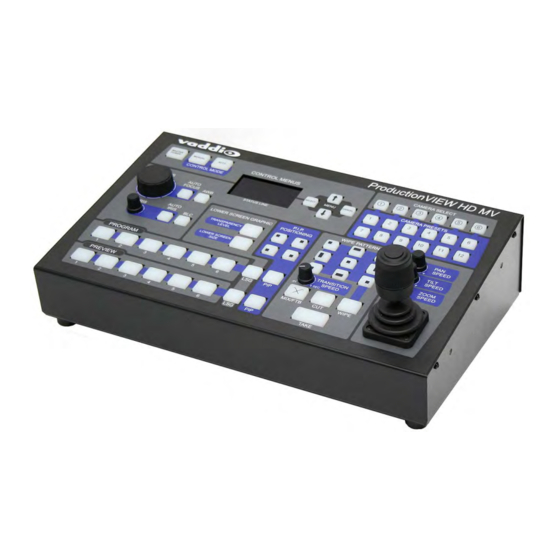

High definition camera control console with integrated multiviewer touch screen control, multi-view control panel layout options and expanded i/o capabilities
Hide thumbs Also See for PRODUCTIONVIEW HD MV:

Advertisement

Quick Links

Download this manual
P
RODUCTION
High
Definition
Multiviewer Touch Screen Control, Multi-View Control Panel
Layout Options and Expanded I/O Capabilities
Part Number 999-5625-000 North America
Part Number 999-5625-001 International
©2014 Vaddio - All Rights Reserved ● ProductionVIEW HD MV ● Document Number 342-0241 Rev. G
Installation and User Guide
Installation and User Guide
VIEW™ HD MV
Camera
Control
Console
with
Integrated

Advertisement

loading
Need help?

Need help?

Do you have a question about the PRODUCTIONVIEW HD MV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for VADDIO PRODUCTIONVIEW HD MV

Summary of Contents for VADDIO PRODUCTIONVIEW HD MV

  • Page 1 Integrated Multiviewer Touch Screen Control, Multi-View Control Panel Layout Options and Expanded I/O Capabilities Part Number 999-5625-000 North America Part Number 999-5625-001 International ©2014 Vaddio - All Rights Reserved ● ProductionVIEW HD MV ● Document Number 342-0241 Rev. G...
  • Page 2 ProductionVIEW HD MV Inside Front Cover - Blank ProductionVIEW HD MV Manual - Document Number 342-0241 Rev G Page 2 of 36...
  • Page 3 (Simulated Multiviewer Output) output resolutions. The ProductionVIEW HD MV control surface is laid out to allow even a novice to operate the system with minimal training. ProductionVIEW HD MV is unmatched in today’s camera control, video mixing and video switching market.
  • Page 4 The TeleTouch Multiviewer Touch Screen Control Panel (optional) with the new Multi-View touch screen control panel layout options allows integrators to match the touch screen layout to the number of camera, computer or other video input sources that are connected to the ProductionVIEW HD MV. (Simulated Multiviewer Output)
  • Page 5 The Vaddio TeleTouch Touch Screen Controller allows the operator to see and switch all live feeds by touching the windows. The ProductionVIEW HD MV outputs can provide either a standard preview output or a multiviewer preview output with support for two monitors, one of the outputs supporting a Vaddio TeleTouch Touch Screen Controller.
  • Page 6 Read and understand all instructions before using. Do not operate any device if it has been dropped or damaged. In this case, a Vaddio technician must examine the product before operating. To reduce the risk of electric shock, do not immerse in water or other liquids and avoid extremely humid conditions.
  • Page 7 One (1) DVD ROM with templates and sample graphics for Lower Screen Graphics*  Documentation Notes: *User must supply their own compatible version of Keynote or PowerPoint to display and modify templates on the DVD ROM. ProductionVIEW HD MV Manual - Document Number 342-0241 Rev G Page 7 of 36...
  • Page 8 7. 3-Axis Hall Effect Joystick PTZ Camera and Speed Controls: Sony, Canon and Vaddio PTZ cameras can be controlled via the 3-axis Hall-Effect Joystick built into ProductionVIEW HD MV. When the button on top of the joystick is pressed, it will reposition the selected camera to its home position. Located above the joystick, adjustable knobs for Pan, Tilt and Zoom speeds allow the operator extremely fine real-time camera control.
  • Page 9 ④ ⑤ 1. Power Input: Use only the 18 VDC, 2.75A power supply provided with the ProductionVIEW HD MV. 2. Camera Control Ports on RJ-45 connectors: One camera control port per camera (no daisy-chaining required). Compatible with Sony, Canon, Panasonic and Vaddio PTZ cameras. See page 7 for details on cameras and camera systems compatible with ProductionVIEW HD MV.
  • Page 10 First Time Set-up with the ProductionVIEW HD MV: ProductionVIEW HD MV is designed to be exceptionally easy to use and operate right out of the box. All of the Vaddio standards for using video, power and control over Cat. 5 cabling are well documented and are in the manual and available free of charge from the Vaddio website.
  • Page 11 ProductionVIEW HD MV Basic System Configuration: ProductionVIEW HD MV connected to two (2) Vaddio Quick-Connect™ HD-18 CCU Systems, PC, TeleTouch 22” Touch Screen Controller and room projector. The TeleTouch Multiviewer Touch Screen Controller eliminates the need for individual preview monitors and the touch screen greatly simplifies overall console operation. The TeleTouch Multiviewer Touch Screen can be configured to display up to six input windows and two larger Program bus and Preview bus windows with red and green tally window borders.
  • Page 12 TeleTouch 22” Standard LCD Monitor displays the Touch Screen Controller YPbPr Multiview Preview Image Displays the DVI-D Preview Image ProductionVIEW HD MV with Single or Dual Bus Multiviewer Output: Single or Dual Bus Multiviewer Output Single or Dual Bus Multiviewer Output...
  • Page 13 This feature allows the user to store 12 camera presets in the ProductionVIEW HD MV or have the option of storing 6 camera presets (1 through 6) in the camera and 6 presets (7 through 12) in the ProductionVIEW HD MV. When storing the presets in the camera, the user is allowed to speed switch camera presets.
  • Page 14 Preview and Program outputs will PREVIEW MIX / FTB WIPE return to their selected video inputs that were TAKE selected prior to pressing FTB. ProductionVIEW HD MV Manual - Document Number 342-0241 Rev G Page 14 of 36...
  • Page 15 Speed ranges from 0.1 to 4.0 seconds (01 to 40 in the menu). See the ProductionVIEW HD MV Menu Structure section of this manual for the location of the internal menu that adjusts FTB timing. Dual Mode FTB: Pressing and holding MIX/FTB in Dual Mode allows both the Preview and Program outputs to fade to black, just as it will in Single Mode operation.
  • Page 16 ProductionVIEW HD MV will toggle through the sizes. PIP In Dual Mode: If ProductionVIEW HD MV is set up for Dual Mode (independently switched live feeds on Preview and Program buses) select the background source. Next, select the PIP source, which will flash. Press the PIP button for that specific bus, and the window will be displayed.
  • Page 17 Step 1: To use the Multiviewer and TeleTouch Touch Screen Controller, connect the main RS-232 port (DB-9-F) of the ProductionVIEW HD MV to the RS-232 port of the TeleTouch monitor with the cable provided. Connect the provided DVI-D cable from the multiviewer output (preview DVI-D Connector) to the DVI-D input of the TeleTouch Monitor.
  • Page 18 8) One (1) of six (6) standard video windows with blue borders (blue indicates that the window has not been chosen for Program or Preview). To operate the ProductionVIEW HD MV with the Touch Screen: 1) Plug in all the sources (PTZ Cameras, Video Whiteboard, PC etc…). Try to get the sources at the same resolution or close, as this enhances switching speed.

  • Page 19: Tft Color Lcd

    #2. The size of the widow will reduce to about ¼ its size (same size as the video thumbnail) and is ready to be positioned. With the ProductionVIEW HD MV’s joystick, position the camera where it can be easily recalled for later use. These areas will be lectern positions, whiteboard areas, podium areas, choir areas, center aisle for entrances, close ups and distant shots and anywhere in between.
  • Page 20 ProductionVIEW HD MV ProductionVIEW HD MV Menu Structure The ProductionVIEW HD MV has an 8-line LCD that displays the system menus. The menus are traversed with the up/down arrows, select and cancel buttons. The menu structure is as follows: Screen ProductionVIEW HD MV V01.00.XX (software version)
  • Page 21 >Letter Box >Crop Video Input Note: ProductionVIEW HD MV Auto Configures each Input Port for each camera connected. Default Camera (Automatic and Start-up Modes – the default input selected on the Program bus when the system is turned on) >Select >...
  • Page 22 Multiviewer >Select >On or Off Note: When activated, you must go to Touch Screen Menu and select either the 22” or 18.5” Vaddio TeleTouch Touch Screen. ProductionVIEW HD MV Manual - Document Number 342-0241 Rev G Page 22 of 36...
  • Page 23 NOTE: When Vaddio Quick-Connect CCUs are used with ProductionVIEW HD MV, the CCU mode disables Iris functions, AWB and BLC on the ProductionVIEW HD MV console, allowing the user to control these functions from the Quick-Connect CCU only. System Menu >Select...
  • Page 24 >Touch Screen >22 Inch >18.5 Inch Note: Once you select the TeleTouch Touch Screen you are connecting to the ProductionVIEW HD MV, you must go to the Multiviewer Menu and select On to activate the Touch Screen Control. Preview Position >Left...
  • Page 25 Analog Component Video - YPbPr, RGBHV, Y/C and CVBS (DE-15 female x 1)  DVI-D Female x 1 Control Port:  RS-232 - DE-9-F (DB-9-F) Triggers/Tally:  14-pin Molex 5.0mm Euro connector (two 7-pin mating connectors) ProductionVIEW HD MV Manual - Document Number 342-0241 Rev G Page 25 of 36...
  • Page 26 Support of 1080p component video (YPbPr) required on third-party equipment for 1080/60p. Certain equipment may not supply appropriate resolutions, and therefore may not function properly. ©2014 Vaddio - All Rights Reserved ● ProductionVIEW HD MV ● Document Number 342-0241 Rev. G...

  • Page 27: Ntsc And Pal

    DE-15M to HD (YPbPr/RGBHV w/male BNCs - 3’ / .914m) 440-5600-002 DE-15M to HD (YPbPr/RGBHV w/male BNCs - 6’ / 1.83m) 440-5600-003 DE-15M to HD (YPbPr/RGBHV w/female BNCs - 7” / 177.8mm) ProductionVIEW HD MV Manual - Document Number 342-0241 Rev G Page 27 of 36...

  • Page 28: Appendix 1: Video And Control Pin-Out Table For Productionview Hd Mv

    RXD (from TXD of camera) Appendix 2: RS-232 Control The ProductionVIEW HD MV has six (6) discrete camera control ports which eliminates the need for daisy- chaining control cabling. With ProductionVIEW HD MV, all cabling configurations are home run wiring configurations.
  • Page 29 VVVV - Vertical coordinate upper limit HHHH - Horizontal coordinate upper limit |RBtn xx - Read button touch screen limits record xx - Button Index (0x00-0x2f) +--------------------------------------------------------------------------+ ProductionVIEW HD MV Manual - Document Number 342-0241 Rev G Page 29 of 36...

  • Page 30: Appendix 3: Command Structure Definitions

    Zoom Zoom (in/Out/Stop)[,9](cr) Zoom Camera, optional speed (1-7) The Touch Screen Configuration read/write commands are used only for diagnostics by Vaddio Engineers to verify Touch Screen table parameters. ProductionVIEW HD MV Manual - Document Number 342-0241 Rev G Page 30 of 36...
  • Page 31 Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference including interference that may cause undesired operation of the device. Changes or modifications not expressly approved by Vaddio can affect emission compliance and could void the user’s authority to operate this equipment.

  • Page 32: Warranty Information

    Vaddio Customer Service: Vaddio will test, repair, or replace the product or products without charge if the unit is under warranty and is found to be defective. If the product is out of warranty, Vaddio will test then repair the product or products. The cost of parts and labor charge will be estimated by a technician and confirmed by the customer prior to repair.
  • Page 33 ProductionVIEW HD MV Notes: ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ _________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ________________________________________________________________________________ ProductionVIEW HD MV Manual - Document Number 342-0241 Rev G Page 33 of 36...
  • Page 34 ProductionVIEW HD MV Notes: ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ _________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ _________________________________________________________________________________ ProductionVIEW HD MV Manual - Document Number 342-0241 Rev G Page 34 of 36...
  • Page 35 ProductionVIEW HD MV Back Inside Cover - Blank ProductionVIEW HD MV Manual - Document Number 342-0241 Rev G Page 35 of 36...
  • Page 36 Toll Free: 800-572-2011 ▪ Phone: 763-971-4400 ▪ FAX: 763-971-4464 www.vaddio.com ©2014 Vaddio - All Rights Reserved. Reproduction in whole or in part without written permission is prohibited. Specifications and pricing are subject to change without notice. Vaddio, ProductionVIEW, TeleTouch, Quick-Connect, ClearVIEW, WallVIEW, CeilingVIEW, and PowerRite are trademarks...
