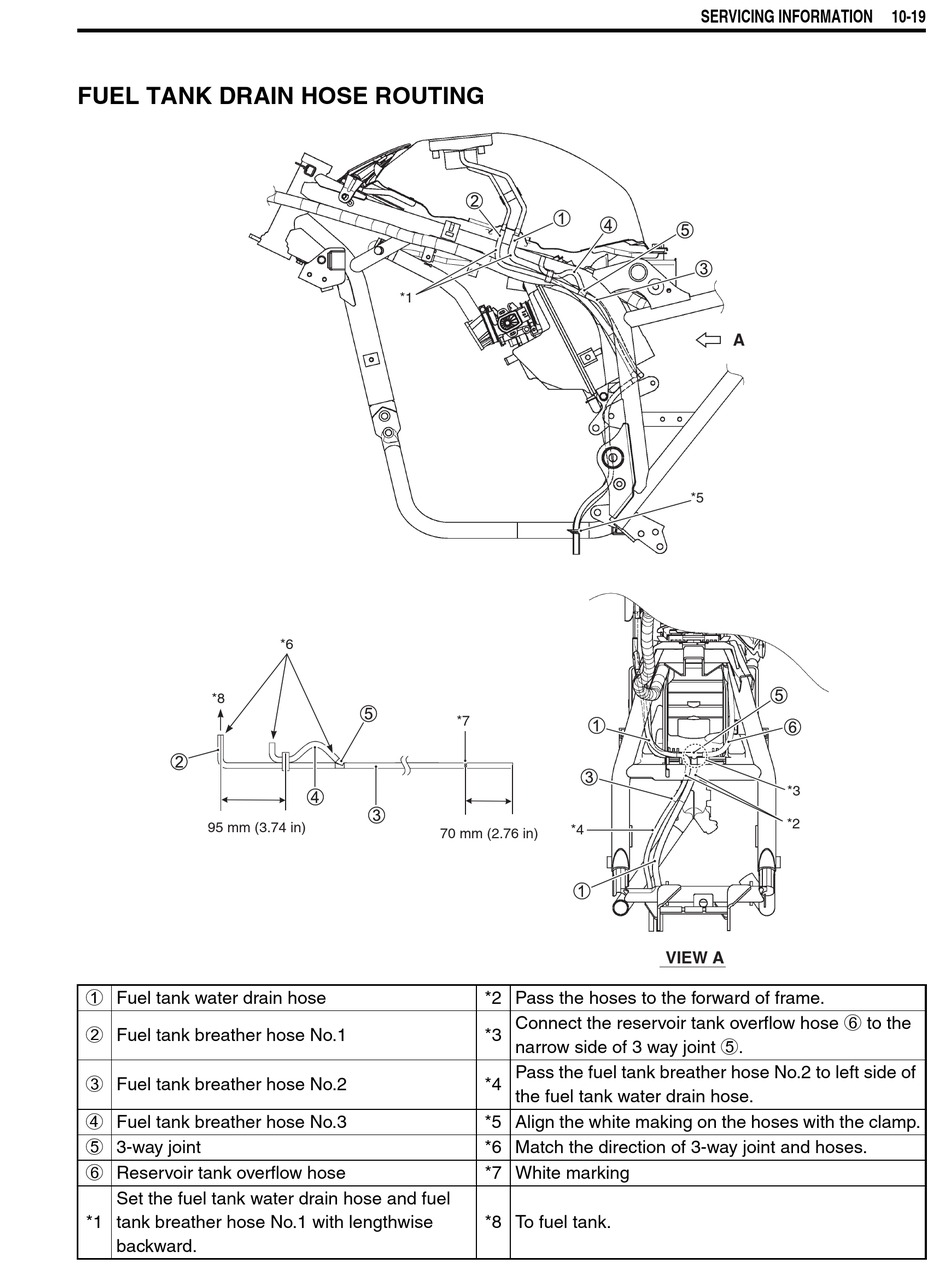

FUEL TANK DRAIN HOSE ROUTING
*8
95 mm (3.74 in)
1 Fuel tank water drain hose
2 Fuel tank breather hose No.1
3 Fuel tank breather hose No.2
4 Fuel tank breather hose No.3
5 3-way joint
6 Reservoir tank overflow hose
Set the fuel tank water drain hose and fuel
*1
tank breather hose No.1 with lengthwise
backward.
*1
*6
*7
70 mm (2.76 in)
*4
VIEW A
*2 Pass the hoses to the forward of frame.
Connect the reservoir tank overflow hose 6 to the
*3
narrow side of 3 way joint 5.
Pass the fuel tank breather hose No.2 to left side of
*4
the fuel tank water drain hose.
*5 Align the white making on the hoses with the clamp.
*6 Match the direction of 3-way joint and hoses.
*7 White marking
*8 To fuel tank.
SERVICING INFORMATION 10-19
A
*5
*3
*2
