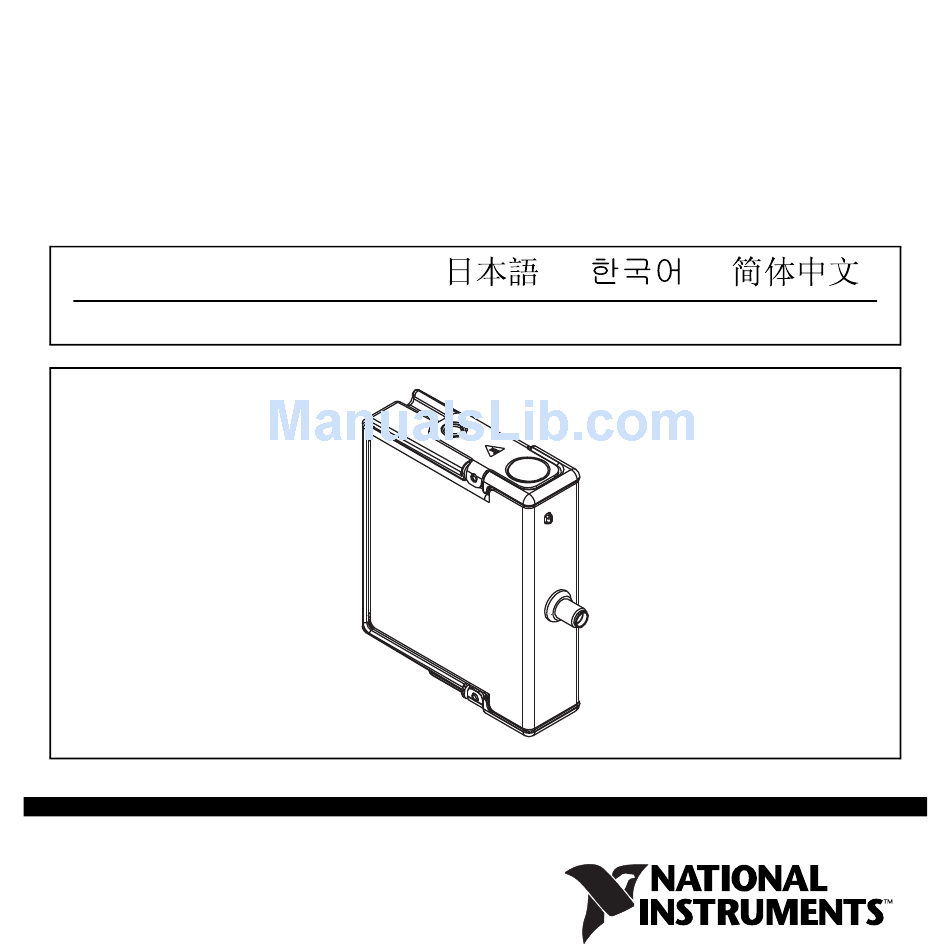

- Page 1 OPERATING INSTRUCTIONS AND SPECIFICATIONS NI 9467 C Series GPS Synchronization Module Français Deutsch ni.com/manuals...
-
Page 2: Safety Guidelines
This document describes how to use the NI 9467 and includes specifications. Visit and enter ni.com/info rdsoftwareversion to determine which software you need for the modules you are using. For information about installing, configuring, and programming the system, refer to the system documentation. Visit ni.com/info... -
Page 3: Safety Guidelines For Hazardous Locations
Touching this component may result in bodily injury. Safety Guidelines for Hazardous Locations The NI 9467 is suitable for use in Class I, Division 2, Groups A, B, C, D, T4 hazardous locations; Class I, Zone 2, AEx nA IIC T4, and Ex nA IIC T4 hazardous locations;... -
Page 4: Electromagnetic Compatibility Guidelines
II 3G and is suitable for use in Zone 2 hazardous locations, in ambient temperatures of –40 °C ≤ Ta ≤ 70 °C. If you are using the NI 9467 in Gas Group IIC hazardous locations, you must use the device in an NI chassis that has been evaluated as Ex nC IIC T4, EEx nC IIC T4, Ex nA IIC T4, or Ex nL IIC T4 equipment. - Page 5 Furthermore, any modifications to the product not expressly approved by National Instruments could void your authority to operate it under your local regulatory rules. To ensure the specified EMC performance,...
-
Page 6: Start-Up Behavior
EMC performance is attained. Overview of the NI 9467 The NI 9467 is a stationary GPS timing module for C Series platforms. It provides accurate timing and geographic location information to the C Series host, which enables synchronization of C Series systems. -
Page 7: Status Led
Status LED The NI 9467 has a front panel LED to indicate status. The following table describes the meaning of each LED pattern. Conditions... -
Page 8: Antenna Installation
Connecting the NI 9467 The NI 9467 has one SMA female connector on its front panel for a GPS active antenna. The connector provides a DC voltage to power the antenna and also serves as input for the GPS RF signal. -
Page 9: Maximum Cable Length
National Instruments recommends a GPS signal strength of between –135 dBm and –120 dBm at the NI 9467 SMA input. GPS signal strength on the Earth’s surface is typically –130 dBm. Targeting a signal strength of –125 dBm at the SMA input, you can compute the maximum cable length as: Max_cable_loss = –130 dBm + antenna_gain –... -
Page 10: Sleep Mode
In sleep mode, the system consumes minimal power and may dissipate less heat than it does in normal mode. Refer to the Specifications section for more information about power consumption and thermal dissipation. NI 9467 Operating Instructions and Specifications ni.com... - Page 11 Note that when the NI 9467 is in sleep mode, the GPS receiver is not powered and stops tracking satellites. When the module exits sleep mode and power to the GPS receiver is restored, the module goes through the normal power-up process, which includes the ephemeris/almanac data acquisition and self-survey process.
-
Page 12: Specifications
Higher signal strength might saturate the receiver and degrade performance. For the best timing accuracy performance, ensure that the GPS antenna has a clear view of the sky. Refer to the Antenna Installation section for more details. NI 9467 Operating Instructions and Specifications ni.com... -
Page 13: Power Requirements
Active mode ....... 150 mA max Sleep mode ......... 1 mA Thermal dissipation (at 70°C) Active mode ....... 550 mW max Sleep mode ......... 5 mW Physical Characteristics Weight..........141 g © National Instruments NI 9467 Operating Instructions and Specifications... - Page 14 Ingress protection......IP 40 Operating humidity (IEC 60068-2-56)......10 to 90% RH, noncondensing Storage humidity (IEC 60068-2-56)......5 to 95% RH, noncondensing Pollution Degree (IEC 60664) ..2 Maximum altitude......5000 m Indoor use only. NI 9467 Operating Instructions and Specifications ni.com...
-
Page 15: Shock And Vibration
(IEC 60068-2-27)......30 g, 11 ms half sine, 50 g, 3 ms half sine, 18 shocks at 6 orientations Safety The NI 9467 module does not provide electrical Note isolation. Safety Standards This product meets the requirements of the following standards... -
Page 16: Electromagnetic Compatibility
This product meets the requirements of the following EMC standards for electrical equipment for measurement, control, and laboratory use: • EN 61326-1 (IEC 61326-1): Class A emissions; Industrial immunity • EN 55011 (CISPR 11): Group 1, Class A emissions NI 9467 Operating Instructions and Specifications ni.com... - Page 17 For EMC declarations and certifications, and Note additional information, refer to the Online Product Certification section. © National Instruments NI 9467 Operating Instructions and Specifications...
-
Page 18: Online Product Certification
Environmental Management NI is committed to designing and manufacturing products in an environmentally responsible manner. NI recognizes that eliminating certain hazardous substances from our products is beneficial to the environment and to NI customers. NI 9467 Operating Instructions and Specifications ni.com... - Page 19 National Instruments WEEE initiatives, and compliance with WEEE Directive 2002/96/EC on Waste and Electronic Equipment, visit ni.com/ environment/weee National Instruments (RoHS) National Instruments RoHS (For information ni.com/environment/rohs_china about China RoHS compliance, go to ni.com/ environment/rohs_china © National Instruments NI 9467 Operating Instructions and Specifications...
-
Page 20: Where To Go For Support
Web sites, which provide up-to-date contact information, support phone numbers, email addresses, and current events. LabVIEW, National Instruments, NI, ni.com, the National Instruments corporate logo, and the Eagle logo are trademarks of National Instruments Corporation. Refer to the Trademark Information at ni.com/trademarks for other National Instruments trademarks.
