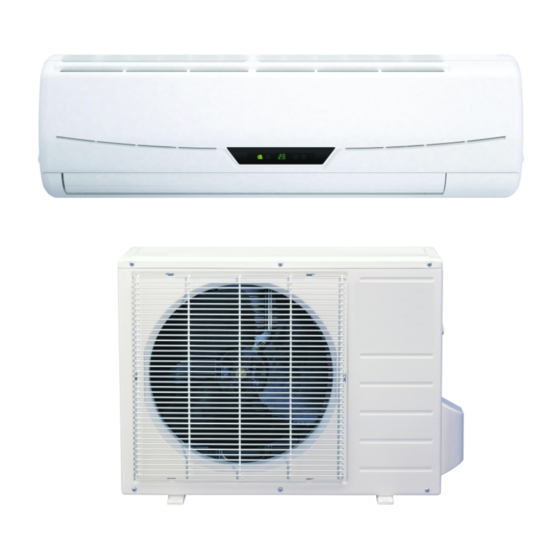

- Page 1 Split type room Air conditioner AA-3225 AA-3226 AA-3227 DEAR CUSTOMER Congratulations for your purchase! Please read this manual carefully, and keep it for future reference. If you need extra support, please write to info@premiermundo.com...
- Page 2 This sign means that there are important instructions of operation and handling in the manual that comes with this device. PREMIER CUSTOMER SERVICE Venezuela: 0800 – ELECTRIC (353-2874) Colombia:...
-
Page 3: Table Of Contents
CONTENTS SOCIABLE REMARK Sociable remark........................2 SAFETY PRECAUTIONS Warning ..........................3 Caution ..........................4 OPERATIING INSTRUCTIONS Parts names ........................5 Operating temperature......................6 Manual operation ........................6 Airflow direction control ......................7 How the air conditioner works ....................8 CARE AND MAINTENANCE Care and maintenance ......................9 OPERATION TIPS Operation tips .... -
Page 4: Sociable Remark
SOCIABLE REMARK When using this air conditioner in the European countries, the follow informations must be followed: DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary. It is prohibited to dispose of this appliance in domestic household waste. For disposal, there are several possibilities: A) The municipality has established collection systems, where electronic waste can be disposed of at least free of charge to the user. -
Page 5: Safety Precautions
SAFETY PRECAUTIONS To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. The seriousness is classified by the following indications. This symbol indicates the possibility of death or serious injury. -
Page 6: Caution
SAFETY PRECAUTIONS CAUTION When the air filter is to be Do not clean the air Ventilate the room well conditioner with water. when used together removed, do not touch the with a stove, etc. metal parts of the unit. An oxygen shortage It may cause an injury. -
Page 7: Operatiing Instructions
OPERATING INSTRUCTIONS Parts names Indoor unit Indoor unit 1. Front panel 2. Air inlet 3. Air filter 4. Air outlet 5. Horizontal air flow grille 6. Vertical air flow louver 7. Display panel 8. Remote controller Outdoor unit 9. Connecting pipe, drain hose Outdoor unit 10. -
Page 8: Operating Temperature
OPERATING INSTRUCTIONS NOTE: This manual does not include Remote Controller Operations, see the <<Remote Controller Instruction>> packed with the unit for details. Operating temperature Mode Cooling operation Heating operation Drying operation Temperature >17 C Room temperature <30 C >10 C 18 C 43 C 11 C... -
Page 9: Airflow Direction Control
OPERATING INSTRUCTIONS Airflow direction control Adjust the air flow direction properly otherwise, it might cause discomfort or cause uneven room temperatures. Adjust the horizontal louver using the remote controller. Adjust the vertical louver manually. To set the vertical air flow(Up--Down) direction Range Perform this function while the unit is in operation. -
Page 10: How The Air Conditioner Works
OPERATING INSTRUCTIONS How the air conditioner works AUTO operation When you set the air conditioner in AUTO mode, it will SLEEP operation automatically select cooling, heating(cooling/heating models only), or fan only operation depending on what temperature you have selected and the room temperature. The air conditioner will control room temperature Temperature automatically round the temperature point set by you. -
Page 11: Care And Maintenance
CARE AND MAINTENANCE Care and maintenance Cleaning the Grille, Case and Remote Controller Turn the system off before cleaning. To clean, wipe with a soft, dry cloth. Do not use bleach or abrasives. Household Drain Cleaner NOTE: Supply power must be disconnectd before cleaning the indoor unit. - Page 12 CARE AND MAINTENANCE 4. Remove the Air Freshening Filter(Optional filter included: Plasma Dust Collector/Silver Ion filter / Bio filter /Vitamin C filter/3M air purifier filter) from its support frame.(The removing and installation method are slightly difference, see the pictures marked on the left.
-
Page 13: Operation Tips
OPERATION TIPS The following events may occur during normal operation. 1. Protection of the air conditioner. Compressor protection The compressor can't restart for 3 minutes after it stops. Anti-cold air (Cooling and heating models only) The unit is designed not to blow cold air on HEAT mode, when the indoor heat exchanger is in one of the following three situations and the set temperature has not been reached. - Page 14 OPERATION TIPS 7. Dripping water may generate on the surface of the indoor unit when cooling in a high relatively humidity (relative humidity higher than 80%). Adjust the horizontal louver to the maximum air outlet position and select HIGH fan speed. 8.
-
Page 15: Troubleshooting Tips
TROUBLESHOOTING TIPS Troubleshooting Tips Stop the air conditioner immediately if one of the following faults occur. Disconnect the power and contact the nearest customer service center. OPERATION indicator or other indicators flash rapidly (5 times every second) and this flash can't be fixed by disconnecting the power, and then connect it in again. Trouble Fuse blows frequently or circuit breaker trips frequently. - Page 16 AA-3225 TO INDOOR UNIT TO INDOOR UNIT OUTDOOR UNIT OUTDOOR UNIT 2(N) OVERLOAD 3(COM.) RELAY (INTERNAL/ EXTERNAL DEPENDING ON MODELS) R(M) COMP MOTOR CAPACITOR CAPACITOR This symbol indicates the element is optional , the actual shape shall be prevail. Indoor Unit...
- Page 17 2020324A2603...
