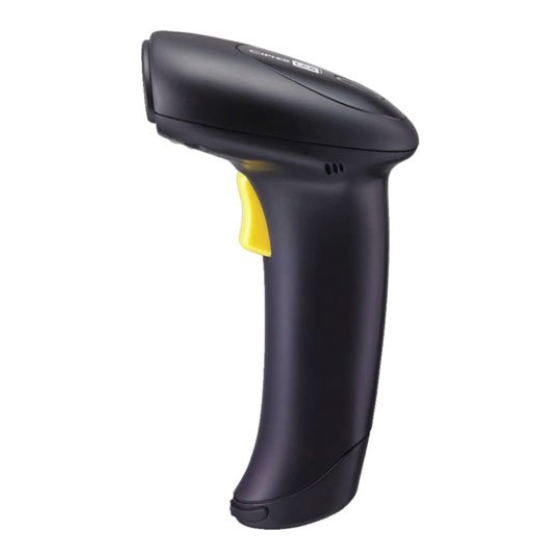

CipherLab 1500 User Manual

Barcode scanner
Hide thumbs Also See for 1500:
Table of Contents

Advertisement

Quick Links

See also: User Manual
1500/1502 Barcode Scanner
Setup barcodes included.
Version 1.16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1500 and is the answer not in the manual?

Questions and answers

Related Manuals for CipherLab 1500

Summary of Contents for CipherLab 1500

  • Page 1 1500/1502 Barcode Scanner Setup barcodes included. Version 1.16...
  • Page 2 Due to continued product development this information may change without notice. The information and intellectual property contained herein is confidential between CIPHERLAB and the client and remains the exclusive property of CIPHERLAB CO., LTD. If you find any problems in the documentation, please report them to us in writing.

  • Page 3: For Canada

    IMPORTANT NOTICES FOR USA This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 4: For Product With Laser

    FOR PRODUCT WITH LASER CAUTION This laser component emits FDA / IEC Class 2 laser light at the exit port. Do not stare into beam. SAFETY PRECAUTIONS DO NOT expose the scanner to any flammable sources. Under no circumstances, internal components are self-serviceable. For AC power adaptor, a socket outlet shall be installed near the equipment and shall be easily accessible.

  • Page 5: Release Notes

    Modified: 3.10 GS1-128 (EAN-128) — Cannot read when disabled 1.14 Jul. 19, 2011 since firmware v1.10 Modified: Specifications — Power Adaptor Modified: 1.11 Auto-Sense Mode (1500 Only) — add High Sensitivity 1.13 Nov. 23, 2010 behavior Modified: Introduction, Symbologies Supported — add support of 1.12...
  • Page 6 Modified: 2.2.2 Baud Rate — change setup barcode for 4800 bps 1.09 Nov. 25, 2009 (change 100079 to 100100) Modified: 1.10 Auto-Sense Mode (1500 Only) — Continuous mode as 1.08 Oct. 30, 2009 an alternative Modified: 1.12 Symbologies Supported — ISBT 128 enabled by default Modified: 2.2.2 Baud Rate —...

  • Page 7: Table Of Contents

    CONTENTS IMPORTANT NOTICES ........................- 3 - For USA ............................- 3 - For Canada ............................ - 3 - For Product with Laser ........................- 4 - Safety Precautions ........................- 4 - Care & Maintenance ........................- 4 - RELEASE NOTES ..........................
  • Page 8 1.7 Scanning Timeout........................25 1.8 Delay between Re-read ......................26 1.9 Read Redundancy for All Symblogies..................27 1.10 Addon Security for UPC/EAN Barcodes ................28 1.11 Auto-Sense Mode (1500 Only) ....................29 1.12 Negative Barcodes .........................30 1.13 Effective Decoding Area......................31 1.13.1 Positioning Window......................31 1.13.2 Adjusting Window......................32...
  • Page 9 1500 Barcode Scanner User Guide 3.3.3 Transmit Check Digit......................62 3.3.4 Code Length Qualification ....................63 3.4 Code 25 – Matrix 25 ........................64 3.4.1 Select Start/Stop Pattern ....................64 3.4.2 Verify Check Digit ......................65 3.4.3 Transmit Check Digit......................65 3.4.4 Code Length Qualification ....................66 3.5 Code 39.............................
  • Page 10 1500 Barcode Scanner User Guide 3.18.3 Transmit Check Digit .....................89 3.19 UPC-E............................90 3.19.1 Select System Number ....................91 3.19.2 Convert to UPC-A......................91 3.19.3 Transmit System Number....................92 3.19.4 Transmit Check Digit .....................92 DEFINING OUTPUT FORMAT ......................93 4.1 Letter Case..........................93 4.2 Character Substitution ......................94...
  • Page 11 1500 Barcode Scanner User Guide SPECIFICATIONS ..........................143 FIRMWARE UPGRADE........................145 HOST SERIAL COMMANDS ......................147 Serial Commands ..........................147 Example ............................148 KEYBOARD WEDGE TABLE ......................149 Key Type & Status .........................150 Key Type............................150 Key Status ..........................150 Example ............................151 NUMERAL SYSTEMS........................153 Decimal System..........................153 Hexadecimal System........................154...

  • Page 13: Introduction

    CCD scan engine to read long barcodes. Owing to the slim, ergonomic design, extremely low power consumption, and powerful decoding capability, CipherLab Barcode Scanners are the best choice for the following applications – Receiving in Retail Product labeling &...

  • Page 14: Inside The Package

    Refer to product specifications. Save the box and packaging material for future use in case you need to store or ship the scanner. Barcode Scanner: 1500, 1500WA, or 1502 Product CD Note: (1) The CD-ROM includes this manual and Windows-based ScanMaster software for configuration, as well as the USB Virtual COM driver.

  • Page 15: Symbologies Supported

    Introduction SYMBOLOGIES SUPPORTED Most of the popular barcode symbologies are supported, as listed below. Each can be individually enabled or disabled. The scanner will automatically discriminate and recognize all the symbologies that are enabled. Refer to Chapter 3 Changing Symbology Settings for details of each symbology.
  • Page 16 1500 Barcode Scanner User Guide DataBar GS1 DataBar Omnidirectional (RSS-14) Disabled (RSS) GS1 DataBar Truncated Disabled GS1 DataBar Stacked Disabled GS1 DataBar Stacked Omnidirectional Disabled GS1 DataBar Limited (RSS Limited) Disabled GS1 DataBar Expanded (RSS Expanded) Disabled GS1 DataBar Expanded Stacked...

  • Page 17: Quick Start

    QUICK START The configuration of the scanner can be done by reading the setup barcodes contained in this manual or via the ScanMaster software. This section describes the procedure of configuring the scanner by reading the setup barcodes and provides some examples for demonstration. Note: If RS-232 is selected for output interface, the host can directly send serial commands to configure the scanner.

  • Page 18: Enter Configuration Mode

    1500 Barcode Scanner User Guide ENTER CONFIGURATION MODE For the scanner to enter the configuration mode, you must have it read the "Enter Setup" barcode, which can be located at the bottom of almost every even page of this manual.

  • Page 19: Default Settings

    Quick Start DEFAULT SETTINGS SAVE USER SETTINGS AS DEFAULTS For the scanner to keep the customized settings as user defaults, you must have it read the “Save as User Defaults” barcode. This is a normal setup barcode, and the scanner will respond with two beeps (low-high tone).

  • Page 20: Read A Setup Barcode

    1500 Barcode Scanner User Guide READ A SETUP BARCODE CONFIGURE PARAMETERS For most of the scanner parameters, only one read is required to set them to new values. The scanner will respond with two beeps (low-high tone) when each parameter is set successfully.
  • Page 21 Quick Start The example below shows how to save your settings as “User Default” so that you may restore user defaults at a later time: Steps Action User Feedback if Successful Power on the scanner… The scanner will respond with a long beep (high tone) and its LED indicator will become solid red and go off quickly.
  • Page 22 1500 Barcode Scanner User Guide The example below shows how to set numeric parameters: Steps Action User Feedback if Successful Power on the scanner... The scanner will respond with a long beep (high tone) and its LED indicator will become solid red and go off quickly.
  • Page 23 Quick Start The example below shows how to set string parameters: Steps Action User Feedback if Successful Power on the scanner... The scanner will respond with a long beep (high tone) and its LED indicator will become solid red and go off quickly. Enter the Configuration Mode…...

  • Page 24: List The Current Settings

    1500 Barcode Scanner User Guide LIST THE CURRENT SETTINGS The current settings of all scanner parameters can be sent, via Keyboard Wedge or RS-232, to the host computer for user inspection. The listing includes pages as shown below. You can select the page of interest by having the scanner read the “List Page x”...
  • Page 25 Quick Start List settings regarding Editing Format 4 List Page 11 List settings regarding Editing Format 5 List Page 12 Update...

  • Page 26: One-Scan Setup Barcodes

    1500 Barcode Scanner User Guide ONE-SCAN SETUP BARCODES An “One-scan Setup Barcode” does exactly what its name advertises. Scanning one such barcode gets the setting done while saves the hassle of Enter Setup and Update barcodes scanning. Most setting parameters are supported by One-scan Setup.

  • Page 27: Understanding The Barcode Scanner

    1.8 Delay between Re-read..........26 1.9 Read Redundancy for All Symblogies ......27 1.10 Addon Security for UPC/EAN Barcodes ......28 1.11 Auto-Sense Mode (1500 Only) ........29 1.12 Negative Barcodes ........... 30 1.13 Effective Decoding Area ..........31 1.1 POWER Connect the interface cable between the scanner and your computer.

  • Page 28: Led Indicator

    1500 Barcode Scanner User Guide 1.3 LED INDICATOR The dual-color LED on top of the scanner is used to provide user feedback. For example, the LED becomes solid red and goes off quickly upon powering on or running out of transmit buffer.

  • Page 29: Beeper

    Chapter 1 Understanding the Barcode Scanner 1.4 BEEPER The scanner has a buzzer to provide user feedback in various operating conditions. Beeping Meaning One long beep, high tone Power on, with red LED on (1 second) and off quickly One short beep, high tone Good Read, with green LED on-off quickly Programmable, default to 4 KHz Six short beeps...

  • Page 30: Good Read Beep

    1500 Barcode Scanner User Guide 1.4.2 GOOD READ BEEP Frequency 8 kHz *4 kHz 2 kHz 1 kHz Duration *Shortest Shorter Longer Longest Enter Setup...

  • Page 31: Send "Nr" To Host

    Chapter 1 Understanding the Barcode Scanner 1.5 SEND “NR” TO HOST This feature only works when Keyboard Wedge or RS-232 is selected for output interface. You may have the scanner send the “NR” string to the host to notify the No Read event. Enable *Disable Update...

  • Page 32: Scan Modes

    1500 Barcode Scanner User Guide 1.6 SCAN MODES Different scan modes are supported – select the scan mode that best suits the requirements of a specific application. Refer to the comparison table below. Scan Mode Start to Scan Stop Scanning...

  • Page 33: Continuous Mode

    Chapter 1 Understanding the Barcode Scanner 1.6.1 CONTINUOUS MODE The scanner is always scanning. After a successful decoding, the removal of barcode is required. It is not allowed to proceed to decode until the decoding delay time has passed. To decode the same barcode repeatedly, move away the barcode and put it back again and again for scanning.

  • Page 34: Laser Mode

    1500 Barcode Scanner User Guide 1.6.3 LASER MODE The scanner will start scanning once the trigger is held down. The scanning won't stop until (1) a barcode is decoded, (2) the pre-set timeout expires, or (3) you release the trigger.

  • Page 35: Alternate Mode

    Chapter 1 Understanding the Barcode Scanner 1.6.6 ALTERNATE MODE The scanner will start scanning once the trigger is pressed The scanning won't stop until you press the trigger again. Alternate Mode 1.6.7 AIMING MODE The scanner will aim at a barcode once the trigger is pressed, and start scanning when the trigger is pressed again within one second.

  • Page 36: Multi-Barcode Mode

    1500 Barcode Scanner User Guide 1.6.8 MULTI-BARCODE MODE The scanner will be scanning as long as the trigger is held down, capable of decoding one single barcode, as well as multiple unique barcodes one at a time. While decoding a bunch of unique barcodes, if a barcode is decoded twice, its subsequent decoding will be ignored and the scanner is expecting another unique barcode.

  • Page 37: Scanning Timeout

    Chapter 1 Understanding the Barcode Scanner 1.7 SCANNING TIMEOUT Specify the scanning time interval (1~254 sec.; 0= Disable) when the scan mode is set to any of the following – Laser mode Auto Off mode Auto Power Off mode Aiming mode Scanner Time-out after 0~254 sec.

  • Page 38: Delay Between Re-Read

    1500 Barcode Scanner User Guide 1.8 DELAY BETWEEN RE-READ This is also referred to as the “Blocking Time”, which is used to prevent the scanner from accidentally reading the same barcode twice when the scan mode is set to any of the following –...

  • Page 39: Read Redundancy For All Symblogies

    Chapter 1 Understanding the Barcode Scanner 1.9 READ REDUNDANCY FOR ALL SYMBLOGIES Select the level of reading security. For example, If "No Redundancy" is selected, one successful decoding will make the reading valid and induce the "READER Event". If "Three Times" is selected, it will take a total of four consecutive successful decoding of the same barcode to make the reading valid.

  • Page 40: Addon Security For Upc/Ean Barcodes

    1500 Barcode Scanner User Guide 1.10 ADDON SECURITY FOR UPC/EAN BARCODES The scanner is capable of decoding a mix of UPC/EAN barcodes with and without addons. The read redundancy (0~30 times) allows changing the number of times to decode a UPC/EAN barcode before transmission.

  • Page 41: Auto-Sense Mode (1500 Only)

    Chapter 1 Understanding the Barcode Scanner 1.11 AUTO-SENSE MODE (1500 ONLY) This mode is only available when you want to seat the scanner in the Auto-Sense Stand. When you enable this mode, it will force the scanner to apply Laser mode as the scan mode.

  • Page 42: Negative Barcodes

    1500 Barcode Scanner User Guide 1.12 NEGATIVE BARCODES Normally, barcodes are printed with the color of the bars darker than that of the spaces. But for negative barcodes, they are printed in the opposite sense just like negative films. The spaces of negative barcodes are printed with a color darker than that of the bars.

  • Page 43: Effective Decoding Area

    Chapter 1 Understanding the Barcode Scanner 1.13 EFFECTIVE DECODING AREA By default, the effective decoding area is 100% covered by the scanned area. However, you may narrow down the decoding area to prevent reading the wrong barcode when a number of barcodes are printed closely. The scanner will only read barcodes that appear in the effective decoding area.

  • Page 44: Adjusting Window

    1500 Barcode Scanner User Guide 1.13.2 ADJUSTING WINDOW Percentage for Left Half *Left 50% Left 40% Left 30% Left 20% Left 10% Percentage for Right Half Right 10% Right 20% Right 30% Right 40% *Right 50% Enter Setup...

  • Page 45: Selecting Output Interface

    Chapter 2 SELECTING OUTPUT INTERFACE In order to establish a proper connection between your computer and the scanner, we suggest that you follow these instructions – 1) Connect the interface cable between the scanner and your computer. If using the RS-232 cable, join the power supply cord. 2) Have the scanner read the “Enter Setup”...

  • Page 46: Keyboard Wedge

    1500 Barcode Scanner User Guide 2.1 KEYBOARD WEDGE The Y cable allows you to connect the scanner to the keyboard input port of PC and you may join the keyboard as well. The scanned data will be transmitted to the host keyboard port as if it is manually entered via the keyboard.

  • Page 47: Activate Keyboard Wedge & Select Keyboard Type

    Chapter 2 Selecting Output Interface 2.1.1 ACTIVATE KEYBOARD WEDGE & SELECT KEYBOARD TYPE Once Keyboard Wedge interface is activated, a keyboard type must be selected to complete the setting. Activate Keyboard Wedge & Select Keyboard Type… 1) Read the aforelisted barcode to activate Keyboard Wedge. 2) Read the “Decimal Value”...

  • Page 48: Keyboard Settings

    1500 Barcode Scanner User Guide 2.1.2 KEYBOARD SETTINGS Alphabets Layout Digits Layout Capital Lock Type Capital Lock Setting Alphabets Transmission Digits Transmission Alternate Composing Laptop Support Alphabets Layout By default, the alphabets layout is set to normal mode, also known as the standard English layout.
  • Page 49 Chapter 2 Selecting Output Interface US Keyboard Style – Normal QWERTY layout, which is normally used in western countries. Select “Lower Row” for the “Digits Layout” setting for the upper row is for special characters. French Keyboard Style – AZERTY French layout;...
  • Page 50 1500 Barcode Scanner User Guide Digits Layout Select a proper layout that matches the alphabets layout. The scanner will make adjustments according to this setting. Options Description Normal Depends on the [Shift] key or [Shift Lock] setting Lower Row For QWERTY or QWERTZ keyboard...
  • Page 51 Chapter 2 Selecting Output Interface Capital Lock Type & Setting In order to send the alphabets with correct case, the scanner needs to know the status of Caps Lock on the keyboard. Incorrect settings may result in reversed case of the alphabets being transmitted.
  • Page 52 1500 Barcode Scanner User Guide *Capital Lock OFF Enter Setup...
  • Page 53 Chapter 2 Selecting Output Interface Alphabets Transmission By default, the alphabets transmission is case-sensitive, meaning that the alphabets will be transmitted according to their original case, the status of Caps Lock on the keyboard, as well as the Capital Lock setting. Select [Ignore Case] to have alphabets transmitted according to the status of Caps Lock on the keyboard only.
  • Page 54 1500 Barcode Scanner User Guide Digits Transmission By default, the alphanumeric keypad is used for transmitting digits. Select “Numeric Keypad” if you wish to use the keys on the numeric keypad. Numeric Key *Alphanumeric Key Note: If you select “Numeric Keypad”, the Num Lock status of the physical keyboard should be “ON”.
  • Page 55 Chapter 2 Selecting Output Interface ALT Composing By default, Alternate key composing is disabled. Select [Yes] to allow emulating Alternate key code of a specific keyboard character. For example, [Alt] + [065] will be sent to host for the character “A”...

  • Page 56: Inter-Character Delay

    1500 Barcode Scanner User Guide 2.1.3 INTER-CHARACTER DELAY By default, the inter-character delay is set to zero. Specify a value, ranging from 0 to 254 in units of millisecond, to match the computer response time of the keyboard interface. Such delay time is inserted between every character being transmitted. The longer the delay time is, the slower the transmission speed will be.

  • Page 57: Activate Rs-232 Interface

    Chapter 2 Selecting Output Interface 2.2 RS-232 Use the RS-232 cable to connect the scanner to the serial port of PC and join the power adaptor to the RS-232 connector. The associated RS-232 parameters must match those configured on the computer. The scanned data will be transmitted to the serial port. RS-232 Settings Defaults Baud Rate, Data Bit, Parity, Stop Bit...

  • Page 58: Data Bits

    1500 Barcode Scanner User Guide 2400 bps 1200 bps 600 bps 2.2.3 DATA BITS *8 bits 7 bits 2.2.4 PARITY *No parity Even 2.2.5 STOP BIT 2 stop bits *1 stop bit Enter Setup...

  • Page 59: Flow Control

    Chapter 2 Selecting Output Interface 2.2.6 FLOW CONTROL By default, there is no flow control in use. Select the flow control (handshake) method. Options Description No flow control Scanner Ready The scanner will activate the RTS signal upon powering on. After each good read, the scanner will then wait for the CTS signal to become active.

  • Page 60: Inter-Character Delay

    1500 Barcode Scanner User Guide 2.2.7 INTER-CHARACTER DELAY By default, the inter-character delay is zero. Specify a value, ranging from 0 to 254 in units of millisecond, to match the computer response time. Such delay time is inserted between every character being transmitted. The longer the delay time is, the slower the transmission speed will be.

  • Page 61: Ack/Nak Timeout

    Chapter 2 Selecting Output Interface 2.2.9 ACK/NAK TIMEOUT By default, the scanner sends data to the host without waiting for an ACK/NAK response before sending more data. Specify a value, ranging from 1 to 99 in units of 0.1 second. If no response within the specified period of time, the scanner will attempt to send the same data two more times.

  • Page 62: Wand Emulation

    1500 Barcode Scanner User Guide 2.3 WAND EMULATION The wand emulation cable allows you to connect the scanner to a data terminal that is expecting input from a wand scanner. Wand Emulation Settings Defaults Normal State Bar State High Module Time...

  • Page 63: Module Time

    Chapter 2 Selecting Output Interface 2.3.4 MODULE TIME By default, it is set to 1 millisecond as the time span for bar and space modules. Select other value for the module time, in units of micro-second or millisecond. 250 µs 500 µs *1 ms 1.5 ms...

  • Page 64: Margin Time

    1500 Barcode Scanner User Guide 2.3.5 MARGIN TIME By default, it is set 20 milliseconds as the time span for the change in state for bar and space modules. Select other value for the margin time. 5 ms 10 ms...

  • Page 65: Output Format

    Chapter 2 Selecting Output Interface 2.3.6 OUTPUT FORMAT By default, the output format is set to "Normal Output" to send data to the terminal in the format of the scanned barcodes, except for GS1 DataBar. By scanning the Code 128 Output barcode below, users can determine all scanned barcodes to be send to the data terminal in the format of Code 128.
  • Page 66 1500 Barcode Scanner User Guide Enter Setup...

  • Page 67: Changing Symbology Settings

    Chapter 3 CHANGING SYMBOLOGY SETTINGS In this chapter, a brief on the symbology settings is provided for your reference. IN THIS CHAPTER 3.1 Codabar ..............56 3.2 Code 25 – Industrial 25 ..........58 3.3 Code 25 – Interleaved 25..........61 3.4 Code 25 –...

  • Page 68: Codabar

    1500 Barcode Scanner User Guide 3.1 CODABAR *Enable Disable 3.1.1 SECURITY LEVEL Security Level renders more decoding accuracy giving consideration to barcodes’ printed quality. The scanner allows you to change the CODABAR security level between high or normal level. * High Normal 3.1.2 START/STOP CHARACTERS SELECTION...

  • Page 69: Start/Stop Transmission

    Chapter 3 Changing Symbology Settings 3.1.3 START/STOP TRANSMISSION Decide whether to include the start/stop characters in the data being transmitted. Transmit Start/Stop Characters *Do Not Transmit 3.1.4 CLSI CONVERSION When enabled, the CLSI editing strips the start/stop characters and inserts a space after the first, fifth, and tenth characters of a 14-character Codabar barcode.

  • Page 70: Code 25 - Industrial 25

    1500 Barcode Scanner User Guide 3.2 CODE 25 – INDUSTRIAL 25 *Enable Disable 3.2.1 SELECT START/STOP PATTERN This decides the readability of all 2 of 5 symbology variants. For example, flight tickets actually use an Industrial 2 of 5 barcode but with Interleaved 2 of 5 start/stop pattern. In order to read this barcode, the start/stop pattern selection parameter of Industrial 2 of 5 should set to "Interleaved 25".

  • Page 71: Verify Check Digit

    Chapter 3 Changing Symbology Settings 3.2.2 VERIFY CHECK DIGIT Decide whether to verify the check digit. If incorrect, the barcode will not be accepted. Verify Industrial 25 Check Digit *Do Not Verify 3.2.3 TRANSMIT CHECK DIGIT Decide whether to include the check digit in the data being transmitted. *Transmit Industrial 25 Check Digit...

  • Page 72: Code Length Qualification

    1500 Barcode Scanner User Guide 3.2.4 CODE LENGTH QUALIFICATION To prevent the "short scan" error, define the "Length Qualification" settings to ensure that the correct barcode is read by qualifying the allowable code length. If "Max/Min Length" is selected, the maximum length and the minimum length must be specified.

  • Page 73: Code 25 - Interleaved 25

    Chapter 3 Changing Symbology Settings 3.3 CODE 25 – INTERLEAVED 25 *Enable Disable 3.3.1 SELECT START/STOP PATTERN This decides the readability of all 2 of 5 symbology variants. For example, flight tickets actually use an Industrial 2 of 5 barcode but with Interleaved 2 of 5 start/stop pattern. In order to read this barcode, the start/stop pattern selection parameter of Industrial 2 of 5 should set to "Interleaved 25".

  • Page 74: Verify Check Digit

    1500 Barcode Scanner User Guide 3.3.2 VERIFY CHECK DIGIT Decide whether to verify the check digit. If incorrect, the barcode will not be accepted. Verify Interleaved 25 Check Digit *Do Not Verify 3.3.3 TRANSMIT CHECK DIGIT Decide whether to include the check digit in the data being transmitted.

  • Page 75: Code Length Qualification

    Chapter 3 Changing Symbology Settings 3.3.4 CODE LENGTH QUALIFICATION To prevent the "short scan" error, define the "Length Qualification" settings to ensure that the correct barcode is read by qualifying the allowable code length. If "Max/Min Length" is selected, the maximum length and the minimum length must be specified.

  • Page 76: Code 25 - Matrix 25

    1500 Barcode Scanner User Guide 3.4 CODE 25 – MATRIX 25 Enable *Disable 3.4.1 SELECT START/STOP PATTERN This decides the readability of all 2 of 5 symbology variants. For example, flight tickets actually use an Industrial 2 of 5 barcode but with Interleaved 2 of 5 start/stop pattern. In order to read this barcode, the start/stop pattern selection parameter of Industrial 2 of 5 should set to "Interleaved 25".

  • Page 77: Verify Check Digit

    Chapter 3 Changing Symbology Settings 3.4.2 VERIFY CHECK DIGIT Decide whether to verify the check digit. If incorrect, the barcode will not be accepted. Verify Matrix 25 Check Digit *Do Not Verify 3.4.3 TRANSMIT CHECK DIGIT Decide whether to include the check digit in the data being transmitted. *Transmit Matrix 25 Check Digit Do Not Transmit...

  • Page 78: Code Length Qualification

    1500 Barcode Scanner User Guide 3.4.4 CODE LENGTH QUALIFICATION To prevent the "short scan" error, define the "Length Qualification" settings to ensure that the correct barcode is read by qualifying the allowable code length. If "Max/Min Length" is selected, the maximum length and the minimum length must be specified.

  • Page 79: Code 39

    Chapter 3 Changing Symbology Settings 3.5 CODE 39 *Enable Disable 3.5.1 TRANSMIT START/STOP CHARACTERS Decide whether to include the start/stop characters in the data being transmitted. Transmit Code 39 Start/Stop Characters *Do Not Transmit 3.5.2 VERIFY CHECK DIGIT Decide whether to verify check digit. If incorrect, the barcode will not be accepted. Verify Code 39 Check Digit *Do Not Verify...

  • Page 80: Transmit Check Digit

    1500 Barcode Scanner User Guide 3.5.3 TRANSMIT CHECK DIGIT Decide whether to include the check digit in the data being transmitted. *Transmit Code 39 Check Digit Do Not Transmit 3.5.4 STANDARD/FULL ASCII CODE 39 Decide whether to support Code 39 Full ASCII that includes all the alphanumeric and special characters.

  • Page 81: Code 93

    Chapter 3 Changing Symbology Settings 3.6 CODE 93 *Enable Disable 3.7 CODE 128 *Enable Disable 3.7.1 SECURITY LEVEL Security Level renders more decoding accuracy giving consideration to barcodes’ printed quality. Decide the security level for reading Code 128 barcodes. *High Normal Update...

  • Page 82: Ean-8

    1500 Barcode Scanner User Guide 3.8 EAN-8 EAN-8 *Enable EAN-8 (No Addon) Disable EAN-8 Addon 2 Enable EAN-8 Addon 2 *Disable EAN-8 Addon 5 Enable EAN-8 Addon 5 *Disable Enter Setup...

  • Page 83: Convert To Ean-13

    Chapter 3 Changing Symbology Settings 3.8.1 CONVERT TO EAN-13 Decide whether to expand the read EAN-8 barcode, as well as its addons, into EAN-13. After conversion, the data follows EAN-13 format and is affected by EAN-13 programming selections (e.g. Check Digit). Convert EAN-8 to EAN-13 *Do Not Convert...

  • Page 84: Ean-13

    1500 Barcode Scanner User Guide 3.9 EAN-13 EAN-13 *Enable EAN-13 (No Addon) Disable EAN-13 Addon 2 Enable EAN-13 Addon 2 *Disable EAN-13 Addon 5 Enable EAN-13 Addon 5 *Disable Enter Setup...

  • Page 85: Convert To Isbn

    Chapter 3 Changing Symbology Settings 3.9.1 CONVERT TO ISBN Decide whether to convert the EAN-13 barcode, starting with 978 and 979, to ISBN. Convert EAN-13 to ISBN *Do Not Convert 3.9.2 CONVERT TO ISSN Decide whether to convert the EAN-13 barcode, starting with 977 to ISSN. Convert EAN-13 to ISSN *Do Not Convert...

  • Page 86: Security Level

    1500 Barcode Scanner User Guide 3.9.4 SECURITY LEVEL Security Level renders more decoding accuracy giving consideration to barcodes’ printed quality. Decide the security level for reading EAN-13 barcodes. Normal *High Enter Setup...

  • Page 87: Gs1-128 (Ean-128)

    Chapter 3 Changing Symbology Settings 3.10 GS1-128 (EAN-128) *Enable Disable Note: When this setting is disabled, GS1-128 barcodes used to be taken as Code 128. However, starting from firmware version 1.10, GS1-128 barcodes can be decoded only when this setting is enabled. 3.10.1 TRANSMIT CODE ID Decide whether to include the Code ID ("...

  • Page 88: Isbt 128

    1500 Barcode Scanner User Guide 3.11 ISBT 128 *Enable Disable Note: When enabled, it not only can decode single ISBT barcode, but also decode and concatenates pairs of ISBT barcodes. Enter Setup...

  • Page 89: Msi

    Chapter 3 Changing Symbology Settings 3.12 MSI Enable *Disable 3.12.1 VERIFY CHECK DIGIT Select one of the three calculations to verify check digit when decoding barcodes. If incorrect, the barcode will not be accepted. *Single Modulo 10 Double Modulo 10 Modulo 10 &...

  • Page 90: Code Length Qualification

    1500 Barcode Scanner User Guide 3.12.3 CODE LENGTH QUALIFICATION To prevent the "short scan" error, define the "Length Qualification" settings to ensure that the correct barcode is read by qualifying the allowable code length. If "Max/Min Length" is selected, the maximum length and the minimum length must be specified.

  • Page 91: French Pharmacode

    Chapter 3 Changing Symbology Settings 3.13 FRENCH PHARMACODE Enable *Disable 3.13.1 TRANSMIT CHECK DIGIT Decide whether to include the check digit in the data being transmitted. *Transmit French Pharmacode Check Digit Do Not Transmit Update...

  • Page 92: Italian Pharmacode

    1500 Barcode Scanner User Guide 3.14 ITALIAN PHARMACODE Enable *Disable 3.14.1 TRANSMIT CHECK DIGIT Decide whether to include the check digit in the data being transmitted. *Transmit Italian Pharmacode Check Digit Do Not Transmit Enter Setup...

  • Page 93: Plessey

    Chapter 3 Changing Symbology Settings 3.15 PLESSEY Enable *Disable 3.15.1 CONVERT TO UK PLESSEY Decide whether to change each occurrence of the character 'A' to character 'X' in the decoded data. Convert to UK Plessey *Do Not Convert 3.15.2 TRANSMIT CHECK DIGIT Decide whether to include the two check digits in the data being transmitted.

  • Page 94: Gs1 Databar (Rss Family)

    1500 Barcode Scanner User Guide 3.16 GS1 DATABAR (RSS FAMILY) It is categorized into three groups: Group I — GS1 DataBar Omnidirectional (RSS-14) GS1 DataBar Omnidirectional This group consists of the following: GS1 DataBar Truncated GS1 DataBar Stacked GS1 DataBar Stacked Omnidirectional Group II —...

  • Page 95: Gs1 Databar Omnidirectional (Rss-14)

    Chapter 3 Changing Symbology Settings 3.16.2 GS1 DATABAR OMNIDIRECTIONAL (RSS-14) Enable RSS-14 & RSS Expanded (Groups I, II) *Disable The settings below apply to Group I symbologies only: GS1 DataBar Omnidirectional GS1 DataBar Truncated GS1 DataBar Stacked GS1 DataBar Stacked Omnidirectional Transmit Code ID Decide whether to include the Code ID in the data being transmitted.
  • Page 96 1500 Barcode Scanner User Guide Transmit Check Digit Decide whether to include the check digit in the data being transmitted. *Transmit RSS-14 Check Digit Do Not Transmit Enter Setup...

  • Page 97: Gs1 Databar Expanded (Rss Expanded)

    Chapter 3 Changing Symbology Settings 3.16.3 GS1 DATABAR EXPANDED (RSS EXPANDED) Enable RSS-14 & RSS Expanded (Groups I, II) *Disable The settings below apply to Group II symbologies only: GS1 DataBar Expanded GS1 DataBar Expanded Stacked Transmit Code ID Decide whether to include the Code ID in the data being transmitted. *Transmit RSS Expanded Code ID Do Not Transmit...

  • Page 98: Gs1 Databar Limited (Rss Limited)

    1500 Barcode Scanner User Guide 3.16.4 GS1 DATABAR LIMITED (RSS LIMITED) Enable RSS Limited (Group III) *Disable Transmit Code ID Decide whether to include the Code ID in the data being transmitted. *Transmit RSS Limited Code ID Do Not Transmit Transmit Application ID Decide whether to include the Application ID ("01") in the data being transmitted.

  • Page 99: Telepen

    Chapter 3 Changing Symbology Settings 3.17 TELEPEN Enable Telepen *Disable 3.17.1 TELEPEN OUTPUT – FULL ASCII/NUMERIC Decide whether to support Telepen in full ASCII code. By default, it supports ASCII mode. AIM Telepen (Full ASCII) includes all the alphanumeric and special characters. Original Telepen (Numeric) *AIM Telepen...

  • Page 100: Upc-A

    1500 Barcode Scanner User Guide 3.18 UPC-A UPC-A *Enable UPC-A (No Addon) Disable UPC-A Addon 2 Enable UPC-A Addon 2 *Disable UPC-A Addon 5 Enable UPC-A Addon 5 *Disable Enter Setup...

  • Page 101: Convert To Ean-13

    Chapter 3 Changing Symbology Settings 3.18.1 CONVERT TO EAN-13 Decide whether to expand the read UPC-A barcode, as well as its addons, into EAN-13. After conversion, the data follows EAN-13 format and is affected by EAN-13 programming selections (e.g. Check Digit). Convert UPC-A to EAN-13 *Do Not Convert...

  • Page 102: Upc-E

    1500 Barcode Scanner User Guide 3.19 UPC-E UPC-E *Enable UPC-E (No Addon) Disable UPC-E Addon 2 Enable UPC-E Addon 2 *Disable UPC-E Addon 5 Enable UPC-E Addon 5 *Disable Enter Setup...

  • Page 103: Select System Number

    Chapter 3 Changing Symbology Settings 3.19.1 SELECT SYSTEM NUMBER Decide whether to decode the ordinary UPC-E barcodes only or both UPC-E0 and UPC-E1 barcodes. System number enabled for decoding UPC-E0 barcodes. System number enabled for decoding UPC-E1 barcodes. System Number 0 & 1 *System Number 0 Only Warning: Because of the way system number 1 is encoded, if both system numbers...

  • Page 104: Transmit System Number

    1500 Barcode Scanner User Guide 3.19.3 TRANSMIT SYSTEM NUMBER Decide whether to include the system number in the data being transmitted. Transmit UPC-E System Number *Do Not Transmit 3.19.4 TRANSMIT CHECK DIGIT Decide whether to include the check digit in the data being transmitted.

  • Page 105: Defining Output Format

    Chapter 4 DEFINING OUTPUT FORMAT You may configure in which format the collected data will be output to the host computer. Barcode read by the scanner will be processed in the following sequence – 1) Perform character substitution on the data scanned. 2) Add Code ID Length Code...

  • Page 106: Character Substitution

    1500 Barcode Scanner User Guide 4.2 CHARACTER SUBSTITUTION Character substitution is performed on every occurrence of the first character specified. If only one character is specified, every occurrence of that character in the barcode will be taken away. The first character will be replaced by the second character(s).

  • Page 107: Select A Set For Character Substitution

    Chapter 4 Defining Output Format 4.2.1 SELECT A SET FOR CHARACTER SUBSTITUTION Configure Set 1 Configure Set 2 Configure Set 3 1) Read the barcode above to enable character substitution by set. For example, have the scanner read the “Set 1” barcode to configure the first set of character substitution.

  • Page 108: Symbologies For Character Substitution (All 3 Sets)

    1500 Barcode Scanner User Guide 4.2.2 SYMBOLOGIES FOR CHARACTER SUBSTITUTION (ALL 3 SETS) By default character substitution will be performed on all symbologies. If the character substitution is not desired with one or more symbologies, read the “Do Not Apply”...
  • Page 109 Chapter 4 Defining Output Format Character Substitution for GS1-128 *Apply Do Not Apply Character Substitution for ISBT 128 *Apply Do Not Apply Character Substitution for EAN-8 (No Addon) *Apply Do Not Apply Character Substitution for EAN-8 Addon 2 *Apply Do Not Apply Character Substitution for EAN-8 Addon 5 *Apply Do Not Apply...
  • Page 110 1500 Barcode Scanner User Guide Character Substitution for EAN-13 (No Addon) *Apply Do Not Apply Character Substitution for EAN-13 Addon 2 *Apply Do Not Apply Character Substitution for EAN-13 Addon 5 *Apply Do Not Apply Character Substitution for French Pharmacode...
  • Page 111 Chapter 4 Defining Output Format Character Substitution for Industrial 25 *Apply Do Not Apply Character Substitution for Interleaved 25 *Apply Do Not Apply Character Substitution for Matrix 25 *Apply Do Not Apply Character Substitution for MSI *Apply Do Not Apply Character Substitution for Plessey *Apply Do Not Apply...
  • Page 112 1500 Barcode Scanner User Guide Character Substitution for GS1 DataBar *Apply Do Not Apply Character Substitution for Telepen *Apply Do Not Apply Character Substitution for UPC-A (No Addon) *Apply Do Not Apply Character Substitution for UPC-A Addon 2 *Apply Do Not Apply...
  • Page 113 Chapter 4 Defining Output Format Character Substitution for UPC-E (No Addon) *Apply Do Not Apply Character Substitution for UPC-E Addon 2 *Apply Do Not Apply Character Substitution for UPC-E Addon 5 *Apply Do Not Apply Update...

  • Page 114: Prefix/Suffix Code

    1500 Barcode Scanner User Guide 4.3 PREFIX/SUFFIX CODE By default, there is no prefix code, and [ENTER] or [CR] (Carriage Return) is configured to be suffix code. Up to 8 characters can be configured, for example, “Barcode_”, and will have...

  • Page 115: Code Id

    Chapter 4 Defining Output Format 4.4 CODE ID Up to two characters for Code ID can be configured for each symbology. To make the Code ID configuration easier, the scanner provides five pre-defined Code ID sets that you can select one and make necessary changes on it. If "Keyboard Wedge"...
  • Page 116 1500 Barcode Scanner User Guide Code ID options Set 1 Set 2 Set 3 Set 4 Set 5 Code 39 Italian Pharmacode French Pharmacode Industrial 25 Interleaved 25 Matrix 25 Codabar Code 93 Code 128 ISBT 128 UPC-E EAN-8 EAN-13...

  • Page 117: Change Code Id

    Chapter 4 Defining Output Format 4.4.2 CHANGE CODE ID 1) Read the barcode below to change code ID of a specific symbology. 2) Read the “Hexadecimal Value” barcode on page 154 for the desired character string. For example, read “4” and “4” for applying the character [D] for Code ID. 3) Read the “Validate”...

  • Page 118: Clear Code Id Settings

    1500 Barcode Scanner User Guide Configure Code ID for Interleaved 25 Configure Code ID for Matrix 25 Configure Code ID for Configure Code ID for Plessey Configure Code ID for Telepen Configure Code ID for UPC-A Configure Code ID for UPC-E 4.4.3 CLEAR CODE ID SETTINGS...

  • Page 119: Length Code

    Chapter 4 Defining Output Format 4.5 LENGTH CODE A two-digit code representing the length of barcode data (character count) can be inserted in front of data being transmitted. Such "Length" code can be individually enabled or disabled for each symbology. Length Code for Codabar Apply *Do Not Apply...
  • Page 120 1500 Barcode Scanner User Guide Length Code for GS1-128 & GS1 DataBar Apply *Do Not Apply Length Code for ISBT 128 Apply *Do Not Apply Length Code for EAN-8 Apply *Do Not Apply Length Code for EAN-13 Apply *Do Not Apply...
  • Page 121 Chapter 4 Defining Output Format Length Code for Italian Pharmacode Apply *Do Not Apply Length Code for Industrial 25 Apply *Do Not Apply Length Code for Interleaved 25 Apply *Do Not Apply Length Code for Matrix 25 Apply *Do Not Apply Length Code for MSI Apply *Do Not Apply...
  • Page 122 1500 Barcode Scanner User Guide Length Code for Plessey Apply *Do Not Apply Length Code for Telepen Apply *Do Not Apply Length Code for UPC-A Apply *Do Not Apply Length Code for UPC-E Apply *Do Not Apply Enter Setup...

  • Page 123: Multi-Barcode Editor

    Chapter 4 Defining Output Format 4.6 MULTI-BARCODE EDITOR The Multi-Barcode Editor allows you to decide the output sequence of a concatenation of barcodes. Up to five barcodes can be specified. When you enable this mode, it will force the scanner to apply Laser mode as the scan mode. Note: The Multi-Barcode Editor has nothing to do with Multi-Barcode Mode.

  • Page 124: Edit A Concatenation Of Barcodes

    1500 Barcode Scanner User Guide 4.6.1 EDIT A CONCATENATION OF BARCODES Edit Output Sequence 1) Read the barcode above to start editing a concatenation of barcodes. 2) Code Type setting – read the “Hexadecimal Value” barcode on page 154 for Code Type of the (first) barcode.

  • Page 125: Activate The Concatenation Of Barcodes

    Chapter 4 Defining Output Format 4.6.2 ACTIVATE THE CONCATENATION OF BARCODES By default, the output sequence editing of the concatenation of barcodes is not applied. When “Enforce Output Sequence” is enabled, all barcodes read by the scanner must meet with the criteria for the concatenation. If data is found excluded from all output sequence sets (= not meeting with the criteria), the scanner will not accept the reading, and therefore, data will not be transmitted.

  • Page 126: Removal Of Special Character

    1500 Barcode Scanner User Guide 4.7 REMOVAL OF SPECIAL CHARACTER You can only specify 1 character, but it will remove every matching character encountered from the starting position of barcode data until a different character is met. For example, if it is configured to remove the character “0” (hex value is “30”), one or more zeros will be stripped off the barcode data “012345”...

  • Page 127: Applying Formats For Data Editing

    Chapter 5 APPLYING FORMATS FOR DATA EDITING The scanner allows advanced data editing by applying user-configured editing formats. The whole processed data can be divided into fields by user-specified rules. These fields together with the user-configurable additional fields consist of the data actually sent to the host computer.

  • Page 128: Activating Editing Formats

    1500 Barcode Scanner User Guide 5.1 ACTIVATING EDITING FORMATS 5.1.1 ACTIVATE EDITING FORMATS If you have already configured any editing format before, you may directly apply the editing format. If not, you must start with configuring an editing format first, and then, activate the editing format when it is desired in use.

  • Page 129: Exclusive Data Editing

    Chapter 5 Applying Formats for Data Editing Editing Format 5 Enable *Disable 5.1.2 EXCLUSIVE DATA EDITING By default, only barcodes found meeting with the criteria are processed by the editing formats. Those found not meeting with the criteria are processed normally. When “Exclusive Data Editing”...

  • Page 130: How To Configure Editing Formats

    1500 Barcode Scanner User Guide 5.2 HOW TO CONFIGURE EDITING FORMATS End Programming Format...

  • Page 131: Select Format To Configure

    Chapter 5 Applying Formats for Data Editing 5.2.1 SELECT FORMAT TO CONFIGURE Start Programming Format Select one editing format (Format 1~5) and the parameters pertaining to the editing format can then be configured – applicable code type, data length, matching string & location, start position, field adjustment, total number of fields, field settings (field-dividing rule), additional fields, and field transmission sequence.

  • Page 132: Restore Default Format

    1500 Barcode Scanner User Guide 5.2.2 RESTORE DEFAULT FORMAT You may select an existing editing format and have the defaults restored. The default settings of an editing format are listed below. Editing format Defaults Applicable Code Type Data Length 0 (No qualification)

  • Page 133: Configuring Format - Define Data Criteria

    Chapter 5 Applying Formats for Data Editing 5.3 CONFIGURING FORMAT — DEFINE DATA CRITERIA Three applicable conditions can be configured to check whether the data read by the scanner can be processed by the particular editing format. Note: Data editing cannot be performed unless the three conditions are all met. 5.3.1 APPLICABLE CODE TYPE By default, barcodes of all the supported symbologies will be processed by any editing format, if having been configured and enabled.
  • Page 134 1500 Barcode Scanner User Guide Editing Format for Codabar *Apply Do Not Apply Editing Format for Code 39 *Apply Do Not Apply Editing Format for Code 93 *Apply Do Not Apply Editing Format for Code 128 *Apply Do Not Apply Editing Format for GS1-128 &...
  • Page 135 Chapter 5 Applying Formats for Data Editing Editing Format for ISBT 128 *Apply Do Not Apply Editing Format for EAN-8 *Apply Do Not Apply Editing Format for EAN-8 Addon 2 *Apply Do Not Apply Editing Format for EAN-8 Addon 5 *Apply Do Not Apply Editing Format for EAN-13...
  • Page 136 1500 Barcode Scanner User Guide Editing Format for EAN-13 Addon 2 *Apply Do Not Apply Editing Format for EAN-13 Addon 5 *Apply Do Not Apply Editing Format for French Pharmacode *Apply Do Not Apply Editing Format for Italian Pharmacode *Apply...
  • Page 137 Chapter 5 Applying Formats for Data Editing Editing Format for Interleaved 25 *Apply Do Not Apply Editing Format for Matrix 25 *Apply Do Not Apply Editing Format for MSI *Apply Do Not Apply Editing Format for Plessey *Apply Do Not Apply Editing Format for Telepen *Apply Do Not Apply...
  • Page 138 1500 Barcode Scanner User Guide Editing Format for UPC-A *Apply Do Not Apply Editing Format for UPC-A Addon 2 *Apply Do Not Apply Editing Format for UPC-A Addon 5 *Apply Do Not Apply Editing Format for UPC-E *Apply Do Not Apply...
  • Page 139 Chapter 5 Applying Formats for Data Editing Editing Format for UPC-E Addon 5 *Apply Do Not Apply Update...

  • Page 140: Data Length

    1500 Barcode Scanner User Guide 5.3.2 DATA LENGTH The length must include prefix, suffix (0x0d by default), length code, etc. By default, barcodes of any length (character count) are eligible for data editing. You may specify a value from 0 to 254.

  • Page 141: Matching String & Location

    Chapter 5 Applying Formats for Data Editing 5.3.3 MATCHING STRING & LOCATION By default, no matching string is specified, and therefore, it is disabled. You may enable this feature by specifying a matching string; up to four characters are allowed. When the Matching String Location is zero, the scanner will only check for the existence of the matching string in the barcode data.

  • Page 142: Configuring Format - Define Data Field

    1500 Barcode Scanner User Guide 5.4 CONFIGURING FORMAT — DEFINE DATA FIELD 5.4.1 START POSITION Data can be divided into fields in one of the following direction – from head (F1) to tail (F5) from tail (F1) to head (F5)

  • Page 143: Total Number Of Fields

    Chapter 5 Applying Formats for Data Editing 5.4.3 TOTAL NUMBER OF FIELDS Data can be divided into at most 6 fields; each of them is numbered from F1 to F6 accordingly. However, only F1~F5 can be configured. The total number of fields must be specified correctly. If three fields are configured for the editing format, the data characters after F3 will be assigned to F4 automatically.

  • Page 144: Field Settings

    1500 Barcode Scanner User Guide 5.4.4 FIELD SETTINGS Data eligible for editing formats is divided into fields by user-specified rules – either using the field terminating string or specified field length. By Terminating String Specify the field terminating string. Up to two characters are allowed. The scanner will search for the occurrence of this particular string in the data.
  • Page 145 Chapter 5 Applying Formats for Data Editing Field 2 Setting Read the barcode below to divide field 2 by a specified terminating string. Select Field Separator to Divide Field 2… Read the “Hexadecimal Value” barcode on page 154 for the desired character string. Read the “Validate”...
  • Page 146 1500 Barcode Scanner User Guide Field 3 Setting Read the barcode below to divide field 3 by a specified terminating string. Select Field Separator to Divide Field 3… Read the “Hexadecimal Value” barcode on page 154 for the desired character string.
  • Page 147 Chapter 5 Applying Formats for Data Editing Field 4 Setting Read the barcode below to divide field 4 by a specified terminating string. Select Field Separator to Divide Field 4… Read the “Hexadecimal Value” barcode on page 154 for the desired character string. Read the “Validate”...
  • Page 148 1500 Barcode Scanner User Guide Field 5 Setting Read the barcode below to divide field 5 by a specified terminating string. Select Field Separator to Divide Field 5… Read the “Hexadecimal Value” barcode on page 154 for the desired character string.
  • Page 149 Chapter 5 Applying Formats for Data Editing Additional Fields Up to five additional fields can be created for each editing format; each of them is numbered from AF1 to AF5 accordingly. If "Keyboard Wedge" is configured for interface, Key Type and Key Status will then become applicable.

  • Page 150: Pause Field Setting

    1500 Barcode Scanner User Guide 5.4.5 PAUSE FIELD SETTING Pause Field Time You can limit the pause time interval (1~16). By default, it is set to 1 second. Pause Field Time 1~16 sec. (*1) Read the barcode above to specify the time interval for the Pause Field. (It is set to 1 by default.)

  • Page 151: Configuring Format - Define Transmission Sequence

    Chapter 5 Applying Formats for Data Editing 5.5 CONFIGURING FORMAT — DEFINE TRANSMISSION SEQUENCE After configuring the data fields and additional fields, you must now program the transmission sequence of these fields that comprise the final data. This field transmission sequence can be assigned in any desired order and fields can be assigned multiple times as well.
  • Page 152 1500 Barcode Scanner User Guide Additional Field 2 Additional Field 3 Additional Field 4 Additional Field 5 Pause Field Null Character Field 3) Read the “End” barcode to complete this setting. End Programming… End Programming Format...

  • Page 153: Programming Examples

    Chapter 5 Applying Formats for Data Editing 5.6 PROGRAMMING EXAMPLES 5.6.1 EXAMPLE I Extract data from the 10th character to the 19th character... The editing format should be configured as follows: Read the “Enter Setup” barcode to enter the Configuration Mode. Read the “Configure Format 1”...

  • Page 154: Example Ii

    1500 Barcode Scanner User Guide 5.6.2 EXAMPLE II Extract the date code, item number, and quantity information from barcodes. Data in a barcode is encoded like this: From the 1 character to the 6 character is the date code. From the 7 character to the dash ‘-’...

  • Page 155: Specifications

    SPECIFICATIONS Optical Characteristics 1500, 1500WA 1502 Scan Engine Non-contact type Non-contact type Optical Sensor CCD, 2500 pixels Laser Light Source Visible red LED Visible laser diode Physical Characteristics Switch Tactile switch Indication Dual-color LED (Red/Green) and beeper Interface Options Keyboard Wedge, RS-232, Wand Emulation Weight Approx.
  • Page 156 1500 Barcode Scanner User Guide Environmental Characteristics Temperature Operating 0 °C to 50 °C Storage -20 °C to 60 °C Humidity Operating 10% to 90% (Non-condensing) Storage 5% to 95% Resistance Impact Resistance 1.5 m, 5 drops per 6 sides 1.2 m, 5 drops per 6 sides...

  • Page 157: Firmware Upgrade

    Appendix I FIRMWARE UPGRADE 1) Use the RS-232 cable to connect the scanner to the serial port of PC and join the power adaptor to the RS-232 connector. 2) Read the following barcodes in sequence for the scanner to enter the download mode. The scanner will respond with beeps to indicate it is ready for downloading.
  • Page 158 1500 Barcode Scanner User Guide Enter Setup...

  • Page 159: Host Serial Commands

    Appendix II HOST SERIAL COMMANDS SERIAL COMMANDS Purpose To disable the scanner. Remarks “D” Purpose To enable the scanner. Remarks “E” #@ nnnnnn <CR> Purpose To configure the scanner. Remarks nnnnnn – the six digits of command parameters. For example, “109952” is to list the current Code ID settings. List Page 3 Serial Command “0x23”...

  • Page 160: Example

    1500 Barcode Scanner User Guide #@TRIGOFF<CR> Purpose Disable software trigger Remarks “0x23” + “0x40” + “0x54” + “0x52” + “0x49” + “0x47” + “0x4f” + “0x46” + “0x46” + “0x0d” #@TRIGON<CR> Purpose Enable software trigger Remarks “0x23” + “0x40” + “0x54” + “0x52” + “0x49” + “0x47” + “0x4f” + “0x4e” + “0x0d”...

  • Page 161: Keyboard Wedge Table

    Appendix III KEYBOARD WEDGE TABLE " Home Down & Left Right PgUp Exec < PgDn > ENTER* Note: (1) ~ : Digits of numeric keypad. (2) CR*/Send/ENTER*: ENTER key on the numeric keypad. Update...

  • Page 162: Key Type & Status

    1500 Barcode Scanner User Guide KEY TYPE & STATUS KEY TYPE If "Keyboard Wedge" is configured for interface, Key Type and Key Status will then become applicable. *Normal Scan Code KEY STATUS Decide whether or not to change key status when “Normal Key” is selected for Key Type.

  • Page 163: Example

    Appendix III Keyboard Wedge Table EXAMPLE KEY TYPE = NORMAL For example, if you want to program the character “!” as the prefix code: Read the “Configure Prefix” barcode. Read the “Hexadecimal Value” barcode on page 154 for “2” and “1”. Read the “Validate”...
  • Page 164 1500 Barcode Scanner User Guide Enter Setup...

  • Page 165: Numeral Systems

    Appendix IV NUMERAL SYSTEMS DECIMAL SYSTEM Decimal Validate the Values Validate Update Abort...

  • Page 166: Hexadecimal System

    1500 Barcode Scanner User Guide HEXADECIMAL SYSTEM Hexadecimal Enter Setup...

  • Page 167: Ascii Table

    Appendix IV Numeral Systems Validate the Values Validate ASCII TABLE " & < > Update Abort...
  • Page 168 1500 Barcode Scanner User Guide Enter Setup...

This manual is also suitable for:

150215201070

Table of Contents

Save PDF
