Summary of Contents for JVC LYT0087-001B

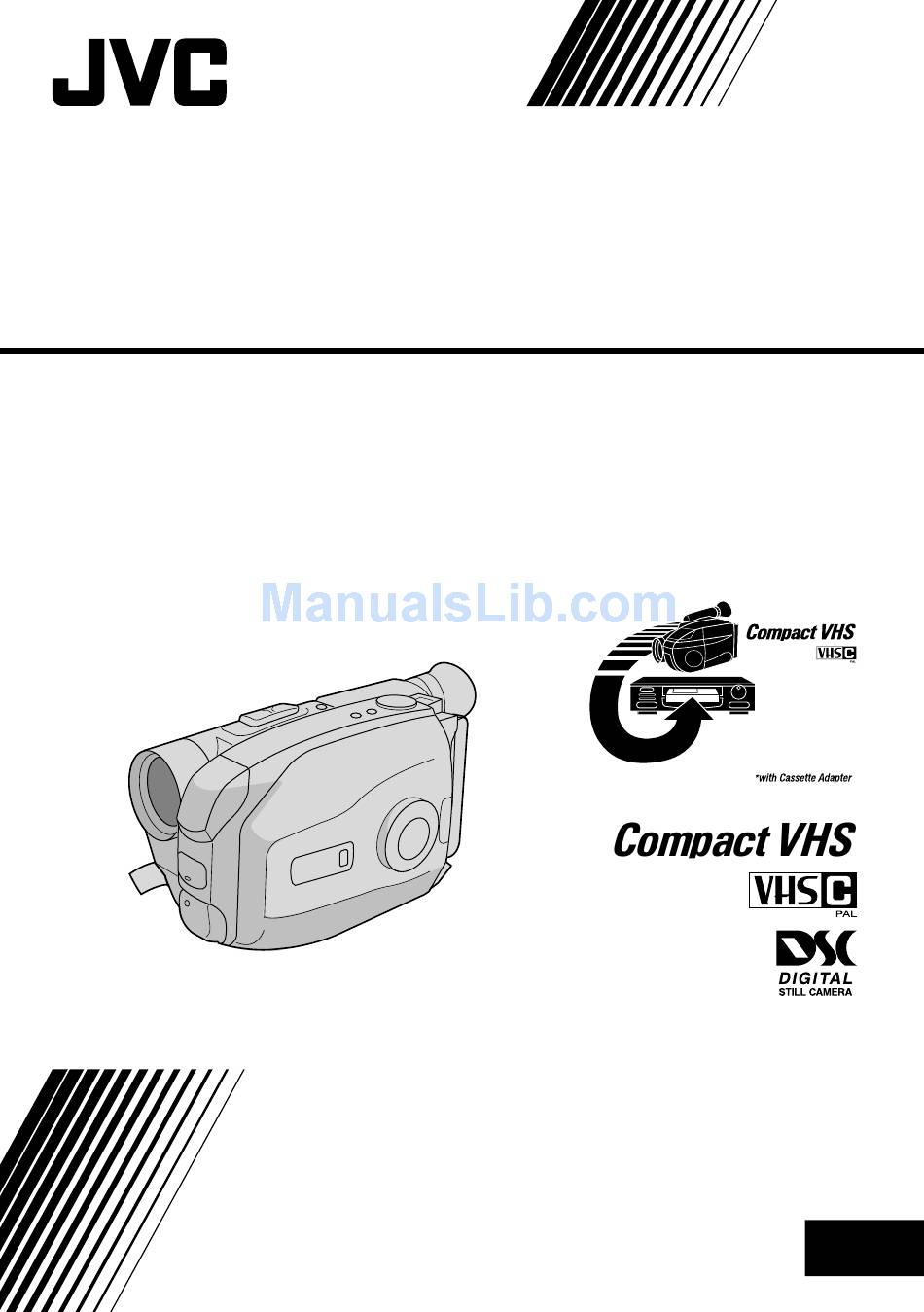

- Page 1 COMPACT VHS CAMCORDER GR-AX880 ENGLISH The Logical Choice The only compact video cassettes that can be used with your VHS VCR* INSTRUCTIONS LYT0087-001B...
- Page 2 Dear Customer, Thank you for purchasing the JVC Compact VHS camcorder. Before use, please read the safety information and precautions contained in the following pages to ensure safe use of your new camcorder. Using This Instruction Manual • All major sections and subsections are listed in the Table Of Contents ( pg.
-
Page 3: Major Features
MAJOR FEATURES Programme AE with Special Effects ( pg. 22, 23) Auto Mode Lock Auto Mode Release Electronic Fog Filter ND Effect Sepia Twilight Sports Nega/Posi 1/2000 sec. High Speed Shutter Program Manager pg. 22 – 37) Programme AE with Special Effects, Fade/Wipe, Wide, Super LoLux, Instant Title, Menu Adjustment (Focus, Exposure Control and so on.) -
Page 4: Table Of Contents
GETTING STARTED Power ... 6 Clock (Lithium) Battery Insertion/Removal ... 8 Date/Time Setting ... 9 Grip Adjustment ... 10 Viewfinder Adjustment ... 10 Shoulder Strap Attachment ... 11 Tripod Mounting ... 11 Tape Length Setting ... 12 Loading/Unloading A Cassette ... 13 VIDEO RECORDING Basic Recording ... -
Page 5: Troubleshooting
TROUBLESHOOTING INDEX Controls ... 72 Connectors ... 72 Indicators ... 72 Other Parts ... 72 Viewfinder Indications ... 74 CAUTIONS SPECIFICATIONS OPTIONAL ACCESSORIES PROVIDED ACCESSORIES •AC Power Adapter/ Charger AA-V15EG •Cable Adapter •Shoulder Strap • AUDIO/VIDEO (A/V) cable •Cassette Adapter •Battery Pack C-P7U BN-V12U... -
Page 6: Getting Started
BN-V25U approx. 2 hrs. 40 min. approx. 10 hrs. USING THE BATTERY PACK Hook on. ATTACH BATTERY PACK Hook its top end to the camcorder and push the battery pack in until it locks in place. DETACH BATTERY PACK Slide BATT. RELEASE and pull out the battery pack. -
Page 7: Charge Marker
The CHG. indicator may not light properly with a brand new battery pack, or with one that’s been stored for an extended period. In this case, remove and reattach the battery pack and recharge it. The CHG. indicator should blink during recharging. If not, contact your nearest JVC dealer. To DC IN jack... -
Page 8: Clock (Lithium) Battery Insertion/Removal
GETTING STARTED Clock (Lithium) Battery Insertion/Removal This battery is necessary for clock operation and to perform date/time settings. SWITCH OFF POWER Switch off the unit’s power and remove the power supply unit. OPEN COVER Open the clock battery compartment cover while pressing the release tab. -
Page 9: Date/Time Setting
Select Dial MENU Jog Dial Viewfinder MENU Menu Screen MENU END FOCUS AUTO EXPOSURE AUTO DATE TIME 1. 1. 98 TELE MACRO When the System TAPE LENGTH M. W. B. AUTO Select Switch is ZOOM SPEED FAST set to “D.S.C.”, NEXT “PICTURE”... -
Page 10: Grip Adjustment
Power Zoom Button Recording Start/Stop Button Set POWER to “CAMERA”. GETTING STARTED Grip Adjustment EXPAND LOOP Separate the Velcro strip. INSERT HAND Pass your right hand through the loop and grasp the grip. ADJUST STRAP LENGTH Adjust so your thumb and fingers can easily operate the Recording Start/Stop Button and Power Zoom Button. -
Page 11: Shoulder Strap Attachment
Then tighten the screw. CAUTION: When using a tripod, be sure to open and extend its legs fully to stabilize the camcorder. To prevent damage to the unit caused by falling over, do not use a small-sized tripod. , then fold it back , and then . -
Page 12: Tape Length Setting
System Select Switch Select Dial Viewfinder MENU Menu Screen MENU END FOCUS AUTO EXPOSURE AUTO DATE TIME 25. 12. 98 TELE MACRO TAPE LENGTH M. W. B. AUTO ZOOM SPEED FAST NEXT TAPE LENGTH TAPE LENGTH Setting Menu EXIT MENU MENU END FOCUS AUTO... -
Page 13: Loading/Unloading A Cassette
Make sure the Erase Protection tab is in the position that allows recording. If not, slide the tab. Some cassettes have removable tabs. If the tab has been removed, cover the hole with adhesive tape. The cassette holder can’t be opened while the camcorder is in the record mode. -
Page 14: Video Recording
Slide the LENS COVER Open/Close Switch to open the lens cover. Set the System Select Switch to “VIDEO”, then set the Power Switch to “CAMERA”. •The power indicator lights and the camcorder enters the Record-Standby mode. •The scene you’re aimed at appears on the viewfinder screen, with the word “PAUSE”... - Page 15 Retake function ( the end of the last recording so you don’t erase any of The LENS COVER warning blinks for about 5 seconds when the camcorder is turned on when the cover is closed. pg. 12).
-
Page 16: Basic Features
Zoom-in Zoom indicator bar Zoom Level indicator Power Zoom button Select Dial Viewfinder MENU Menu Screen MENU END FOCUS AUTO EXPOSURE AUTO DATE TIME 25. 12. 98 TELE MACRO TAPE LENGTH M. W. B. AUTO FAST ZOOM SPEED NEXT ZOOM SPEED ZOOM SPEED Setting Menu FAST... - Page 17 Distortion may occur at start of playback. This is normal. Retake To re-record certain segments. 1) Make sure the camcorder is in the Record-Standby mode. 2) Press either RETAKE button to reach the start point for new recording. Pressing “F” forwards the tape and pressing “R”...
- Page 18 Even if you shoot with the date/ time displayed during Digital Still Camera Shooting, they will not be recorded. AUTO DATE RECORD Your camcorder automatically records the date for about 5 seconds after recording is initiated in the following situations: After changing the date.
- Page 19 30 cm. between the video light and people or objects. Do not use near flammable or explosive materials. It is recommended that you consult your nearest JVC dealer for replacing the video light. FEATURE: Video Light PURPOSE: To brighten the scene when natural lighting is too dim.
- Page 20 This interesting feature lets you record two types of digital still images that look like photographs onto a tape, as well as keeping them in the camcorder’s built-in memory. It is a great way to spice up footage of events such as parties, weddings and graduations.
- Page 21 Select Switch set to “D.S.C.”, the still image cannot be recorded onto the tape, but will be stored in the camcorder's built-in memory ( Image data stored in the camcorder’s built-in memory can be transferred to a Windows and saved using the provided image transfer software pg.
-
Page 22: Advanced Features
1 second later, the mode is activated. After 1 sec. SEPIA Viewfinder Select Dial VIDEO RECORDING Programme AE With Special Effects All you have to do to access any of the variety of shooting effects is to turn the Select Dial. SELECT MODE Turn the Select Dial until the symbol of the function you want is aligned with the mark. - Page 23 LOCK AUTO LOCK Auto Mode Lock Locks the camcorder in Full Auto mode, preventing incorrect operation due to accidental button pressing during shooting. • In this mode the following controls are disabled; DATE/TIME display select, and the Menu Jog Dial.
- Page 24 [Ex. : Fader] Fade-in Function indication Viewfinder EFFECT MOSAIC After 2 sec. FADER MOSAIC SHUTTER SLIDE (No indication) EFFECT VIDEO RECORDING Fade/Wipe These effects let you make pro-style scene transitions. Fade- or wipe-in works at recording start, and fade- or wipe-out works at recording end or when you enter Record-Standby mode.
- Page 25 Viewfinder WIDE SUPER LOLUX Viewfinder S . LX After 2 sec. NORM NOTE (for Fade/Wipe, Wide, Super LoLux, Instant Titles and Picture Stabiliser) When the Select Dial is turned to AUTO LOCK, the above functions will be set to the Factory settings (Fade/Wipe-standby : “OFF”, Wide mode : off, Super LoLux : “MAX”, Instant Title : off, Picture Stabiliser: off).
-
Page 26: Instant Titles
WEDDING DAY CONGRATULATIONS VIDEO RECORDING Instant Titles The camcorder has eight preset titles in memory. You can superimpose one of them above a previously stored title as shown in the illustration to the left. SELECT PRESET TITLE Press TITLE repeatedly to cycle through the preset titles until the desired title is displayed. -
Page 27: Character Generator
Select Dial MENU Jog Dial Viewfinder MENU Menu Screen MENU END FOCUS AUTO EXPOSURE AUTO DATE TIME 25. 12. 98 TELE MACRO TAPE LENGTH M. W. B. AUTO ZOOM SPEED FAST NEXT MENU BACK REC TIME INT. TIME TALLY LAMP CHARACTER D. -
Page 28: Using Menu For Detailed Adjustment
MENU END Normal Screen VIDEO RECORDING Using Menu For Detailed Adjustment This camcorder is equipped with an easy-to-use, on-screen menu system that simplifies many of the more detailed camcorder settings. ACCESS MENU SCREEN Turn the Select Dial to any position except AUTO LOCK, then press the MENU Jog Dial. - Page 29 • When an object is in various shades of the same colour. • When a predominantly red or brown object is being shot outdoors. In these cases, use the camcorder’s built-in preset filters for white balance adjustment ( Allows you to set the zooming speed ( pg.
- Page 30 Allows you to enter an original title of up to 18 characters ( D. ZOOM COLOUR BAR This number is necessary when connecting the camcorder to a device such as a JLIP ID NO. computer using the J terminal (JLIP). The numbers range from 01 to 99. Factory setting is 07.
-
Page 31: Exposure Control
Select Dial Viewfinder MENU Menu Screen MENU END AUTO FOCUS EXPOSURE AUTO DATE TIME 25. 12. 98 TELE MACRO TAPE LENGTH M. W. B. AUTO ZOOM SPEED FAST NEXT EXPOSURE Exposure Menu AUTO Screen MANU EXIT Manual Exposure Screen To brighten the image –... - Page 32 VIDEO RECORDING Focusing Auto Focus The camcorder’s Full Range AF system offers continuous shooting ability from close-up to infinity. However, correct focus may not be obtainable in the situations listed below (in these cases use manual focusing): •When two subjects overlap in the same scene.
- Page 33 Select Dial MENU Jog Dial Viewfinder MENU Menu Screen MENU END FOCUS AUTO EXPOSURE AUTO DATE TIME 25. 12. 98 TELE MACRO TAPE LENGTH No indication M. W. B. AUTO during ZOOM SPEED FAST NEXT recording FOCUS Focus Menu AUTO Screen MANU No indication...
-
Page 34: Manual White Balance Adjustment
VIDEO RECORDING Manual White Balance Adjustment (M.W.B.) The white balance is usually adjusted automatically. However, the more advanced camcorder operator would prefer to control this function manually and achieve a more professional colour/tint reproduction. ACCESS MENU SCREEN Turn the Select Dial to any position except AUTO MENU Jog Dial LOCK, then press the MENU Jog Dial. - Page 35 PREPARE WHITE OBJECT Point the camcorder at a white, flat object such as a sheet of white paper. SELECT MWB Follow step 1 through 3 on page 34 (“Manual White Balance Adjustment”), select “MWB”.
- Page 36 Self-Timer You can set the delay between pressing the Recording Start/Stop Button and the actual start of recording. If you secure the camcorder, you (or whomever is operating the camcorder) can enter the scene before recording starts. NOTE: Make sure the camcorder is in the Record-Standby mode before performing the following steps.
-
Page 37: Start Recording
NOTE: Make sure the camcorder is in the Record-Standby mode before performing the following steps. ACCESS MENU SCREEN Turn the Select Dial to any position except AUTO LOCK, then press MENU Jog Dial. -
Page 38: Video Playback
Press REW to rewind, or FF to fast-forward the tape during Stop mode. NOTE: The camcorder shuts off automatically after about 5 minutes in Stop mode. To turn on again, set the Power Switch to “POWER OFF”, then to “PLAY”. -
Page 39: Features
Dial. “AT” blinks. When Auto Tracking finishes, the indication disappears. NOTES: When noise bars appear during playback, the camcorder enters the Auto Tracking mode and “AT” is displayed. Manual Tracking may not work with tapes recorded on other VCRs or camcorders. -
Page 40: Video Playback
STOP Set to “VIDEO” VIDEO PLAYBACK FEATURE: COUNTER R/M PURPOSE: OPERATION: PLAY/PAUSE NOTE: FEATURE: PURPOSE: OPERATION: NOTE: FEATURE: PURPOSE: OPERATION: NOTES: Features (cont.) Still Playback To pause during playback. 1) Press PLAY/PAUSE during playback. 2) To resume normal playback, press PLAY/PAUSE again. -
Page 41: Using The Cassette Adapter
Using The Cassette Adapter Cassette Adapter Use this to play back a VHS-C video cassette recorded with this camcorder. It is fully compatible with any VHS video cassette recorder. The C-P7U adapter is battery powered and automatically performs tape loading and unloading. -
Page 42: Basic Connections To Vcr
VIDEO OUT connectors on the camcorder and those on the VCR. SUPPLY POWER Turn on the camcorder, the VCR and the TV. SELECT MODE Set the VCR to its AUX input mode, and set the TV to its VIDEO mode. -
Page 43: Tape Dubbing
VCR. SELECT VCR MODE Engage the VCR’s AUX and Record-Pause modes. FIND EDIT-IN POINT Engage the camcorder’s Play mode to find a spot just before the edit-in point. Once it’s reached, press PAUSE on the camcorder. START EDITING Press PLAY on the camcorder and engage the VCR’s... -
Page 44: Digital Still Camera (D.s.c.) Shooting
When shooting a still image, it is not recorded onto the SNAPSHOT tape, but it is stored in the camcorder's built-in memory in the selected Picture Mode. A stored still image data can be transferred to a PC, saved, and processed using a... - Page 45 When the SNAPSHOT Button is pressed with the System Select Switch set to “VIDEO”, the picture is stored not only in the camcorder's built-in memory but also onto the tape (if a tape is in the camcorder) pg. 20).
-
Page 46: Advanced Features
( To brighten the scene when natural lighting is too dim ( Video Light Locks the camcorder in Full Auto mode, preventing incorrect operation due to Auto Mode Lock accidental button pressing during shooting. • In this mode the following controls are disabled; DATE/TIME display select, and... - Page 47 Super LoLux (Gain Up) pg. 25). Once the camcorder is set, the camcorder operator can become part of the scene Self-Timer in a more natural way adding the final touch to a memorable picture. •Perform steps 1 through 4 on pg. 36, then press the SNAPSHOT Button as step 5 in place of the Recording Start/Stop Button.
- Page 48 MENU END Normal Screen D.S.C. SHOOTING Using Menu For Detailed Adjustment This camcorder is equipped with an easy-to-use, on-screen menu system that simplifies many of the more detailed camcorder settings. ACCESS MENU SCREEN Turn the Select Dial to any position except AUTO LOCK, then press the MENU Jog Dial.
- Page 49 • When an object is in various shades of the same colour. • When a predominantly red or brown object is being shot outdoors. In these cases, use the camcorder’s built-in preset filters for white balance adjustment ( Allows you to set the zooming speed ( pg.
- Page 50 D. ZOOM COLOUR BAR JLIP ID NO. This number is necessary when connecting the camcorder to a device such as a computer using the J terminal (JLIP). The numbers range from 01 to 99. Factory setting is 07. DEMO MODE = Factory setting and when the Select Dial is set to AUTO LOCK D.S.C.
-
Page 51: D.s.c. Playback
The playback picture can also be viewed on a connected TV ( same as described in this section. When viewing a playback picture on a connected TV, it may jitter slightly. To move the page back pg. 42). Camcorder operation is the... -
Page 52: Advanced Features
MENU END Normal Screen D.S.C. PLAYBACK Using Menu For Detailed Adjustment This camcorder is equipped with an easy-to-use, on-screen menu system that simplifies many of the more detailed camcorder settings. ACCESS MENU SCREEN Press the MENU Jog Dial. The Menu Screen appears. - Page 53 CAUTION: While “ENTER” is selected on the Delete Execute Menu and it is blinking, switching off the camcorder or removing the power supply unit (battery pack or AC Power Adapter/Charger) may cause the camcorder’s built-in memory to become corrupt. Never remove the power supply unit at this stage.
- Page 54 Set the System Select Switch to “D.S.C.”. MENU INDEX SLIDE SHOW 1 SLIDE SHOW 2 PROTECT DELETE MENU END Menu Screen < > E XI T INDEX Index Menu Screen Playback screen D.S.C. PLAYBACK Index You can view all still images stored in memory six at a time.
- Page 55 Set the System Select Switch to “D.S.C.”. MENU INDEX SLIDE SHOW 1 SLIDE SHOW 2 PROTECT DELETE MENU END Menu Screen < > E X IT PROTECT Protect Menu Screen < > E X IT PROTECT A padlock mark appears. Protect This mode helps prevent accidental erasure of images.
- Page 56 Set the System Select Switch to “D.S.C.”. MENU INDEX SLIDE SHOW 1 SLIDE SHOW 2 PROTECT DELETE MENU END Menu Screen DELETE SELECT EXIT Delete Menu Screen In case of “SELECT” < > N E XT DELETE Delete Select Menu Screen DELETE CANCEL ENTER...
- Page 57 CAUTION: While “ENTER” is selected on the Delete Execute Menu and it is blinking, switching off the camcorder or removing the power supply unit (battery pack or AC Power Adapter/Charger) may cause the camcorder’s built-in memory to become corrupt. Never remove the power supply unit at this stage.
-
Page 58: Slide Show
Set the System Select Switch to “D.S.C.”. MENU INDEX SLIDE SHOW 1 SLIDE SHOW 2 PROTECT DELETE MENU END Menu Screen Ex. SLIDE SHOW 1 Ex. SLIDE SHOW 2 D.S.C. PLAYBACK Slide Show You can run through all the still images stored in memory automatically. -
Page 59: Connection
Use the AC Power Adapter/Charger as the power supply instead of the battery pack. The still images stored in the camcorder’s memory are not automatically removed after being transferred to the PC. If you wish to remove those still images from the camcorder's memory, delete them ( Windows ®... -
Page 60: Using Remote Control Unit
R.A.EDIT Buttons USING REMOTE CONTROL UNIT The Full-Function Remote Control Unit can operate this camcorder from a distance as well as the basic opera- tions (PLAY, STOP, PAUSE, FF, and REW) of your VCR. This remote control unit makes additional recording functions possible. - Page 61 Transmitted beam effective area Remote sensor When using the remote control, be sure to point it at the remote sensor. The above illustration shows the approximate transmitted beam effective area for indoor use. The transmitted beam may not be effective or may cause incorrect operation outdoors or when the remote sensor is directly exposed to sunlight or powerful lighting.
-
Page 62: Random Assemble Editing
REC STBY (you don’t need to press VCR CTL for this one). You’re now ready to try Random Assemble Editing. IMPORTANT Although the MBR is compatible with JVC VCRs and those of many other makers, it may not work with yours or may offer limited functions. NOTES: If the VCR’s power doesn’t come on in step 1, try... -
Page 63: Make Connections
CONNECT TO . . . JVC VCR EQUIPPED WITH REMOTE PAUSE TERMINAL Connect the editing cable to the Remote PAUSE terminal. JVC VCR NOT EQUIPPED WITH REMOTE PAUSE TERMINAL BUT EQUIPPED WITH R.A. EDIT CONNECTOR Connect the editing cable to the R.A.EDIT connector. - Page 64 PLAY/PAUSE RM-V709U (provided) PLAY IN/OUT 0:00:25 --: -- : -- COUNTER 0:00:25 TOTAL 0:00:00 0:00:25 0:01:05 0:03:18 0:03:31 0:02:33 0:02:53 0:04:11 --: -- : -- COUNTER 0:04:11 TOTAL 0:01:13 USING REMOTE CONTROL UNIT SELECT SCENES ACCESS R.A. EDIT COUNTER DISPLAY STOP Press PLAY/PAUSE, then press ON/OFF and the counter display appears in the viewfinder and the...
- Page 65 AV OUT capable JVC VCR. The recording deck can be... a VCR other than JVC, or a JVC VCR which has neither a Remote PAUSE nor an R.A. EDIT connector How to use: — Connect the playback deck and RM-V709U as shown on the left.
-
Page 66: Insert Editing (Video)
ENGAGE INSERT EDITING MODE Press and hold INSERT, and without releasing INSERT, press and release PAUSE. The Insert mode is engaged. When the scene the camcorder is aimed at appears on the screen, go to the next step. BEGIN INSERT EDITING Press START/STOP. -
Page 67: Insert Editing (Insert A Still Image From The Built-In Memory Onto A Tape)
(provided) Insert Editing (Insert A Still Image From The Built-in Memory Onto A Tape) You can insert a still image stored in the camcorder's built-in memory into a previously recorded tape, replacing a section of the original recording with minimal picture distortion at the in- and out-points. -
Page 68: Audio Dubbing
Press and hold A. DUB, press and release PAUSE. BEGIN AUDIO DUBBING Press PLAY. When the counter reaches “0:00:00”, Audio Dubbing stops automatically and the camcorder enters the Audio Dub-Standby mode. END AUDIO DUBBING Press STOP. Microphone NOTES: Do not press FF or REW during Audio Dub-Standby, or the edit points will not be accurate. - Page 69 Lens Cover Warning indicator blinks. The camcorder is a microcomputer-controlled device. External noise and interference (from a TV, a radio, etc.) might prevent it from functioning properly. In such cases, first disconnect its power supply unit (battery pack, AC Power Adapter/Battery Charger, etc.) and clock battery; and then re-connect it and proceed as usual from the beginning.
- Page 70 Change the Switch position to “VIDEO” ( pg. 38). The video heads are dirty or worn out. Consult your nearest JVC dealer for head cleaning or replacement. This is normal. The Counter Memory Function has been activated pg. 40).
- Page 71 (including ones for which you performed the “Protect” function) stored in the camcorder’s memory. If you wish to keep any of the still images that are stored in memory, before initialization first transfer them to a PC and save them. If image data is corrupt, transfer is impossible.
- Page 72 FINE & * INDEX...
- Page 73 25 • It is used to connect the camcorder to a device pg. 13 such as a personal computer. pg. 18 For further detail consult your nearest JVC pg. 40 dealer. • JLIP-controlled editing from camcorder to VCR pg. 17 is not possible if the VCR is not equipped with pg.
- Page 74 30MIN 25.12. 98 S. LX FINE 12 TWILIGHT NORM LENS COVER PAUSE 5MIN 1 4S TAPE END MERRY CHRISTMAS INDEX 22 : 50 : 00 (cont.) &...
- Page 75 Viewfinder Indications Cassette Warning/ Tape Remaining Time ... When no cassette is inserted: the cassette ) warning blinks. When Erase Protection tab is not in the position that allows recording: the cassette ) warning lights. Otherwise, the tape remaining time is displayed and the tape remaining time warning †...
-
Page 76: Video Light
• When operating, keep a distance of about 30 cm between the video light and people or object. • Do not use near flammable or explosive materials. • Consult your nearest JVC dealer for replacing the video light unit. General Battery Precautions •... - Page 77 Serious malfunctioning If malfunctioning occurs, stop using the unit immediately and consult your local JVC dealer. For Your Maintenance 1. After Use Set the power switch to “POWER OFF” to turn off the camcorder.
- Page 78 •Active Carrying Bag CB-V7U •Remote Control Unit RM-V700U Some accessories are not available in some areas. Please consult your nearest JVC dealer for details on accessories and their availability. E. & O. E. Design and specifications subject to change without notice.
- Page 80 VICTOR COMPANY OF JAPAN, LIMITED Printed in Japan COPYRIGHT© 1998 VICTOR COMPANY OF JAPAN, LTD. 0298MSV...
