Summary of Contents for Prodipe Pro8V2

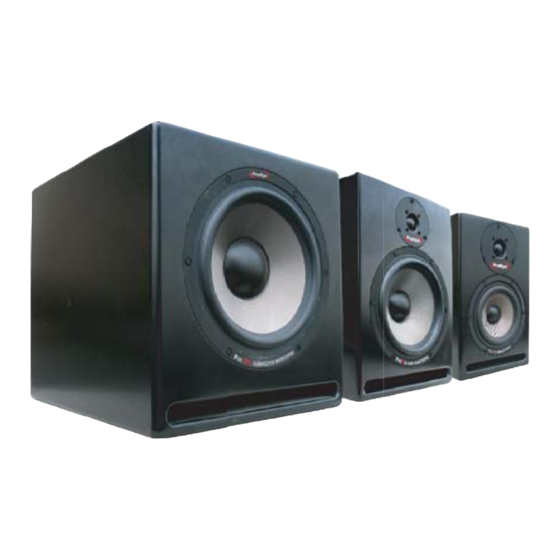

- Page 1 U S E R M A N U A L S t u d i o M o n i t o r s Pro8V2 – Pro5V2 Pro10SV2...
-
Page 2: Safety Precautions
Precaution Thank you for purchasing this digital appliance. To ensure perfect operation and security, please read the manual carefully and retain it for future reference. Safety Precautions The lightning flash with the arrowhead symbol in an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage”... -
Page 3: Table Of Contents
Contents 1 - Introduction .........................1 2 - Connections..........................2 3 - Settings ..........................3 4 - Audio Inputs/Outputs ....................4 5 - Monitor Layout ........................5 6 - Specifications ........................7... -
Page 4: Introduction
1 – Introduction We would like to thank you for having chosen our PRODIPE products. Safety Precautions For your security and for the correct implementation of this product, please read the safety precautions on the inside cover page. Caution, if you want to reduce the risk of being electrocuted, do not remove the rear panel on this product. -
Page 5: Connections
3. Check your monitor settings and the settings of your audio sources (lowest volume). 4. Check the voltage , switch on the Prodipe monitors by putting switch in the ON position and the blue LED will light up. -
Page 6: Settings
3 - Settings There are different settings on the rear panels of your monitors: VOLUME You can adjust the gain setting at the back of the monitor using the changeover switch in Figure 3. It can be set from -30dB to +6dB. Figure 3 ADJUSTING THE HIGH FREQUENCIES (HF LEVEL) You can adjust the high frequencies at the back of the monitor (Figure 4). -
Page 7: Audio Inputs/Outputs
PHASE - Pro10SV2 only The speakers have a backwards/forwards linear movement that creates a phenomenon known as compression - rarefaction. The low frequencies from the monitor system should reinforce the low frequencies from the subwoofer. The monitors should therefore follow the same movement and the Phase control lets you reverse this movement. -
Page 8: Monitor Layout
OUT LEFT OUT RIGHT MONO Input TRS, XLR or RCA Figure 10 – Connections 5 – Monitor Layout The Prodipe studio monitors can be placed in a vertical or horizontal position. Optimum listening height Figure 11 Positioning in Stereo Equilateral Triangle... - Page 9 As shown in Figure 13, the position of a monitor in relation to an audio mixer can change the sound waves and hence distort how you perceive your sound production. Figure 13 Positioning for 5.1 Surround Pro10S 30° 30° 110° 110°...
-
Page 10: Specifications
6 - Specifications Pro5 V2 Pro8 V2 Pro10S V2 Frequency Response 45Hz -22kHz 45Hz -22kHz 30Hz -150Hz 1” (25 mm) 1” (25 mm) High Frequency Driver Silk Dome Silk Dome 5” (150 mm) 8” (220 mm) 10" (273 mm) long excursion Low Frequency Driver Alumium Cone Alumium Cone... - Page 11 No contractual pictures Copyright © 2012 IPE Music...
- Page 12 No contractual pictures Copyright © 2012 IPE Music...
