  • Page 1 Wireless Display TV Adapter WTV-3000 Wireless Display TV Adapter WTV-3000...
  • Page 2 Further, PLANET reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes.
  • Page 3 Do not dispose of WEEE as unsorted municipal waste; they should be collected separately. Revision User’s Manual for PLANET Wireless Display TV Adapter Model: WTV-3000 Rev: 1.00 (September.2013) Part No. EM-WTV3000...

  • Page 4: Table Of Contents

      3.2 Basic Usage of iMEDIASHARE Utility (iOS) ..........13   Chapter 4. Miracast Mode .................... 17   4.1 Switch WTV-3000 to Miracast Mode ............17   4.2 Basic Usage of Miracast................. 17   Chapter 5. ScreenShare Mode ..................24  ...

  • Page 5: Chapter 1. Product Introduction

    Internet via the original radio frequency of 2.4 GHz. Convenient nano-design blends in nicely with any surrounding With a dimension of 85 x 65 x 16mm only, the WTV-3000 features a super compact and sleek design that blends in nicely with any surrounding in your home or office.

  • Page 6: Product Specifications

    Wireless Display TV Adapter WTV-3000 Enjoy the Blu-ray™ movies and internet video up to 10 80p Full HD resolution on big screen TV Easily conne ct a PC to HDTV with Intel WiDi® technology Supports screen mirroring from your PC, smartphone, or tablet with Wi-Fi Miracast...
  • Page 7 Wireless Display TV Adapter WTV-3000 802.11n 20M (MCS7): -70dBm 802.11n 40M (MCS7): -67dBm WEP (64/128-bit) WPA-PSK (TKIP) / WPA2-PSK (AES) Security WPA (TKIP) / WPA2 (AES) Up to 180 meters in open space Transmission Distance Video & Audio Decoding AVI / MPEG / 3GP / MOV / WMV / DVR-MS...

  • Page 8: Chapter 2. Hardware Interface

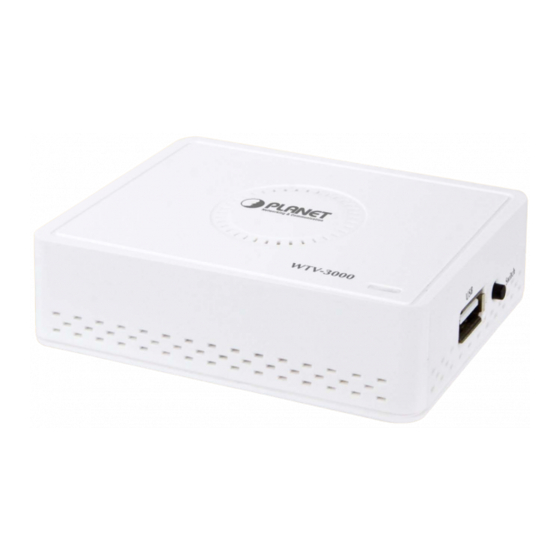

    Wireless Display TV Adapter WTV-3000 Chapter 2. Hardware Interface 2.1 Physical Descriptions 85 x 65 x 16 mm Dimensions 325g (gross weight) Weight Front Panel Interface Description The LAN socket is a RJ-45 connector for connections to 10Base-T Ethernet or 100Base-TX Fast Ethernet cabling.
  • Page 9 Wireless Display TV Adapter WTV-3000 Bottom Panel Side Panel Interface Description This port is for upgrading firmware and media playback. USB Port (Type A) Press the button to switch between Miracast, ScreenShare and Mode Button Airfun modes.

  • Page 10: System Requirements

    Android OS: AirFun Software iOS: iMediashare ScreenShare Mode: The WTV-3000 is designed to be able to stream screen captured from PC (Windows 7 /Window 8 only) and Mac (over 10.6) to your TV through this device. Model Description CPU: Core 2 Duo 2.0 GHz or better Memory: 2.0 GB or better...
  • Page 11 WTV-3000 Step 1. Plug in the power cord. Step 2. Connect the HDMI cable to the HDMI output of the WTV-3000 and to the HDMI input of your TV/Monitor. Step 3. Push the power button to turn on the WTV-3000.

  • Page 12: Chapter 3. Airfun Mode

    Wireless Display TV Adapter WTV-3000 Chapter 3. AirFun Mode 3.1 Basic Usage of AirFun Utility (Android) To install the AirFun software for Windows 7, Windows XP, or Windows Vista, follow these steps: Step 1. Double click the AIRFUN icon from your desktop.

  • Page 13: Basic Usage Of Imediashare Utility (Ios)

    Wireless Display TV Adapter WTV-3000 Step 5. For photo/music files, please drag files to the left folder. 3.2 Basic Usage of iMEDIASHARE Utility (iOS) To install the iMediaShare app for an iPad or iPhone, follow these steps: Step 1. Go to App Store from the iPad desktop...
  • Page 14 Wireless Display TV Adapter WTV-3000 Step 2. Search DLNA software app and then select “iMediaShare Lite”. Step 3. Click “Install App” and wait for the software installation procedure to complete.
  • Page 15 Wireless Display TV Adapter WTV-3000 Step 4. The iMediaShare app will display on the desktop when installation is complete. Step 5. Launch iMediaShare app and start to share your photos, music and videos.
  • Page 16 Wireless Display TV Adapter WTV-3000...

  • Page 17: Chapter 4. Miracast Mode

    Miracast Mode 4.1 Switching WTV-3000 to Miracast Mode Push mode selection button on the WTV-3000 till you see the screen below. The box is ready for Miracast mode connection. To connect the WTV-3000 with WiFi Miracast mode, your smartphone or tablet device must be WiFi Miracast certified.
  • Page 18 Wireless Display TV Adapter WTV-3000 Step 2. The phone will automatically scan the streaming box, and show the IP address. Step 3. Choose the IP address which you find on TV, and your phone will connect to the box automatically.
  • Page 19 Wireless Display TV Adapter WTV-3000 Samsung (S3 & Note2) Step 1. “Settings” -> “More settings”   “AllShare Cast” Step 2. Step 3. Turn “on” AllShare Cast . Your phone will scan the streaming box, and it will show the IP address...
  • Page 20 Wireless Display TV Adapter WTV-3000 Step 4. Choose the IP address which you find on the TV, and your phone will connect to the box automatically. Step 5. Mirroring will begin while your phone connects to streaming box successfully.
  • Page 21 Wireless Display TV Adapter WTV-3000 SONY (Xperia TX) Step 1. “Settings” -> “Xperia” Step 2. “Screen mirroring”...
  • Page 22 Wireless Display TV Adapter WTV-3000 Step 3. “Turn on Screen mirroring” Step 4. Your phone will scan the streaming box, and it will show the IP address of the box.
  • Page 23 Wireless Display TV Adapter WTV-3000 Step 5. Choose the IP address; mirroring will begin while your phone connects to streaming box successfully.

  • Page 24: Chapter 5. Screenshare Mode

    Chapter 5. ScreenShare mode 5.1 Switching WTV-3000 to ScreenShare mode Push mode selection button on the WTV-3000 till you see the screen below. The box is ready for ScreenShare mode connection. The MAC cannot support ScreenShare mode that is future feature.
  • Page 25 Wireless Display TV Adapter WTV-3000 Step 2. Please click “Next” to install with original settings, or you may click “Change…” button to modify the install folder and then press “Next” to continue.

  • Page 26: Launching Screenshare

    Wireless Display TV Adapter WTV-3000 Step 3. Please click “Install” to start the installation. Step 4. Please click “Finish” to complete the installation and launch program immediately. 5.3 Launching ScreenShare Step 1. You can switch to ScreenShare mode by pushing the button twice on the side of the box...
  • Page 27 Wireless Display TV Adapter WTV-3000 Step 2. Search and find the device’s SSID in Wi-Fi list on your notebook.
  • Page 28 Wireless Display TV Adapter WTV-3000 Step 3. Connect to this device SSID. Step 4. Double click the ScreenShare icon from your desktop. Step 5. ScreenShare will auto detect ‘Server IP’. Please input login code as shown on instruction page. Step 6. If login code is correct, application software will appear.

  • Page 29: User Interface Of Screenshare

    Wireless Display TV Adapter WTV-3000   5.4 User Interface of ScreenShare Interface Description Start / pause presentation. When pausing a progressing presentation, the displaying image will freeze; press play Play button again to resume. Minimize and close the Application Software window.

  • Page 30: Chapter 6. Web-Based Management

    Web-based Management Please type the address on the TV screen with a web browser of PC / NB/ Smartphone / tablet connected to the WTV-3000 to enter the virtual remote page. The virtual remote page is shown below. You can click the “Setup” to enter the setup page.

  • Page 31: Network Setting

    The WTV-3000 will obtain an IP address from DHCP server Obtain an IP address automatically. Automatically Set the WTV-3000 IP address manually. Fill out the fields below to Set WTV-3000 IP set up IP address. address manually Please input the IP address of the DNS (Domain Name Service) DNS Server server.
  • Page 32 Wireless Display TV Adapter WTV-3000 Item Description Input the Device Name of presentation gateway here. Default is Device Name WTV-3000. (SSID) WiFi Connection Click WiFi connection button. Then the Wireless AP list will be shown on the screen. Please choose the AP you want to connect. The function is to bridge to Internet via another Wireless AP.

  • Page 33: Audio Setting

    Step2. Change Virtual AP Bridge to “Bridge to Ethernet” and click “Apply”. Then you can bridge the WTV-3000 to Internet. The WTV-3000 must be connected to AP router and can’t be connected to WAN directly. 6.2 Audio Setting You can adjust the advanced audio setting such as Night mode, HDMI Audio output format, SPDIF...

  • Page 34: Video Setting

    Wireless Display TV Adapter WTV-3000   6.3 Video Setting You can adjust Aspect Ratio, TV out video format, and other video setting on the video setup page.   6.4 System Setting You can set the OSD language, reset to Factory default, check the firmware version, and do the firmware...

  • Page 35: Appendix A: Support Resolution

    Wireless Display TV Adapter WTV-3000 Appendix A: Support resolution Interface Output Resolution NTSC, PAL, 480p, 576p, 720p 50Hz, 720p 60Hz, 1080i 50Hz, 1080i 60hz, HDMI 1080p 50Hz, 1080p 60Hz...

  • Page 36: Appendix B: Support Media Format

    Wireless Display TV Adapter WTV-3000 Appendix B: Supporting Media Format Video Format Format File extension mpg, mpeg MPEG-1 mpg, mpeg MPEG-2 m2t, tts MPEG-TS mp4, mp4v, mpeg4, m4v MPEG-4 3gp, 3gpp 3g2, 3gpp2 3GP2 dvr, dvr-ms DVR-MS Audio Format Format...

  • Page 37: Appendix C: Miracast Support List

    Wireless Display TV Adapter WTV-3000 Appendix C: Miracast Support List Module Google Nexus 4 HTC New One LG Optimus G Samsung Galaxy S3 Samsung Galaxy S4 Samsung Galaxy Note2 Sony Xperia TX Sony Xperia T Sony Xperia V Sony Xperia Z...

  • Page 38: Appendix D: Troubleshooting & Frequently Asked Questions

    Can I connect to the Wi-Fi router Yes. We recommend to connect the laptop to an available Wi-Fi WTV-3000 router first, and then connect to the WTV-3000. You can then view simultaneously with my Intel online contents and display them on the TV.
  • Page 39 Miracast connections are formed using Wi-Fi CERTIFIED Wi-Fi Direct™, so access to a Wi-Fi® network is not needed – the ability to connect is inside Miracast-certified devices. Yes. You can push media to the WTV-3000 by AirFun (DLNA) push media mode.

  • Page 40: Ec Declaration Of Conformity

    ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ Directiva 1999/5/CE. ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ Español Por medio de la presente, PLANET Technology Slovensky Výrobca PLANET Technology Corporation, týmto Corporation, declara que Wireless Display TV deklaruje, že táto Wireless Display TV Adapter je Adapter cumple con los requisitos esenciales y v súlade so základnými požiadavkami a ďalšími...
