Summary of Contents for Sea-doo GTX DI
- Page 1 www.SeaDooManuals.net...
- Page 2 This Operator’s Guide, the Safety Handbook and Safety Videocassette should remain with the craft at the time of resale. † is a trademark of Castrol Ltd. Used under license The following trademarks are the property of Bombardier Inc. or its subsidiaries: SEA-DOO ® BOMBARDIER-ROTAX ® ROTAX ®...
-
Page 3: Note
NOTE Dear 2002 GTX DI watercraft owner. Informations on the RX DI model in the 2002 Operator’s Guide (P/N 219 000 145) apply to your GTX DI except for the following. GO TO 219 000 145 www.SeaDooManuals.net... -
Page 4: Table Of Contents
TABLE OF CONTENTS NOTE....................... TABLE OF CONTENTS ..............LOCATION OF THE IMPORTANT LABELS ........LOCATION OF CONTROLS, COMPONENTS AND INSTRUMENTS ................FUNCTIONS OF CONTROLS, COMPONENTS AND INSTRUMENTS ................4) Engine Start/Stop Button ..............5) Variable Trim System Button (VTS) ........... 6) Variable Trim System Gauge (VTS) ........... -
Page 5: Location Of The Important Labels
LOCATION OF THE IMPORTANT LABELS GTX DI Model F18L03L TYPICAL GTX DI Model Only Label 14 The location of this label differs on the GTX DI model. Label 6 • WARNING F00A1AY DO NOT BOOST BATTERY WHILE INSTALLED. F00L050 www.SeaDooManuals.net... -
Page 6: Location Of Controls, Components And Instruments
LOCATION OF CONTROLS, COMPONENTS AND INSTRUMENTS GTX DI Model 21-27 42-43 F18L05L www.SeaDooManuals.net... -
Page 7: Functions Of Controls, Components And Instruments
21. Tool Kit 43. Battery 24. Seat Latch 44. Side Vanes 25. Seat Extension Latch NOTE: Some components shown in the 2002 Sea-Doo Operator’s Guide do not apply to this watercraft. FUNCTIONS OF CONTROLS, COMPONENTS AND INSTRUMENTS 4) Engine Start/Stop... -
Page 8: Glove Box
17) Front Storage Gauge Description Compartment Cover Refer to the following updated text and illustrations. It gives access to the front storage com- partment. Always relatch cover after closing. Front Storage Compartment A convenient watertight area to carry personal articles. Ideal location for tow- rope, first aid kit, etc. -
Page 9: Tool Kit
The front storage area includes a latch to hold an approved fire extinguisher (sold separately). F18L0LY F18L0CY 1. Retaining straps 1. Seat latch 2. Extinguisher (sold separately) 25) Seat Extension Latch WARNING It is the same operation as explained Ensure to properly secure extin- in the 2002 Operator’s Guide for 3-up guisher with the supplied retaining seat models. -
Page 10: Rear Storage Basket
27) Rear Storage Basket It is the same operation as explained in the 2002 Operator’s Guide for 3-up seat models. Refer to the following updated illustration. F18L0HY 1. Storage basket 2. Spare spark plug holder cap 3. Spark plug holder F18L0GY NOTE: Adjust spare spark plug gap ac- 1. -
Page 11: Cooling System Bleed Outlet
2002 Operator’s Guide for some models. Refer to LOCATION OF CON- TROLS, COMPONENTS AND INSTRU- MENTS section. The GTX DI model is equipped with the O.P.A.S.™ (Off-Power Assisted Steering). Ensure to read all information in the 2002 Operator’s Guide (P/N 219 000 145) that pertains to this system. -
Page 12: Operating Instructions
OPERATING INSTRUCTIONS For the GTX DI model, follow the in- structions given for the GTX series and 3-up seat models in the 2002 Op- erator’s Guide (P/N 219 000 145). SPECIAL PROCEDURES Towing the Watercraft in Water It is the same as explained in the 2002 Operator’s Guide. -
Page 13: Maintenance
FP: Fuel pump ACC: Accessories (information center) REG: Regulator (charging system) VTS: Variable Trim System. Fuse is in- stalled but not in use on the GTX DI model F18H05Y BAT: Battery 1. MPEM INJ: Injection system 2. - Page 14 Rear Electrical Box Remove seat. Locate electrical box at the back of the bilge. F18H01Y 1. Electrical box Unclip and remove cover of the electri- cal box to expose the holder of the main fuse. F18H02Y TYPICAL 1. Fuse holder Properly reinstall removed components.
-
Page 15: Trailering, Storage And Pre-Season Preparation
TRAILERING, STORAGE AND PRE-SEASON PREPARATION It is the same information as explained in the 2002 Operator’s Guide except for the following updated illustrations. Storage Engine Draining Check engine drain hose (lowest hose of engine). Make sure there is no sand or other particles in it and that it is not obstructed so that water can exit the engine. - Page 16 We strongly recommend this op- eration be performed by an autho- rized SEA-DOO dealer. CAUTION: Always use ethylene gly- col antifreeze containing corrosion inhibitors specifically recommended for aluminum engines.
- Page 17 Hose Disconnection Disconnect water INLET hose at engine between T-fitting and cylinder head fit- ting. F18E0FY 1. Crankcase cooling cover outlet hose F18E0BY 1. Disconnect this side of the T-fitting Temporarily install a short piece of hose to replace the one removed. Antifreeze Insert a funnel into the temporary hose and pour antifreeze mix in engine until...
- Page 18 Rinse thoroughly. Lift front end of watercraft to completely drain bilge. If any repairs are needed to body or to the hull con- tact your authorized SEA-DOO dealer. For paint touch up to mechanical parts F18E01Y use Bombardier spray paint.
-
Page 19: Specifications
SPECIFICATIONS GTX DI ENGINE (5563/5564/5595/5596) ® Engine type Rotax 947, 2-stroke Induction type Reed valve Exhaust system Water cooled/water injected Exhaust valve Rotax Adjustable Variable Exhaust (RAVE) Type Oil injection Lubrication BOMBARDIER Formula XP-S DI Oil type synthetic injection oil (or equivalent) - Page 20 Propulsion system Bombardier Formula pump Jet pump type Axial flow, single stage Transmission Direct drive Reverse system SEA-DOO synthetic polyolester oil Jet pump oil type SAE 75W90 GL5 Minimum required water 90 cm (3 ft) level for jet pump DIMENSIONS ➀...
Need help?
Do you have a question about the GTX DI and is the answer not in the manual?
Questions and answers

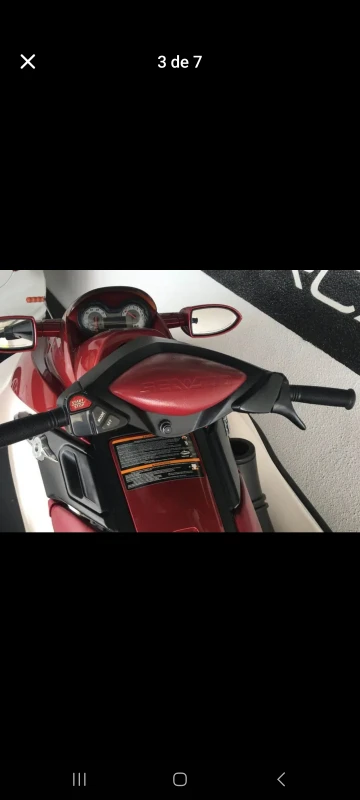

meu gtx 155 2003 ano dele nao esta dando sinal nem bibi ou luzes
