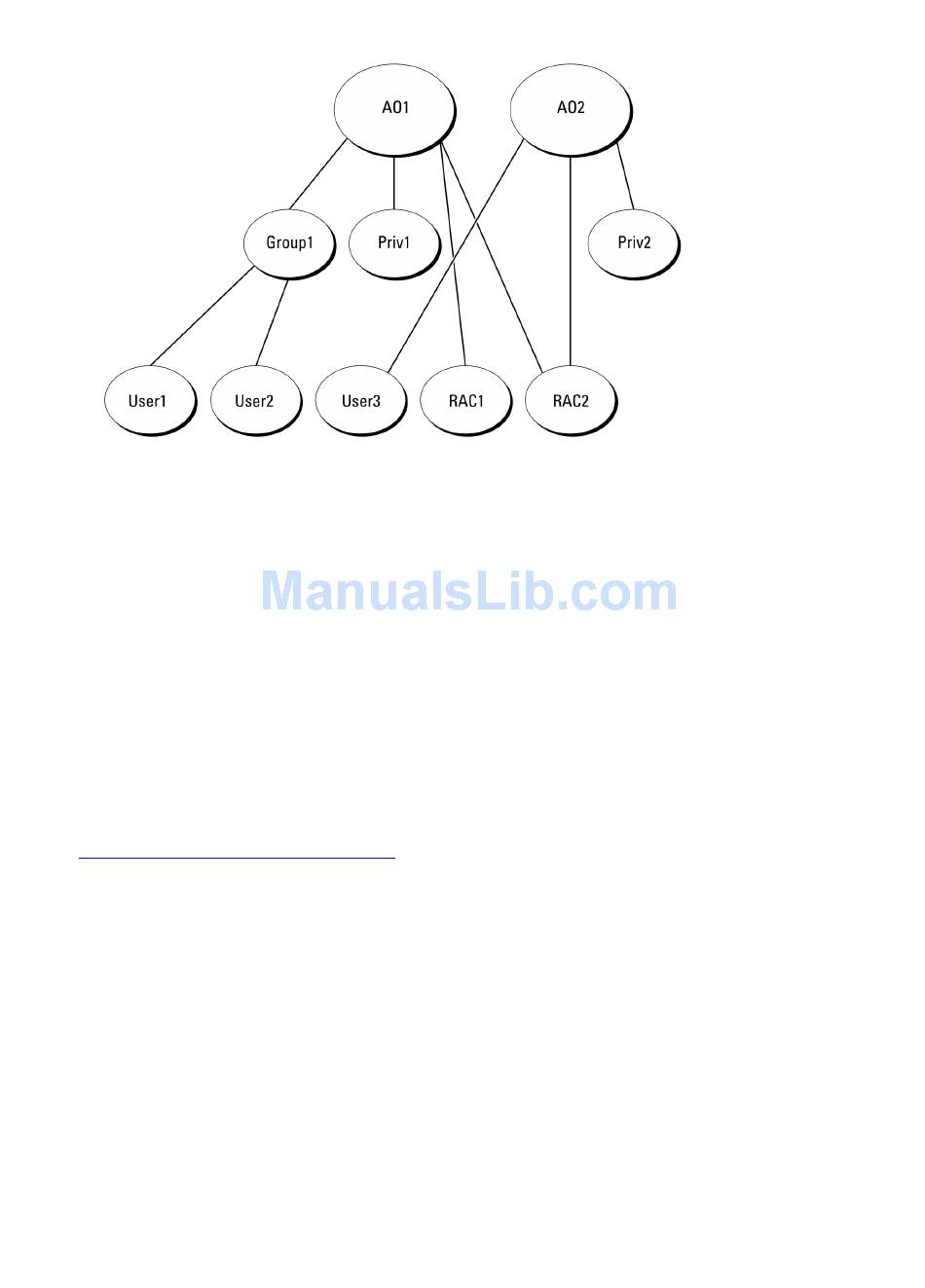

Figure 2. Setting Up RAC Active Directory Objects in a Single Domain
Setting Up Objects In A Single Domain
To set up the objects in a single domain scenario, perform the following tasks:
1. Create two Association Objects.
2. Create two RAC Product Objects, RAC1 and RAC2, to represent the two DRAC 4 cards.
3. Create two Privilege Objects, Priv1 and Priv2, in which Priv1 has all privileges (administrator) and Priv2 has login
privileges.
4. Group User1 and User2 into Group1.
5. Add Group1 as Member in Association Object 1 (AO1), Priv1 as Privilege Object in AO1, and both RAC1 and RAC2 as
RAC Products in AO1.
6. Add User3 as Member in Association Object 2 (AO2), Priv2 as Privilege Object in AO2, and RAC2 as RAC Product in
AO2.
Related Links:
Adding Users and Privileges to Active Directory

Active Directory Objects In Multiple Domains

The following figure shows the setup of the Active Directory objects in multiple domains for RAC. In this scenario, you
have two DRAC 4 cards (RAC1 and RAC2) and three existing Active Directory users (User1, User2, and User3). User1 is in
Domain1, but User2 and User3 are in Domain2. You want to give User1 and User2 Administrator privileges on both the
RAC1 and RAC2 card and give User3 Login privilege on the RAC2 card.
