Extent of removal Order
3
1 2
3
NOTE:
Tighten the rotor nut to 65 Nm (6.5 m·kg, 47 ft·lb), loosen and retighten the rotor nut to 65 Nm
(6.5 m·kg, 47 ft·lb).

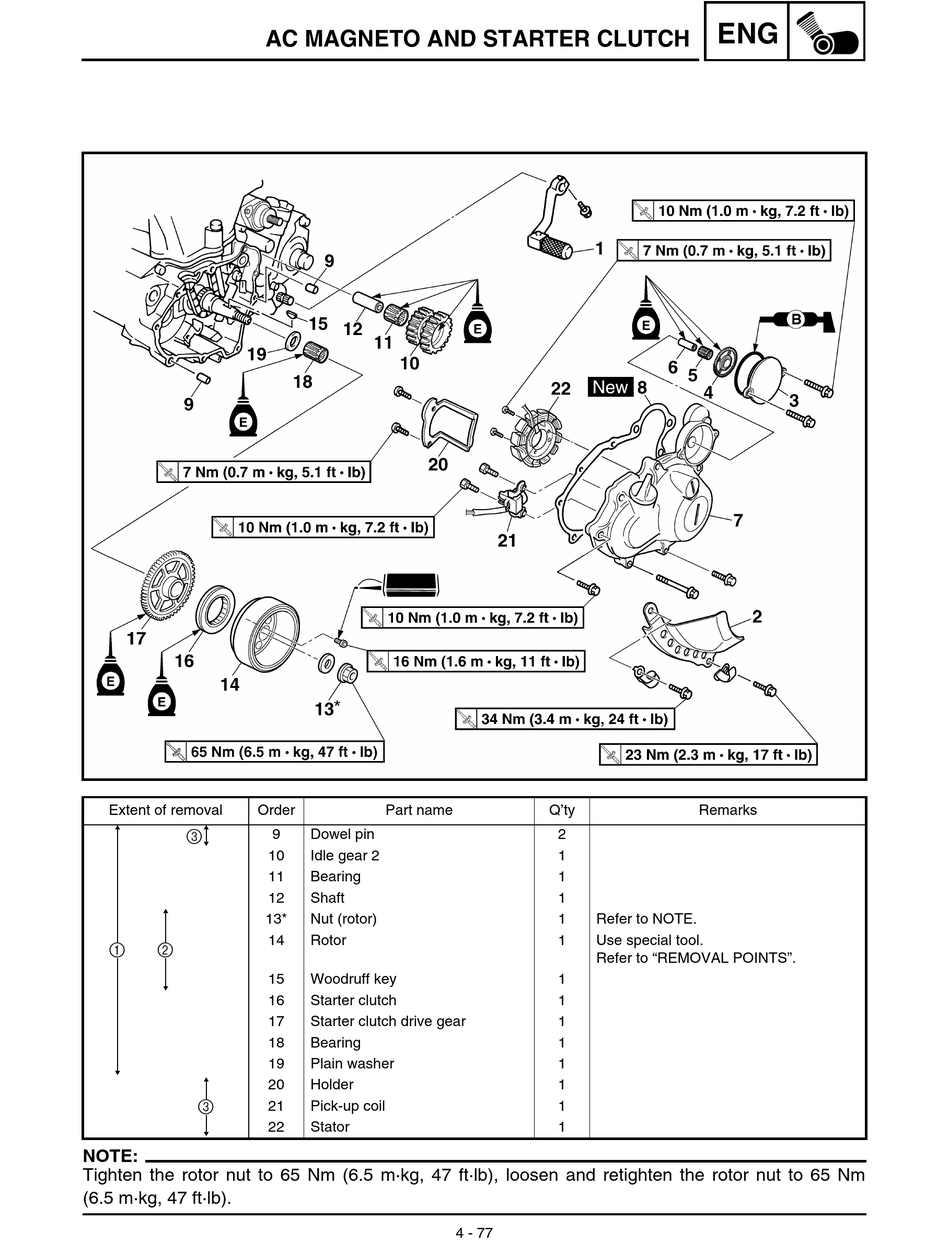

AC MAGNETO AND STARTER CLUTCH
Part name
9 Dowel pin
10 Idle gear 2
11 Bearing
12 Shaft
13* Nut (rotor)
14 Rotor
15 Woodruff key
16 Starter clutch
17 Starter clutch drive gear
18 Bearing
19 Plain washer
20 Holder
21 Pick-up coil
22 Stator
Q'ty
2
1
1
1
1 Refer to NOTE.
1 Use special tool.
Refer to "REMOVAL POINTS".
1
1
1
1
1
1
1
1
4 - 77
ENG
Remarks
