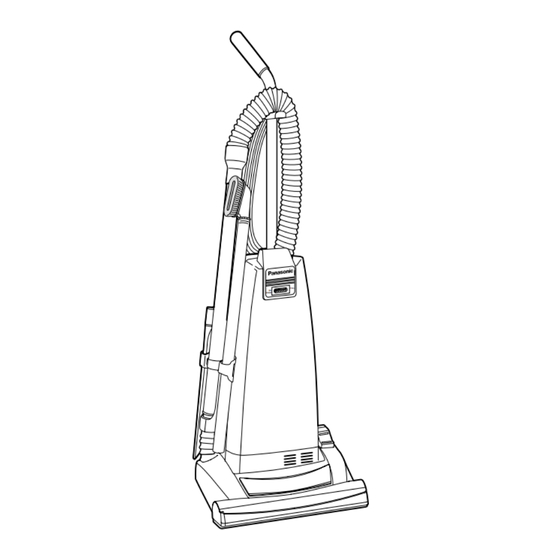

VACUUM CLEANER
Aspirateur
Aspiradora
MC-V5271
Operating Instructions
Manuel d'utilisation
Instrucciones de operación
VAC
GAU GE
Before operating your vacuum cleaner,
please read these instructions completely.
Avant d'utiliser l'appareil, il est recommandé
de lire attentivement ce manuel.
Antes de usar su aspiradora, lea
completamente estas instrucciones por favor.
Advertisement
Table of Contents
Related Manuals for Panasonic MC-V5271
Summary of Contents for Panasonic MC-V5271
-
Page 1: Vacuum Cleaner
VACUUM CLEANER Aspirateur Aspiradora MC-V5271 Operating Instructions Manuel d’utilisation Instrucciones de operación GAU GE Before operating your vacuum cleaner, please read these instructions completely. Avant d’utiliser l’appareil, il est recommandé de lire attentivement ce manuel. Antes de usar su aspiradora, lea... -
Page 2: Consumer Information
Read and understand all instructions. TO OUR VALUED CUSTOMER We are very pleased to welcome you to the Panasonic family of products. Thank you for purchasing this product. Our intent is that you become one of our many satisfied customers. -
Page 3: Important Safety Instructions
To reduce the risk of fire, electrical shock, injury: 1. Read all instructions in this manual before assembling or using your vacuum cleaner. 2. Use your vacuum cleaner only as described in this manual. Use only with Panasonic recommended attachments. -
Page 4: Table Of Contents
TABLE OF CONTENTS CONSUMER INFORMATION ..................2 IMPORTANT SAFETY INSTRUCTIONS................5 PARTS IDENTIFICATION ....................10 FEATURE CHART......................11 ASSEMBLY ........................12 Attaching Handle ......................12 Using Cord Hook ......................14 Tool Storage ........................ 14 FEATURES ........................16 Automatic Self Adjusting Nozzle ................16 Carpet-Bare Floor Selector .................. -
Page 5: Parts Identification
PARTS IDENTIFICATION Nomenclature Identificación de piezas Hose Holder Porte-tuyau Soporte para la Manguera Handle Hose Cord Hook Manche Tuyau Crochet de Mango Manguera Dust Cover rangement On-Off Switch (Dust Bag Inside) du cordon Interrupteur Couvercle Sujetador Interruptor de (du sac à poussière) del cordón encendido-apagado Cubierta de bolsa... -
Page 6: Feature Chart
FEATURE CHART Power Thermal Protector Cord Length Tools 9.1 m (30 Ft.) 120V AC(60Hz) Tableau des caractéristiques Protecteur thermique Longueur du cordon Alimentation Accessoires 9,1 m (30 pi) 120 V c.a. (60 Hz) Diagrama de características Protector termal Voltaje Extensión de cordón Herramientas 9,1 m (30 pi) 120 V c.a. -
Page 7: Assembly
ASSEMBLY Attaching Handle Handle Hole Manche DO NOT plug in until assembly is Orifice Mango Orificio complete. Remove handle screw. Screw Tornillo Insert handle. Handle Insert screw. Screw Vis du manche Tighten screw. Tornillo del mango Push power cord into cord clip. Power Cord Cordon d’alimentation... -
Page 8: Using Cord Hook
Using Cord Hook Cord Hook Crochet de Detach plug head from power cord. rangement du cordon Rotate cord hook down to release Sujetador del cordón cord. Return the cord hook to the upright position before attempting to rewind the cord. Tool Storage Some tools may already be stored on vacuum cleaner. -
Page 9: Features
FEATURES Automatic Self Adjusting Nozzle The nozzle of your Panasonic upright Shallow vacuum cleaner automatically Pile Carpet Nozzle adjusts to any carpet pile height. Moquette à Tête d'aspiration poils courts Boquilla Alfombra de Feature allows nozzle to float evenly pelo corto Deep Pile over carpet pile surfaces. -
Page 10: Thermal Protector
Thermal Protector If a clog prevents the normal flow of air to the motor, the thermal protector turns the motor off automatically to allow the motor to cool in order to prevent possible damage to the vacuum cleaner. During this time the headlight remains on. To correct problem, turn off and unplug vacuum cleaner, remove clogs, and/or clean/replace filters. -
Page 11: To Operate Vacuum Cleaner
TO OPERATE VACUUM CLEANER Power Cord NOTE: To reduce the risk of electrical shock, this vacuum cleaner has a polarized plug, one blade is wider than the other. This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. -
Page 12: Tool Usage
• Walls ROUTINE CARE OF VACUUM CLEANER Performing the following tasks will keep your new Panasonic vacuum cleaner operating at peak performance levels and will ensure these high levels for years to come. Check the BEFORE REQUESTING SERVICE section in this manual for recommendations on performing some of these tasks to help solve various problems that may occur. -
Page 13: Changing Dust Bag
Changing Dust Bag Always operate vacuum cleaner with genuine Panasonic Type U3 Standard, U6 Electrostatic or U10 HEPA dust bags installed. Panasonic dust bags may be purchased through any authorized Panasonic dealer or ordered from service company. Pull outward on dust cover grip to remove the dust cover. -
Page 14: Removing And Installing Lower Plate
WARNING Electrical Shock or Personal Injury Hazard Disconnect the electrical supply before servicing or cleaning the vacuum cleaner. Failure to do so could result in electrical shock or personal injury from vacuum cleaner suddenly starting. Removing and Installing Lower Plate Before servicing any parts, disconnect Latches vacuum cleaner from electrical outlet. -
Page 15: Replacing Headlight Bulb
Soporte de l’agitador Remove agitator by carefully lifting out. Remove worn or broken belt. Clean agitator. Motor Shaft Install Loop new belt (Panasonic Type UB8 Arbre d’entraînement New Belt du moteur only) around motor shaft and Poser la Eje del motor agitator pulley;... -
Page 16: Replacing Belt
Replacing Belt Reinstall agitator back into nozzle housing grooves. Close rear belt cover and reinstall agitator holder. After reinstalling the agitator, turn it Groove by hand to make sure that belt is not Ouverture Ranura twisted or pinched and that all End Cap rotating parts turn freely. -
Page 17: Replacing Brushes
Replacing Brushes When the bristles on the agitator are Card worn so that they do not touch a card Carte held across the lower plate, the Tarjeta brushes should be replaced. Remove lower plate and agitator. Remove the E-clip from agitator shaft E-Clip Bride en E and end cap. -
Page 18: Agitator Assembly
Agitator Assembly Brush Spacers (3) Brushes Agitator Holder Filter Filter End Cap E-Clip End Cap Agitator Holder Shaft Cleaning Exterior and Tools Unplug cord from wall outlet. Clean exterior using a clean, soft cloth that has been dipped in a solution of mild liquid detergent and water and wrung dry. -
Page 19: Removing Clogs
Removing Clogs The hose located on the back of the Hose vacuum cleaner carries the dirt from the Tuyau nozzle up to the dust bag. If the hose Manguera should become clogged: Unplug vacuum cleaner. Pull open suction inlet cover and Cover (Suction Inlet) check for clogging. -
Page 20: Before Requesting Service
BEFORE REQUESTING SERVICE WARNING Electrical Shock or Personal Injury Hazard Disconnect the electrical supply before servicing or cleaning the vacuum cleaner. Failure to do so could result in electrical shock or personal injury from vacuum cleaner suddenly starting. Review this chart to find do-it-yourself solutions for minor performance problems. -
Page 21: Warranty
Servicenter Directory. Or call, toll free, 1-800-211-PANA (7262) to locate a PASC Authorized Servicenter. Carry-in or mail-in service in Puerto Rico can be obtained during the warranty period by calling the local Panasonic Sales Company telephone number listed in the Servicenter Directory. - Page 22 Vacuum Cleaner - Two (2) year, parts and labour In-home Service will be carried out only to locations accessible by roads and within 50 km of an authorized Panasonic service facility.
