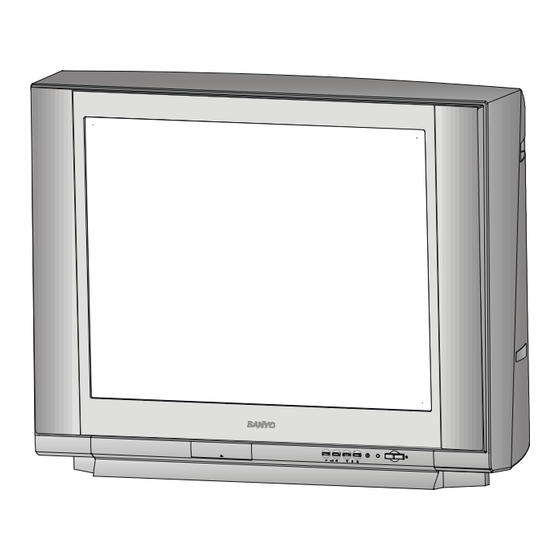

Sanyo CE29FFV1-F Service Manual

Colour television true flat
Hide thumbs
Table of Contents

Advertisement

Quick Links

Service Manual

Colour Television True Flat
Indice
1.
Safety instructions ............................................................................................................................................1
2.
WARNING ........................................................................................................................................................1
3.
Precaution against X-Rays ...............................................................................................................................1
4.
Recommendations to protect our environment ................................................................................................1
5.
TECHNICAL CHARATERISTICS.....................................................................................................................2
6.
Safety................................................................................................................................................................2
7.
EMC (Electromagnetic Compatibility) ...............................................................................................................2
8.
Factory special mode........................................................................................................................................2
9.
Automatic channel search reactivating.............................................................................................................3
10.
Service Menu ................................................................................................................................................3
11.
CONNECTED DOCUMENTS. ......................................................................................................................3
12.
MOUNTED CIRCUITS CODES. ...................................................................................................................3
13.
CABINET PARTS LIST .................................................................................................................................4
13.1.
CABINET PARTS LIST OF CHASSIS CE29FFV1-F.............................................................................4
13.2.
CABINET PARTS LIST OF CE29FFV1-F .............................................................................................5
14.
PARTS LIST..................................................................................................................................................6
Give complete "SERVICE PART No" for parts order or
servicing, it is shown on the rating sheet on the cabinet
back of the TV set.
03-07-2002
Model:
CE29FFV1-F
CRT 29" Philips A68ERF001X013
CHASSIS 2114
EB5-C 21"/25"/28"/29"
Note
This TV receiver will not work properly in foreign countries
where the television transmission system and power
source differ from the design specifications. Refer to the
specifications for the design specifications.
Ref. Nº MS CE29FFV1-F

Advertisement

Table of Contents
loading

Related Manuals for Sanyo CE29FFV1-F

Summary of Contents for Sanyo CE29FFV1-F

  • Page 1: Table Of Contents

    Service Menu ..............................3 CONNECTED DOCUMENTS........................3 MOUNTED CIRCUITS CODES........................3 CABINET PARTS LIST ..........................4 13.1. CABINET PARTS LIST OF CHASSIS CE29FFV1-F................4 13.2. CABINET PARTS LIST OF CE29FFV1-F .....................5 PARTS LIST..............................6 Give complete “SERVICE PART No” for parts order or Note...

  • Page 2: Safety Instructions

    1. Safety instructions Read this page before doing any operation of adjustment, maintenance or repair the TV set described. Only skilled personnel of Sanyo Technical Service should do the adjustment, maintenance or repair of TV set. 2. WARNING For the correct and safe use of the TV set, it is essential that the service personnel follow the process of safety generally accepted and the safety precautions specified in this manual.

  • Page 3: Technical Charateristics

    Service Manual SM CE29FFV1-F 5. TECHNICAL CHARATERISTICS. Cathode-ray tubes In-Line, gun Type. Black Matrix. 29” (68 cm) True Flat, Invar Plus mask. Voltage synthesis, 100 programs in non-volatile memory, AFT, automatic, Tuning-system semiautomatic and manual channel-search. Reception channels Band I, channels 2-4 (VHF)=E2-E4...

  • Page 4: Automatic Channel Search Reactivating

    An very detaill explication is in the Service Manual of chassis 2114 (EB5-C). 11. CONNECTED DOCUMENTS. This Service Manual provides the particular information of the model CE29FFV1-F and it is complemented with: 1. Service Manual of the CHASIS 2114 (EB5-C).

  • Page 5: Cabinet Parts List

    Service Manual SM CE29FFV1-F 13. CABINET PARTS LIST 13.1. CABINET PARTS LIST OF CHASSIS CE29FFV1-F Ref. No. Part No. Description Localiz. Código Descripción YG25 0390320307 Bar Code Label -Chassis 0080113103 COMP. Side IF Shield EB5-C Assy PF(Fuente alimentación) " 0080113202 Copper Side IF Shield EB5-C...

  • Page 6: Cabinet Parts List Of Ce29Ffv1-F

    Service Manual SM CE29FFV1-F 13.2. CABINET PARTS LIST OF CE29FFV1-F Ref. No. Part. No. Description YF 1 2700054006 Front Cabinet Assy 29" FLAT ATS YF 2 0590274809 Back Cover 29" FLAT YF 6 0390255305 Rating Place CE29FFV1-F YF14 0200819910 AC Cord Holder...

  • Page 7: Parts List

    Service Manual SM CE29FFV1-F Ref. No. Part No. Description Ref. No. Part No. Description C112 0230600801 Ceramic SMD 100 nF. +80-20% 25V. 14. PARTS LIST C113 0230360604 Ceramic SMD 1000 pF. 10% 50V. C114 0230360604 Ceramic SMD 1000 pF. 10% 50V.
  • Page 8 Service Manual SM CE29FFV1-F Ref. No. Part No. Description Ref. No. Part No. Description C425 0260340906 Polypropylene 100 nF. 5% 100V. C861 0250572419 Electrolytic 1000 µF. 16V. C426 " 0230360604 Ceramic SMD 1000 pF. 10% 50V. C862 0230640401 Ceramic SMD 220 nF. 10% 16V.
  • Page 9 Service Manual SM CE29FFV1-F Ref. No. Part No. Description Ref. No. Part No. Description 0790701106 R.M.G. SMD 0 Ω 1/10W. D752 0360130819 1N 4148 J235 D753 0360130819 1N 4148 0790701106 R.M.G. SMD 0 Ω 1/10W. J236 D754 0360607006 Zener SMD MMSZ56T1 0790701106 R.M.G.
  • Page 10 Service Manual SM CE29FFV1-F Ref. No. Part No. Description Ref. No. Part No. Description 0620011502 Ferrite SMD 0603 600 Ω/100MHz L905 R1050 0790752208 R.M.G. SMD 12 KΩ T<=5% 0805 " 0790235006 R.M.G. SMD 470 Ω T<=5% 0805 R1051 PCB11 0750153629 MAIN PCB EB5-C R106 0790138804 Carbon 1 KΩ...
  • Page 11 Service Manual SM CE29FFV1-F Ref. No. Part No. Description Ref. No. Part No. Description 0790328603 Metal Film 75 Ω 1% 0,6W. R198 R412 0790243000 R.M.G. SMD 2,2 KΩ T<=5% 0805 0790227003 R.M.G. SMD 100 Ω T<=5% 0805 R200 0790239008 R.M.G. SMD 1 KΩ T<=5% 0805 R413 0790131106 Carbon 220 Ω...
  • Page 12 Service Manual SM CE29FFV1-F Ref. No. Part No. Description Ref. No. Part No. Description 0790126700 Carbon 100 Ω 5% 1/6W. R694 0790247001 R.M.G. SMD 4,7 KΩ T<=5% 0805 R901 R696 0790261002 R.M.G. SMD 68 KΩ T<=5% 0805 R902 0790036305 Carbon 2,2 KΩ 5% 1/4W.
  • Page 13 Service Manual SM CE29FFV1-F Ref. No. Part No. Description Ref. No. Part No. Description L1304 0620005801 Ferrite SMD 0805 1K/100MHz 0,2A AUDIO PCB L1305 0090316506 Peaking Coil 2,2 µH.10% RADIAL L1306 0620005801 Ferrite SMD 0805 1K/100MHz 0,2A L1307 0620005801 Ferrite SMD 0805 1K/100MHz 0,2A...
  • Page 14 Note: All the information of this manual is correct in the beginning of 0790135206 Carbon 470 Ω 5% 1/4W. R1802 the series; SANYO España, S.A. reserves the right to modify R1812 0790357024 Metal Film 7,50 KΩ 1% 0,4W. components and procedures to maintain its policy of continuous R1813 0790360705 Metal Film 12,0 KΩ...
  • Page 16 R940 R923 R671 D906 R688 R945 JO668 Q673 L668 +5V_AA +5V_A R927 L1306 L1308 2.2uH BLM21A102 C1342 C1341 PCB 075− 01539 C669 R943 0.01 10uF SMD_50V Q908 C426 LSAF_L R423 C261 R1300 L1300 JO661 R602 FERRITE LSAF_R D600 R930 R949 R425 R1301 L1301...
  • Page 17 IC300 IC400 IC100 indicados con * o ! deben ser sustituidos por recambios originales SANYO. with * or ! must be replaced with original spare SANYO parts. contrassengati con * o ! devono essere sostituiti con ricambi originali SANYO. IC1050 IC1250 ATENCIÓN este televisor contiene elementos especialmente sensibles a la...
