Summary of Contents for Zanussi ZVT 64 X

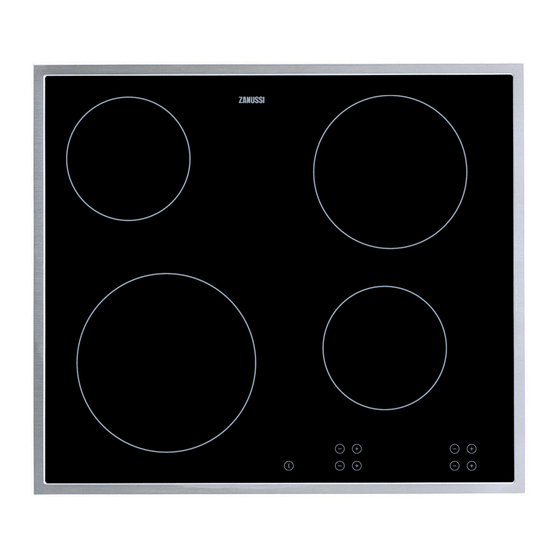

- Page 1 User information Ceramic ZVT 64 X...
-
Page 2: Table Of Contents
Thank you for selecting our appliance Please read this user manual carefully and keep it throughout the product life cycle as a reference doc- We wish you lots of enjoyment with your new appli- ument. The user manual should be passed on to any ance and we hope that you will consider our brand future owner of the appliance. -
Page 3: Operating Instructions
Operating Instructions Safety instructions General safety Please comply with these instructions. If you do not, any damage resulting is not covered by the • The appliance may only be installed and con- warranty. nected by trained, registered service engi- neers, or competent persons. Correct use •... -
Page 4: Description Of The Appliance
How to avoid damage to the appli- • Objects that melt and things that boil over can burn onto the ceramic glass and should ance be removed straightaway. • The ceramic glass can be damaged by ob- • To avoid damaging cookware and glass ce- jects falling onto it. -
Page 5: Control Panel Layout
Control panel layout Heat setting selection Display On/Off Touch Control sensor fields The appliance is operated using Touch Control sensor fields. Functions are controlled by touching sensor fields and confirmed by dis- plays and acoustic signals. Touch the sensor fields from above, without covering other sensor fields. -
Page 6: Operating The Appliance
Residual heat indicator Warning! Risk of burns from residual heat. After being switched off, the cooking zones need some time to cool down. Look at the residual heat indicator Residual heat can be used for melting and keeping food warm. Operating the appliance Switching the appliance on and off Control panel... -
Page 7: Using The Child Safety Device
Using the child safety device The child safety device prevents unintentional use of the appliance. Switching on the child safety device Step Control panel Display/Signal Switch on appliance (Do not set a heat setting). Touch of both the cooking zones at the front simultaneously for 4 seconds. -
Page 8: Automatic Switch Off
After overriding the child safety device, a heat setting or a function must be set with- in approx. 10 seconds, otherwise the ap- pliance automatically switches itself off. Automatic switch off Cooking surface • If after switching on the cooking surface, a heat setting is not set for a cooking zone within approx. -
Page 9: Tips On Cooking And Frying
Tips on cooking and frying Energy saving Information about acrylamides According to the latest scientific research, Always place cookware on the cooking intensive browning of food, especially in zone before it is switched on. products containing starch, may present a health risk due to acrylamide. -
Page 10: Cleaning And Care
Heat Cooking suitable for Cook time Tips/Hints setting process Simmering rice and milk-based Add at least twice as much liq- Simmer- dishes 25-50 mins. uid as rice, stir milk dishes part Heating up ready-cooked meals way through cooking Steaming vegetables, fish With vegetables add only a lit- Steaming 20-45 mins. -
Page 11: What To Do If
Remove immedi- when the appliance has Type of dirt using ately cooled down sugar, food containing sugar a scraper* plastics, tin foil limescale and water rings cleaner for glass ceramic fat splashes or stainless steel* shiny metallic discolouration *Scrapers and cleaners for glass ceramic and stainless Scratches or dark stains on the glass ce- steel can be purchased in specialist shops, supermarkets, ramic that cannot be removed do not how-... -
Page 12: Disposal
Problem Possible cause Remedy is lit Overheating protection for the cook- Switch off the cooking zone. Switch ing zone has been triggered the cooking zone on again Automatic switch off has been trig- Switch off the cooking zone. Switch gered the cooking zone on again and number are displayed Electronics fault... -
Page 13: Installation Instructions
Installation Instructions Safety instructions Risk of injury from electrical current. Warning! This must be read! • The electrical mains terminal is live. The laws, ordinances, directives and standards • Make electrical mains terminal free of volt- in force in the country of use are to be followed age. -
Page 14: Electrical Connection Diagram
Electrical Connection Diagram For UK only: 230V...240V~... -
Page 15: Assembly
Assembly... -
Page 18: Rating Plate
Rating Plate ZVT 64 X 949 592 980 55HAD54AO 230 V 50 Hz 6,5 kW ZANUSSI... -
Page 19: Service And Spare Parts
Service and Spare Parts In the event of technical faults, please first check whether you can remedy the problem yourself with the help of the operating instruc- tions (section “What to do if…”). If you were not able to remedy the problem yourself, please contact the Customer Care Department or one of our service partners. - Page 20 867 201 501-A-110708-02 Subject to change without notice...
