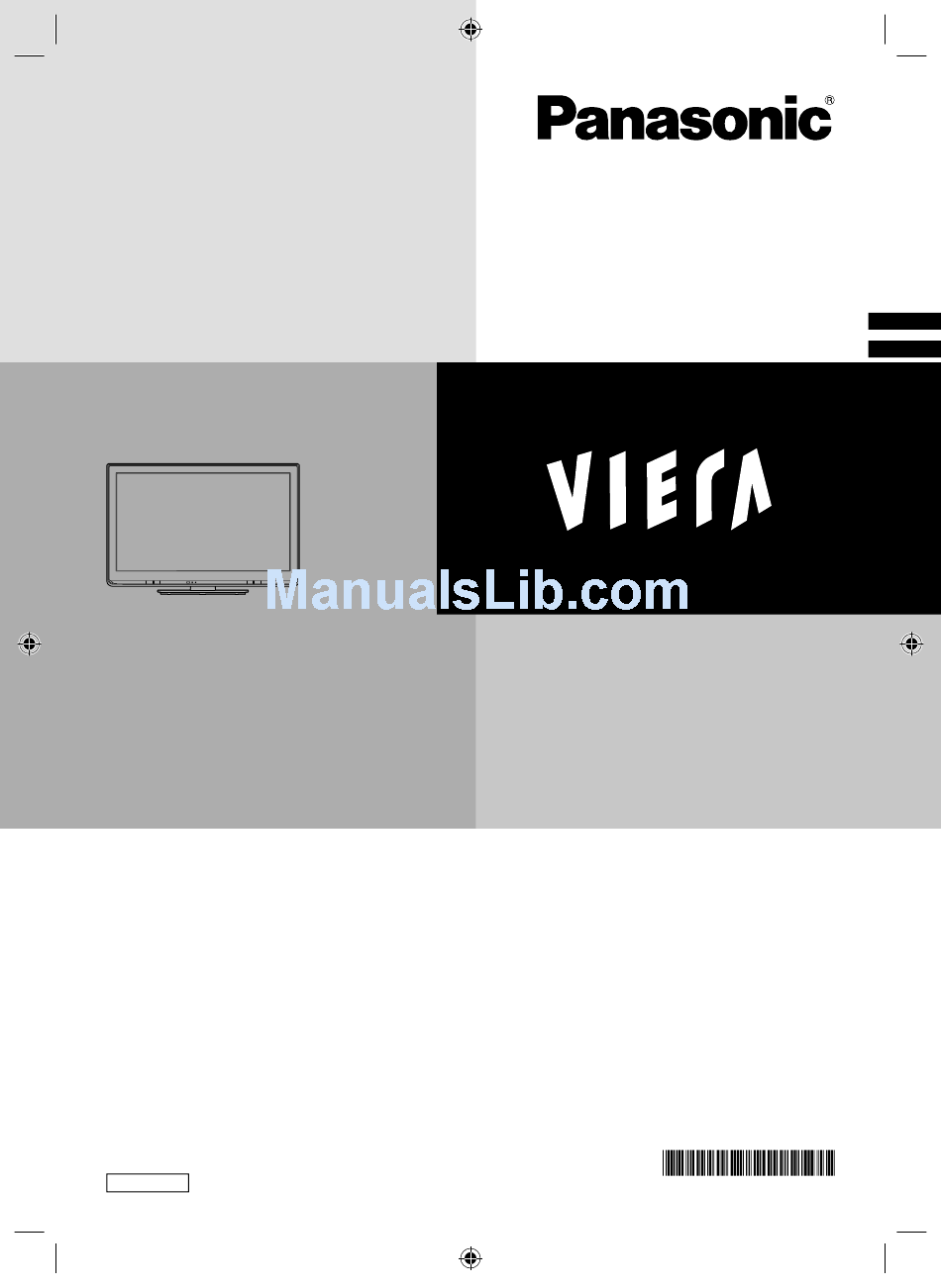

Operating Instructions
LCD TV
Thank you for purchasing this Panasonic product.
Please read these instructions before operating your set and retain
them for future reference.
The images shown in this manual are for illustrative purposes only.
English
TH-L32C3KMTX_EN.indd 1
TH-L32C3KMTX_EN.indd 1
Model No.
TH-L32C3K
TH-L32C3M
TH-L32C3T
TH-L32C3X
BHP
TQB4GC0650-1
6/16/2011 9:55:40 AM
6/16/2011 9:55:40 AM
Advertisement
Table of Contents
Related Manuals for Panasonic Viera TH-L32C3K
Summary of Contents for Panasonic Viera TH-L32C3K
- Page 1 TH-L32C3M TH-L32C3T TH-L32C3X Operating Instructions LCD TV Thank you for purchasing this Panasonic product. Please read these instructions before operating your set and retain them for future reference. The images shown in this manual are for illustrative purposes only. English TQB4GC0650-1 TH-L32C3KMTX_EN.indd 1...
- Page 2 Experience an amazing level of multimedia excitement Sharp pictures with HDMI terminal Create home theatre and DVD recorder link-ups with “VIERA Link” without complicated settings! Enjoy rich multimedia Camcorder SD Card Personal computer Amplifier with Speaker system Set top box DVD Recorder DVD Player Blu-ray Disc Player...
-
Page 3: Table Of Contents
S-VGA is a registered trademark of the Video VIERA Link Functions ·························41 Electronics Standard Association. External Equipment ····························47 HDAVI Control™ is a trademark of Panasonic Corporation. Macintosh is a trademark of Apple Inc. Windows is a registered trademark of Microsoft Corporation in the United States and/or other countries. -
Page 4: Safety Precautions
TV unstable, risking injury. Be ● rain or excessive moisture. This TV must not sure to ask your local Panasonic dealer to be exposed to dripping or splashing water and perform setup. objects filled with liquid, such as vases, must Use approved pedestals (p. -
Page 5: Notes
Caution This appliance is intended for use in tropical climates When cleaning the TV, remove the mains plug ● Cleaning an energised TV may cause electrical shock. When the TV is not going to be used for a long period of time, remove the mains plug This TV will still consume some power even in the Off mode, as long as the mains plug is still ●... -
Page 6: Accessories / Options
Keep these parts out of reach of young children. Optional accessories Please contact your nearest Panasonic dealer to purchase the recommended optional accessories. For additional details, please refer to the manual of the optional accessories. -
Page 7: Attaching The Pedestal
If you use the pedestal while it is physically damaged, personal injury may result. Contact your nearest ● Panasonic dealer immediately. During set-up, make sure that all screws are securely tightened. If insufficient care is taken to ensure screws are properly tightened during assembly, the pedestal will ●... - Page 8 Inserting and removing remote’s batteries Caution Open Incorrect installation may cause battery leakage ● and corrosion, resulting in damage to the remote control. Do not mix old and new batteries. ● ● Do not mix different battery types (such as alkaline and manganese batteries).
-
Page 9: Basic Connection
Basic Connection External equipment and cables shown are not supplied with this TV. Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads. Rear of the TV Aerial Satellite dish AC Auto 110-240 V, 50 / 60 Hz Satellite cable Set top box... -
Page 10: Identifying Controls
Identifying Controls USB port Function select ● [Volume] / [Backlight] / [Contrast] / SD Card slot [Brightness] / [Colour] / [Sharpness] / AV3 terminals [Tint] (NTSC signal) / [Bass] / [Treble]/ [Balance] / [Auto Tuning] Headphones jack [ Bass] / [Treble] is displayed only when Remote control signal receiver [Mode] in the Sound Menu is set to ●... - Page 11 Remote Control 7 OK Confirms selections and choices ● POWER POWER INPUT INPUT ● Press after selecting channel positions to quickly change programme MENU SURROUND MENU SURROUND ASPECT ASPECT 8 [Option Menu] (p. 14) Quick access to optional settings for picture, ●...
-
Page 12: Auto Tuning
Auto Tuning Search and store TV channels automatically. These steps are not necessary if the setup has been completed by your local dealer. ● Plug the TV into mains socket and switch On You can now use the remote control to turn On the TV or switch ●... -
Page 13: Watching
Watching TV Turn on the TV POWER INPUT Mains power On / Off switch should be On (p. 10). ● MENU ASPECT Select TV mode INFO Select a channel OPTION down If one or two-digit channel number, e.g. 39 ● HOLD (quickly changes the channel) Note... -
Page 14: Last View
Display Information banner Display Information banner INFO Also appears when changing channel ● Input mode ■ Channel position Channel number Sound system Colour system Aspect ratio Audio mode (p. 53) Off Timer remaining time Sound mute On For settings (p. 13) ●... - Page 15 Change aspect ratio Enjoy viewing the image at its optimum size and aspect. Press repeatedly until you reach the desired mode ASPECT ASPECT ■ If Aspect Selection list is displayed after you press While the list is displayed, select the mode Aspect Selection Aspect Selection 16:9...
-
Page 16: Viewing Teletext
Viewing Teletext Teletext services are the text information provided by the broadcasters. The features may vary depending on the broadcasters. What is FASTEXT mode? ● In FASTEXT mode, four differently coloured subjects are displayed at the bottom of the screen. To access more information about one of these subjects, press the corresponding coloured button. - Page 17 View in multi window Watch TV and Teletext in two windows at once MENU Select Picture and text (press twice) On or Off Operations can be made only on the Teletext screen. ● FULL / TOP / BOTTOM (TOP) (BOTTOM) Normal (FULL) MENU Broadcast...
-
Page 18: Watching External Inputs
Watching External Inputs Connect the external equipment (VCRs, DVD equipment, PC, etc.) to watch the input from the equipment. To connect the equipment (p. 9, 47 - 49) ● Display the Input Selection menu INPUT Select the input mode of the connected equipment Example (AV2) select... -
Page 19: How To Use Viera Tools
How to Use VIERA TOOLS You can access some special features easily using the VIERA TOOLS function. Display the icon of the features Select a feature EXIT select access (example) VIERA Link Control Follow the operations of each feature [VIERA Link Control] “VIERA Link Control”... -
Page 20: How To Use The Menu Functions
How to Use the Menu Functions Various menus allow you to make settings for the picture, sound, and other functions. Display the menu Displays the functions that can be set (varies according to the input ● signal) MENU Select the menu EXIT select Main Menu... - Page 21 Main Menu Note Picture ● You can customise the settings of [Backlight], [Contrast], [Brightness], [Colour], [Sharpness], [Tint], [Colour Balance], Sound [Vivid Colour], [Eco Mode], [P-NR] and [3D-COMB] for each Setup [Viewing mode] and input to suit your viewing preference. Set for each input signal. ●...
- Page 22 Turns the screen off when you select [Off] Screen Display The sound is active even if the screen turns off. ● • Off Press any buttons (except Standby) to turn the screen on. ● • On This function is useful in reducing power consumption when listening to ●...
- Page 23 Main Menu Picture Sound Setup Item Adjustments / Configurations (alternatives) Basic sound mode The selected mode affects all input signals. ● [Music]: Improves sound quality for watching music videos, etc. [Speech]: Improves sound quality for watching news, drama, etc. Mode In Music and Speech modes, you can adjust [Bass] and [Treble] ●...
- Page 24 Adjust the low frequency sound Speaker Distance to If the space between the back of TV and wall is over 30 cm, [Over ● Wall 30cm] is recommended. • Over 30cm If the space between the back of TV and wall is within 30 cm, [Up to ●...
- Page 25 Main Menu Picture Sound Setup Adjustments / Configurations (alternatives) Item Switches to a wide view VGA (640 × 480 pixels), WVGA (852 × 480 pixels), ● Input Resolution XGA (1,024 × 768 pixels), WXGA (1,280 × 768 pixels, 1,366 × 768 pixels) ●...
- Page 26 Teletext • FASTEXT Teletext display mode (p. 16) • List Teletext Character Set • English • CIS Select teletext language • E.Europe • Persian Input Labels Label or skip each input terminal (p. 30) Banner Display Timeout • 0 (No display) Set how long the information banner stays on screen (p.
-
Page 27: Tuning And Editing Channels
Tuning and Editing Channels You can make Auto Tuning, listing your favourite channels, skipping unwanted channels, etc. Preparations: Select TV mode Display the menu Select [Setup] INPUT INPUT select MENU The selected mode is ● access EXIT displayed on the screen (p. - Page 28 [Channel List Edit] - Skip unwanted channels / Edit channels (Change name, move) You can hide unwanted channels. The hidden channels cannot be displayed except in this function. Use this function to skip unwanted channels. Select a channel and reveal / hide select Channel List Editor To reveal all channels...
-
Page 29: Child Lock
Child Lock You can lock specific channels / AV input terminals to control who could watch them. When the locked channel / input is selected, a message appears; by entering the PIN number, you can watch it. Preparations: Display the menu Select [Setup] select MENU... -
Page 30: Input Labels
Input Labels For easier identification and selection of the input mode, you can label each input mode or skip terminal that is not connected to any equipment. To select the input mode (p. 18) ● Preparations: Display the menu Select [Setup] select MENU MENU... -
Page 31: Shipping Condition (Reset Settings)
Shipping Condition (Reset settings) Resets the TV to its original condition, i.e. no channels tuned in. All settings are reset (channels, picture, sound settings, etc.). Preparations: Display the menu Select [Setup] select MENU MENU EXIT access Select [System Menu] select Setup Menu Off Timer Eco Navigation... -
Page 32: Using Media Player
Using Media Player Media Player allows you to enjoy photo, video or music recorded on an SD Card or a USB Flash Memory. VIERA IMAGE VIEWER is a function that enables easy-viewing of photos or videos recorded on an SD Card on the TV screen by simply inserting the SD Card into the SD Card slot. - Page 33 Starting Media Player Insert the SD Card or USB Flash Memory (p. 32) When the SD Card is inserted, the input mode automatically switches to Media Player. Switch to Media Player Select the icon you want to access MENU ASPECT INFO EXIT Media Player...
- Page 34 Photo mode Supported file format (p. 54) The thumbnail of all the photos in the SD Card or USB Flash Memory will be displayed. Example : Thumbnail - [All photos] To change the number of photos on a thumbnail ● All photos Media Player Photo...
- Page 35 [Single view] - Photos are displayed one at a time. Select the file from the thumbnail of photos to be viewed select access Example : To display / hide the To operate Single view ● ● Single view operation guide To the previous photo INFO Slideshow...
- Page 36 Item Adjustments / Configurations (alternatives) Selects the indication frame of the slideshow [Off] / [Multi] / [Collage] / [Drift (+ calendar)] / [Drift] / [Gallery (+ calendar)] / [Gallery] / [Cinema] [Multi]: 9 division display like tiled design. [Collage]: A photo is displayed at random position and scale. [Drift (+ calendar) / Drift]: Photos are displayed like flow images.
- Page 37 Change the contents You can switch to the other mode of Media Player from the thumbnail view. While the thumbnail is Select the contents displayed, display the All photos Media Player Photo contents selection select access [Photo] “Photo mode” (p. 34) Contents Select [Video] “Video mode”...
- Page 38 ■ Playback from the selected scene in the title Playback will start from the selected scene to the end of the title. ● To repeat playback “Video Setup” (p. 38) ● Select the title Select the scene Start playback select select access Note...
-
Page 39: Audio Output Settings
Confirm or change the current status You can confirm or change the current status of the content. Menu items and selectable options vary depending on the content. ● Display the option menu Select [Video Setup] Select the items and set during playback OPTION Video Setup Menu... -
Page 40: Music Setup
Music mode Supported file format (p. 54) The thumbnail of music folders in the SD Card or USB Flash Memory will be displayed. Example : Thumbnail - [Folder view] To display the information of the highlighted folder ● Folder view Media Player Music INFO... -
Page 41: Viera Link Functions
HDMI CEC (Consumer Electronics Control), is a unique function that we have developed and added. As such, its operation with other manufacturers’ equipment that supports HDMI CEC cannot be guaranteed. Please refer to individual manuals for the external equipment. About applicable Panasonic equipment, ● consult your local Panasonic dealer. -
Page 42: Easy Playback
HDMI cable, and also connect an RCA cable for audio output from the TV. ● Use a fully wired HDMI compliant cable. Non-HDMI-compliant cables cannot be utilised. ● ● Recommended Panasonic’s HDMI cable part number: ● RP-CDHS15 (1.5 m) RP-CDHS30 (3.0 m) RP-CDHS50 (5.0 m) ●... - Page 43 Features available (Using VIERA Link Menu) [Pause Live TV] You can pause the live TV programme and resume later. Live TV programmes will be recorded on HDD of the connected DIGA Recorder. This function is available with a DIGA Recorder which has HDD. ●...
- Page 44 [Direct TV Rec] - What you see is What you record Recording the current programme in DIGA Recorder immediately. If you connect a variety of recorders including other manufacturers’ recorders at the same time, please ● connect the DIGA Recorder to the TV’s lower HDMI terminal number. For example, if you use HDMI1 ●...
-
Page 45: Viera Link Control
[VIERA Link Control] - Operate the connected equipment with VIERA remote control You can control some functions of the connected equipment with this TV remote control by pointing at the TV’s signal receiver. ● If you cannot operate, check the settings and the equipment “Summary of features”, “Connection”, “Preparations”... - Page 46 [Speaker Selection] - Speaker control You can control the theatre speaker with this TV remote control by pointing at the TV’s signal receiver. ● If you cannot operate, check the settings and the equipment “Summary of features”, “Connection”, “Preparations” (p. 41 - 42) Access and control the speaker volume Display [VIERA Link Menu] Select [Speaker Selection]...
-
Page 47: External Equipment
External Equipment These diagrams show our recommendations for connecting your TV to various equipment. For other connections, consult the instructions for each equipment, the table below, and the specifications (p. 59). Types of connectable equipment to each terminal Terminal AV1 IN AV2 IN AV3 IN AUDIO... - Page 48 To play back Aerial AV IN HDMI 1 RF cable Fully wired HDMI compliant cable DVD Recorder : Only for DVD Recorder AUDIO AV1 IN AV2 IN HDMI equipment Rear of the TV Recorder / Player Fully wired HDMI compliant cable HDMI connection (p.
- Page 49 Side panel of the TV USB devices Camcorder / Game equipment Rear of the TV (Viewing) (Listening) Camcorder, etc. Headphones (M3 stereo mini plug) To adjust volume [Headphone Volume] in the Sound Menu (p. 23) Camcorder / HDMI equipment Fully wired HDMI compliant cable Camcorder, etc.
-
Page 50: Technical Information
Technical Information Channel Allocation Channel Asia/W. CIS/E. Indian South American American China Hong Kong Japan Plan Europe Europe Indonesia CATV Africa System CATV Receive channel DISPLAY – – – – – – – – – – – – – – –... -
Page 51: Dvi Connection
HDMI connection HDMI (High-Definition Multimedia Interface) is the world’s first complete digital consumer AV interface complying with a non-compression standard. HDMI allows you to enjoy high-definition digital images and high-quality sound by connecting the TV and the equipment. HDMI-compatible equipment with an HDMI or DVI output terminal, such as a DVD player, a set top box or a game equipment, can be connected to the HDMI terminal using an HDMI compliant (fully wired) cable. - Page 52 Input signal that can be displayed COMPONENT (Y, P ), HDMI Mark: Applicable input signal Signal name COMPONENT HDMI 525 (480) / 60i 525 (480) / 60p 625 (576) / 50i 625 (576) / 50p 750 (720) / 60p 750 (720) / 50p 1,125 (1,080) / 60i 1,125 (1,080) / 50i 1,125 (1,080) / 60p...
- Page 53 Back up the recorded data at regular intervals in case of deteriorated or ● damaged data or erratic operation of the TV. (Panasonic is not liable for any deterioration or damage of recorded data.) USB Flash Memory...
- Page 54 H.264 BP/MP/HP – Dolby Digital ● .mov MotionJPEG This TV supports Motion ● H.264 BP/MP/HP TWOS JPEG recorded by Panasonic SOWT LUMIX Camera. ● Some files may not be played Dolby Digital back depending on these LPCM recording condition. ●...
- Page 55 ● You cannot connect any devices by using USB card reader. ● Note Additional information on USB devices may be found on the following web site. (English only) ● http://panasonic.jp/support/global/cs/tv/ TH_L32C3KMTX_EN.indd 55 TH_L32C3KMTX_EN.indd 55 3/17/2011 3:46:11 PM 3/17/2011 3:46:11 PM...
-
Page 56: Faqs
FAQs Before requesting service or assistance, please follow these simple guides to resolve the problem. If the problem still persists, please contact your local Panasonic dealer for assistance. White spots or shadow images (noise) Check the position, direction, and connection ●... - Page 57 Problem Actions Change the setting of [P-NR] in the Picture Menu (to remove noise). ● Chaotic image, noisy (p. 21) Check nearby electrical products (car, motorcycle, fluorescent lamp). ● No image can be Is [Colour] or [Contrast] in the Picture Menu set to the minimum? ●...
-
Page 58: Maintenance
Maintenance First, remove the mains plug from the socket outlet. Display panel, Cabinet, Pedestal For regular care: Gently wipe the surface of the display panel, cabinet, or pedestal by using a soft cloth to clean the dirt or fingerprints. For stubborn dirt: Dampen a soft cloth with clean water or diluted neutral detergent (1 part detergent to 100 parts water). -
Page 59: Specifications
Specifications Power Source AC Auto 110 - 240 V, 50 / 60 Hz Power Rating 99 W Standby condition 0.25 W Aspect Ratio 16:9 80 cm (diagonal) Visible screen size 698 mm (W) × 393 mm (H) Number of pixels 1,049,088 (1,366 (W) ×... - Page 60 Warranty Service purposes. Model Number Serial Number F0211-0311-0611-2 Printed in Malaysia Web Site : http://panasonic.net © Panasonic Corporation 2011 TH-L32C3KMTX_EN.indd 60 TH-L32C3KMTX_EN.indd 60 6/16/2011 9:55:42 AM 6/16/2011 9:55:42 AM...
