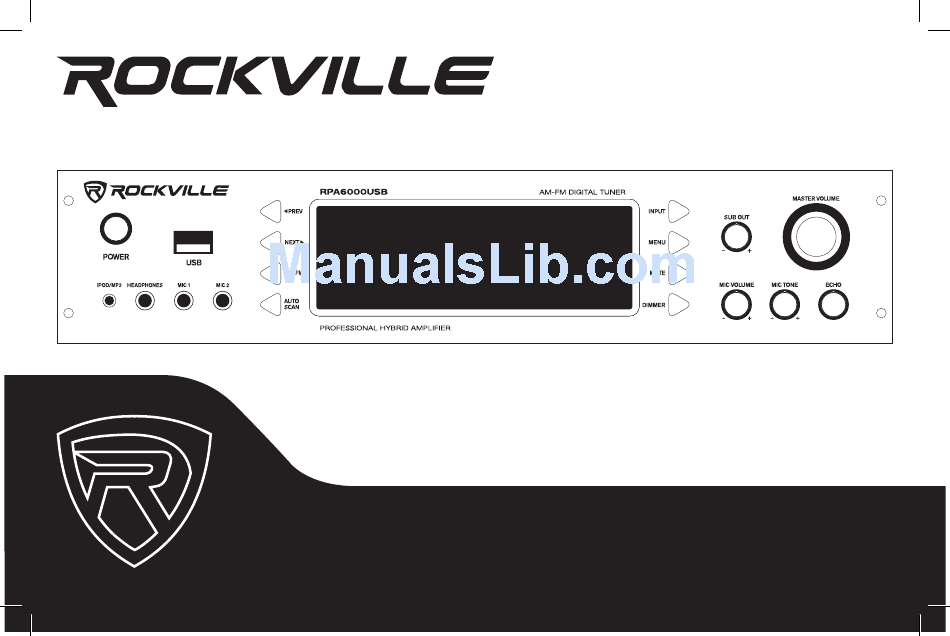

- Page 1 OWNER’S MANUAL RPA6000USB PROFESSIONAL MIXING KARAOKE AMPLIFIER WITH AM/FM DIGITAL TUNER...
- Page 2 Our goal to you and to your audience is to hear “live performance sound” the way it was meant to be experienced. Please read this installation guide carefully for proper use of your Rockville RPA6000USB Professional Mixing Karaoke Amplifier. Should you need technical assistance during or after your installation please call our technical help line at 1-646-758-0144, Monday through Friday, 9am to 5pm EST.
-
Page 3: Features & Specifications
RPA6000USB Features / Specifications • • 19” rack mountable (removable rack brackets) digital mixing receiver RCA Record Line Output • • 2 channel amplifier, powers 4 speakers RCA sub woofer output for external sub woofer amplifier • • 125w @ 4 ohms per channel... -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS • To reduce risk of electric shock, never open the unit. There are no user serviceable parts, for service to an authorized Rockville service center. • Do not expose this unit to any kind of moisture. •... -
Page 5: Front Panel Functions
RPA6000USB Front Panel Functions 1. Power Button 8. Vacuum Fluorescent Display 2. USB input for USB thumb drive (supports iPod charging) 9. Functions 2: a. Input button: Toggles between input sources (iPod, MP3 player, 3. 3.5mm iPod/MP3 input USB, DVD, CD, and Tuner). -
Page 6: Rear Panel Functions
Rear Panel Functions WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN 1. AM antenna connections 2. FM antenna connection. 3. Pre Amp Audio signal in 4. -
Page 7: Remote Control Functions
RPA6000USB Remote Control Functions 1. Mute button 2. Input button: Switch between input sources. 3. Numeric key pad 4. Scan button: Scan between stations. 5. AM/FM button: Switch between AM/FM signal. 6. Menu button: Controls functions of Master Volume (Volume, Bass, Treble, Balance, Preset Stations). - Page 8 Connections AM Antenna FM Antenna Power Amp Sub woofer DVD/CD Player Power Amp Sub woofer Speakers Power Amp IMPORTANT Speakers Recording Device or Amplifier WHEN POWERING 4 SPEAKERS MINIMUM IMPEDANCE PER SPEAKER CAN BE NO LOWER THAN 8 OHMS. USING 4 SPEAKERS AT 4 OHMS WILL EVENTUALLY CAUSE UNIT FAILURE.
- Page 9 RPA6000USB...
- Page 10 © 2014 ROCKVILLE // Features and specifications are subject to change and or improvement without notice.
