Identifying Codes For Your Remote ..14 Trouble Shooting ....15-16 This Universal Remote Control is already programmed for most GE, RCA and ProScan TVs, VCRs, DBS Systems, DVD Players, and Audio/Video Receivers.

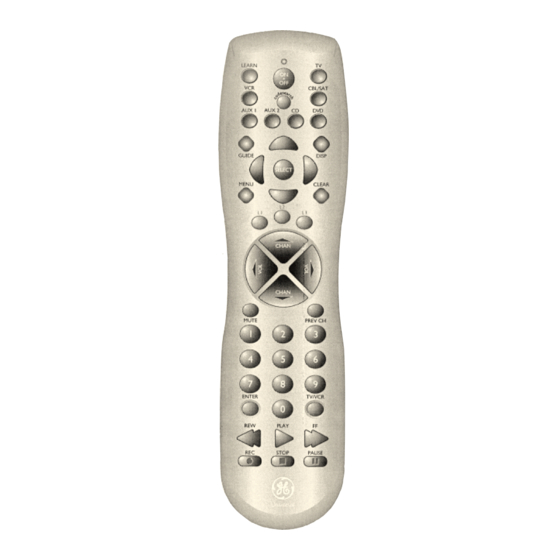

Button Description INDICATOR LIGHT The Indicator Light flashes to show that the remote is working. ON•OFF The ON•OFF button operates the same as your original remote. NOTE: Some GE, RCA and ProScan models require you to press the device button to turn the device on and the ON•OFF button to turn the device off.
Page 4
L1, L2, L3 The L1-L3 buttons are used for storing learned functions from the original or other remote controls. MENU Brings up the Main Menu. If you already in the menu system, press SELECT to select a highlighted choice. Use the arrows buttons to move through the Menu Selection.
Learning Function The learning feature is used as a supplement to the stan dard preprogrammed library. the standar code library provides most of the functions needed,, but you can add additional functions from your original remote. Note: No functions may be stored under the LEARN, SLEEP, CODESEARCH, MENU or any of the device buttons.
Clearing A Learned Button To clear a learned button sequence, use the procedure below. Note: No functions may be stored under the LEARN, SLEEP, CODE SEARCH or any of the device CODE buttons. SEARCH 1. Press and hold the CODE INDICATOR LIGHT SEARCH button until the...
Programming For TV Most GE, RCA and ProScan TVs will not require programming. Check to see if your TV responds to the remote before you begin programming. 1. Manually turn on the TV. Find the three digit code for your TV in the code list at the back of the instructions.
Programming For VCR Most GE, RCA and ProScan VCRs will not require programming. Check to see if your VCR responds to the remote before you begin programming. 1. Manually turn on the VCR. Find the three digit code for your VCR at the back of the instructions.
Programming For DVD Most GE, RCA and ProScan DVD systems will not require programming. Check to see if your DVD system responds to the remote before you begin programming. 1. Manually turn on the DVD system. Find the three digit code for your DVD system at the back of the instructions.
Programming For DBS Satellite Sys. Most GE, RCA and ProScan Satellite systems will not require programming. Check to see if your DBS Satellite system responds to the remote before you begin programming. 1. Manually turn on the DBS system. Find the three digit code for your DBS system at the back of the instructions.
Programming For Cable 1. Manually turn on the Cable Box. Find the three digit code for your Cable Box at the back of the instructions. 2. Press and hold the CODE SEARCH button until the INDICATOR LIGHT lights, then release the CODE SEARCH button.
Programming For CD 1. Manually turn on the CD player. Find the three digit code for your CD player you wish to control at the back of the instruc tions. 2. Press and hold the CODE SEARCH but ton until the INDICATOR LIGHT lights, then release the CODE SEARCH button.
Programming For AUX 1 or AUX 2 Buttons With the AUX 1 and AUX 2 buttons, you can assign a second TV, DVD, CD player, VCR, Satellite System, or Cable Box to it. 1. Manually turn on the device you wish to con trol.
Sleep Function The Sleep Function will turn off your TV automatically after the user programs the time interval from one (1) to ninety-nine (99) minutes. Press and hold the SLEEP button. The INDICATOR LIGHT will stay lit. Release the SLEEP button. Enter time in min- utes using the numeri...
Programming With Code Search If your TV, VCR, DVD player, DBS Satellite System, Cable Box or CD player does not respond after you have tried all the codes for your brand, or if your brand is not listed, try searching your code by following the steps below: 1.
Press and release CODE SEARCH. The INDICATOR LIGHT will turn off. 4. Starting with 0 on the keypad, press the number buttons in order (0-9) until the INDICATOR LIGHT blinks. 5. The number which causes the INDICA TOR LIGHT to blink is the first digit of your code.
Page 17
Trouble Shooting PROBLEM Problems changing channels No response after pressing a key SELECT button not responding Flashing Indicator Light Sleep feature does not work NOTE: Reprogramming may be required after batteries are removed. SOLUTION If your original remote required ENTER after a channel, press ENTER after you select a channel.
90 Day Limited Warranty Jasco Products Company warrants this product to be free from manufacturing defects for a period of ninety days from the original date of consumer purchase. This warranty is limited to the repair or replace ment of this product only and does not extend to consequential or incidental dam...
Page 19
RM24940 Control Remoto Universal Instrucciones...
Gracias por comprar el Control Remoto Universal GE. Este producto está diseñado para proveerle años de servicio operando una amplia variedad de equipo de video y audio. Por favor guarde esta guía para obtener referencias en el futuro. Indice Instale las Baterías ....19 Descripción de los Botones Funcion Que Aprende .
Descripción de Botones LUZ INDICADORA La luz indicadora parpadea para mostrar que el control remoto está trabajando. ON-OFF (ENCENDIDO-APAGADO) El botón ON-OFF opera de la misma manera que su control remoto original. NOTA: Algunos modelos GE, RCA y ProScan requieren que usted presione el botón del aparato para encender el aparato y el botón ON-OFF para apagarlo.
Page 22
BOTONES DE NAVEGACIÓN Y SELECT (SELECCIONAR) Se utilizan para moverse en el menu y guías que se muestran en la pantalla. Con algunos modelos DBS, se debe utilizar el botón DISP para seleccionar la opción resaltada. Utilice los botones de navegación para mover la opción resaltada hacia arriba, hacia abajo, hacia la derecha o hacia la izquierda.
Función Que aprende: La característica que aprende se utiliza como un suple mento al estándar la biblioteca preprogramada. La bib lioteca uniforme del código proporciona la mayor parte de 2 inches las funciones necesitadas, pero usted puede agregar las fun ciones adicionales de su tele...
Borrando un botón aprendido Para ser claro una secuencia del botón aprendido, utiliza el procedimiento abajo. Nota: Ningunas funciones se CODE pueden salvar bajo el APREN- SEARCH DER, el SUEÑO, la BÚSQUEDA INDICATOR del CÓDIGO (LEARN, SLEEP, LIGHT CODE SEARCH) o la cualquiera de los botones del dispositivo.
Programación para el televisor La mayor parte de los televisores GE, RCA y ProScan no requerir n ser programados. Verifique para ver si su televisor responde al control remoto antes de comenzar la progra mación. 1. Manualmente encienda el televisor. Encuentre el código de tres dígitos para su televisor en la parte posteriora de las instruc...
Page 26
Programación para VCR1 y VCR2 La mayor parte de las videograbadoras GE, RCA y ProScan no requerirán ser progra madas. Verifique para ver si su videograbadora responde al control remoto antes de comenzar la programación. Manualmente encienda la videograbadora. Encuentre el código de tres dígitos en la parte posterio...
Programación para el sistema DVD La mayor parte de los sistemas DVD GE, RCA y ProScan no requerirán ser programa dos. Verifique para ver si su sistema DVD responde al control remoto antes de comen zar la programación. Manualmente encienda el sistema DVD.
Programación para el Sistema de Satélite DBS La mayor parte de los sistemas de Satélite GE, RCA y ProScan no requerirán ser pro gramados. Verifique para ver si su sistema de Satélite DBS responde al control remoto antes de comenzar la programación. Manualmente encienda el sistema DBS.
Programación para Cable Manualmente encienda su rectángulo del cable. Encuentre el código de tres dígi tos para su rectángulo del cable en la parte posteriora de las instrucciones. Mantenga presionado el botón CODE SEARCH hasta que la LUZ INDI CADORA se encienda, entonces suelte el botón CODE SEARCH.
Programación para CD Manualmente encienda su jugador del CD. Encuentre el código de tres dígitos para su CD en la parte posteriora de las instrucciones. Mantenga presionado el botón CODE SEARCH hasta que la LUZ INDICADORA se encienda, entonces suelte el botón CODE SEARCH.
Page 31
ProgramaciÛn para Botón AUX 1 o AUX 2 Con los botones del AUX 1 o AUX 2 pueden asignar una TV, VCR o sistema de sátelite segunda o caje de cable a la botón "AUX". 1. Manualmente encienda el aparato que desea controlar. Encuentre el código de tres dígitos para el aparato que desea programar en la la...
Función de apagado automático La función de apagado automático apagará su televisor automáticamente después de que el usuario programe un intervalo de tiempo entre uno (1) y noventa y nueve (99) minutos. Mantenga presionado el botón SLEEP. INDICADORA per manecerá encendida. Suelte el botón SLEEP.
Programación con B˙squeda de Códigos Si usted necesita encontrar el código de tres dígi tos para su televisión, videograbadora, sistema DBS, Caja del Cable o sistema de audio después de que se ha programado su aparato, utilice este procedimiento: Manualmente encienda el aparato que desee programar.
Page 34
Comenzando con el numero 0, presione los botones numéricos en orden (0-9) hasta que la LUZ INDICADORA parpadee. El numero que cause que la LUZ INDICADO RA parpadee, es el primer dígito en su código. Repita el paso 4 hasta que haya obtenido los tres numeros en el código.
GuÌa de Problemas y Soluciones PROBLEMA La luz roja no parpadea cuando presiona cualquier tecla. El control remoto no opera sus aparatos de video. No desempeña los comandos correctamente. Tiene problemas progra mando una unidad com binada de televisor y videograbadora.
Page 36
GarantÌa Limitada de 90 DÌas Jasco Products Company garantiza este pro ducto por un periodo de noventa días desde la fecha de la compra original, como libre de defectos de fabricación. Esta garantía está limitada a la reparación o reemplazo de este producto y no se extiende a daños conse...
