Transport Control Panel

Note: This Window contains a set of transport controls for each machine installed and
enabled with the Internal Transport (Pyramix) at the top. Below the machines are dis-
plays for LTC and VT (and VITC when applicable) TimeCode Sources and at the bottom of
the panel there are controls which affect hardware Remote Controllers.
Clicking on the black bar with the machine name toggles the individual area between
collapsed and full. For example, dvcam is collapsed in the above illustration.
Important! For details of machine installation and settings. Please see: Machine on page 538
Pressing the Transport Control Panel button or [Alt T] , or selecting View > Windows /
Tools > Transport opens a floating Transport Window displaying all available
machines with individual sets of buttons and status indicators.

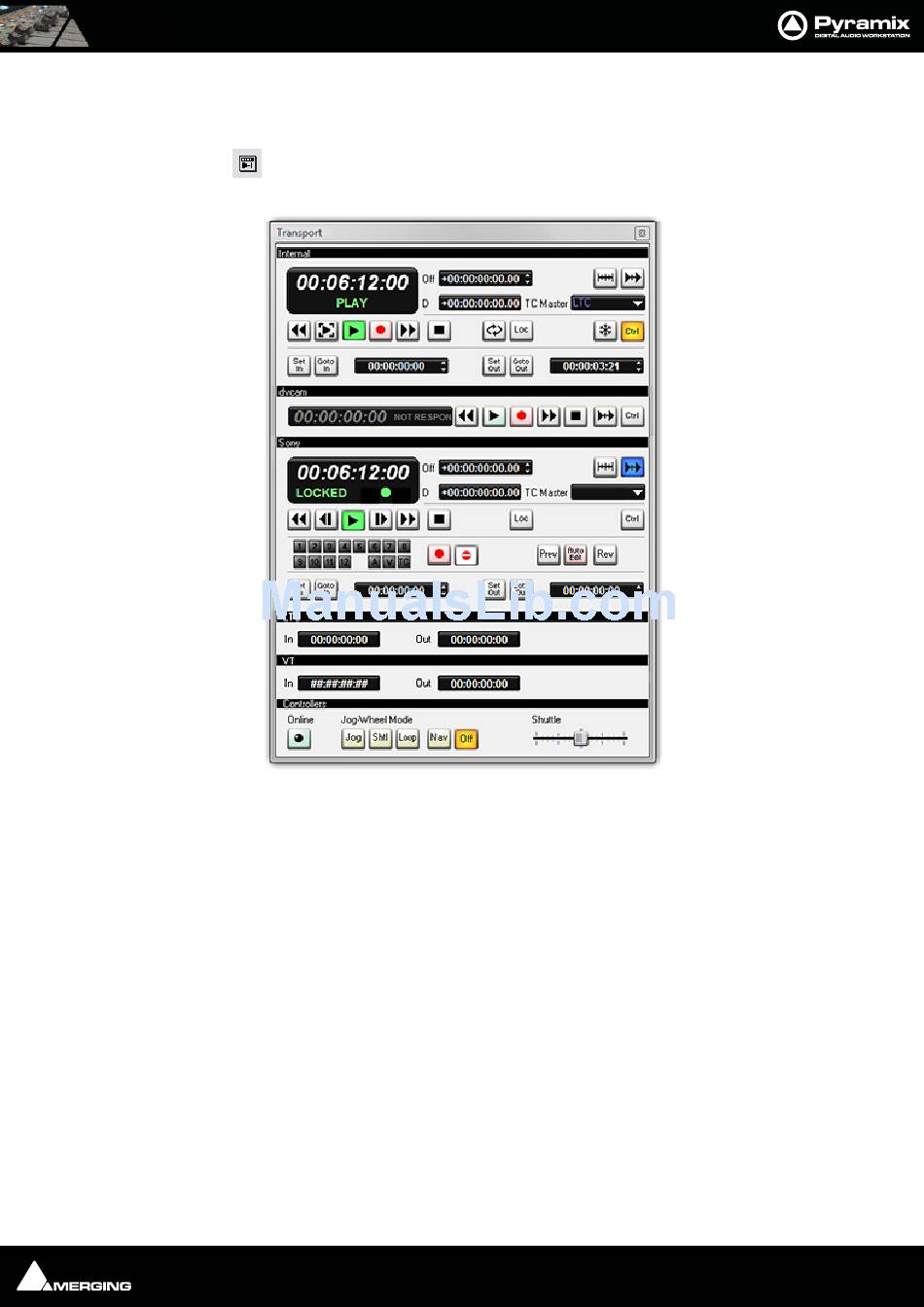

Transport Control Panel floating Window
Machine Control : Transport Control Panel 21 - 381
