- Page 1 SYSTEMS CORP. Version:1.0 Total 26 Pages (Cover Page included)
-
Page 2: Revision History
SW-HF5.1 5000 uide Revision History Version Date Changes Official Release 1．0 Version: 1.0 Page 1/25... -
Page 3: Table Of Contents
SW-HF5.1 5000 uide Table of Contents Revision History ……………………………………………………………… ……..1 Table of Contents………………………………………………… ………….2 Getting Started………………………………………………… ……….……………..3 Conventions Used in this Guide………………… ………...……………….3 Safety Precautions……………………………… ………………...………..3 Chapter1. How to Handle Defective Returns………………… ……………………….4 1.1 Overview……………………………………………………………….4 1.2 Problems………………………………………………………………..5 1.2.1 Power LED (indicator) Unlighted………………...……………..6 1.2.2 Does not work or one channel no sound……………………….…..7... -
Page 4: Getting Started
SW-HF5.1 5000 uide Getting Started Conventions Used in this Guide Pay Special Attention: Instructions that are important to remember and may prevent mistakes. Attention Caution: Information that, if not followed, may result in damage to the product. Safety Precautions The following precautions should be observed in handling the speaker described in this guide: Place the speakers on a flat level and stable surface. -
Page 5: Chapter1. How To Handle Defective Returns
SW-HF5.1 5000 uide Chapter 1. How to Handle Defective Returns 1.1 Overview Receiving Defective Speakers from Customers Verifying problems& Proceeding necessary tests Functioning NG Analyzing possible Malfunction causes Deciding & proceeding Functioning OK the rectification methods Functioning NG Replacing necessary... -
Page 6: Problems
SW-HF5.1 5000 uide 1.2 Problems Item Problem descriptions 1.2.1 Power LED (indicator) unlighted 1.2.2 Does not work or one channel no sound 1.2.3 Noise Version: 1.0 Page 5/25... -
Page 7: Power Led (Indicator) Unlighted
SW-HF5.1 5000 uide Please follow the numbered sequence marked within parenthesis given in individual Flow chart, in that this is the best-recommended sequence to rectify the problems. Attention 1.2.1 Power LED (indicator) unlighted Problem Power LED （indicator）unlighted Analyze Secondary wire Of... -
Page 8: Does Not Work Or One Channel No Sound
SW-HF5.1 5000 uide 1.2.2 Does not work or one channel no sound Problem Does not work or One channel no sound Analyze and Defective Broken or Defective IC Identify the Audio cable Short circuit Causes Replace Check solder Solutions... -
Page 9: Chapter2. Specifications
SW-HF5.1 5000 uide Chapter 2. Specifications Satellite NOMINAL LIMIT DESCRIPTION UNIT ±5% RATED OUTPUT POWER @THD 10% ±10% SENSITIVITY（1KHz）@RATED O/P POWER ±10% SENSITIVITY(1KHz)@1W O/P POWER ±10% MAX INPUT LEVEL@1% FREQUENCY RESPONSE(1KHz=0dB) ±0.5 110Hz -0.3 ±0.5 ±0.5 135K ≥60 S/N @RATED O/P POWER ≤0.5... -
Page 10: Chapter2. Specifications
SW-HF5.1 5000 uide Chapter 2. Specifications Subwoofer DESCRIPTION UNIT NOMINAL LIMIT ±5 RATED OUTPUT POWER @100Hz ( 10%THD) ±10 SENSITIVITY（100Hz）@RATED O/P POWER ±5 SENSITIVITY(1KHz)@1W O/P POWER ±8 MAX INPUT LEVEL @ 1% ≤0.5 DISTORTION @100Hz REF. O/P POWER 0.17 CROSSOVER FREQUENCY ±20... -
Page 11: Chapter3. Block Diagram
SW-HF5.1 5000 uide Chapter 3. Block Diagram Version: 1.0 Page 10/25... -

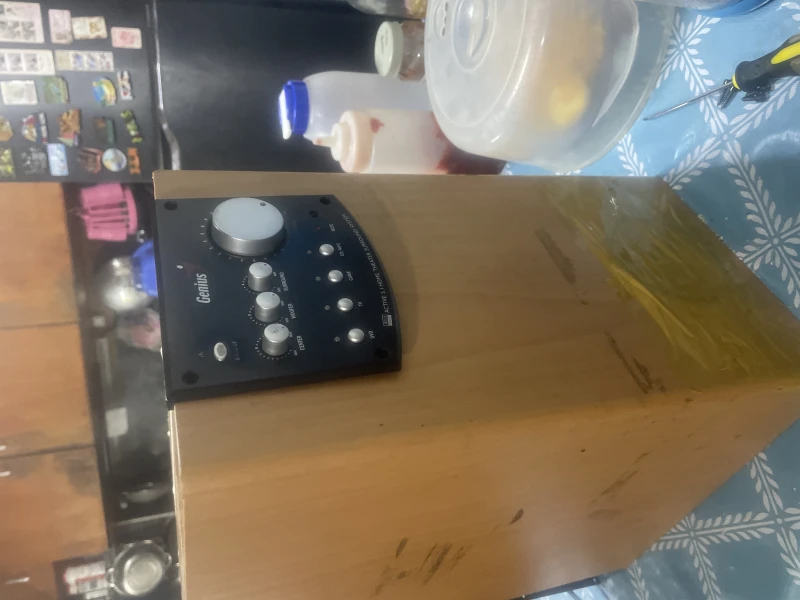

Page 12: Chapter4. Exploded View
SW-HF5.1 5000 uide Chapter 4. Exploded View Subwoofer Version: 1.0 Page 11/25... - Page 13 SW-HF5.1 5000 uide Chapter 4. Exploded View Center Version: 1.0 Page 12/25...
- Page 14 SW-HF5.1 5000 uide Chapter 4. Exploded View Satellite（Front） Version: 1.0 Page 13/25...
- Page 15 SW-HF5.1 5000 uide Chapter 4. Exploded View Satellite（Rear） Version: 1.0 Page 14/25...
-
Page 16: Chapter5. Part List
SW-HF5.1 5000 uide Chapter 5. Part List Subwoofer Description Ref. No. RS Part No. Part No. 4102H35016A02G01 Screw, HSAΦ3.5×16,Black 0107HIPS81002G01 Knob, SW-HF5.1 5000A,Silver Color HIPS 0107HIPS81008G01 Knob, SW-HF5.1 5000A,Silver Color HIPS 180615094V001G01 Flash PCB 01020ABS04064G01 Front panel, SW-HF5.1 5000A, Black Color ABS 0107HIPS81001G02 Keystroke, SW-HF5.1 5000A, Silver Color HIPS... - Page 17 SW-HF5.1 5000 uide Chapter 5. Part List Center Description Ref. No. RS Part No. Part No. Badge, SW-HF5.1 5000A, Black Color AL 0406031101005G01 Cloth, Black Color, 0701003801800G01 Cloth Frame, Black Color MDF 9110420180300G01 Metal Stud, SW-HF5.1 5000A, Black HIPS 01220HIPS0002G01 Grommet, SW-HF5.1 5000A, Black Color RUBBER...
- Page 18 SW-HF5.1 5000 uide Chapter 5. Part List Satellite（Front） Description Ref. No. RS Part No. Part No. Badge, SW-HF5.1 5000A, Black Color AL 0406031101005G01 Cloth, Black Color, 0701002601700G01 Cloth Frame, Black Color MDF 9110420180250G01 Metal Stud, SW-HF5.1 5000A, Black HIPS 01220HIPS0002G01 Grommet, SW-HF5.1 5000A, Black Color RUBBER...
- Page 19 SW-HF5.1 5000 uide Chapter 5. Part List Satellite（Rear） Description Ref. No. RS Part No. Part No. Badge, SW-HF5.1 5000A, Black Color AL 0406031101005G01 Cloth, Black Color, 0701001701600G01 Cloth Frame, Black Color 9T MDF 9110420180200G01 Metal Stud, SW-HF5.1 5000A, Black HIPS 01220HIPS0002G01 Grommet, SW-HF5.1 5000A, Black Color RUBBER...
-
Page 20: Chapter6. Important Notes
SW-HF5.1 5000 uide Chapter 6. Important Notes 6.1 Packing requirement for sending the PCB assembly by post PCB assembly is a kind of sophisticated electronic circuit board. Well packing Will be required when sending them by post. *Some sophisticated IC components are mounted on the PCB assembly, hence it is necessary to pack each PCB assembly with a separate static protecting bag, in order to avoid static electricity. -
Page 21: Chapter7. Circuit Schematic
SW-HF5.1 5000 uide Chapter 7. Circuit schematic Version: 1.0 Page 20/25... - Page 22 SW-HF5.1 5000 uide Chapter 7. Circuit schematic Version: 1.0 Page 21/25...
- Page 23 SW-HF5.1 5000 uide Chapter 7. Circuit schematic Version: 1.0 Page 22/25...
- Page 24 SW-HF5.1 5000 uide Chapter 7. Circuit schematic Version: 1.0 Page 23/25...
- Page 25 SW-HF5.1 5000 uide Chapter 7. Circuit schematic Version: 1.0 Page 24/25...
- Page 26 SW-HF5.1 5000 uide Chapter 7. Circuit schematic Version: 1.0 Page 25/25...
