Air King 9020 Operating Instructions & Parts Manual

OPERATING INSTRUCTIONS & PARTS MANUAL
READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE OR MAINTAIN THE PRODUCT DESCRIBED. PROTECT YOUR-
SELF AND OTHERS BY OBSERVING ALL SAFETY INFORMATION. FAILURE TO COMPLY WITH
INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE!

DESCRIPTION

®
The Air King 20" (50.8 cm) wallmount fan features 3-speed pull cord
operation and a 3-paddle fan blade. This fan has a permanently lubricated
motor with a 9 ft. (2.74 m) 18/3 cord set and is constructed of sturdy,
powder coated steel.

SPECIFICATIONS

Motor ...................................... 120V, 50/60 Hz
Blade diameter ........................ 20" (50.8 cm)
Speeds .................................... 3
Control ..................................... Pull Cord
Air flow distribution .................. 360°
Approvals................................. UL/ETL Listed. Close mesh fan guard
.................................................
MODEL
SPEED HIGH
CFM 7510
M /s 3.54
3
RPM 1560
Amps 1.78
Watts 207
dB A 62

GENERAL SAFETY INFORMATION

1. Make certain that the power source conforms to the electrical require-
ments of the fan.
2. The power cord is equipped with a three-prong grounded plug that
must be inserted into a matching receptacle. Under no circumstances
should the grounding prong be cut off the plug. Where a two-prong wall
receptacle is encountered, it must be replaced with a properly grounded
three-prong receptacle installed in accordance with the National Electrical
Code (NEC) and all applicable local codes and ordinances. This work
must be done only by a qualified electrician, using copper wire only.
WARNING: USE OF A THREE-PRONG TO TWO-PRONG ADAPTER IS
NOT RECOMMENDED. IMPROPER CONNECTION MAY CREATE THE
RISK OF ELECTRICAL SHOCK. USE OF SUCH ADAPTERS IS NOT
PERMITTED IN CANADA.
3. Where possible, avoid the use of extension cords. If they must be used,
minimize the risk of overheating by ensuring that they are UL listed and
of the proper gauge and length. Never use a single extension cord to
operate more than one fan.
4. Do not insert fingers or foreign objects into the fan. Do not block or
tamper with the fan in any manner while it is in operation. Do not touch
the fan while in operation or just after it has been turned off, as some
parts may be hot enough to cause injury.
5. Unplug power cord before installing or servicing the fan.
WARNING: DO NOT DEPEND UPON THE ON-OFF SWITCH AS THE
SOLE MEANS OF DISCONNECTING POWER WHEN INSTALLING OR
SERVICING THE FAN. ALWAYS UNPLUG THE POWER CORD.
6. This fan is intended for general use ONLY. It must NOT be used in
potentially dangerous locations such as flammable, explosive, chemical-
laden or wet atmospheres.
WARNING: TOREDUCETHERISKOFFIREORELECTRICSHOCK,DONOT
USE THIS FAN WITH ANY SOLID STATE SPEED CONTROL DEVICE.
7. DO NOT use fan in a window. Rain may create an electrical hazard.
8. Completely reassemble fan, according to instructions before
reconnecting to power supply.
WARNING: BECAUSE OF SIZE AND WEIGHT OF THIS FAN, MAKE
SURE ALL PARTS ARE COMPLETELY ASSEMBLED ACCORDING TO
INSTRUCTIONS. FAILURETO DO SO COULD RESULT IN FAN COMING
APART DURING OPERATION AND/OR PERSONAL INJURY.
WARNING: THIS PLUG IS A SAFETY FEATURE, TO REDUCE THE
RISK OF FIRE, ELECTRIC SHOCK AND PERSONAL INJURY. DO NOT
Rev. F 9/07
READ AND SAVE THESE INSTRUCTIONS
RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.
meets OSHA requirements.
9020
MED LOW
5010 3735
2.36 1.76
1041 776
1.46 1.02
167 115
55 48
20" WALLMOUNT FAN
20" (50.8 cm) MODEL 9020
:
WARNING
This fan should be used only in a clean, dry
environment. Mounting of this product in any way other then
specified in the instruction sheet will null and void the
manufacturer's warranty
REMOVE, REPLACE, REPAIR OR TAMPER WITH THE ORIGINALLY
SUPPLIED PLUG. IF THE FAN DOES NOT FUNCTION PROPERLY, IT
MAY BE DUE TO THE SAFETY DEVICE INCORPORATED IN THIS
PLUG. RETURNTO AN AUTHORIZED SERVICE CENTER OR CALL
800-233-0268, MONDAY - FRIDAY, BETWEEN 8:00 A.M. AND 5:00
P.M. EST. IF THE PLUG WARNING LABEL IS MISSING OR DAM-
AGED, CALL THE TOLL FREE NUMBER FOR A REPLACEMENT
LABEL.
9. This Fan is not suitable for use in hazardous locations. Please refer to
National Electric Code (NEC) Article 500 or applicable state or local
codes or standards relating to electrical requirements for Hazardous
locations. THIS FAN DOES NOT MEET THE REQUIRMENTS OF
NEC ARTICLE 500 (2002).

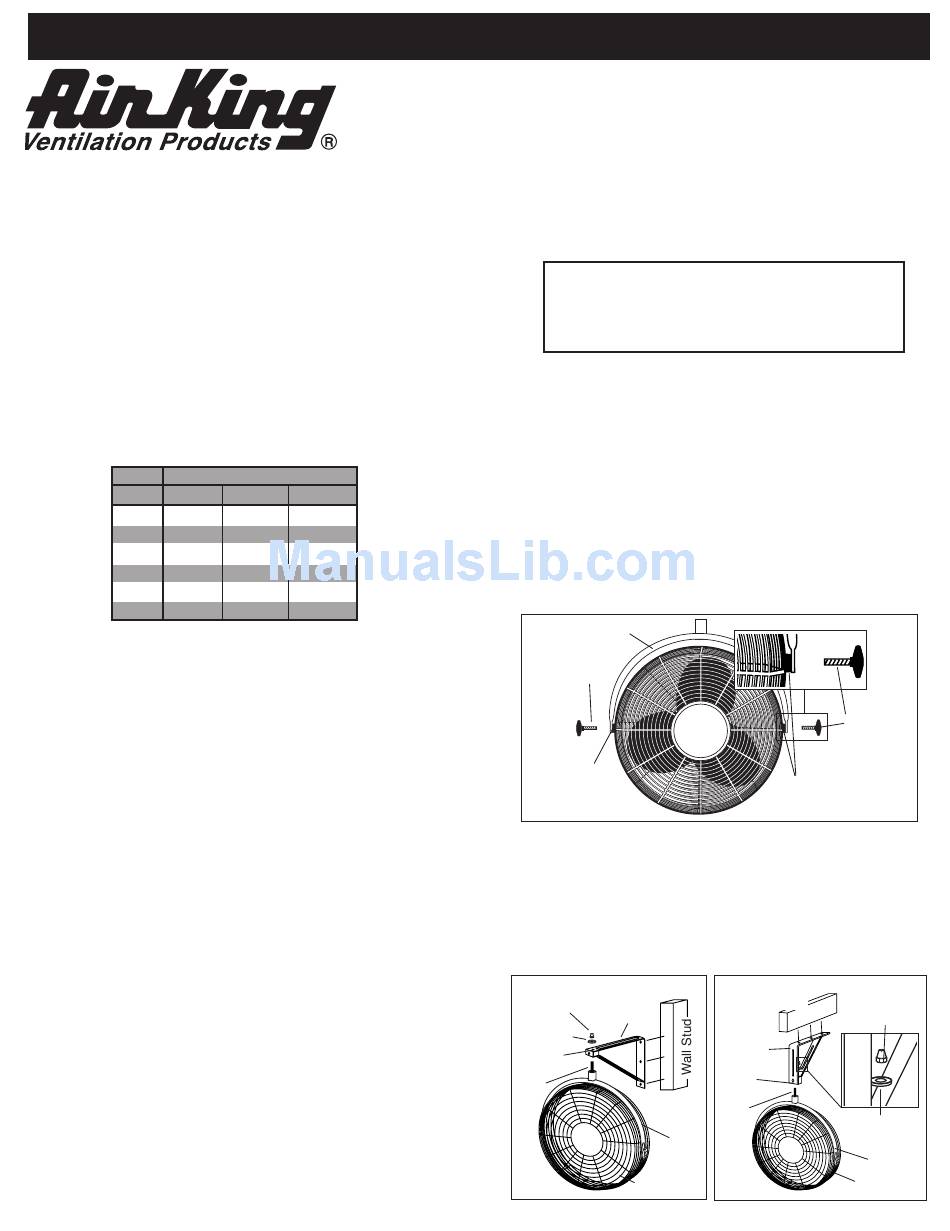

WALL/CEILING BRACKET INSTALLATION

NOTE: ALWAYS INSTALL THE BRACKET TO A MINIMUM OF 2 X 4 STUDDING.
1.
Lay Fan Head on flat surface, so the front side is facing down.
Yoke
Grill Knob
Rubber Spacer
Figure 1
Loosely attach one Grill Knob and one Rubber Spacer to the Head
Assembly. Attach the other Grill Knob and Rubber Spacer to the
Head Assembly and FIRMLY tighten. Return to the first Grill Knob
and FIRMLY tighten. (Figure 1)
2. Locate the wall or ceiling stud nearest to the desired Fan location.
Following the proper mounting diagram, attach the Bracket to the stud
using three (3) 5/16" diameter x 2" long Lag Screws (Not Supplied) or
appropriately sized Bolts and Nuts if attaching to "I" beams.
Wall Mount Assembly(Figure 2)
Ceiling Mount Assembly(Figure 3)
Figure 2
(Wall Mount Assembly)
Nut
Bracket
Flatwasher
Pivot
Hole
Bolt
Fan Head
1
Commerical Style Fan
.
Rubber Spacer
Figure 3
(Ceiling Mount Assembly)
Ceiling Stud
Bracket
Pivot
Hole
Bolt
Yoke
Grill Knob
Nut
Flatwasher
Yoke
Fan Head
2084796
