4.2 Connecting Security Cameras to the RF Modulator

Connect Security Cameras with Composite Video outputs directly into the A, B or C
inputs on the BPAVM3. All 3 AV inputs can be utilised at the same time.
The RF Output can be connected directly to a Display (TV) with an RF input.

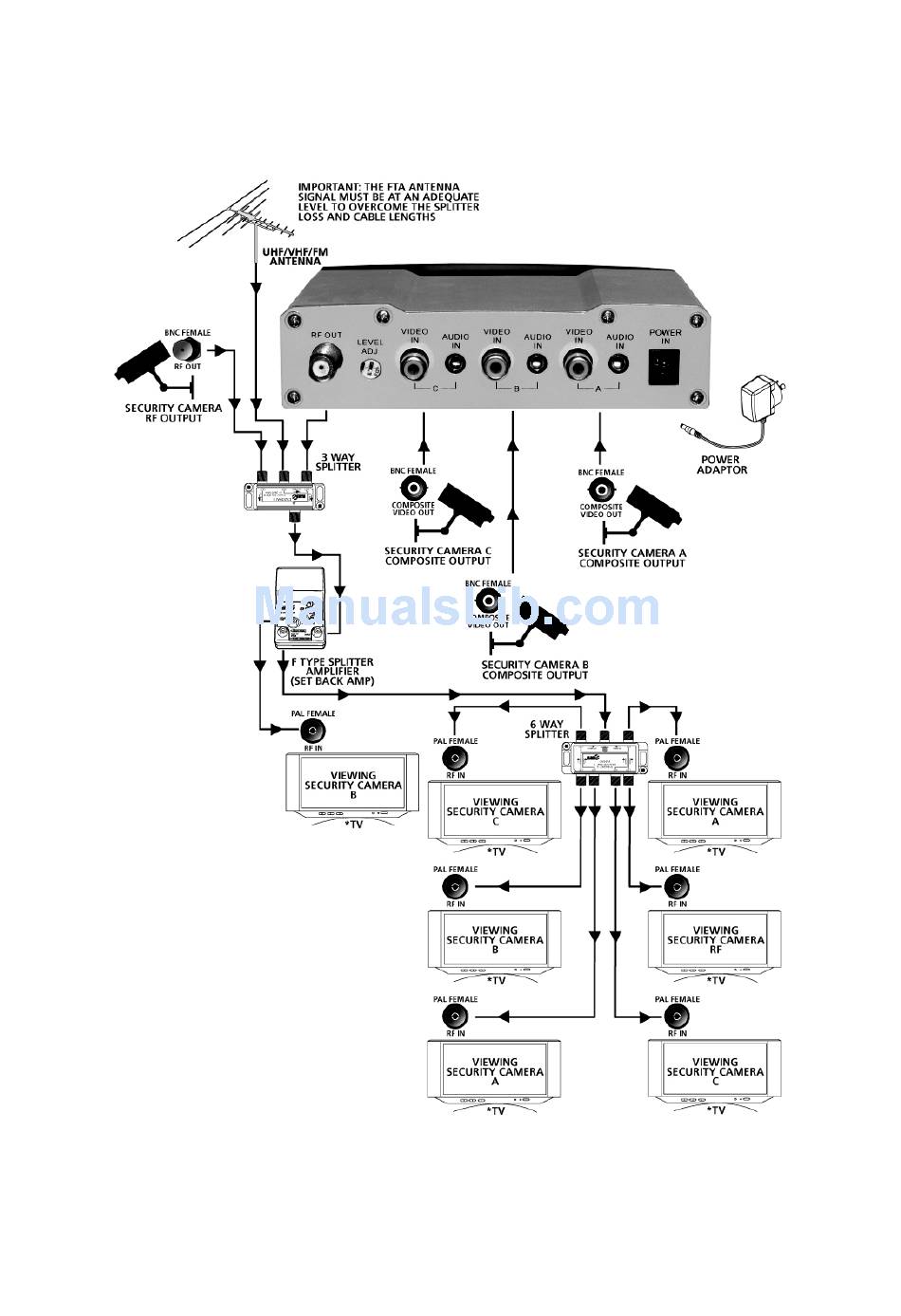

Alternatively, the RF Output can be fed into a distribution system as shown below.
Note: To adjust the output level of the RF
Modulator please refer to the back of the
unit. The level adjusting pot is situated next
to the RF output. Turn this up to
half way and tune the displays according to
their instructions.
The displays will automatically or can be
manually tuned to find the new modulated
channels. The Audio Video signal level can
be adjusted accordingly.
Examples of suitable Composite AV Devices: Pay TV Box, HDD/DVD Recorder, VHS
Recorder, DVD Player, Digital Set Top Box, Satellite Receiver, Camcorder, Security
Cameras, Hi-Fi System, Laser Disc Player, PC's with AV Outputs etc.
*EXAMPLE ONLY – THERE ARE MANY
OTHER SYSTEM CONFIGURATIONS*
- 8 -
