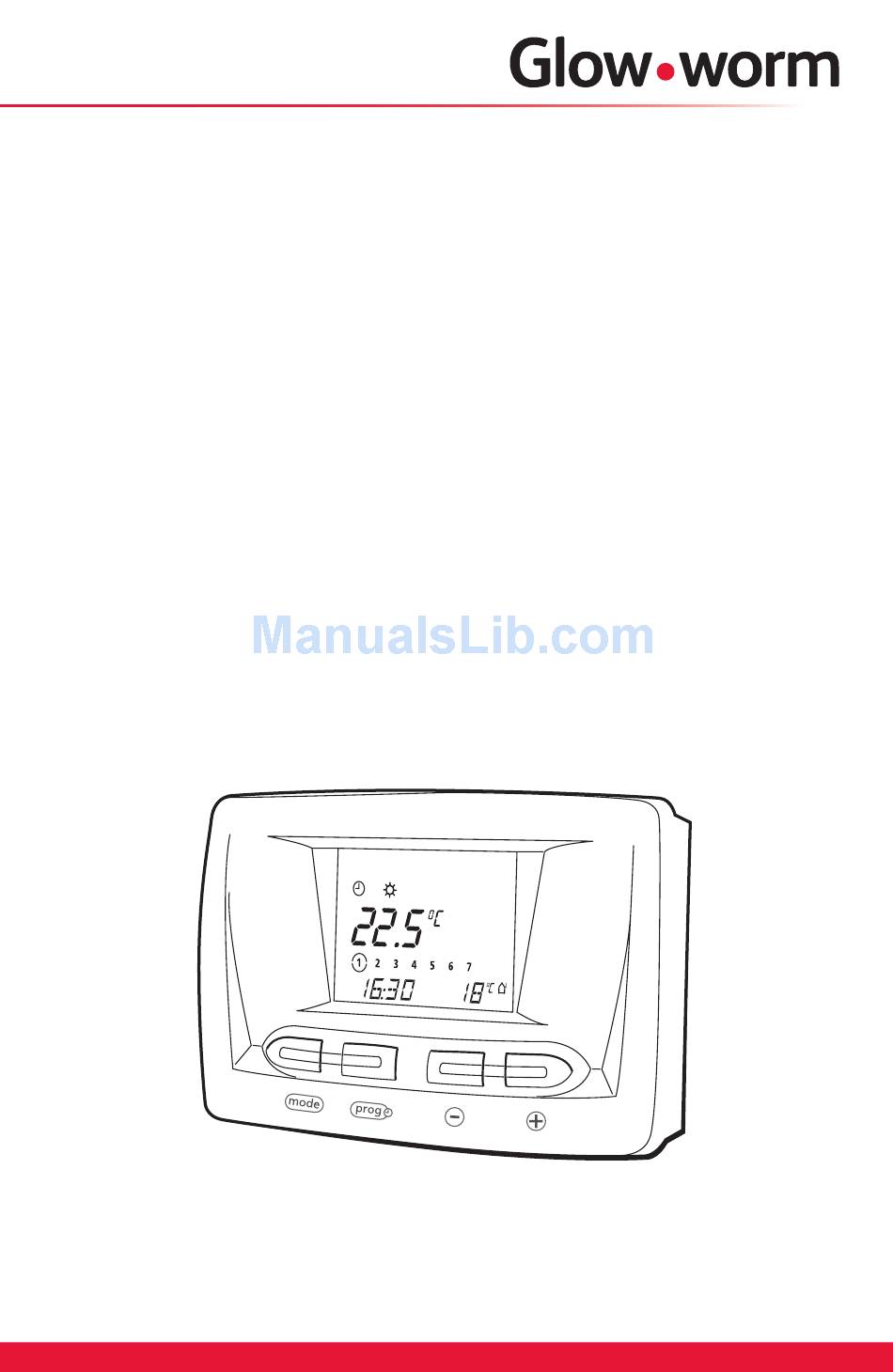

- Page 1 Instructions for Use Climapro Programmable Room Thermostat Climapro RF Radio Controlled Programmable Room Thermostat www.glow-worm.co.uk...
- Page 3 General Customer Service: 01773 828100 Technical Helpline: 01773 828300 General and Sales enquiries: Tel. 01773 824639 Fax: 01773 820569 The instructions are an integral part of the control and must, to comply with the current issue of the Gas Safety (Installation and Use) Regulations, be handed to the user on completion of the installation.
-
Page 4: Table Of Contents
Contents Page General Information General, Documents, Application, Servicing & Recycling Instructions for Use Control buttons Main display Description of buttons Display symbols Choosing the operating mode Setting the Comfort temperature Setting the “Eco” temperature Domestic hot water temperature adjustments Domestic hot water advance “Holiday”... -
Page 5: General Information
General Information Controls Description The Climapro is a programmable room thermostat with separate 7 day programmes for heating and hot water. This control gives you personalised heating comfort according to your requirements and will improve the energy efficiency of your heating system. - Page 6 Cleaning DO NOT use any abrasive cleaning products as they could damage the housing or plastic case. Clean the case of the Climapro with damp cloth. Make sure that no water goes inside the Climapro. Recycling The Climapro comprises of many recyclable parts and should be disposed of according to the current WEEE regulations.
-
Page 7: Control Buttons

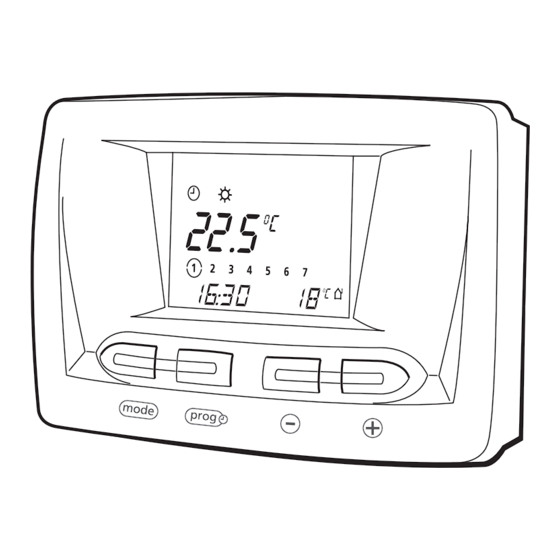

Control Buttons MINUS PROGRAMME DISPLAY PLUS MODE BUTTON BUTTON BUTTON BUTTON Diagram 1 Main Display The LCD will display the following as shown in diagram 2. (*) Display only possible if an outside sensor is connected to the boiler. Current operating Ambient room mode temperature... -
Page 8: Description Of Buttons
Description of Buttons... -
Page 9: Display Symbols
Display Symbols Button By pressing several times on the button, you will access the following settings, see table below. Button By pressing on the button several times you can see the different programmes. By pressing and holding for 5 seconds you can modify the heating programme. -
Page 10: Choosing The Operating Mode
Choosing the Operating Mode Timed: The heating will operate to the programmed on and off times Comfort or Eco. Comfort: Continuous heating on at Comfort (desired) temperature Eco: Heating on at Eco (minimum) temperature Off: Heating is off but the domestic hot water is still operating at the set temperature. -
Page 11: Setting The Comfort Temperature
Setting the Comfort temperature The comfort temperature is the temperature you require when the room is in use and the heating is on. 1. Press the button twice, the temperature will flash. 2. Use the buttons to set the “Comfort” temperature, min. -
Page 12: Setting The "Eco" Temperature
Setting the “Eco” temperature temperature allows you to set the minimum temperature of the room when not in use, e.g. at night 1. From the main display, press the button 3 times. 2. Use the buttons to set the “ECO” temperature, min. -
Page 13: Domestic Hot Water Temperature Adjustments
Domestic hot water temperature adjustments If you have a Glow-worm combination boiler, the domestic hot water temperature can be adjusted using the Climapro. If you have a system or open vent boiler with a domestic hot water cylinder this is controlled using the tank thermostat. -
Page 14: Domestic Hot Water Advance
Domestic hot water advance This function allows you to advance the timed DHW programme. This function will stay activated until the end of the following programmed DHW timed period. 1. Press the button 5 times: OFF is displayed. 2. Press the button to activate DHW advance: ON is displayed. -
Page 15: Holiday" Function
“Holiday” function The Climapro has a “Holiday” function that enables you to set the number of days you are absent. The heating will automatically come on at your return, allowing you to return to a warm house. When the control is in the “Holiday” mode, the operating mode is set to OFF and the frost protection automatically activated. -
Page 16: Setting The Day, Time And Date
Setting the day, time and date Setting the current day of the week 1. Press the button 7 times. 2. Use the buttons to set the current day of the week. The selected day flashes. = Monday = Friday uesday = Saturday = Sunday = Wednesday... -
Page 17: Setting The 7 Day Central Heating Programme
Setting the 7 day central heating programme The 7 day central heating programme allows you to select up to 3 “Comfort” heating timed periods for each day of the week. The control is factory set as shown in the table. The 7 day heating programme is only active in timed operating mode NOTE: If a 24 hour programme is preferred, contact the... - Page 18 Setting the 7 day central heating programme Up to 3 separate time periods can be programmed in one 24hr period for different days of the week. IMPORTANT: The three time periods must not overlap. For example:- Mon. to Fri. Time period [ 1 ] Morning 5:30am - 7:00am [ 2 ] Midday 11:00am - 1:00pm [ 3 ] Evening 5:30pm - 10:30pm...
- Page 19 Setting the 7 day central heating programme Timed mode Programming “Comfort” menu time period Central heating programme Day or groups of days End time Start time 1. Press the button for approximately 5 seconds. 2. The symbol flashes, press to confirm selection of central heating.
-
Page 20: Setting The 7 Day Dhw Heating Programme
Setting the 7 day DHW heating programme The domestic hot water heating programme will provide either a timed preheat function on a combination boiler, allowing a quicker response of hot water to the tap or timed hot water from a domestic hot water cylinder (system or open vent boilers). - Page 21 Setting the 7 day DHW heating programme Up to 3 separate time periods can be programmed in one 24hr period for different days of the week. IMPORTANT: The three time periods must not overlap. For example:- Mon. to Fri. Time period [ 1 ] Morning 5:30am - 6:30am [ 2 ] Midday 11:00am - 12:00pm [ 3 ] Evening 5:30pm - 8:30pm...
- Page 22 Setting the 7 day DHW heating programme Programming Timed menu mode Domestic Time hot water period programme Day or groups of days Start time End time 1. Press the button for approximately 5 seconds. 2. Press to select the tap symbol, then press , the time period “[ 1 ]”...
- Page 23 Setting the 7 day DHW heating programme 4. Press the button and using the buttons, choose the start time then the end time for the time period. 5. Press the button once more to programme the following time period. Repeat the previous programming steps. 6.
-
Page 24: Central Heating Temporary Override
Central Heating Temporary Override This adjustment allows the modification of the set room temperature until the next temperature change in the heating programme. This setting is only possible in timed operating mode 1. From the main display, press the buttons to display the set room temperature. -
Page 25: Information Menu
Information menu This function enables you to scroll through the Climapro’s control menus. Press the button once and the symbol will be displayed on the following menus. Press the button again to scroll to the next menu. ● Display of the set “Comfort” temperature value. -
Page 26: Frost Protection
Frost protection Frost protection will operate when: ● The ambient temperature in the room where the appliance is installed falls below 3°C. ● The outside temperature falls below 5°C (protection possible only if an outside sensor is connected to the boiler). ●... -
Page 27: Battery Replacement
Battery Replacement Climapro RF only: When “BATT” appears on the display, the battery life span is equivalent to approximately one month. Comments: If the batteries are not replaced in time, the boiler works without taking the room thermostat into account. - Page 28 Battery Replacement To replace the batteries see diagram. Remove the controller from the back box with reference to the order of operation (A) to (C), carefully replace the batteries (D) respecting the polarity (direction of “+” and “-”).
-
Page 29: Fault Finding
Fault finding WARNING: The service or repair of the control must only be undertaken by a competent person. In the event of a fault, a message will be displayed in the multifunctional display zone, see diagram and the appropriate table overleaf. - Page 30 Check the power supply to your home with your provider. Check the cable and connection between control and boiler. Check that the boiler is switched on. If any of the above faults persists, call your Installation/Servicing company or Glow-worm service...
- Page 31 Fault finding Climapro RF...
- Page 32 Glow-worm Nottingham Road, Belper, Derbyshire. DE56 1JT Because of our constant endeavour for improvement, details may vary slightly from those shown in these instructions.
