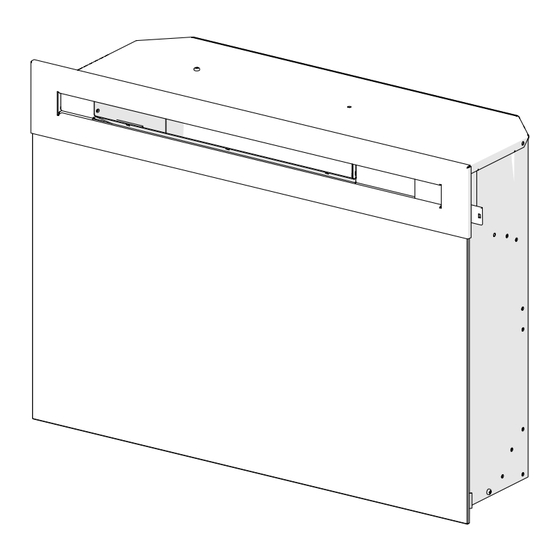

Dimplex PF2325 Owner's Manual
Electric fireplace
Hide thumbs
Also See for PF2325:
- Owner's manual (54 pages) ,
- Service manual (19 pages) ,
- Service manual (15 pages)
Table of Contents
Advertisement
IMPORTANT SAFETY INFORMATION: Always read this manual first before
attempting to install or use this fireplace. For your safety, always comply with
all warnings and safety instructions contained in this manual to prevent person-
al injury or property damage.
To view the full line of Dimplex products, please visit www.dimplex.com
Owner's Manual
Model
PF2325
PF3033
690932XXXX
7213450100R04
Advertisement
Table of Contents
Related Manuals for Dimplex PF2325
Summary of Contents for Dimplex PF2325
- Page 1 For your safety, always comply with all warnings and safety instructions contained in this manual to prevent person- al injury or property damage. To view the full line of Dimplex products, please visit www.dimplex.com 7213450100R04...
-
Page 2: Table Of Contents
CAUTION: Procedures and techniques which, if not carefully followed, will result in damage to the equipment. W ARNING: Procedures and techniques which, if not carefully followed, will expose the user to the risk of fire, serious injury, or death. www.dimplex.com... -
Page 3: Welcome & Congratulations
Welcome & Congratulations Thank you and congratulations for choosing to purchase an electric fireplace from Dimplex, the world leader in electric fireplaces. Please carefully read and save these instructions. CAUTION: Read all instructions and warnings carefully before starting installation. Failure to follow these instructions may result in a possible electric shock, fire hazard and will void the warranty. -
Page 4: Important Instructions
This plug will fit in a polarized aged in any manner, contact Dimplex outlet only one way. If the plug does Technical Service at 1-888-346-7539. not fit fully in the outlet, reverse the plug. -
Page 5: Save These Instructions
IMPORTANT INSTRUCTIONS ⑮ Always plug heaters directly WARNING: Remote control into a wall outlet/receptacle. contains a small battery. Keep away Never use with an extension cord from children. If swallowed, seek or relocatable power tap (outlet/ medical attention immediately. power strip). WARNING: Do not install battery ⑯... -
Page 6: Fireplace Installation
WARNING: To reduce the risk IMPORTANT: If not using a of fire, do not store or use gaso- Dimplex mantel, the fireplace line or other flammable vapors or must be installed in an enclosure liquids in the vicinity of the heater. -
Page 7: Bathroom Installation
GFI receptacle or circuit. If a receptacle is used it must be readily accessible. To prevent electrical shock this unit 25.0in. 18.5in. 10.0in. PF2325 is an electrical appliance that is not (635mm) (470mm) (254mm) watertight and must be installed as to 32.1in. -
Page 8: Media Installation
Media Tray. Replace the front glass. Wiring Diagram CUTOUTS FLOATING DISPLAY PTC HEATER gWave BOARD DISPLAY GESTURE LOGS/ MEDIA FLAME TOP LED LIGHTS (RGB) TOP LED LIGHTS (RGB) LINE FLAME LED (RGB) FLAME LED (1W) NEUTRAL HEATER MOTOR FLICKER MOTOR www.dimplex.com... -
Page 9: Operation
Operation General Operation control functions can be activated. This is also indicated by the LED light turn- WARNING: This electric firebox ing green. must be properly installed before it is There is a Gesture On/Off button used. located below the LED pilot light This firebox operates with which can be used to turn this feature Comfort$aver... - Page 10 °C and °F. ated when the flame is not visible. In Eco: Runs the heater in a this case the icon will remain on reduced wattage range when the Floating Display™ until the heater activated. → Adjusted by pressing the cor- www.dimplex.com...
- Page 11 Operation Figure 3 ① ③ gWave ② Controls LED Pilot Light ⑤ ④ Gesture On/Off ⑥ ⑦ ⑦ ⑥ ⑩ ③ ⑧ ⑨ ⑩ ⑪ responding button on the remote when the heater is on. • Indicated by the icon being illu- minated on the Floating Display™...
- Page 12 NOTE: The heat will not work in 5, 6 or P. manual controls either. Sleep timer: turns the unit off after a preset duration (from 30 minutes (0.5h) to 8 hours, in ½ hour increments). → Activated and adjusted by re- peatedly pressing the correspond- www.dimplex.com...
- Page 13 During this pro- cess you will hear repeated beeps and the display may turn on and off. CAUTION: If you need to continu- ously reset the heater, disconnect power and call Dimplex customer service at 1-888-DIMPLEX (1-888-346-7539). Battery Replacement (Figure 3)
-
Page 14: Maintenance
Glass Cleaning perform any other servicing. The front glass is cleaned in the factory during the assembly opera- tion. During shipment, installation, handling, etc., the front glass may collect dust particles, these can be www.dimplex.com... -
Page 15: Warranty
Limited warranty service requires a defect the purchaser assumes the entire proof of purchase of the product. cost of all necessary servicing or repair. What Dimplex will do in the event of a What this limited warranty covers and for defect? how long... - Page 16 Warranty product or part without charge. If NO EVENT WILL DIMPLEX, OR ITS Dimplex is unable to repair or replace OFFICERS, DIRECTORS, OR AGENTS such product or part, or if repair or BE LIABLE FOR ANY DIRECT LOSSES, replacement is not commercially...
-
Page 17: Replacement Parts
Media LED Light Assembly ..3001330300RP 3001330500RP Flame LED Light Assembly ..3001330100RP 3001330300RP Dimplex North America Limited 1367 Industrial Road Cambridge ON Canada N1R 7G8 © 2014 Dimplex North America Limited...
