USER MANUAL
22" Self-Propelled Lawn Mower, 3-in-1
DB8605
INTRODUCTION
Please read and follow all safety rules and instructions in this manual before
attempting to operate this machine. Failure to comply with the instructions may
result in personal injury. Please also read and follow all safety rules and
instructions in Engine Operation Manual packed into the product packaging.
You are responsible for operating the product properly and safely.
QUESTIONS, PROBLEMS, MISSING PARTS ?
If you have any questions and need technical supports, call our customer service
department at 1-800-791-9458 in Amerisun Inc, located in 351 Hastings Drive
Buffalo Grove, IL60089.
1
Advertisement
Table of Contents
Related Manuals for Lawn Devil DB8605
Summary of Contents for Lawn Devil DB8605
-
Page 1: User Manual
USER MANUAL 22” Self-Propelled Lawn Mower, 3-in-1 DB8605 INTRODUCTION Please read and follow all safety rules and instructions in this manual before attempting to operate this machine. Failure to comply with the instructions may result in personal injury. Please also read and follow all safety rules and instructions in Engine Operation Manual packed into the product packaging. -
Page 2: Table Of Contents
CONTENTS INTRODUCTION ……………………………………………………………………… General Operations ……………………………………………………………… 3 … Slope Opera tions………………………………………………………………… 4 Children ………………………………………………………………………… Safety and Instructional Decals ………………………………………………… 4 INSTALLTION INSTRUCTIONS …………………………………………………… 6 Installing Lower Handle into Housing …………………………… ………………6 Connecting Upper Handle with Lower Handle ……………… …………………6 Installing Recoil-Starter Rope in Rope Guide …………………… ……... -
Page 3: General Operations
INTRODUCTION General Operation Read, understand, and follow all instructions on the machine and in the manual(s) before starting. Do not put hands or feet near or under the machine. Keep clear of the discharge opening at all times. Only allow responsible adults, who are familiar with the instructions, to operate this machine. -
Page 4: Slope Opera Tions
Slope Operation Mowing on all slopes need extra cautions, it is related to slip and fall accidents, resulting in severe injury. Mow across the face of slopes; never up and down. Exercise extreme caution when changing direction on slopes. Watch for holes, ruts, bumps, rocks, or other hidden objects. Uneven terrain could cause a slip and fall accident. - Page 5 Pay attention to the Fuel is flammable, keep operator’s hands and away from fire. Do not feet to avoid injury. add fuel with machine running. When mowing, please Toxic fumes; Do not wear safety glasses and operate inside. earplugs for protection. for protection.
-
Page 6: Installtion Instructions
INSTALLATION INSTRUCTIONS Installing Lower Handle into Housing WARNING Folding or unfolding the handle improperly can damage the cables, causing an unsafe operating condition. Remove the bolts from the mower housing ( Figure 1) . (Figure 1) (Figure 2) ... -
Page 7: Installing Grass Bag
Installing the Grass Bag 1. Raise and hold up the Rear Deflector (Figure 5). C: Rear Deflector B: Grass bag pin x 2 A: Notch x 2 (Figure 5) 2. Install the Grass Bag, ensuring that the 2 grass bag pins rest in the Notches on the handle (Figure 5). -
Page 8: Product View And Parts
PRODUCT OVERVIEW 1. Upper Handle 10. Side-discharge Chute 2. Blade Control Bar 11. Deck 3. Recoil Starter Grip 12. Spark Plug 4. Rope Guide 13. Air Filter 5. Grass Bag 14. Fuel Tank Cap 6. Mulching Control Lever 15. Handle Knob x2 7. -
Page 9: Technical Data
Technical Data Model Number DB8605 Engine Type 4 stroke Engine Displacement 196cc Discharging Mulching Bagging Height Adjustment 8 positions,1- 3-1/4 inches Cutting Width 22" (560mm) Front Wheel 8 inch Rear Wheel 10 inch Fuel Tank Capacity 0.24 Gal / 0.9L Oil Tank Capacity 18 ounces / 0.55L... -
Page 10: Adjusting The Cutting Height
Fill the tank outdoors when the engine is cold. Wipe up spills. Do not handle gasoline when smoking or around an open flame or sparks. Store gasoline in an approved fuel container, out of the reach of children. Please refer to Engine Manual for more details. Adjusting the Cutting Height Warning: Adjusting the cutting height may bring you into contact with the moving blade, causing serious injury. -
Page 11: Stopping The Engine
Stopping the Engine When you release the Blade-Control Bar, the blade should stop within 3 seconds. If it does not stop properly, stop using your machine immediately and contact our customer service department at 1-800-791-9458. Using the Self-propelled Drive Bar Pull the lower Self-propelled Drive Bar to the handle. -
Page 12: Bagging The Clippings
If the Side-discharge Chute is on the mower, remove it before mulching the clippings. Bagging the Clippings Use Grass Bag to collect grass and leaf clippings from the lawn. If the Side Discharge Chute is on the mower, remove it before bagging the clippings. If the Mulching Control Lever is in mulching position, move it to the bagging position. -
Page 13: Cutting Blade
from muffler area. Do not hose engine. Water can damage engine or contaminate the fuel system. CAUTION: Do not allow dirt or dust to clog the air filter foam element. The engine air cleaner element must be serviced (cleaned) after 25 hours normal mowing. The foam element must be serviced regularly if the mower is used in dry dusty conditions. -
Page 14: Storage Guidance
your unit, all nuts and bolts must be checked periodically for correct tightness. After prolonged use, especially in sandy soil conditions, the blade will become worn and lose some of the original shape. Cutting efficiently will be reduced and the blade should be replaced. Replace with an approved factory replacement blade only. -
Page 15: Engine
Trouble Shooting PROBLEM PROBABLE CAUSE CORRECTIVE ACTION Throttle lever not in the correct Move throttle lever position for the prevailing conditions. to correct position. Fill tank with fuel: refer to the ENGINE Fuel tank is empty. MANUAL. Clean air cleaner element: refer to the Air cleaner element is dirty. -
Page 16: Warranty
TWO YEAR WARRANTY Amerisun Inc. and LCT Engine Corporation jointly warrant this product for two years against defects in material or workmanship when used for normal residential purposes. The manufacturer will, at its option, repair or replace, for the original purchaser, any part or parts which have been found to be defective in material and workmanship.
Need help?
Do you have a question about the DB8605 and is the answer not in the manual?
Questions and answers

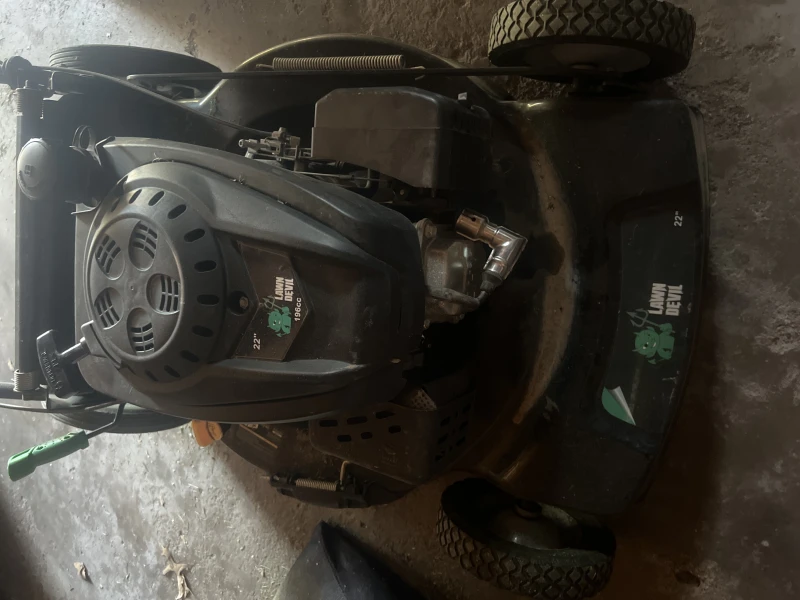

Where can I get an air filter
