Panasonic KX-MC6260E Operating Instructions Manual

Colour laser multi-function printer
Hide thumbs Also See for KX-MC6260E:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Quick Reference Manual
Do NOT connect the unit to a computer with the USB cable until prompted by the Multi-
Function Station (CD-ROM).
1
Designed to be used only in the United Kingdom and Ireland.
L This unit is compatible with Caller ID. You must subscribe to the appropriate service offered
by your service provider/telephone company.
L Be sure to use the telephone line cord supplied with this unit.

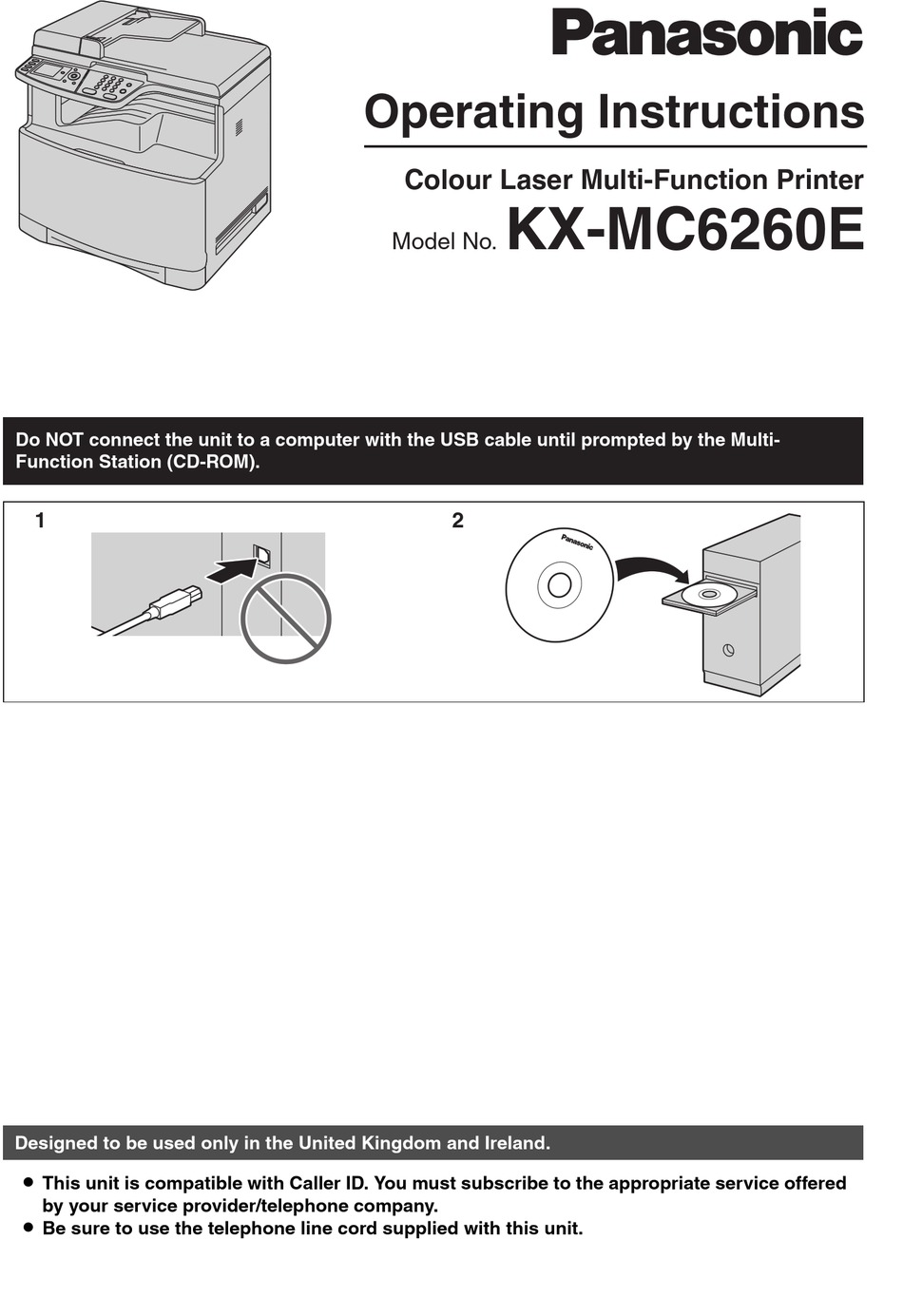

Operating Instructions

Colour Laser Multi-Function Printer
KX-MC6260E
Model No.
2
