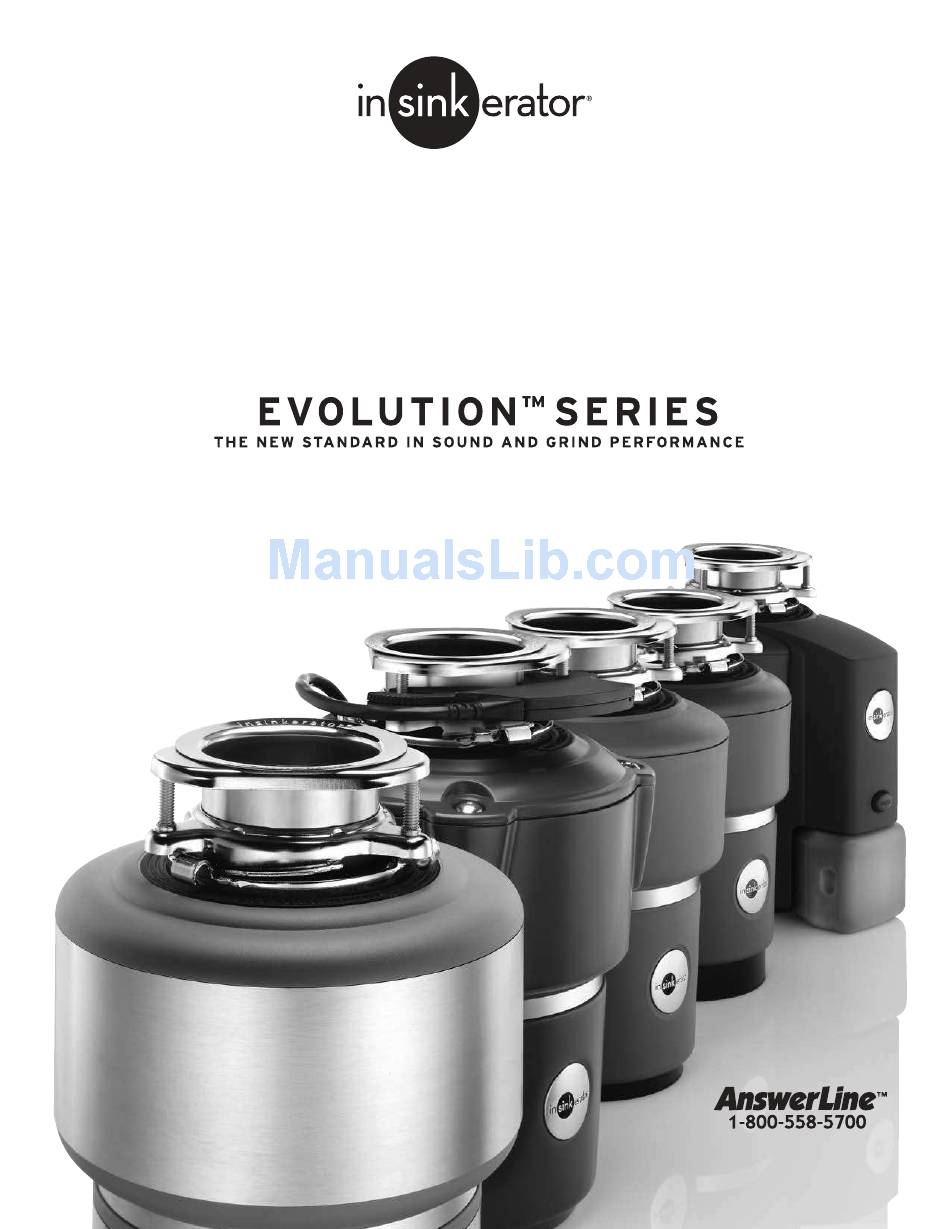

- Page 1 Installation Manual The Evolution series by InSinkErator® is a new standard in sound and grind performance. Featuring exclusive patented SoundSeal™ and MultiGrind™ technologies, no food waste disposer grinds more with less noise. www.insinkerator.com...
- Page 2 Stopper Stopper (Cover Control Stopper differs from standard disposer stopper.) Quiet Collar™ Sink Baffle Sink Flange Fiber Gasket Backup Flange Mounting Ring 1 1/2" Screws 1 1/8" Screws Snap Ring Tools and Materials (not included) Cable Connector Plumbers putty Wire Connectors Parts Included: Disposer...
- Page 3 Dimensions: Model 6 11/16" Excel 6 11/16" Premier 6 11/16" Essential 6" Compact 6" Space Saver 6 11/16" Cover Control 6 11/16" SepticAssist 4" 13 1/2" 9" 4" 12 5/8" 8 3/4" 4" 12 5/8" 8 3/4" 4" 12 1/8" 8"...
- Page 4 Removal of old disposer: If you are replacing an existing disposer, continue to Step 2. If there is no existing disposer, disconnect sink drain and skip to Step 10. W A R N I N G SHOCK HAZARD Turn off electric power at fuse box or circuit breaker.
- Page 5 Installation of new disposer: Failure to clean sink drain line may result in drain line blockage. With drain auger, clear all hardened Evenly apply 1/2” thick rope of plumber’s putty around flange (C). Optional Place a weight such as the dis- poser on the sink flange to hold it in place.
- Page 6 Place tube (M or N) into Anti- Vibration Tailpipe Mount. Use provided tubes for best results. Secure with hose clamp (L). *CAUTION: USE ONLY INSINKERATOR SUPPLIED HOSE CLAMP. NON-APPROVED CLAMPS WILL VOID WARRANTY AS THEY WILL DAMAGE THE ANTI-VIBRATION TAILPIPE...
- Page 7 18005585700 Model Evolution 05081500028 AMPS 8.1 HP 3/4 05081500028 Volts 120 Hz 60 1PH 18005585700 InSinkErator Emerson Elcetric Racine, WI 53406 Detach removable portion of spec label and place on a visible location. (COVER CONTROL MODEL ONLY) Turn mounting ring until all 3 mounting tabs lock over the ridges on the slide-up ramps.
-
Page 8: Operating Instructions
Bio-Charge ™ bottle when it is empty. Bio-Charge ™ is available wherever InSinkErator Septic Disposers are sold. For Bio-Charge reorders, questions or comments call toll free 1 (888) 527-1493. Aligning bottle with concave side toward disposer, insert bottle up into holder until you hear a click and bottle snaps into place. - Page 9 Use a disposer cleaner to relieve objectionable odors caused by build-up, or grind citrus fruit peels to freshen up drain area. • Disposers may also be cleaned with Disposer Care®. This product is not sold by InSinkErator but is generally available in major home centers, hardware and grocery stores. For more information on Disposer Care®, contact Iron Out Inc.
- Page 10 Collar Sink Baffle in place. Disposers may also be cleaned with Disposer Care product is not sold by InSinkErator, but is generally avail- able in major home centers, hardware, and grocery stores. For more information on Disposer Care®, contact Iron Out, Inc.
- Page 11 INSTRUCTIONS PERTAINING TO RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS (SAVE THESE INSTRUCTIONS) W A R N I N G Personal Injury: Do not position your head or body under disposer; unit could fall during removal or installation. W A R N I N G Do not operate disposer without the Anti-Vibration Tailpipe Mount...
