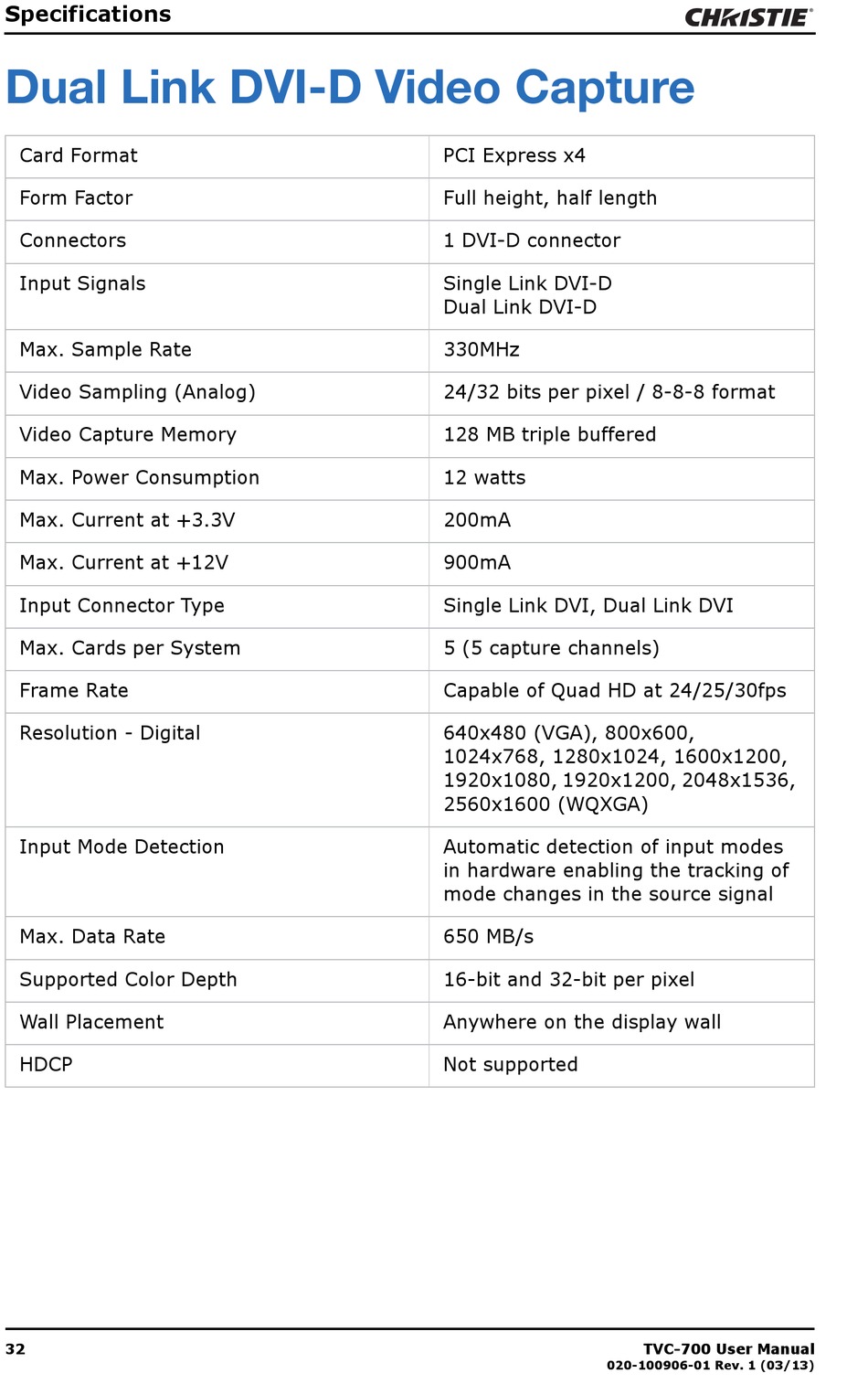

Specifications
Dual Link DVI-D Video Capture
Card Format
Form Factor
Connectors
Input Signals
Max. Sample Rate
Video Sampling (Analog)
Video Capture Memory
Max. Power Consumption
Max. Current at +3.3V
Max. Current at +12V
Input Connector Type
Max. Cards per System
Frame Rate
Resolution - Digital
Input Mode Detection
Max. Data Rate
Supported Color Depth
Wall Placement
HDCP
32
PCI Express x4
Full height, half length
1 DVI-D connector
Single Link DVI-D
Dual Link DVI-D
330MHz
24/32 bits per pixel / 8-8-8 format
128 MB triple buffered
12 watts
200mA
900mA
Single Link DVI, Dual Link DVI
5 (5 capture channels)
Capable of Quad HD at 24/25/30fps
640x480 (VGA), 800x600,
1024x768, 1280x1024, 1600x1200,
1920x1080, 1920x1200, 2048x1536,
2560x1600 (WQXGA)
Automatic detection of input modes
in hardware enabling the tracking of
mode changes in the source signal
650 MB/s
16-bit and 32-bit per pixel
Anywhere on the display wall
Not supported
TVC-700 User Manual
