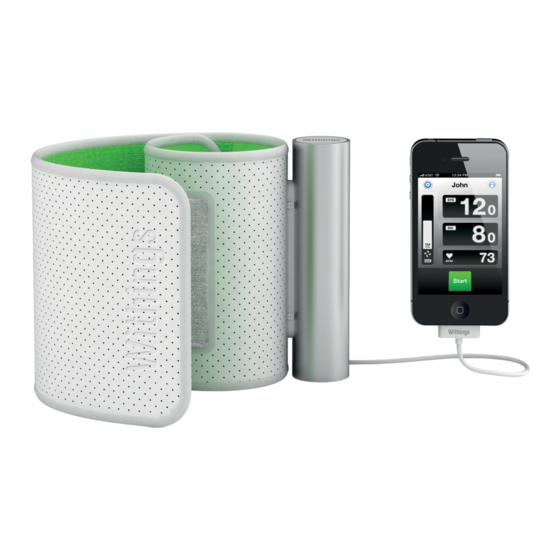

The Smart Blood Pressure Monitor
Instruction manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the The Smart Blood Pressure Monitor and is the answer not in the manual?

Questions and answers

Related Manuals for Withings The Smart Blood Pressure Monitor

Summary of Contents for Withings The Smart Blood Pressure Monitor

  • Page 1 The Smart Blood Pressure Monitor Instruction manual...
  • Page 3 Read this manual before use. Keep it for future reference. Thank you for purchasing the Withings Blood Pressure Monitor. The Withings Blood Pressure Monitor is a fully automatic blood pressure monitor, operating on the oscillometric principle. It measures your blood pressure and pulse rate simply and quickly.

  • Page 5: Table Of Contents

    Contents Requirements ................6 Package Contents .

  • Page 6: Requirements

    Requirements In order to use your Withings Blood Pressure monitor, you need to plug it to an iPhone, iPad or iPod Touch (updated to iOS 3 or higher). Package Contents • Withings Blood Pressure Monitor • Four AAA alkaline (LR3) cells (already inserted) Important Safety Information Consult your doctor during pregnancy, arrhythmia and arteriosclerosis.

  • Page 7: Intended Use

    Intended use The device is a digital monitor intended for use in measuring blood pressure and pulse rate in adult patient population with arm circumference ranging from 9 inches to 17 inches (22cm- 42cm). This device is not intended to be a diagnostic device. Contact your physician if hypertensive values are indicated.

  • Page 8: Replacing The Aaa Alkaline Cells

    • Do not immerse the arm cuff in water Replacing the AAA alkaline cells If the low battery symbol appears in the Withings application, replace all four AAA alkaline cells at the same time. 1. Remove the AAA alkaline cells cover at the lower end of the aluminum tube.

  • Page 9: How To Sit Correctly When Taking A Measurement

    automatically. If you are using an iOS device running iOS 3, you will have to launch the application manually. How to sit correctly when taking a measurement You can take a measurement on either your left or right arm. Notes • Measurement should be taken in a quiet place and you should be in a relaxed, seated position.

  • Page 10: Applying The Arm Cuff

    Applying the arm cuff You can wrap the cuff either on your right or left arm. • Remove tight fitting clothing from your upper arm. • Do not place the cuff over thick clothes and do not roll up your sleeve if it is too tight. • The cuff must be fully deflate • Sit on a chair with your feet flat on the floor and place your arm on a table so that the cuff will be at the same level as your heart.

  • Page 11: Taking A Reading

    The blood pressure can differ between the right arm and the left arm and therefore also the measured blood pressure values can be different. Withings recommends to always use the same arm for measurement. If the values between the two arms differ substantially, please check with your physician which arm to use for your measure- ment.

  • Page 12: Using The Single Mode

    Using the single mode Single mode measurement screen • Press the «Start» button. The cuff starts to inflate automatically. As the cuff inflates, the blood pressure monitor automatically determines your ideal inflation level. This blood pressure monitor detects the pulse during inflation. Do not move your arm and remain still until the entire measurement process is completed.
  • Page 13 • When the measurement is complete, the arm cuff completely deflates. Your blood pressure and pulse rate are displayed. • Unplug the blood pressure monitor from your iPhone, iPad or iPod Touch to see your results in advanced mode. Rotate your device to display your graphs. Notes Self-diagnosis of measured results and treatment are dangerous.

  • Page 14: Using The Auto Mode

    Using the auto mode Auto mode measurement screen The auto mode will take three measurements separated by an interval of time in order to calculate a precise average of your blood pressure. • On the home screen, touch the preferences icon .
  • Page 15 Note To stop the inflation or measurement, press and release the « Stop » button. The blood pressure monitor will stop inflating and start deflating. • Inflation stops and the measurement is started. As the cuff deflates, the heartbeat symbol flashes at every heartbeat. • When the measurement is complete, the arm cuff completely deflates.

  • Page 16: Access Your Historical Datas And Graphs

    Access your historical datas and graphs In order to access your historical datas and graphs, open the Withings application with the blood pressure unplugged or unplug the blood pressure monitor from your device after a measurement. The advanced results will show-up if you are in portrait mode and your histori-...
  • Page 17 In portrait mode, you can manually enter new results or edit existing results by using the wheel.

  • Page 18: Maintenance

    • Do not disassemble the blood pressure monitor. • Do not amend the blood pressure monitor yourself. • Do not carry out repairs of any kind yourself. If a defect occurs, consult the Withings dis- tributor or customer service through the Withings website.

  • Page 19: Troubleshooting

    Troubleshooting For technical documentation, please contact the manufacturer. Problem Though the batteries are installed, there is nothing happening when connected to iOS device. Remedy 1. Check that your iOS device is unlocked 2. Check and correct the AAA alkaline cells polarities 3.
  • Page 20 1. The variation is due to the different environments 2. The blood pressure is changing according to the physiological or psychological status of the human body 3. Show your recorded values to your physician For technical support, please email contact-sup@withings.com...

  • Page 21: Technical Data

    Technical data • Product description: Digital automatic Blood Pressure Monitor • Model: BP-800 (Withings) • • • Pressure sensor: Gauge sensor • Measurement range(pressure): 0 to 250 mmHg • Measurement range (pulse): 30 to 200 beats/min • Accuracy (pressure): Within +- 3 mmHg or 2% of reading •...

  • Page 22: Guarantee

    * EN60601-1-2: 2007 / AC 2010: Medical electrical equipment: Part 1-2: General requirements for basic safety and essential performance * EN1060-4: 2004 Non-invasive sphygmomanometers. Test procedures to determine the overall system accuracy of automated non-invasive sphygmomanometers. * FCC 47 CFR PART 18: Electromagnetic Compatibility *EN 60601-1-4 :1996 /A1:1999 Medical electrical equipment -- Part 1-4: General requirements for safety - Collateral standard: Programmable electrical medical...

  • Page 23: Eu Representative

    Manufacturer YA HORNG (DONGGUAN) ELECTRONIC CO., LTD. 188 Industrial District, Ping Chan Administrative District, Tang Shia Tow, Dongguan, Guangdong, China 2011 EU Distributor Withings SAS 37bis rue du Général Leclerc 92442 Issy-les-Moulineaux Cedex France US Agent Withings Inc. 16192 Coastal Highway...
  • Page 24 Manual version: 1.8 — March 4, 2011 © 2011 Withings. All right reserved. iPhone, iPad and iPod touch are trademarks of Apple inc.
