Page 1: Vacuum Cleaner
OWNER’S MANUAL VACUUM CLEANER Please read this manual carefully before operating your set and retain it for future reference. LUV200R www.lge.com P/NO : MFL62800201... -
Page 2: Table Of Contents
CONTENTS LG VACUUM CLEANER WARRANTY CARE & CLEANING LG VACUUM CLEANER WARRANTY Storing the Vacuum Cleaner Dust Tank Components Emptying the Dust Tank Cleaning the Dust Tank IMPORTANT SAFETY INFORMATIONS Cleaning the Foam Filter IMPORTANT SAFETY INFORMATIONS Cleaning the HEPA Filter... -
Page 3: Lg Vacuum Cleaner Warranty
LG VACUUM CLEANER WARRANTY LG Electronics Inc. will repair or replace your product, at LG’s option, if it proves to be defective in material or workmanship under Personal household use, during the warranty period set forth below, effective from the date of original consumer purchase of the product. -
Page 4: Important Safety Informations
Personal injury or product damage could result. In these Failure to do so could result in electrical shock cases, contact LG Electronics Service Agent to avoid or personal injury. hazard. • Do not use vacuum cleaner to pick up anything that is •... - Page 5 • Use only as described in this manual. Use only air flow. with LG recommended or approved attachments Failure to do so could result in product damage. and accessories. Failure to do so could result in personal injury or •...
-
Page 6: Parts And Features
PARTS AND FEATURES It is important to know your vacuum cleaner’s parts and features to assure its proper and safe use. Review these before using your vacuum cleaner. Common Replacement Parts Accessory Tools HEPA Filter ADQ72913301 Foam Pre Filter MDQ61918301 Filter Frame (ADV72987201) Foam Filter... -
Page 7: Assembly
ASSEMBLY To reduce the risk of shipping damage, your vacuum cleaner is shipped partially unassembled. Unpacking the Vacuum Cleaner Assembly Parts Carefully unpack the vacuum cleaner and make 1. Vacuum Cleaner Body sure that you have all parts before discarding of any packaging. -
Page 8: Attaching Handle
PARTS AND FEATURES Attaching handle Attaching the Hose 1. Slide handle onto the main body. 1. Insert the wand into the handle hose. Button Hole 2. Attach the opposite side of the hose onto the main body. Note: Cord rewind button is in the up position when inserting into the main body. -
Page 9: Accessory Storage
ASSEMBLY WARNING Personal Injury and Product Damage Hazard! DO NOT use outlets above counters. Damage to items in the surrounding area could occur. Accessory Storage Cord Storage To release the cord: Your vacuum cleaner features convenient on-board storage for the Dusting bush & Crevice tool. Grasp the plug and pull cord to desired cord length. -
Page 10: Operation
OPERATION WARNING Personal Injury Hazard Do not set the vacuum on the stairs, always keep the unit on the floor. Control Operation Body Release Operation 1. Power On/Off: • To begin vacuuming, press the pedal on To turn the vacuum on and off. the left side of the vacuum release. -
Page 11: 1 Adjusting The Pile Height
OPERATION Adjusting the Pile Height To adjust the pile height: Suggested pile height settings: When it is necessary to raise and lower the You may need to raise the height to make some jobs easier, such as vacuuming scatter rugs and front of the cleaner for various carpet pile longer pile rugs. -
Page 12: Accessory
OPERATION Accessory Dusting Brush Use the dusting brush in place for cleaning furniture, Pet hair turbine tool walls,etc. This air-turbine powered brush is great for stairs and interiors, as well as removing pet hair, lint, etc. from fabrics and carpets. Crevice Tool Do NOT use on pets. -
Page 13: Installing Attachments
OPERATION Installing Attachments Using the Pet hair turbine tool Using the Wand and Hose The Pet hair turbine tool attaches to the wand like the Release the wand and hose other attachments. It features air-turbine powered 1. Hold the wand on the body and tilt the wand. brush to provide extra cleaning power on carpets and 2. -
Page 14: Agitator Motor Overload Protection
OPERATION Agitator Motor Overload Thermal Overload Protection Protection This vacuum cleaner has a thermal overload protector which automatically activates to protect The agitator has a built-in protection against motor the vacuum cleaner from overheating. If a clog damage should the agitator jam. disturbs the normal flow of air to the motor, the If the agitator slows down or stops, the agitator thermal protector turns the motor off automatically... -
Page 15: Care & Cleaning
CARE & CLEANING Always follow all safety precautions when cleaning and servicing the vacuum cleaner. Storing the Vacuum Cleaner Dust Tank Components When not in use, press on the cord rewind button The dust tank consists of several key components. to store the cord. -
Page 16: Emptying The Dust Tank
CARE & CLEANING Emptying the Dust Tank TO REINSTALL THE DUST TANK: Place it in the holder, then tilt forward until it clicks into place. Make sure the dust tank is properly WARNING seated! Electrical shock and personal injury hazard. Always unplug power cord from electrical outlet before performing any service on vacuum cleaner. -
Page 17: Cleaning The Foam Filter
Foam filter does not help, you need to replace To Clean the Foam pre filter: the Foam filter. You can purchase additional foam filters from LG by calling 1-800-243-0000(U.S.A), 1. Remove the dust tank from the vacuum cleaner. 1-888-542-2623 (Canada) and asking for parts 2. -
Page 18: Pet Hair Turbine Tool
CARE & CLEANING Agitator Maintenance 3. Wash the filter cleanly in flowing water. WARNING Electrical shock and personal injury hazard. Always unplug the vacuum cleaner before servicing. Failure to do so could result in electrical shock or personal injury. 4. Remove moisture. Frequently check the agitator brush area for hair, string and lint buildup. -
Page 19: Replacing The Agitator Belt
7. Reinstall the agitator brush cover as described above. 3. Unhook the old belt from the drive pulley. For a replacement belt, order LG service center Make sure no pieces of the broken belt are belt part # MAS61843401. trapped in the agitator or drive pulley area. -
Page 20: Removing Clogs
CARE & CLEANING Removing Clogs 3. Remove the dust tank and check the dust tank inlet and body inlet where it connects to the WARNING vacuum cleaner body. Electrical shock and personal injury hazard. Always unplug the vacuum cleaner before servicing. -
Page 21: Cleaning The Exterior Of The Vacuum Cleaner
CARE & CLEANING Cleaning the Exterior of the Wipe the exterior of the vacuum cleaner with a clean, soft cloth that has been dipped in water Vacuum Cleaner and wrung dry. WARNING DO NOT allow water to enter any openings in the vacuum cleaner. -
Page 22: Troubleshooting
TROUBLESHOOTING Review this chart to find do-it-yourself solutions for minor performance problems. Any service or repair needed, other than as described in this User’s Guide, should be performed through your local LGE service center. WARNING Electrical shock and personal injury hazard. Always unplug the vacuum cleaner before servicing. - Page 23 TROUBLESHOOTING PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION Dust escapes the • Dust tank improperly installed. • Make sure all dust tank components and dust tank filters are installed correctly. • The dust tank lid not closed. • Check the dust tank lid. •...
- Page 24 The model and serial number of the vacuum 1-888-542-2623 cleaner is located on the back of the vacuum CANADA cleaner. Record it below should you ever need service. Register your productOnline! MODEL www.lge.com SERIAL LG Electronics U.S. Ltd., LG House, 250 Bath Road, Slough, Berkshire SL1 4DX...
Need help?
Do you have a question about the LUV200R and is the answer not in the manual?
Questions and answers

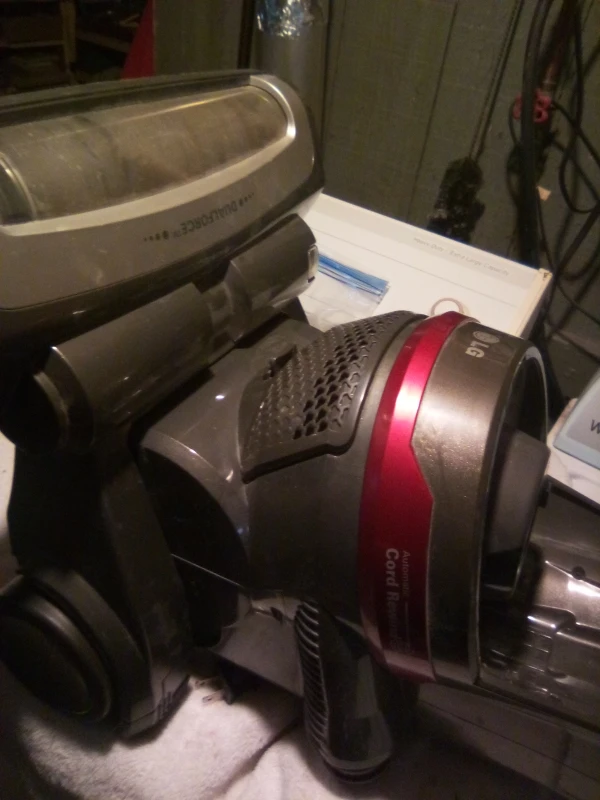

How do you remove the cover to change the belt? See photo, how do you remove it ?
To remove the cover on an LG LUV200R to change the belt, follow these steps:
1. Unplug the vacuum cleaner to avoid electrical shock or injury.
2. Remove the agitator brush cover as described on page 18 of the manual. (Specific instructions are not provided in the context, but this is the step needed to access the belt.)
This answer is automatically generated
