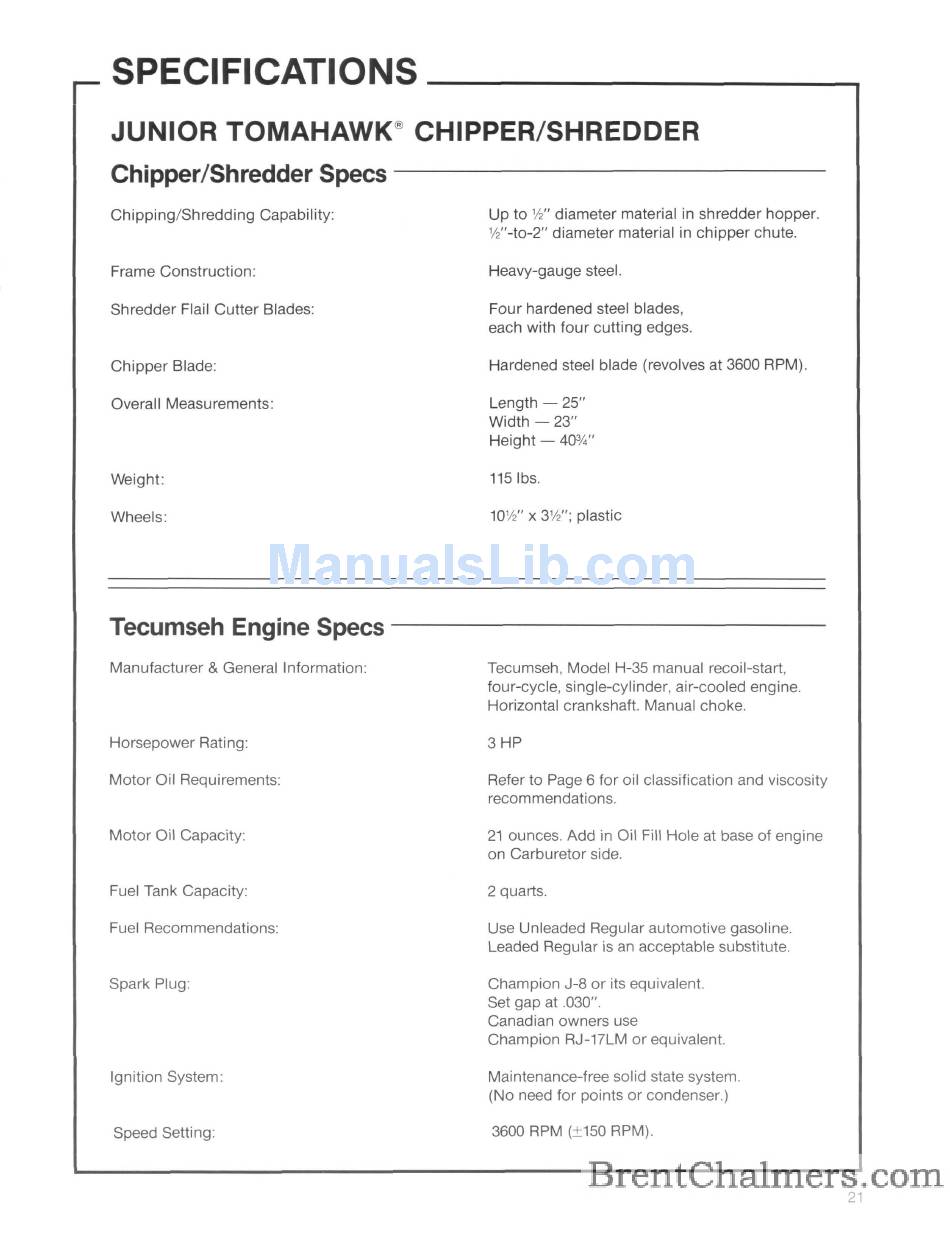

SPECIFICATIONS
JUNIOR TOMAHAWK® CHIPPER/SHREDDER
Chipper/Shredder Specs - - - - - - - - - - - - - -
Chipping/Shredding Capability:
Frame Construction:
Shredder Flail Cutter Blades:
Chipper Blade:
Overall Measurements:
Weight:
Wheels:
Up to %" diameter material in shredder hopper.
%"-to-2" diameter material in chipper chute.
Heavy-gauge steel.
Four hardened steel blades,
each with four cutting edges.
Hardened steel blade (revolves at 3600 RPM).
Length - 25"
Width - 23"
Height - 40%"
1151bs.
10%" x 3%"; plastic
Tecumseh Engine Specs - - - - - - - - - - - - - - -
Manufacturer & General Information:
Horsepower Rating:
Motor Oil Requirements:
Motor Oil Capacity:
Fuel Tank Capacity:
Fuel Recommendations:
Spark Plug:
Ignition System:
Speed Setting:
Tecumseh, Model H-35 manual recoil-start,
four-cycle, single-cylinder, air-cooled engine.
Horizontal crankshaft. Manual choke.
3 HP
Refer to Page 6 for oil classification and viscosity
recommendations.
21 ounces. Add in Oil Fill Hole at base of engine
on Carburetor side.
2 quarts.
Use Unleaded Regular automotive gasoline.
Leaded Regular is an acceptable substitute.
Champion J-8 or its equivalent.
Set gap at .030".
Canadian owners use
Champion RJ-17LM or equivalent.
Maintenance-free solid state system.
(No need for points or condenser.)
3600 RPM (±150 RPM).
