Summary of Contents for LENCO Grid-7

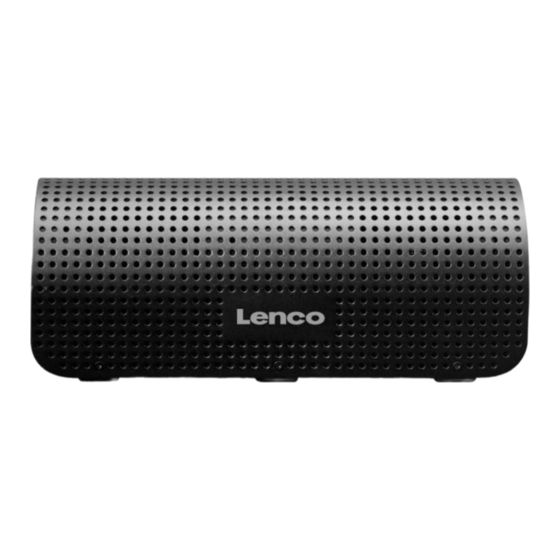

- Page 1 User manual Grid-7 www.lenco.com...
-
Page 2: Important Safety Instructions - Read Carefully Before Use
Safety instructions IMPORTANT SAFETY INSTRUCTIONS - READ CAREFULLY BEFORE USE. CAUTION RISK OF ELECTRICAL SHOCK DO NOT OPEN CAUTION: TO PREVENT AN ELECTRICAL SHOCK, DO NOT REMOVE ANY COVER SCREWS. THERE ARE NO USER SERVICEABLE PARTS INSIDE. REQUEST A QUALIFIED SERVICE PERSON TO PERFORM SERVICING. CAUTION： RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS This symbol indicates that there are important operating maintenance instructions in the user manual accompanying this tablet. This symbol indicates that dangerous voltage is present within this tablet, constituting a risk of electric shock or personal injury. Keep these instructions in mind: ... - Page 3 Avoid using the device near strong magnetic fields. ESD can disturb normal usage of this device. If so, simply reset and restart the device following the instruction manual. During file transmission, please handle with care and operate in a static-free environment. ...
- Page 4 The apparatus should supply via DC socket by a standard adaptor (input100-240V, 50/60Hz, output 5Vdc, 2.0A). The maximum ambient temperature is specified as 25°C. Charge the battery if: a) The battery level icon displays (An empty battery) b) The device switches off automatically when restarted.
- Page 5 Description of parts 1. Buttons Mode: short press to select between Bluetooth, Play (Micro-SD cardplaying) and LINE- IN, there is sound notice for the operation step。Also short press this button,you could reject the incoming call in the Bluetooth connecting. Play/pause: - In Bluetooth and card play mode, short press is play or pause.
- Page 6 2. Indication 25% red light 25% power capacity 50%red light 50% power capacity 75%red light 75% power capacity 100%Red light 100% power capacity. If no light on the indicator means not enough power, please charge the unit. Charge/Bluetooth indicator: - Red light is in charging,light goes off means charging finished - Blue light enter Bluetooth, flashing means match Bluetooth still not successful, blue light always on means successful in Bluetooth pairing(Not connect with charging source).
- Page 7 PC to the unit. Deleting file from card can also be done. Bluetooth function:Press “MODE” button to change as Bluetooth mode,turn on smartphone with setting BLUETOOTH as ON, carry out Bluetooth scan until LENCO-GRID 7 is appeared, enter the PIN as (0000) to pair the unit until successful.(Bluetooth distance: 10 meters no obstacle.)
- Page 8 5. Technical data Output power： 3WX2+5W SNR： 57 dB Frequency response： 100Hz~20KHz Output impedance： high pitch 4Ω；bass 3Ω distortion： ≤1% speaker： high pitch 3W/4Ω，bass 5W/3Ω Battery capacity： 8000mAh/3.7V Charge power voltage/electric current： DC5V 2A(DC in jack); DC5V 1.2A (Micro-USB) Bluetooth distance: 10 meters (no obstacles)
-
Page 9: Troubleshooting
The helpdesk is accessible from Monday till Friday from 9 AM till 6 PM. When contacting Lenco, you will always be asked for the model and serial number of your product. The serial number can be found on the back of the device. Please write down the... - Page 10 Model: Grid-7 Serial number:_________________________________ Lenco offers service and warranty in accordance to European law, which means that in case of repairs (both during and after the warranty period) you should contact your local dealer. Important note: It is not possible to send products that need repairs to Lenco directly.
