Installation
Instructions
If you have questions, call 1.800.GE.CARES or visit our website at:
www.GEAppliances.com
Before You Begin
Read these instructions carefully and completely.
IMPORTANT
•
instructions for local inspector's use.
IMPORTANT
•
governing codes and ordinances.
• Note to Installer—Be sure to leave these
instructions with the consumer.
• Note to Consumer—Keep these
instructions for future reference.

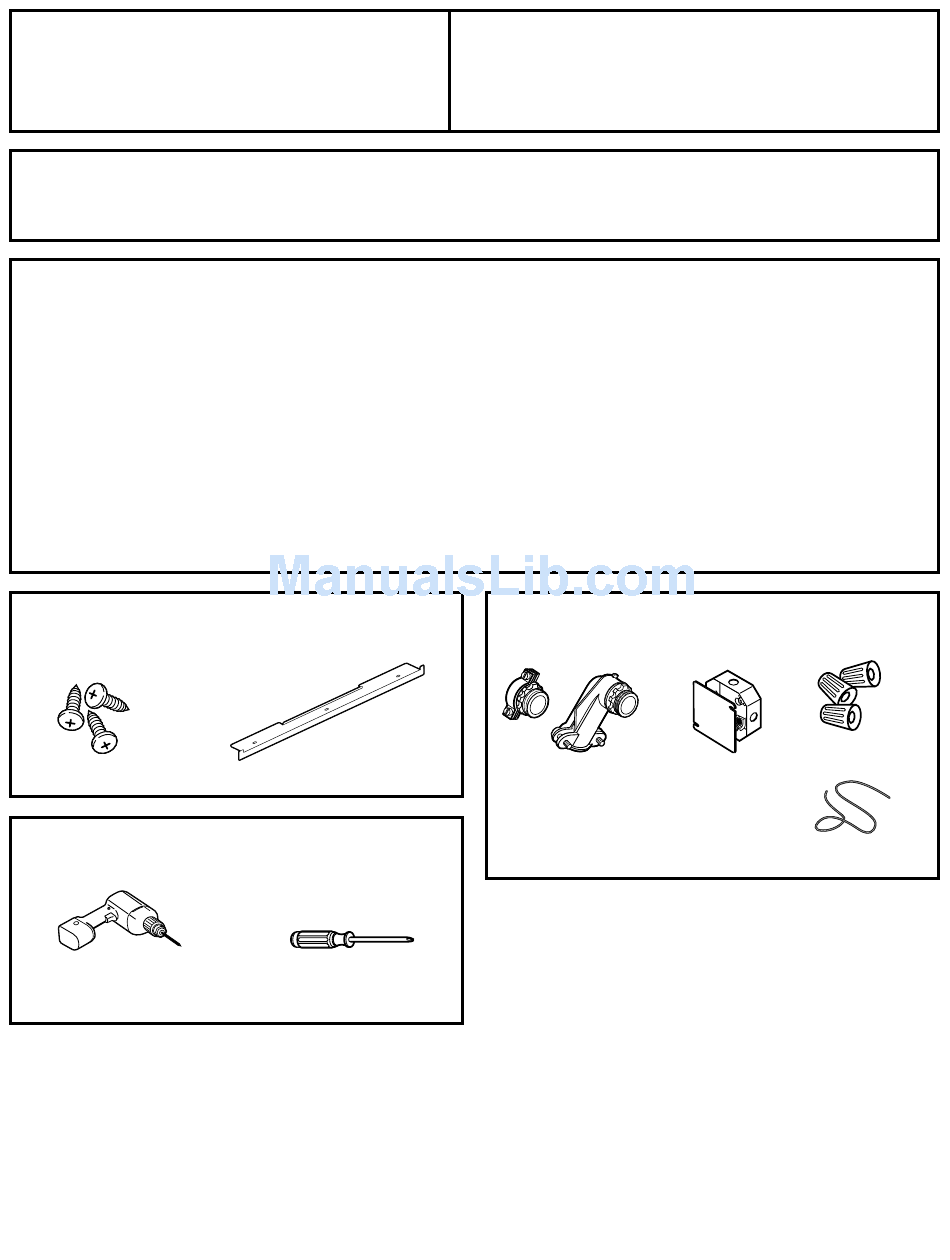

Parts Included
Screws For Installation
Tools Needed
1/8" Drill Bit and
Electric or Hand Drill
4053P507-3
229C
31-10526-3
06-03 JR
—Save these
—Observe all
Metal Bottom Trim
Phillips
Screwdriver
27" Built-In Wall Oven
with Microwave
JKP86
• Proper installation is the responsibility
of the installer and product failure due
to improper installation is NOT covered
under warranty.
• NOTE—This appliance must be properly
grounded.
ATTENTION INSTALLER
•
All electric wall ovens must be hard wired
(direct wired) into an approved junction
box. A plug and receptacle is NOT permitted
on these products.
Materials Needed
Strain Relief Clamp
for 1/2" conduit
1
Wire Nuts
Junction
Box
36" of String
Advertisement
Table of Contents
Related Manuals for GE JKP86
Summary of Contents for GE JKP86
-
Page 1: Installation Instructions
27” Built-In Wall Oven Installation with Microwave Instructions JKP86 If you have questions, call 1.800.GE.CARES or visit our website at: www.GEAppliances.com Before You Begin • Proper installation is the responsibility of the installer and product failure due to improper installation is NOT covered Read these instructions carefully and completely. -
