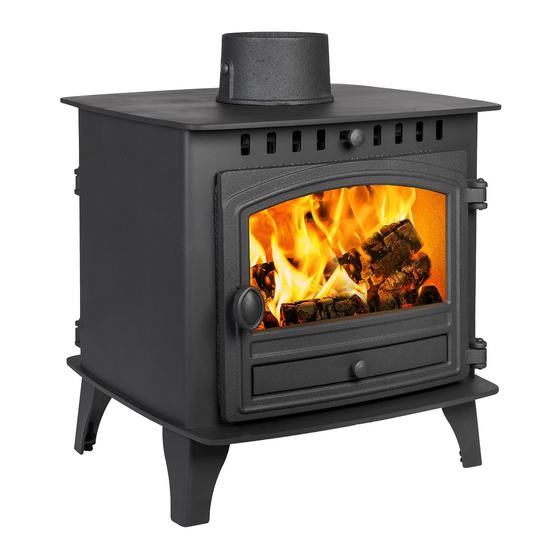

Hunter Stoves Herald 6 CE VII Installation And Operating Instructions Manual

Multifuel cleanburn stove
Hide thumbs Also See for Herald 6 CE VII:
Table of Contents

Advertisement

Quick Links

H E R A L D 6
C E V I I
M U L T I F U E L
C L E A N B U R N
S T O V E
Installation and Operating Instructions
An accredited competent person must carry out the installation of this appliance;
alternatively, your local Building Control Officer can approve the completed
installation, should a non-accredited engineer undertake the installation. It is an
offence, under UK law, not to comply with this advice. Please hand these instructions
to the stove user when the installation is complete. Leave the system ready for
operation and instruct the user in the correct use of the appliance and operation of
controls.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Herald 6 CE VII and is the answer not in the manual?

Questions and answers

Related Manuals for Hunter Stoves Herald 6 CE VII

Summary of Contents for Hunter Stoves Herald 6 CE VII

  • Page 1 H E R A L D 6 C E V I I M U L T I F U E L C L E A N B U R N S T O V E Installation and Operating Instructions An accredited competent person must carry out the installation of this appliance; alternatively, your local Building Control Officer can approve the completed installation, should a non-accredited engineer undertake the installation.

  • Page 2: Technical Specification

    Herald 6 CE Technical Specification Stove Mass 111 kg Wood Total Efficiency 75.9 % Nominal Heat Output 5.5 KW Mean CO Emission (at 13% O2) 0.27 % Mean Flue Gas Temperature 265 °C Flue Gas Mass Flow 5.7 g/s Ancit Total Efficiency 67.3 % Nominal Heat Output...

  • Page 3: Assembly Instructions

    Assembly Instructions PLEASE READ THESE INSTRUCTIONS CAREFULLY It is important that your stove is correctly installed, as Hunter Stoves Limited cannot accept responsibility for any fault arising through incorrect use or installation. Important Warning This stove must not be installed into a chimney that serves any other heating appliance.

  • Page 4: Fire Bricks

    Fire Bricks The Fire Bricks, in this appliance, are factory fitted. The following set of photos show the removal sequence that you will need to employ when servicing your Hunter stove. Side Bricks Remove all the Riddling Bars, Cam Bar, Catch Bar and Ashpan.

  • Page 5: Installation Instructions

    Installation Instructions These instructions cover the basic principles to ensure satisfactory installation of the stove, although detail may need slight modification to suit particular local site conditions. In all cases the installation must comply with current Building Regulations, Local Authority Byelaws, European and national standards and other specifications or regulations as they affect the installation of the stove.

  • Page 6: Installation

    Installation Chimney The chimney height and the position of the chimney terminal should conform to Building Regulations. Check that the chimney is in good condition, dry, free from cracks and obstructions. The diameter of the flue should not be less than 150mm and not more than 230mm. If any of these requirements are not met, the chimney should be lined by a suitable method.

  • Page 7: Material Clearances

    Material Clearances The stove can be recessed in a suitable sized fireplace but a permanent free air gap of at least 150mm must be left around the sides and top and at least 50mm at the back of the stove to obtain maximum heat output and for access to the rear of the stove.

  • Page 8: Commissioning And Handover

    Commissioning and Handover Upon completion of the installation, allow a suitable period of time for any fire cement and mortar to dry out. A small fire may then be lit and checked to ensure the smoke and fumes are taken from the stove up the chimney and emitted safely to atmosphere.

  • Page 9: Operating Instructions

    Operating Instructions This appliance is not suitable for use in a shared flue This appliance should not be operated with the doors open Aerosol Sprays Do not use an aerosol spray on or near the stove when it is alight. Air Controls This stove has been designed to burn cleaner and more efficiently than a conventional wood burning stove.

  • Page 10: Multifuel Grate

    Multifuel Grate Your Hunter Stove is fitted with a locomotive type grate. So that de- ashing can be carried out cleanly and easily, it is riddled from the outside of the stove with the doors closed. The grate is designed to burn both wood and solid fuels.

  • Page 11: Lighting The Stove

    Notes on Wood burning Wood burns most efficiently with the primary air sliders in the closed position and the secondary control open. Moving the secondary control will control the burn rate of the stove. Note - primary and secondary air is needed to light the stove, see section entitled ‘Lighting the Stove’ Wood burns best on a bed of ash and it is therefore only necessary to remove surplus ash from the stove occasionally.

  • Page 12: Safety Notes For Your Guidance

    Recommended Fuels Approval does not cover the use of other fuels either alone or mixed with the suitable fuels listed above, nor does it cover instructions for the use of other fuels. Only authorised smokeless fuels may be used in smoke control areas. Warning!- Petroleum coke fuels or household waste must not be burnt on this appliance.

  • Page 13: General Maintenance

    Rope Check the rope around the door and glass. If rope is becoming detached, use Hunter Stoves rope glue to reattach it. If the rope is in a poor condition, a replacement rope kit may be ordered from...

  • Page 14: Chimney And Flue Ways

    Chimney and Flue ways It is important that the chimney, flue ways and any connecting flue pipe are swept regularly. This means at least once a year for smokeless fuels and at least twice a year for wood and other fuels.

  • Page 15: Stove Spares

    STOVE SPARES Only Hunter Stoves authorised spares should be used with this stove. RIGHT HAND DOOR Right Hand Door (HHR06/081) Door Glass (HH06/083) Glass Gasket (HH06/084) Glass Clip (HHR08/046) Glass Clip Screw (FSJM05008SS) Door Knob (HCR06/059) M8 Full Nut (FNFN08)
  • Page 16 STOVE BODY ASSEMBLY - PART SECTION - MULTIFUEL Flue Collar (HHR08/023) Flue Cover (HHR08/024) Baffle Side Brick (HH06/131) (HH06/115) Turbo Bar (HH06/101) Side Plates Rear Brick – M/F (HH06/121 A/B) (HH06/110) Riddling Support (HH06/022) Catch Bar – Drop in Riddling Bar – Lower (HCR06/020) (HH06/085) Riddling Bar –...
