DeWalt DW871 Instruction Manual

14" (355 mm) heavy duty chop saw
Hide thumbs Also See for DW871:
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

DW871/384765-01-00
2/10/00

INSTRUCTION MANUAL

GUIDE D'UTILISATION
MANUAL DE INSTRUCCIONES
DW871
14" (355 mm) Heavy Duty Chop Saw
Scie fendeuse de 355 mm (14 po) et de service intensif
Cortadora de metales de 355 mm (14")
10:07 AM
Page 3
INSTRUCTIVO DE OPERACIÓN, CENTROS DE SERVICIO Y PÓLIZA
DE GARANTÍA. ADVERTENCIA: LÉASE ESTE INSTRUCTIVO ANTES
DE USAR EL PRODUCTO.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DW871 and is the answer not in the manual?

Questions and answers

Related Manuals for DeWalt DW871

Summary of Contents for DeWalt DW871

  • Page 1: Instruction Manual

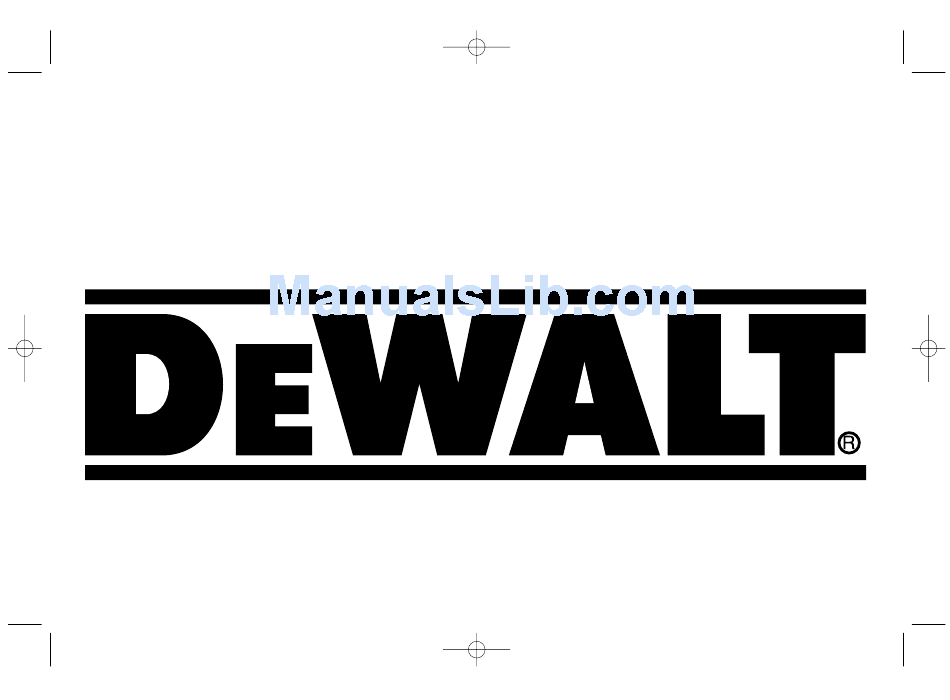

    DW871/384765-01-00 2/10/00 10:07 AM Page 3 INSTRUCTIVO DE OPERACIÓN, CENTROS DE SERVICIO Y PÓLIZA INSTRUCTION MANUAL DE GARANTÍA. ADVERTENCIA: LÉASE ESTE INSTRUCTIVO ANTES DE USAR EL PRODUCTO. GUIDE D'UTILISATION MANUAL DE INSTRUCCIONES DW871 14" (355 mm) Heavy Duty Chop Saw Scie fendeuse de 355 mm (14 po) et de service intensif Cortadora de metales de 355 mm (14")

  • Page 2: Important Safety Instructions

    DW871/384765-01-00 2/10/00 10:07 AM Page 4 Important Safety Instructions IF YOU HAVE ANY QUESTIONS OR COMMENTS ABOUT THIS OR ANY D WALT TOOL, CALL US TOLL FREE AT: WARNING! Read and understand all instructions. Failure to 1-800-4-D WALT (1-800-433-9258) follow all instructions listed below may result in electric shock, fire and/or serious personal injury.
  • Page 3 DW871/384765-01-00 2/10/00 10:07 AM Page 5 Minimum Gage for Cord Sets parts, mounting, and any other conditions that may affect its operation. Volts Total Length of Cord in Feet A guard or other part that is damaged should be properly repaired or...

  • Page 4: Power Supply

    DW871/384765-01-00 2/10/00 10:07 AM Page 6 SAVE THESE INSTRUCTIONS • NEVER USE A CIRCULAR SAW BLADE IN THIS CHOP SAW. DO NOT USE TOOTHED BLADES. Standard Equipment • DO NOT OPERATE THIS TOOL NEAR FLAMMABLE LIQUIDS, 1 14” Metal Cutting Abrasive Wheel. Use only high strength Type 1 GASES OR DUST.

  • Page 5: Fence Operation

    DW871/384765-01-00 2/10/00 10:07 AM Page 7 Spark Deflector Adjustment Fence Operation To best deflect sparks away from surrounding persons and materials, loosen Fence requires no wrenches to adjust. The quick release clamp lever the screw, adjust the spark deflector and then retighten screw (see Figure 5).
  • Page 6 DW871/384765-01-00 2/10/00 10:07 AM Page 8 Fence Angle Adjustment Removal and Installation of Wheels Angle adjustment indicator is part of fence clamping system. Align 1. Be sure tool is disconnected from power supply. desired angle indicator line with edge of slot in base (see Figure 7).
  • Page 7 DW871/384765-01-00 2/10/00 10:07 AM Page 9 Mounting Motor Brush Inspection and Replacement PROCEDURE FOR PERMANENT MOUNTING 1. Drill four holes 5/16" through the work surface. (Figure 11) Be sure tool is unplugged before inspecting brushes. Brushes should be regularly inspected for wear. To inspect brushes, unscrew the 2.
  • Page 8 This warranty gives you specific legal rights and you may have other rights which vary in certain states or provinces. DeWALT Industrial Tool Company 626 Hanover Pike, P.O. Box 158 In addition to the warranty, D WALT tools are covered by our: Hampstead, MD.
