AMX Tango Amplifiers DAS-TAMP4/8-SIG Installation Manual

Overview
Use the DAS-TAMP4-SIG and DAS-TAMP8-SIG Tango Amplifiers (FIG. 1) in
conjunction with Tango Audio Controllers to increase the total number of audio
outputs available to each Controller, per Zone.

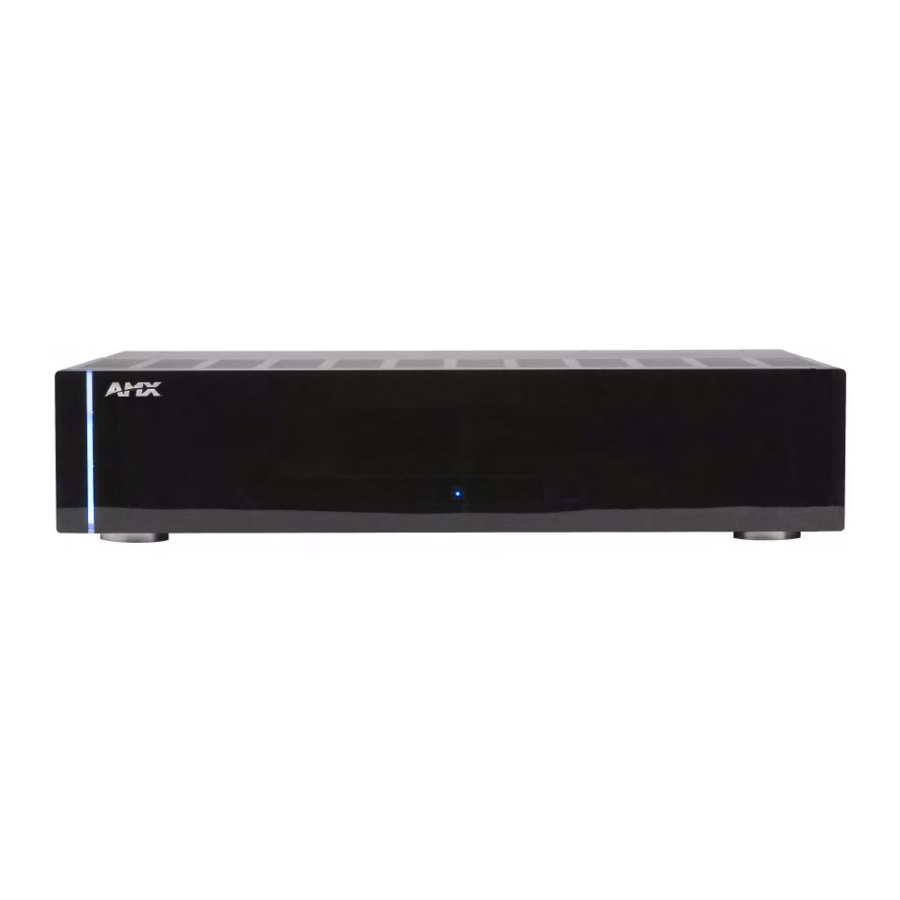

FIG. 1
DAS-TAMP4/8-SIG Tango amplifier
Note that each Output on the Tango Amplifier represents two audio channels.
• The DAS-TAMP4-SIG is a 4-channel amplifier that provides two Outputs.
• The DAS-TAMP8-SIG is an 8-channel amplifier that provides four Outputs.
Tango Amplifiers connect to the Tango Controller via one of the Zone Output
connectors on the Controller, and provide either two or four additional Outputs
for that single audio Zone.
Features
• High-quality sound - delivers 60 watts of high-quality sound per channel.
• Expandable - stack up to three Tango amplifiers units per zone to allow up
to 24 channels in a single zone (using the DAS-TAMP8-SIG).
• Easy installation - SWT (Speaker Wire Technology) makes installation
simple using four-conductor speaker wire.
• Integrates with Tango Series, Delta Series and Mi Series controllers, as
well as the W, C, C-DT and EL Series speakers.
Product Specifications
Tango Amplifiers - Product Specifications
Models Available: DAS-TAMP4-SIG 4-Channel amplifier:
• US version (120V) - FG1103-21
• Int'l version (240V) - FG1103-23
DAS-TAMP8-SIG 8-Channel amplifier:
• US version (120V) - FG1103-22
• Int'l version (240V) - FG1103-24
Dimensions (HWD): • 3 1/16" x 17" x 13 1/2" (7.68cm x 43.18cm x 33.52cm)
• RU: 2
Weight: • DAS-TAMP4-SIG: 25.75 lbs (11.68 kg)
• DAS-TAMP8-SIG: 32.30 lbs (14.65 kg)
Power: • High current Torroidal power supply
• Maximum: 634 W
Average usage:
• DAS-TAMP4-SIG: 250 W
• DAS-TAMP8-SIG: 500 W
Stereo Output: • Dual mono amplifier stage design
• 60 W per channel (1 KHz continuous .006% @ 8 Ohms
THD+N)
• DAS-TAMP4-SIG: capable of providing 240 watts
@ 8 Ohms
• DAS-TAMP8-SIG: capable of providing 480 watts
@ 8 Ohms
Configuration: • Modular Design - configurable in single pairs up to either
4 stereo pairs (4 channels) 8 stereo pairs (8 channels).
• Stackable (up to 3 Tango amplifiers)
Control Options: • Metreau Audio Keypads (DAS-MET-6SRC,
DAS-MET-NUM)
• C-Series speakers using SWT
• IR using a Stealth IR Receiver (DAS-IRRX-SWT)
Front Panel Components:
Light Bar • Blue light bar indicates power status.
Status LED • Blue LED lights when active
DAS-TAMP4/8-SIG
Tango Amplifiers - Product Specifications (Cont.)
Rear Panel Components:
Power Switch & The master power switch normally remains in the ON
Receptacle position.
OUTPUT connectors 4-pin connectors provide direct connection to speakers.
(1-2 or 1-4):
• The DAS-TAMP4-SIG has 2 OUTPUT connectors
• The DAS-TAMP8-SIG has 4 OUTPUT connectors
From Controller: SWT input port (connects to a Delta, Mi or Tango Audio
Controller)
To Keypad: SWT output port (connects to Matrix keypad or interface)
This connector can also be used to connect to a another
Tango amplifier, to allow for expansion (up to three Tango
amplifiers units per zone).
Included Accessories: Power Cord
Other AMX Equipment: DAS-MRMK Mi Series Rack Mount Kit (FG1101-60)

Wiring and Connections

Front and Rear Panel Components
FIG. 2 provides views of the front and rear panels of the Tango amplifiers.
Note that the front panel is identical for both Tango amps, and the only
difference on the rear panel is the number of OUTPUT connectors (2 on the
DAS-TAMP4-SIG, or 4 on the DAS-TAMP8-SIG).
Light Bar (power status)
Power Switch & Receptacle
FIG. 2
Tango amplifiers (DAS-TAMP4-SIG shown)
Note that each Output on the Tango Amplifier represents two audio channels.
Cabling Instructions
This installation uses low voltage cabling. Prior to installation, be sure to check
for any wiring restrictions required by the electrical code in your area.
The Tango amplifier is cabled using standard four-conductor speaker cable
originating at the Tango Controller, passing through the Keypad, and terminating
at the speaker location.
AMX recommends using a bundled four-conductor 16-gauge stranded copper
wire in a single continuous run.
Connecting Outputs (Speakers)
OUTPUT Connectors
FIG. 3 provides the pinout configuration for the OUTPUT connectors on the

Tango amplifiers.

OUTPUT 1
L+ = Left audio channel (+)
L- = Left audio channel (-)
R- = Right audio channel (-)
R+ = Right audio channel (+)
L+ L- R- R+
FIG. 3
OUTPUT Connectors - Pinout Configuration
Installation Guide
Tango Amplifiers
Status LED
To Keypad
From Controller
Outputs (2 or 4)
