CDA FW223 Manual For Installation, Use And Maintenance

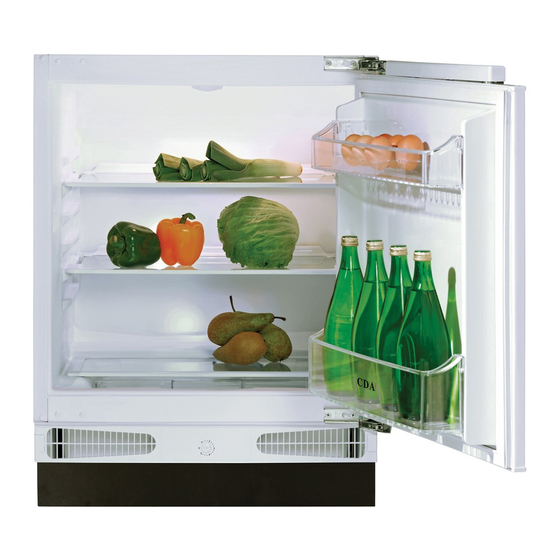

Integrated under counter larder fridge
Hide thumbs

Advertisement

Table of Contents

FW223 Integrated Under Counter
Larder Fridge
Manual for Installation, Use and Maintenance
Passionate about style
Customer Care Department • The
Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY
1
T : 01949 862 012 F : 01949 862 003 E : service@cda.eu W : www.cda.eu

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FW223 and is the answer not in the manual?

Questions and answers

Related Manuals for CDA FW223

Summary of Contents for CDA FW223

  • Page 1 Manual for Installation, Use and Maintenance Passionate about style Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY T : 01949 862 012 F : 01949 862 003 E : service@cda.eu W : www.cda.eu...
  • Page 2 Appliance information: Please enter the details on the appliance rating plate below for reference, to assist CDA Customer Care in the event of a fault with your appliance and to register your appliance for guarantee purposes. Appliance Model...

  • Page 3: Before First Use

    Important Never store inflammable or explosive items and strong corrosive acids or alkalis in the appliance. This is a household appliance, which is produced in accordance with the national standard. It is intended for food storage only, not for storage of blood, medicine and biological products. To prevent risk of fire, keep the appliance away from petrol or any other inflammables.
  • Page 4 Fridge • Never put liquids in the refrigerator uncovered. • Never put hot foods in the refrigerator. Warm food should be allowed to cool to room temperature before being put into the refrigerator. • Nothing should rest against the rear wall of the refrigerator, as this will cause frost and possible condensation problems which will be difficult to remove.

  • Page 5: Care And Cleaning

    Care and cleaning Always disconnect the appliance from the power supply before any cleaning or maintenance. The fridge sections should be cleaned using a solution of bicarbonate of soda and lukewarm water. Do not use abrasive products or detergents. After washing, rinse and dry thoroughly. Clean the shelves and balconies separately by hand with soap and water.

  • Page 6: Troubleshooting

    Troubleshooting If you have any problems with your appliance, you should check the troubleshooting prior to calling CDA Customer Care to prevent unnecessary service calls and potential cost. If the appliance is not working • Check there is power to the appliance: •...

  • Page 7: Installation

    Installation This appliance must never be installed close to heat sources i.e. heating elements, radiators, cookers or in damp places. The appliance should be mounted on a piece of wood (for example a section of worktop or kitchen carcass) if a raised floor is to be fitted, if the kitchen floor is to be tiled after installation, or if the installation height of the appliance is greater than 850 mm.
  • Page 8 Installation Fig. 4 - Dimensions of the appliance 820- 819- 100- 170 min 25 fig. 4 Fig. 5 - Fitting the worktop bracket Remove the screw (5) on the top of the appliance, locate the top bracket(6) and fix the bracket with screw(5). fig.
  • Page 9 Installation Fig. 7 - Adjusting the appliance height The height of the appliance can be adjusted by the help of adjustable feet to fit the furniture height. Use a spirit level to ensure the appliance is level. fig. 7 Fig. 8 - Aligning the appliance Slide the appliance into the kitchen unit and align the hinge surface with front surface of the kitchen unit.
  • Page 10 Installation Fig. 10 - Fitting the decor door bracket Unscrew and remove the nuts and washers from the appliance door. Place fixing bracket on the appliance door by inserting the holes to adjustment bolts. Dimension B= Measure from the underside surface of kitchen unit to the fig.
  • Page 11 Installation Fig. 13 - Aligning the decor door Close the door and check the alignment with the other unit doors. Adjust the decor door by screwing or unscrewing the adjustment bolts for vertical adjustment and by the help of the slots on the fixing bracket for other directions.
  • Page 12 Installation Fig. 16 - Fitting the plinth Fit the plinth section, providing minimum 25 mm gap between the cabinet door and fix it. Never cover over the ventilation slots. Once installed the plinth must not block the ventilation slots in the appliance. This may require cutting the plinth down.

  • Page 13: Reversing The Door

    Reversing the door It is possible to reverse the door on this appliance, if required. To do so, follow the steps below: 1. Open the door. 2. Loosen the hinge fixing screws (1) and remove the door. 3. Remove the door fixing screws (2). 4.

  • Page 14: Electrical Information

    If in doubt regarding the electrical connection of this appliance, consult a qualified electrician. Do not shorten the supply cable, the appliance may require removing for servicing. N.B. Ensure that the plug socket is situated in an easily accessible place. If the power supply cord is damaged, it must replaced by a CDA authorised agent.
  • Page 16 Passionate about style Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY T : 01949 862 012 F : 01949 862 003 E : service@cda.eu W : www.cda.eu...
