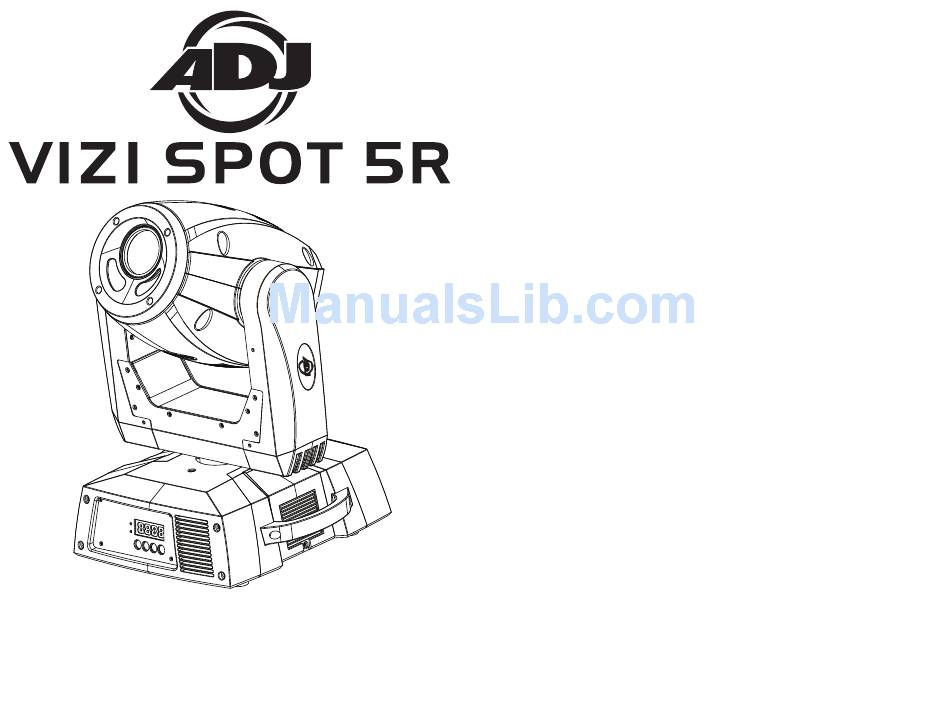

Vizi Spot 5R
Table of Contents
Unpacking......................................................................3
Introduction....................................................................3
Customer Support......................................................................3
Safety Precautions......................................................................4
Features.........................................................................5
RDMX..........................................................................................5
Handling Precautions..................................................................6
Registration......................................................................6
Important Discharge Lamp Warnings.........................................7
Mounting.........................................................................8
Controls and Functions.............................................................10
DMX Set-Up..............................................................................13
System Menu............................................................................16
Editing Program.........................................................................31
Error Codes...............................................................................40
Operating Modes.......................................................................42
DMX Traits.................................................................................44
Gobo Replacement...................................................................52
Lamp & Fuse Replacement........................................................53
Cleaning..................................................................54
Trouble Shooting.......................................................................54
Warranty.........................................................................55
User Instructions
Specifications....................................................................56
Please see page 7 for important lamp instructions!
Rev. 8/11
American DJ
- www.americandj.com - Vizi Spot 5R Instruction Manual Page 2
®
Advertisement
Table of Contents
Related Manuals for ADJ Vizi Spot 5R
Summary of Contents for ADJ Vizi Spot 5R
-
Page 1: Table Of Contents
Operating Modes...............42 DMX Traits.................44 Gobo Replacement..............52 Lamp & Fuse Replacement............53 Cleaning..............54 Trouble Shooting...............54 Warranty.................55 User Instructions Specifications..............56 Please see page 7 for important lamp instructions! Rev. 8/11 American DJ - www.americandj.com - Vizi Spot 5R Instruction Manual Page 2 ®... -
Page 2: Unpacking
The Vizi Spot 5R is a DMX intelligent, moving head fix- the electrical cord. This prong is used to reduce the risk of electrical ture. The Vizi Spot 5R can be a 11 channel or 13 channel DMX unit. The shock and fire in case of an internal short. -
Page 3: Features
Product Registration 1. The units will be shipped preset in 16 channel increments The Vizi Spot 5R carries a one year limited warranty. Please fill out the from the factory enclosed warranty card to validate your purchase. All returned service items whether under warranty or not, must be freight pre-paid and 2. -
Page 4: Important Discharge Lamp Warnings
Once 2300 hours is reached the LCD display will will begin to flash “LAMP”, The Vizi Spot 5R is fully operational in two different mounting posi- the DMX signal will shut off, and the fixture will go into hibernation status and will not move. -
Page 5: Controls And Functions
Insert the end in the carabine and tighten the safety screw. 10 11 12 13 American DJ - www.americandj.com - Vizi Spot 5R Instruction Manual Page 9 American DJ - www.americandj.com - Vizi Spot 5R Instruction Manual Page 10 ®... - Page 6 11. XLR Output Jack - This jack is used to transmit the incoming DMX signal to another DMX fixture, or transmit a Master/Slave signal to the next Vizi Spot 5R in the chain. For best results in DMX or Master/ American DJ - www.americandj.com - Vizi Spot 5R Instruction Manual Page 12...
-
Page 7: Dmx Set-Up
Operation): The Vizi Spot 5R can be controlled via DMX-512 protocol. (ADJ part number Z-DMX/T) will decrease the possibilities of erratic The Vizi Spot 5R can be either a 11 or 13 channel DMX unit. The DMX behavior. address is set electronically using the controls on the side panel of the unit. -
Page 8: System Menu
EDIT Edit program via controller CEDT ON/OFF RE.XX REC. Auto Save Program test ON/OFF American DJ - www.americandj.com - Vizi Spot 5R Instruction Manual Page 15 American DJ - www.americandj.com - Vizi Spot 5R Instruction Manual Page 16 ® ®... - Page 9 CLMP - Clears the lamp running time. DLAY - With this function you can put the lamp on a delay time. American DJ - www.americandj.com - Vizi Spot 5R Instruction Manual Page 17 American DJ - www.americandj.com - Vizi Spot 5R Instruction Manual Page 18 ®...
- Page 10 2. Tap the UP button until “TEST” is displayed, press ENTER. 3. The display will show “T-01”. You can now press the up American DJ - www.americandj.com - Vizi Spot 5R Instruction Manual Page 19 American DJ - www.americandj.com - Vizi Spot 5R Instruction Manual Page 20 ®...
- Page 11 2. Tap the UP button until “PLAY” is displayed, press ENTER. 1. Access the main menu. American DJ - www.americandj.com - Vizi Spot 5R Instruction Manual Page 21 American DJ - www.americandj.com - Vizi Spot 5R Instruction Manual Page 22 ®...
- Page 12 5. Press MODE/ESC to return to the main menu. 5. Press MODE/ESC to return to the main menu. American DJ - www.americandj.com - Vizi Spot 5R Instruction Manual Page 23 American DJ - www.americandj.com - Vizi Spot 5R Instruction Manual Page 24 ®...
- Page 13 - The internal microphone can be made more or less or “OFF” to deactivate this function. sensitive. American DJ - www.americandj.com - Vizi Spot 5R Instruction Manual Page 25 American DJ - www.americandj.com - Vizi Spot 5R Instruction Manual Page 26 ®...
- Page 14 3. Tap the UP button until “D ON” is displayed, press ENTER. 5. Press ENTER to confirm. American DJ - www.americandj.com - Vizi Spot 5R Instruction Manual Page 27 American DJ - www.americandj.com - Vizi Spot 5R Instruction Manual Page 28 ®...
- Page 15 DMX Contoller. or “OFF” to deactivate this function. American DJ - www.americandj.com - Vizi Spot 5R Instruction Manual Page 29 American DJ - www.americandj.com - Vizi Spot 5R Instruction Manual Page 30 ®...
- Page 16 The settings of the device. All settings will be set back to the American DJ - www.americandj.com - Vizi Spot 5R Instruction Manual Page 31 American DJ - www.americandj.com - Vizi Spot 5R Instruction Manual Page 32 ®...
- Page 17 2. Tap the UP button until “SPEC” is displayed, press ENTER. 3. Tap the UP button until “ADJU” is displayed, press ENTER. American DJ - www.americandj.com - Vizi Spot 5R Instruction Manual Page 33 American DJ - www.americandj.com - Vizi Spot 5R Instruction Manual Page 34 ®...
- Page 18 2. Tap the UP button until “EDIT” is displayed, press ENTER. - With this function you can run your pre-made pro- American DJ - www.americandj.com - Vizi Spot 5R Instruction Manual Page 35 American DJ - www.americandj.com - Vizi Spot 5R Instruction Manual Page 36 ®...
-
Page 19: Editing Program
12. Press ENTER to save the settings for the scene you are editing, the display will change to the next scene automatically. American DJ - www.americandj.com - Vizi Spot 5R Instruction Manual Page 37 American DJ - www.americandj.com - Vizi Spot 5R Instruction Manual Page 38 ®... -
Page 20: Error Codes
This message will appear after a fixture reset, if the tilt mag- netic-indexing circuit malfunctions (sensor failed or magnet is American DJ - www.americandj.com - Vizi Spot 5R Instruction Manual Page 39 American DJ - www.americandj.com - Vizi Spot 5R Instruction Manual Page 40 ®... -
Page 21: Operating Modes
IC drive on the main PCB). 1. The Vizi Spot 5R uses 11 or 13 DMX channels, depending on what mode you are in. See pages 44-51 for detailed description 09Er –... - Page 22 165 - 179 ROTATING GOBO 6 SHAKE 180 - 194 ROTATING GOBO 7 SHAKE American DJ - www.americandj.com - Vizi Spot 5R Instruction Manual Page 43 American DJ - www.americandj.com - Vizi Spot 5R Instruction Manual Page 44 ® ®...
- Page 23 INTERNAL PROGRAM 2 248 - 255 MACRO 16 140 - 159 INTERNAL PROGRAM 3 American DJ - www.americandj.com - Vizi Spot 5R Instruction Manual Page 45 American DJ - www.americandj.com - Vizi Spot 5R Instruction Manual Page 46 ® ®...
- Page 24 120 - 134 ROTATING GOBO 3 SHAKE 135 - 149 ROTATING GOBO 4 SHAKE American DJ - www.americandj.com - Vizi Spot 5R Instruction Manual Page 47 American DJ - www.americandj.com - Vizi Spot 5R Instruction Manual Page 48 ® ®...
- Page 25 GOBO MOTOR RESET 224 - 231 MACRO 13 94 - 96 SHUTTER/DIMMER MOTOR RESET American DJ - www.americandj.com - Vizi Spot 5R Instruction Manual Page 49 American DJ - www.americandj.com - Vizi Spot 5R Instruction Manual Page 50 ® ®...
-
Page 26: Gobo Replacement
7. Reassemble the unit. American DJ - www.americandj.com - Vizi Spot 5R Instruction Manual Page 51 American DJ - www.americandj.com - Vizi Spot 5R Instruction Manual Page 52 ®... -
Page 27: Lamp & Fuse Replacement
Using a flat-head screw driver unscrew the fuse holder. Remove the bad fuse and replace with a new one. American DJ - www.americandj.com - Vizi Spot 5R Instruction Manual Page 53 American DJ - www.americandj.com - Vizi Spot 5R Instruction Manual Page 54 ®... -
Page 28: Warranty
• American DJ L.E.D. Products = 3-year (1095 day) Limited Warranty (excluding motors which Tel: +31 45 546 85 00 / Fax: +31 45 546 85 99 have a 1-year (365 day Limited Warranty) DEBRANCHER LA SOURCE American DJ - www.americandj.com - Vizi Spot 5R Instruction Manual Page 55 ® PRINCIPALE AVANT L'ENTRETIEN...
