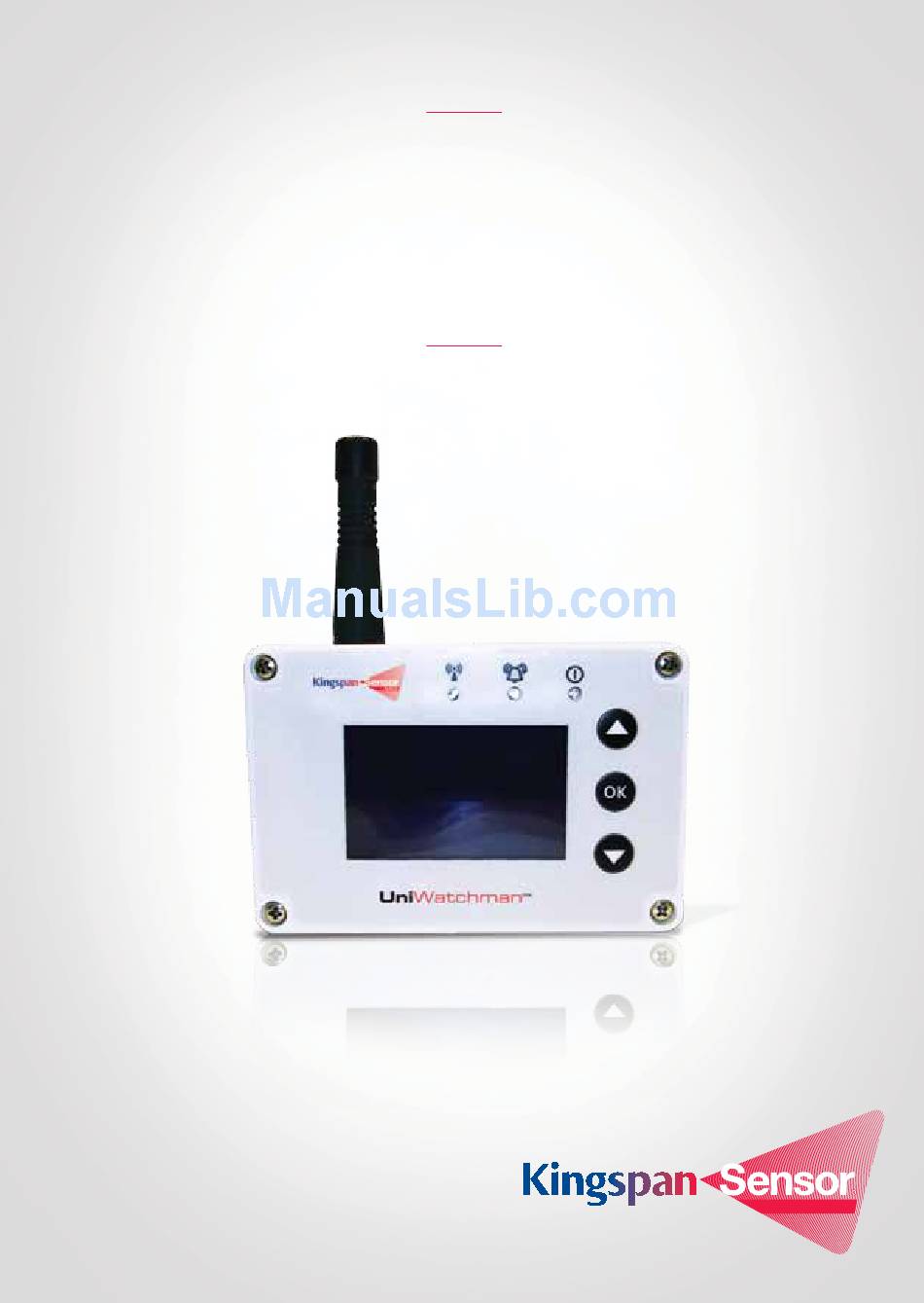

ENVIRONMENTAL MANAGEMENT SOLUTIONS KINGSPAN SENSOR UniWatchman User Guide Systems WE PUT OUR TELEMETRY SOLUTIONS TO WORK FOR YOU... -
Page 2: Table Of Contents
CONTENTS Introduction to UniWatchman List of compatible products Where to purchase Features Indicator and button descriptions Main screen indicators Set up Specification... -
Page 3: Features
UniWatchman User Guide MAIN FEATURES UniWatchman is a universal receiver for heating oil and waste oil level measurement. As a receiver it is compatible with the Sensor Watchman Level measurement using Leak alarm indication ultrasonic or 4-20mA sensor + audible notification... -
Page 4: Indicator And Button Descriptions
UniWatchman User Guide INDICATOR AND BUTTON DESCRIPTIONS FIRMWARE REVISION When powering up the unit, software version will be displayed Wireless data LED for 3 seconds. Indicates data transfer Alarm LED Blinks when alarm occurs Power LED 1. Main Screen On if the power is switched ON... -
Page 5: Set Up
UniWatchman User Guide Theft rate alarm No echo (wireless unit ) (only for WatchmanAlarm) or no connection (wired unit) (only for normal mode) When the level drop is detected (more than 3cm/2 hours) the ‘tank’ When the No Echo is detected the... - Page 8 UniWatchman User Guide 4. TERMINOLOGY 2.2 Relay1 Setup Tank height (single skin tank) Sonic height - height from the bottom of the –height from the bottom of the tank This option enables configuration tank to the top of the tank.
-
Page 9: Specification
UniWatchman User Guide SPECIFICATIONS 1. Electrical and 3. LEDs environmental specification Colour Function Action Operating temperature: Supply voltage: 9-12VDC 0˚C÷40˚C. (9V AC adapter included). Blue Data received from the transmitter “short blink” indicates radio frame received properly Relay’s max switching Max current consumption: current: 500mA. - Page 10 UniWatchman User Guide DIMENSIONS Systems 120.00...
- Page 11 Kingspan Environmental Ltd. Sensor Systems Team, 180 Gilford Road, Portadown, Co. Armagh, BT63 5LF tel: +44 (0) 28 3836 4413 fax: +44 (0) 28 3836 4445 sales@sensor-systems.com www.sensor-systems.com...
