Summary of Contents for Energer ENB468ROU

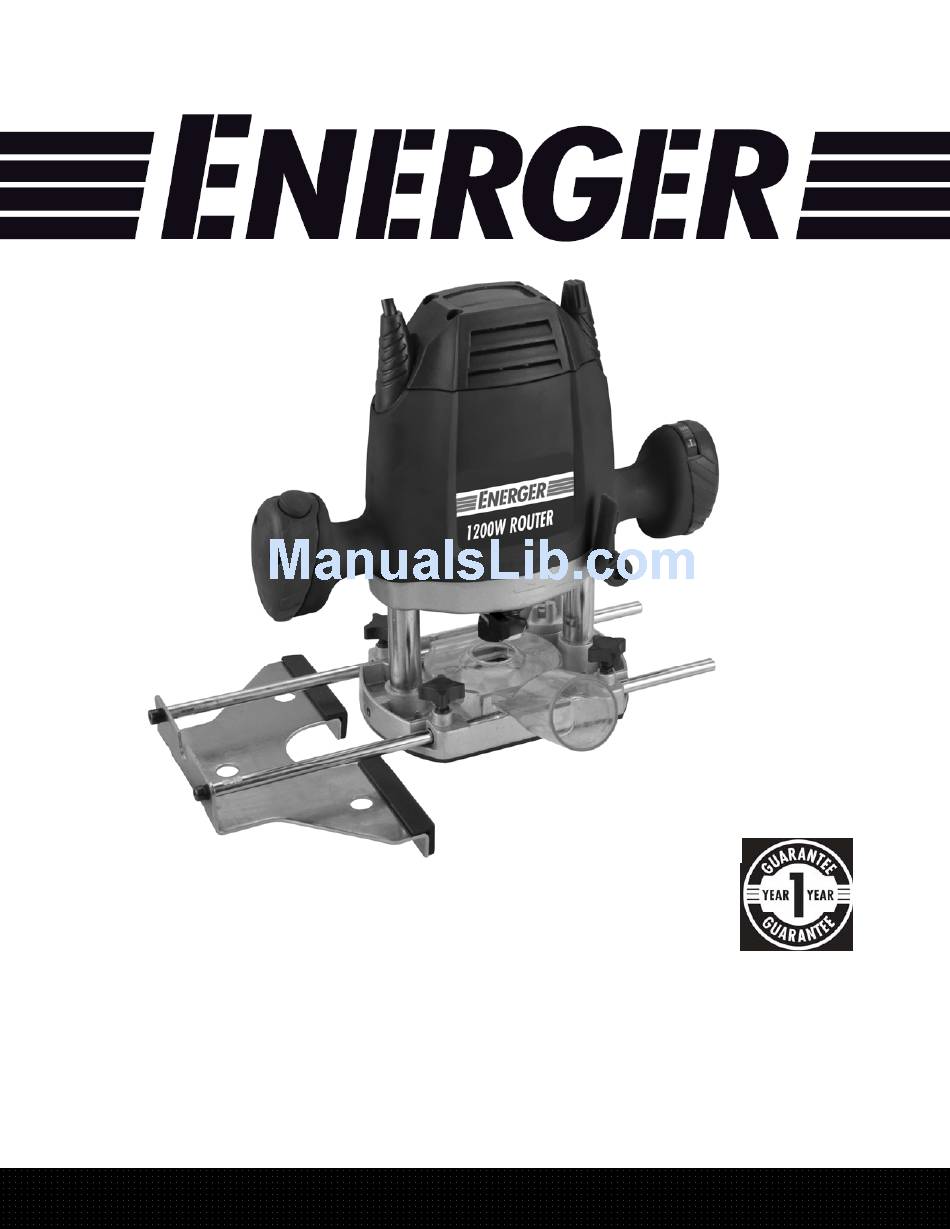

- Page 1 SAFETY AND OPERATING MANUAL Original Instructions 7.0 1200W ROUTER ENB468ROU...
- Page 2 Read all safety warnings and all instructions before use. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. 1200W ROUTER ENB468ROU...
-
Page 3: General Safety Instructions
Loose clothes, jewellery or long hair can get caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of these devices can reduce dust-related hazards 1200W ROUTER ENB468ROU... -
Page 4: Special Safety Instructions
15.The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and fly apart. 16.Always hold your tools by both hands. 1200W ROUTER ENB468ROU... - Page 5 Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well-ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles. 1200W ROUTER ENB468ROU...
-
Page 6: Noise Information
Identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time). 1200W ROUTER ENB468ROU... - Page 7 The router is designed for milling wood parts and material derived from wood , milling the edge or in the woods by using difference bits. With the exception of any other material which with risk of ignition, explosion or release of hazardous or dangerous to user and the environment. 1200W ROUTER ENB468ROU...
- Page 8 WARNING - To reduce the risk of injury, user must read the instruction manual Wear eye protection Wear ear protection Wear respiratory protection Wear safety gloves Double insulation Class Conforms to all relevant safety standards. yyWxx Manufacturing date code: Year of manufacturing (20yy) and week of manufacturing (Wxx); 1200W ROUTER ENB468ROU...
- Page 9 Variable speed knob Depth lock lever Guide lock knob Dust extraction adaptor Parallel guide fence Guide fence rods Main handles Depth gauge Depth gauge lock knob Adjustable turret depth stop Spindle lock button Centre pin Template guide Spanner 1200W ROUTER ENB468ROU...
-
Page 10: Technical Data
Warning! Use only routing tools with an allowable speed matching at least the highest no load speed of the machine. The shank diameter of the router bit must correspond with the rated diameter of the collet. 1200W ROUTER ENB468ROU... - Page 11 5. Tighten the collet nut with the spanner provided. Release the spindle lock button. CAUTION! Ensure the bit is firmly secured before commencing operation. Warning! Do not tighten the collet nut without a bit in place .It may break the collet. Fig.6 1200W ROUTER ENB468ROU...
- Page 12 Depth gauge lock knob. 8. Release the depth lock lever and guide the router back up again. The coarse adjustment of the cutting depth should be checked by a trial cut and corrected, if necessary. 1200W ROUTER ENB468ROU...
- Page 13 Adjust the variable speed knob to suit different working materials. The tool cuts quicker and smoother at varying speeds when working in different timber materials or in plastic. Fig.9 Determine the optimum speed by making a trial cut in a scrap piece of material. 1200W ROUTER ENB468ROU...
- Page 14 1. Assemble dust extraction adapter onto the base plate with screws provided. 2. Connect the vacuum cleaner (using a 35mm tube) to the dust extraction port with adaptor provided. The dust will be collected by the vacuum. 1200W ROUTER ENB468ROU...
- Page 15 2. Secure the guide fence rod to the router at the required length be rotating the parallel guide locking knob clockwise. Fig.13 1200W ROUTER ENB468ROU...
-
Page 16: Terms Of Use
Store the machine, operating instructions and where necessary the accessories in the original packaging. In this way you will always have all the information and parts ready to hand. Pack the device well or use the original packaging in order to avoid transit damage. Always keep the machine in dry place. 1200W ROUTER ENB468ROU... -
Page 17: Environmental Protection
GUARANTEE This ENERGER product carries a guarantee of 12 months. If your product develops a fault within this period, you should, in the first instance contact the retailer where the item was purchased. This guarantee specifically excludes losses caused due to:... -
Page 18: Plug Replacement
Note: If a moulded plug is fitted and has to be removed take great care in disposing of the plug and severed cable, it must be destroyed to prevent engaging into a socket. 1200W ROUTER ENB468ROU... - Page 19 EN 55014-1 EN 55014-2 EN 61000-3-2 EN 61000-3-3 EN60745-1 EN60745-2-17 Authorised Signatory and technical file holder Date : 07/09/2012 Signature:_________________ Name / title: Peter Harries / Quality Manager Powersmith (UK) LTD. Trade House , Mead Avenue ,BA22 8RT 1200W ROUTER ENB468ROU...
