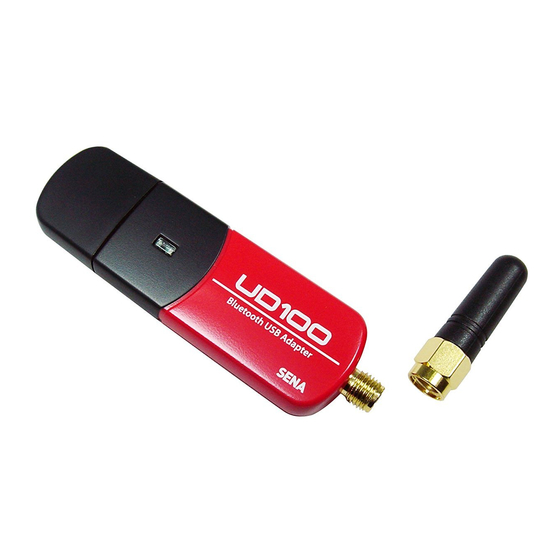

Bluetooth USB Adapter

Parani-UD100

User Guide

Version 1.0.0
2009-01-29
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Parani-UD100 and is the answer not in the manual?

Questions and answers

Related Manuals for Sena Parani-UD100

Summary of Contents for Sena Parani-UD100

  • Page 1: Bluetooth Usb Adapter

    Bluetooth USB Adapter Parani-UD100 User Guide Version 1.0.0 2009-01-29...
  • Page 2 The user agrees that protection against consequences resulting from system failure is the user's responsibility. This device is not approved for life-support or medical systems. Changes or modifications to this device not explicitly approved by Sena Technologies will void the user's authority to operate this device. Precautions and Safety Do not drop or subject the device to impact.

  • Page 3: Table Of Contents

    Contents 1. Introduction 1.1. Overview..........................4 1.2. Package Check List ......................4 1.3. Product Specification......................5 2. Installing the Bluetooth Software 3. Using the Bluetooth Adapter 3.1. Using Bluetooth Serial Port ....................10 3.2. Using Dial-up Network (DUN)....................15 Appendix A. Mechanical Drawing Appendix B.

  • Page 4: Introduction

    Bluetooth 2.0+EDR class 1 with working distance up to 300 meters. In addition, working distance can be further extended using optional dipole or patch antennas. Parani-UD100 supports USB 2.0 for the computer interface and can be used with Windows using Bluetooth stack driver included in the CD or MAC OS X using MAC OS X Bluetooth stack driver.

  • Page 5: Product Specification

    1.3. Product Specification Standards Bluetooth 2.0+EDR Class 1 USB 2.0 Max Transfer Rate 3 Mbps (EDR) Frequency Range 2.402 ~ 2.480GHz Transmit Output Power +19dBm (+6dBm EDR) E.I.R.P Receive Sensitivity Basic 1Mbps: -88 dBm EDR 2Mbps: -87dBm EDR 3Mbps: -82dBm Antenna Connector RP-SMA Antenna Gain...

  • Page 6: Installing The Bluetooth Software

    2. Installing the Bluetooth Software This chapter describes how to install and set up the Bluetooth software on your computer when you plug the Parani-UD100 to your computer for the first time. Before connecting the Parani-UD100, you must install the Bluetooth software. You should also uninstall any kind of Bluetooth driver or utility already installed on your computer such as Widcomm BTW or Toshiba, if any.
  • Page 7 Click the Install button to begin the installation. (Figure 2.3) During installation, you should plug in the Parani-UD100 to USB port. After plugging in it, click the OK button. (Figure 2.4) Figure 2.4: Plug in the Bluetooth device Figure 2.3: Ready to install...
  • Page 8 Installation is completed. Click the Finish button. Click the Yes button to restart your PC. Figure 2.6: restart your PC Figure 2.5: InstallShield wizard complete...

  • Page 9: Using The Bluetooth Adapter

    3. Using the Bluetooth Adapter This chapter describes how you can use Parani-UD100 to make use of SPP and DUN services. For more information on other Bluetooth services, please refer to the online Help provided by the Bluetooth Manager software. To open the Bluetooth Manager Help, please right-click on the Bluetooth Manager icon on the tray, and then click on “Help”...

  • Page 10: Using Bluetooth Serial Port

    3.1. Using Bluetooth Serial Port This section describes how to use the Bluetooth serial port. The Bluetooth Serial Port (SPP) provides a virtual serial port via Bluetooth. Any program that uses a standard serial port can use the Bluetooth serial port. A Bluetooth passkey (PIN code) is required for to connect to.
  • Page 11 Select the device name, and then click the “Next” button. (Figure 3.4) d. Select "Serial Port”, and then click the “Next” button (Figure 3.5) Figure 3.4: Select the Device Figure 3.5: Select “Serial Port”...
  • Page 12 e. Select a COM port to use, and click the “Next”button. (Figure 3.6) Click the “Next” button (Figure 3.7) Figure 3.6: Select a COM port Figure 3.7: COM port setting...
  • Page 13 g. Enter a connection Name and change an icon. (Figure 3.8) Click the “ Finish” button. (Figure 3.9) Figure 3.8: Enter a name and select an icon. Figure 3.9: Complete the Connection Wizard...
  • Page 14 Double-click the SPP connection icon just configured. (Figure 3.10) The connection is established successfully. You can use Bluetooth serial port. (Figure 3.11) To disconnect the connection, right-click on the connection icon. And then click “Disconnect” Figure 3.10: Connect SPP Figure 3.11: Complete the Connection...

  • Page 15: Using Dial-Up Network (Dun)

    3.2. Using Dial-up Network (DUN) This section describes how to connect to the Internet using a mobile telephone. You must have already signed up with a provider and obtained a connection ID and password. Please ensure you have confirmed the ID, password and telephone number of your provider's access point before you begin the set-up process.
  • Page 16 Select the device name of the mobile telephone, and then click the “Next” button. (Figure 3.14) d. Select "Dial-up Networking”, and then click the “Next” button (Figure 3.15) Figure 3.14: Select the Mobile Telephone Figure 3.15: Select the “Dial-up Networking”...
  • Page 17 e. If you are connecting to the wireless modem station for the first time, type the Bluetooth Passkey (PIN Code). And then click the “OK” button (Figure 3.16) Certain modems require you to configure initialization commands separately. Please refer to the modem or mobile phone instruction manual for further details on the initialization commands.
  • Page 18 g. Type your own telephone number, ID and password according to the arrangement with your provider. And then click the “Finish” button. The settings will be registered, and the connection icon will appear in the “Bluetooth Settings” window. (Figure 3.18) Start your network application, then the “Dial-up Connection”...

  • Page 19: Appendix A. Mechanical Drawing

    Appendix A. Mechanical Drawing...

  • Page 20: Appendix B. Warranty

    Product to perform specified functions, or any other non- conformance caused by or attributable to: (a) any misapplication or misuse of the Product; (b) failure of Customer to adhere to any of SENA’ s specifications or instructions; (c) neglect of, abuse of, or accident to, the Product;...

  • Page 21: Software Product Warranty Details

    WARRANTY PERIOD: SENA warranties software Product for a period of one (1) year. WARRANTY COVERAGE: SENA warranty will be limited to providing a software bug fix or a software patch, at a reasonable time after the user notifies SENA of software non-conformance.

  • Page 22: Appendix C. Contact Information

    Appendix C. Contact Information If you have any questions regarding the product, please contact your local dealer/distributor or contact us directly as contact information below: HANTZ + PARTNER Deutschland: Schweiz: Österreich: Tel.: 0761 / 59 21 00 Tel.: 061 / 27 311 - 31 Tel.: 01 / 58 55 430 The Upgrade Company! www.hantz.com Fax: 0761 / 58 52 28...
