- Page 1 RBG-15S/RBG-18S OWNER’S MANUAL SERIES...
- Page 2 This project has been a culmination of years of development involving a team of dreamers, engineers, designers and marketing gurus. Proudly conceived and developed in the USA, Rockville pro audio speakers are designed and engineered by a team of music enthusiasts, DJ’s and musicians.
-
Page 3: Specifications
• Durable black carpet with black metal corners • 7-layer Birch 5/8” plywood baffle board construction • Dimensions: RBG-15S - 23.25” x 20.75” x 19.75” / RBG-18S - 26.5” x 12.25” x 24.25” • Weight: RBG-15S - 73Lbs / RBG-18S - 84Lbs... -
Page 4: Important Safety Instructions
DO NOT OPEN • To reduce risk of electric shock, never open the unit. There are no user serviceable parts, refer service to an authorized Rockville service center. • Do not expose this unit to any kind of moisture. •... - Page 5 BASS GIG Balanced vs Unbalanced Lines A balanced line is a three-conductor system in which two signal wires carry an equal, but opposite voltage with respect to the ground wire. The ground wire acts only as a shield and does not carry any audio signal current. Outside interference is either shielded from the internal signal conductor, or if it gets into the cable is cancelled out by the opposite signals at the receiving end.
- Page 6 TREBLE TREBLE MASTER MASTER LINE IN POWE R LIMI T POWE R LIMI T LINE OUT BAL LINE OUT BAL 230V 115V 230V 115V 230V 230V Rockville RPG-15 AC230V/1 15V 60Hz/50H z AC230V/1 15V 60Hz/50H z T3.15A 250V T3.15A 250V...
- Page 7 BASS GIG Subwoofer Placement & Time Alignment Different venues will require you to place your Bass Gig unit in different locations. If your subwoofer is set too far away from the main speakers a time anomaly occurs making the bass seems out of alignment with the speakers. When set up near your front supporting speakers the time alignment of the subwoofers and the speakers will be in near alignment so you should set your Bass Gig Polarity set- ting to 0 degrees.

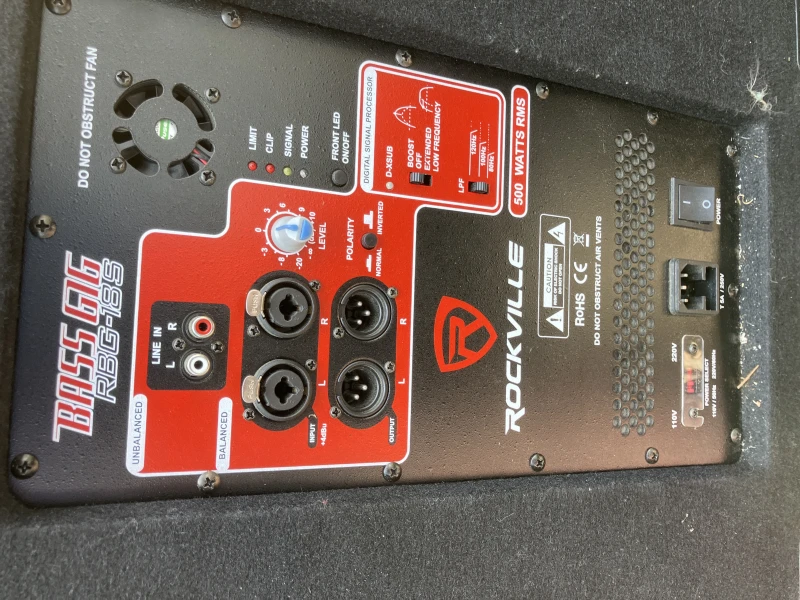

- Page 9 BASS GIG 1. The Level knob is used to regulate the output level of the subwoofer. It allows you to set the balance between the speakers and subwoofers. 2. Full Range XLR/TRS 1/4" combo input will accept line input signal from any lin level device with a balanced output jack.
-
Page 10: Troubleshooting
Trouble Shooting UNIT FAILS TO POWER UP. 1. Make sure unit is plugged in properly to wall outlet. 2. Check that power cable is plugged in tightly to unit. 3. If people or equipment tend to step and roll over or stretch your power cable it can get damaged. -
Page 11: Federal Communications Commission Compliance Information
BASS GIG FEDERAL COMMUNICATIONS COMMISSION COMPLIANCE INFORMATION Responsible party name: Rockville Address: 333 Pearsall Ave. Cedarhurst, NY 11096 Hereby declares that the product(s) Power Gig series Bluetooth pro audio speakers com- ply with FCC rules as mentioned in the following paragraph: This device complies with Part 15 of the FCC rules. - Page 12 © 2013 ROCKVILLE // Features and specifications are subject to change and or improvement without notice.
