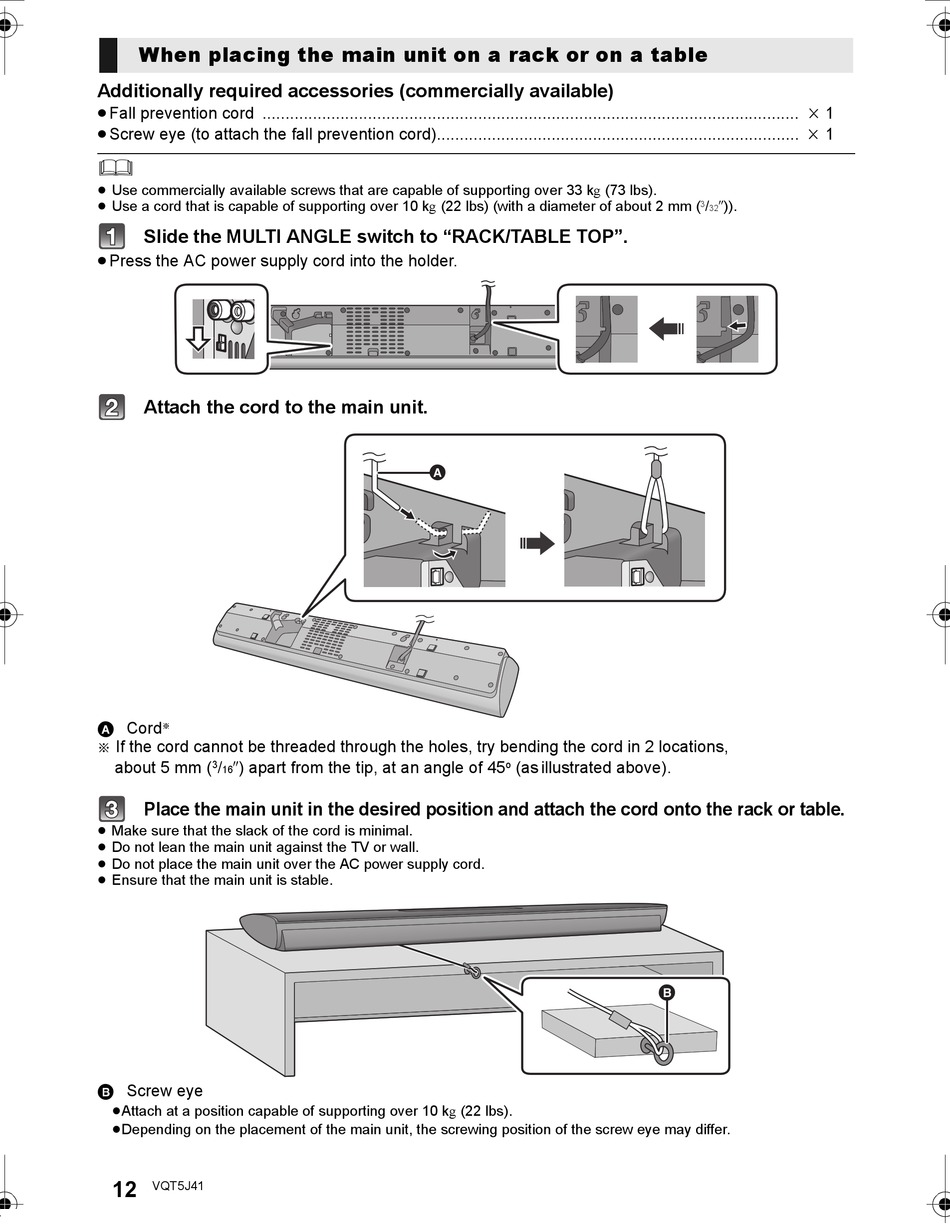

When placing the main unit on a rack or on a table

Additionally required accessories (commercially available)
≥Fall prevention cord ..................................................................................................................... k 1
≥Screw eye (to attach the fall prevention cord)............................................................................... k 1
≥ Use commercially available screws that are capable of supporting over 33 kg (73 lbs).
≥ Use a cord that is capable of supporting over 10 kg (22 lbs) (with a diameter of about 2 mm (
Slide the MULTI ANGLE switch to "RACK/TABLE TOP".
≥Press the AC power supply cord into the holder.
Attach the cord to the main unit.
A Cord
§
§ If the cord cannot be threaded through the holes, try bending the cord in 2 locations,
about 5 mm ( / q) apart from the tip, at an angle of 45
3
16
Place the main unit in the desired position and attach the cord onto the rack or table.
≥ Make sure that the slack of the cord is minimal.
≥ Do not lean the main unit against the TV or wall.
≥ Do not place the main unit over the AC power supply cord.
≥ Ensure that the main unit is stable.
B Screw eye
≥Attach at a position capable of supporting over 10 kg (22 lbs).
≥Depending on the placement of the main unit, the screwing position of the screw eye may differ.
12
VQT5J41

(as illustrated above).
o
/
3 q)).
