innovative technology
ITNS-500

User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ITNS-500 and is the answer not in the manual?

Questions and answers

Darla Rice
March 31, 2025

I purchased the ITNS 500 years ago after the death of my Dad. I never opened it until today and found that the software requires a CD rom drive. But now I do not have a PC with a CD drive is there another way to receive the software?

User image 67e9de9b6ddca
0
Darla Rice
March 31, 2025

Is there another option for software other than the CD?

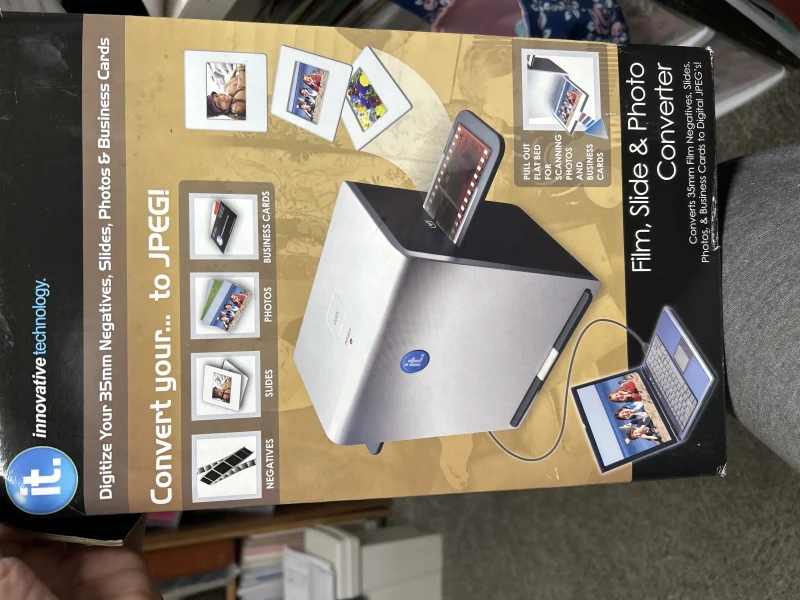

User image 67e9df098a995
0
1 comments:
Mr. Anderson
March 31, 2025

No, based on the provided information, the only software option mentioned for the Innovative Technology ITNS-500 is the installation CD.

This answer is automatically generated

0

Related Manuals for Innovative Technology ITNS-500

Summary of Contents for Innovative Technology ITNS-500

  • Page 1: User Manual

    ITNS-500 User Manual...
  • Page 3 Make sure all negative films, slide films, cover trays and photos are free of dust and dirt before inserting into the ITNS-500 as this may affect the image quality when scanning. When cleaning films, please use a professionally recommended purger from a...
  • Page 4 II. Driver Installation scanner Installation To use the ITNS-500, please complete the following installation in advance. 1. Turn on the computer 2. Insert the installation CD into the CD-ROM drive and the installation CD menu will appear 3. Click the “Installation” button to begin.
  • Page 5 6. Follow the on-screen instructions for installtion. (XP, Vista/Windows7)
  • Page 9 7. After completing software installation, please connect ITNS-500 to PC. The New Hardware Wizard will detect a new device.
  • Page 10 8. Select “Yes” in XP or “Locate and install driver software (recommended)” in Vista/Windows7 OS. Film and Photo Scanner Film and Photo Scanner...
  • Page 11 9. After completing the installation, the film-scanner is ready to start with “ Image scan Tool” under program files. (WindowsXP/Vista/Windows7,) It is recommended (but not required) to restart your PC after installation or un-installation. III. Using the ITNS-500 Copy button Power status LED Film/Slide...
  • Page 12 Installing film into the film holder Install slide Film into the holder entitled “Slides Only” 1. Open the slide holder as illustrated 2. Place slide in recessed slot in holder 3. Close the film holder -10-...
  • Page 13 Install Negative Film into the holder entitled “Negative Film Only”: 1. Open the film holder as illustrated 2. Install film into negative film slot 3. Close the film holder -11-...
  • Page 14 Note To avoid a mirror image, follow the serial numbers (from left to right) on top of film when installing negative film into holder. Figure 1 If the image is upside down [see fig.2], the image can be corrected by ”Rotate”...
  • Page 15 How to use ITNS-500 Scanning Film/Slide 1. Put Film into film holder 2. Insert the film/slide backlight holder at the rear side of the ITNS-500 unit. 3. Plug in your USB cable to your PC with another side on the ITNS-500 unit. -13-...
  • Page 16 4. Insert the film holder into the right side of the ITNS-500 unit Image Scan Tool 5. Click “ ” PC program to enter operation interface as below. The PC program will go into Film/Slide Mode automatically. -14-...
  • Page 17 Scanning Photo 1. Remove the film / slide holder as well as the back-light holder from the ITNS-500 unit if either one is attached. Remove film /slide holder by sliding Remove back-light holder by pressing the holder to the left hand side.
  • Page 18 4. Insert the photo holder into the photo slot of the ITNS-500 unit. 5. Click “Image Scan Tool” PC program to enter operation interface as shown below. The program will go into Picture Mode automatically. -16-...
  • Page 19 3.Put the Business Card fixture on the top of Photo Holder. 4.Insert the entire photo holder with the business card fixture into the photo slot of the ITNS-500 unit,and select "BizCard" mode from the "Image Scan Tool". -17-...
  • Page 20 5. Press the “Copy” button or press the “Snap Shot” button in the PC program to capture the image 6. Process necessary modification by function buttons on right hand side -18-...
  • Page 21 7. Save captured images to PC 8. Get fimal images from PC for further review and editing -19-...
  • Page 22 User interface introduction Film/Slide Mode Picture Mode Image scan Tool will auto select operating mode (Film/Side Mode & Photo Mode) automatically by detecting if the backlight holder has been attached. If backlight holder is attached, it will go into Film/Slide Mode and vice versa.
  • Page 23 If the device processes a slide, the “Live View” will show a color image and the FilmType will remain the same. This is the live view under black and white negative option. -21-...
  • Page 24 User can convert images from traditional film to digital either by the “Snap Shot” button in Image scan Tool or the button on top of filmscanner. Then, the capture result will appear in the “Snap Shot” and “Final images to save” window.
  • Page 25 Apply the Mirror function by pressing the “Mirror” icon, that will flip the image and be shown in the “Snap Shot” window as well as the “Final images to Save”window. Or apply the Rotate function by pressing “Rotate” button, the image will be rotated 90 degrees each time.
  • Page 26 If the user wishes to delete a specific image from the capture pool, simply click the image under “Final image to save” again, then the selected image can be deleted by applying the “Delete” button. After modification, user can save images to the default location at “C:\Documents and Settings\Users\My Documents\My Pictures”.
  • Page 27 Or define preferable location for saving captured images by pressing the directory button. Another window will pop out for user to select required location. Once the “Save” key is pressed all of the captured images will be saved into defined location. The “final image” saving window shall be empty after pressing the “Save”...
  • Page 28 ITNS-500 Scanner Calibration When you found your ITNS-500 couldn't get a sharp image, you need to run the “Scanner Calibration” program to adjust the focus of the scanner. Launch the “Scanner Calibration” program from Window's Start Menu → ( →...
  • Page 29 You can drag the slide bar or type in the value for either Film or Photo position in order to obtain a clear image “ Click Save to EERPOM” to save the setting If you lost “ the setting please use 1023”...
  • Page 30 IV. Specification Image Sensor: 5 mega CMOS sensor Lens: F no.=2.0, 4 Glass elements, Focus Range: 2x Predefined Focuses Exposure Control: Automatic Color Balance Automatic Scan Quality 1,800 dpi /3600 dpi (SW interpolation) Data Conversion 10 bits per color channel Scan Method Single pass Light Source...
  • Page 31 V. Cleaning the ITNS-500 Cleaning the backlight holder Detach the backlight holder from the ITNS-500 unit. Using the provided clean brush or a clean, dry, nonalcohol cotton swab to clean the glass surface periodically to produce a clear image during operation.
  • Page 32 06 The InstallShield Wizard will show the message of “InstallShield Wizard Completed once the driver installed ready 07 Connect ITNS-500 to your PC the PC will complete the device driver installation and confirm driver installed successfully -31-...
  • Page 33 Film and Photo Scanner Question 3. Came up the error message “Cannot Install This Hardware” or “ Can not find camera. Please connect your manufacturer” or “Acquire Source Failed…Restart DSM” Film and Photo scanner -32-...
  • Page 34 Solution 01.Check your USB cable to make sure it is well connected to your PC and your device. 02.Check your PC to verify if your Windows OS is 32 bit or 64 bit. Make sure you did not install the wrong version of the driver. 03.
  • Page 35 b. or Using the tool in device manager (1) Open Device Manager. Windows XP → → → → → Open Start Setting Control Panel System Hardware Device Manager Windows Vista → → → Open Start Control Panel System Device Manager Wondows 7 →...
  • Page 36 04. Re install proper driver version again. -35-...
  • Page 37 Question 4 If you can t uninstall the driver or came up the error “ message Can t find the device you may plug in the device and try again.” or “Failed to uninstall the device. The device may be required to boot up the computer.”...
  • Page 38 Question 6 You can t see the pre view image from ITNS 500 application ’ when you have re installed driver and device status is completed Film and Photo Scanner Image scan Tool Reason: Devices confliction. (Such as USB cameras or devices.) -37-...
  • Page 39 Solution 01. Disable the other imaging devices by using bundled program in standard package first or disable it by the option under Imaging device when press right button of mouse. 02. Re start ITNS 500 application again. Question 7. Come up the error message “General failure in transfer bad info header info.
  • Page 40 01 Open Device Manager. Windows XP → → → → → Open Start Setting Control Panel System Hardware Device Manager Windows Vista → → → Open Start Control Panel System Device Manager Windows 7 → → → → Open Start Control Panel System and Security System Device Manager 02 Your computer must with a USB 2.0 Controller in Universal Serial Bus controllers.
  • Page 41 1 Channel Drive,...
  • Page 42 Instructions shall caution users that modifications not approved by the party responsible for compliance could void user's authority to operate the equipment. The following or equivalent as appropriate: “NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 44 Driver Revision: 1.0_0...
